24V Waterproof LED Transformer, 90–140V Input, 200W–500W, Single/Dual Wire Output, CE/RoHS/FCC — US Plug & Wire Leads, Outdoor Lighting Adapter

24V Waterproof LED Transformer, 90–140V Input, 200W–500W, Single/Dual Wire Output, CE/RoHS/FCC — US Plug & Wire Leads, Outdoor Lighting Adapter

Package Included

Version	Package Included
200W Single Wire US Plug	1 × 200W Waterproof LED Transformer, User Manual
200W Single Wire Wire Leads (3-core)	1 × 200W Waterproof LED Transformer, User Manual
200W Dual Wire US Plug	1 × 200W Waterproof LED Transformer, User Manual
200W Dual Wire Wire Leads (3-core)	1 × 200W Waterproof LED Transformer, User Manual

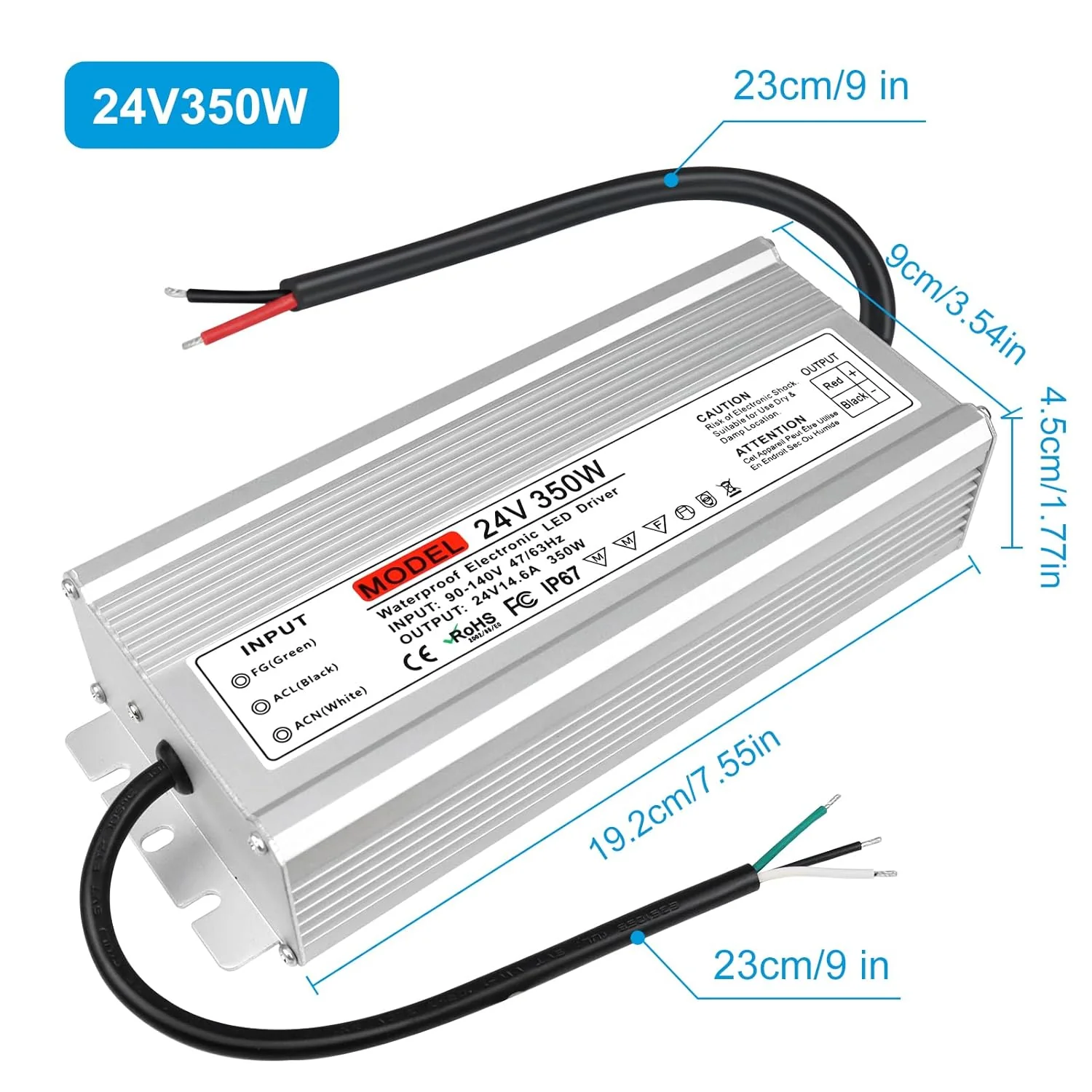

350W Single Wire US Plug	1 × 350W Waterproof LED Transformer, User Manual
350W Single Wire Wire Leads (3-core)	1 × 350W Waterproof LED Transformer, User Manual
350W Dual Wire US Plug	1 × 350W Waterproof LED Transformer, User Manual
350W Dual Wire Wire Leads (3-core)	1 × 350W Waterproof LED Transformer, User Manual

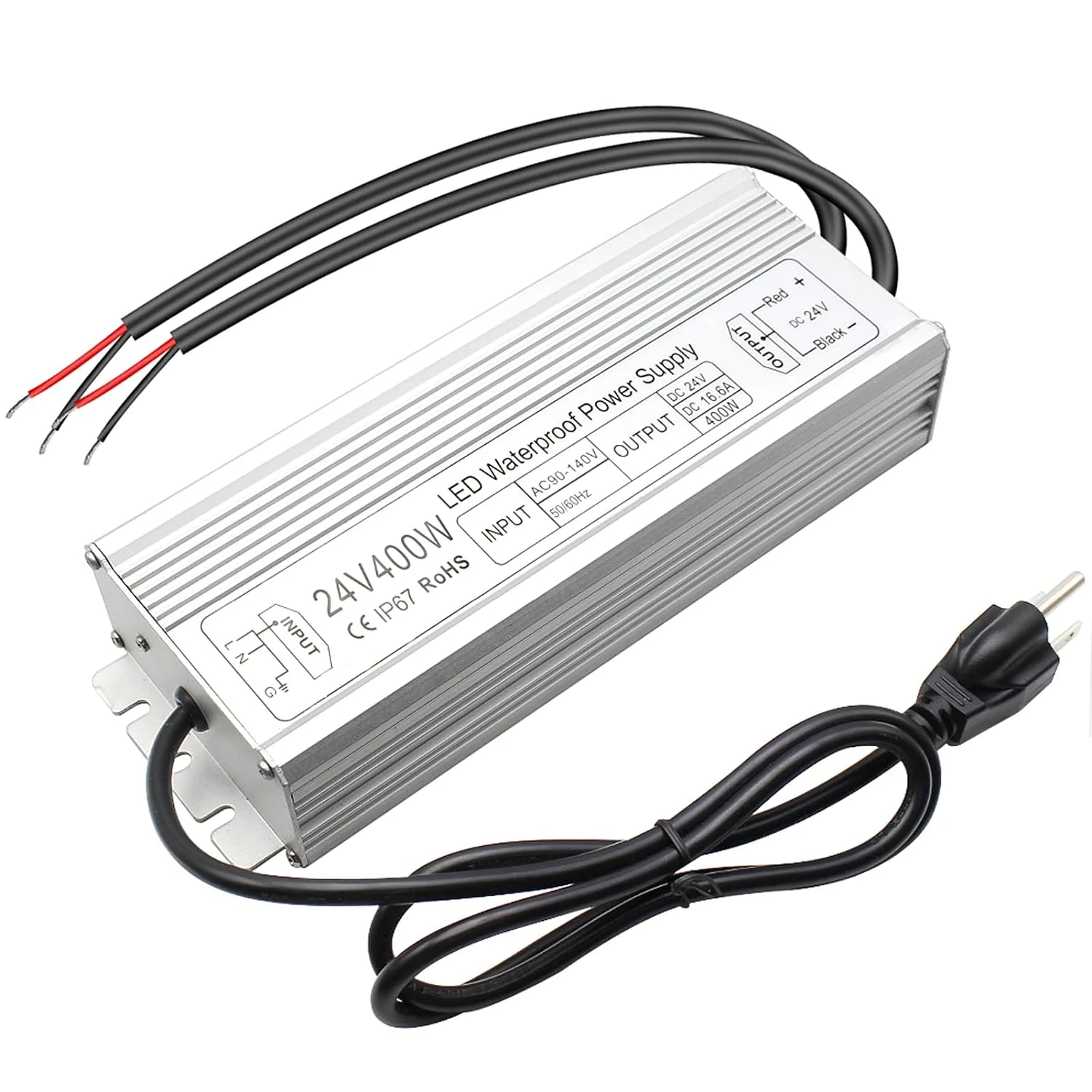

400W Single Wire US Plug	1 × 400W Waterproof LED Transformer, User Manual
400W Single Wire Wire Leads (3-core)	1 × 400W Waterproof LED Transformer, User Manual
400W Dual Wire US Plug	1 × 400W Waterproof LED Transformer, User Manual
400W Dual Wire Wire Leads (3-core)	1 × 400W Waterproof LED Transformer, User Manual

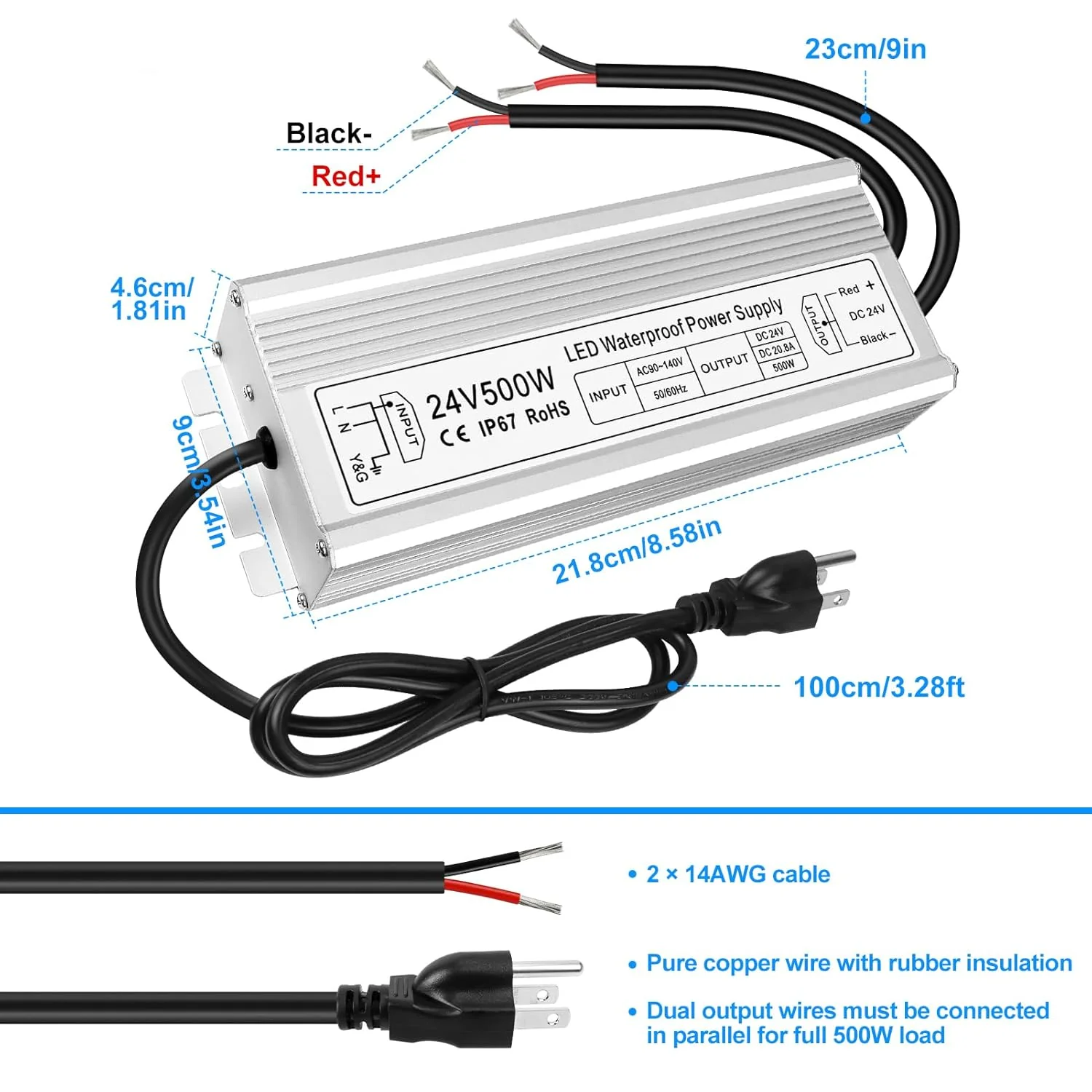

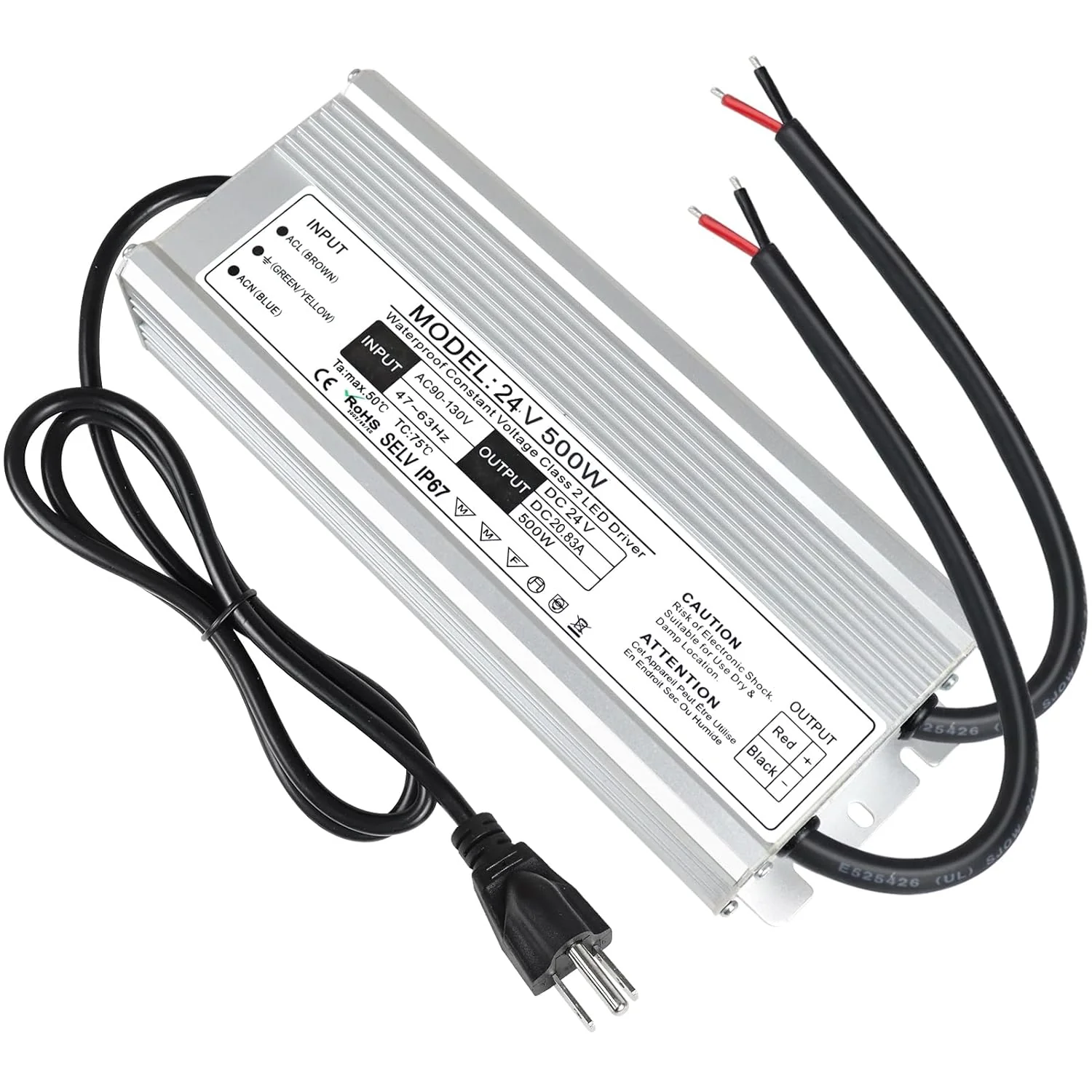

500W Dual Wire US Plug	1 × 500W Waterproof LED Transformer, User Manual
500W Dual Wire Wire Leads (3-core)	1 × 500W Waterproof LED Transformer, User Manual

About this item

• Model: 24V LED Driver, Input: 90–140V AC, 50–60Hz; Output: 24V DC / 200W–500W

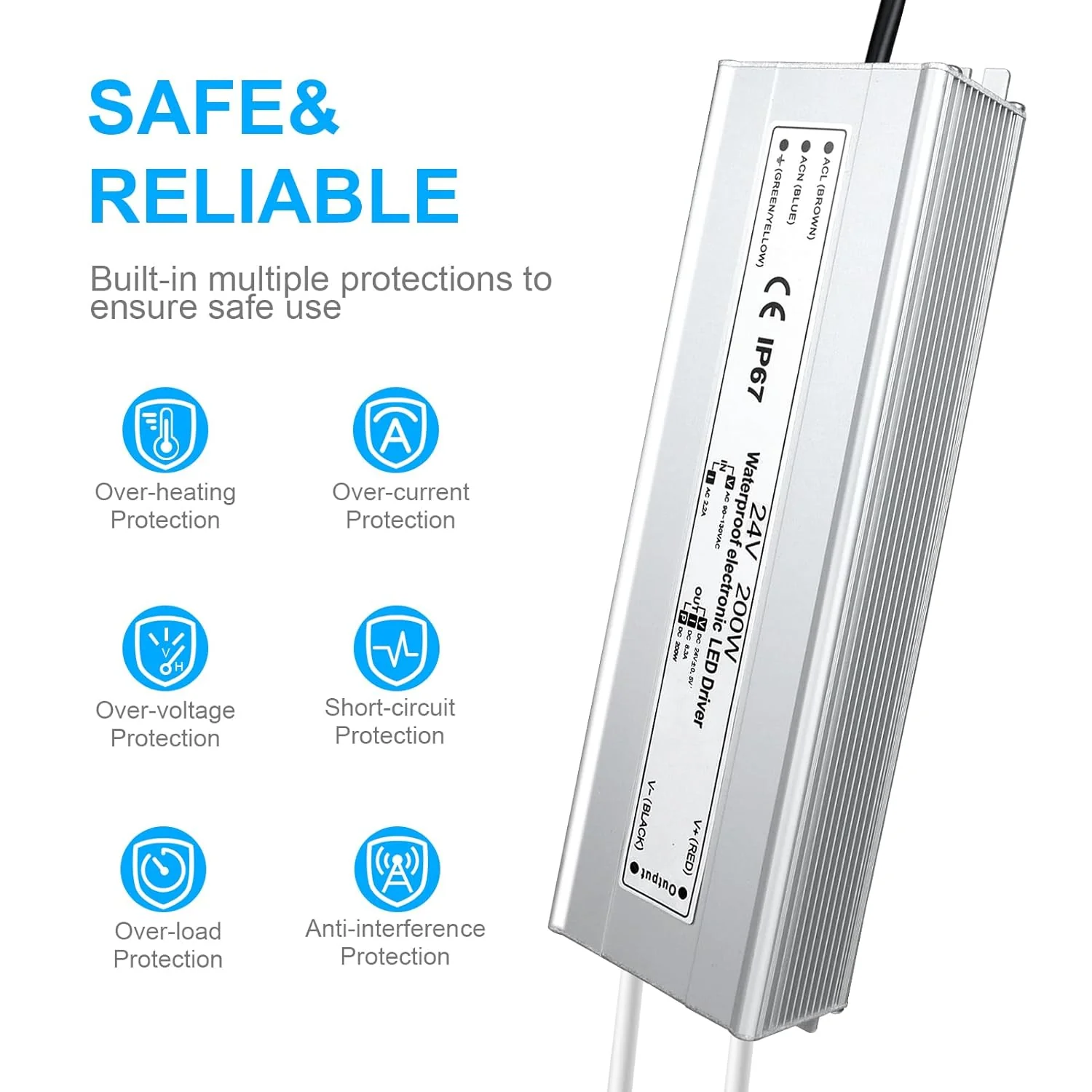

• Automatic protection for short circuit, overload, over-voltage, over-current, and high temperature (Hiccup mode, auto-recovery)

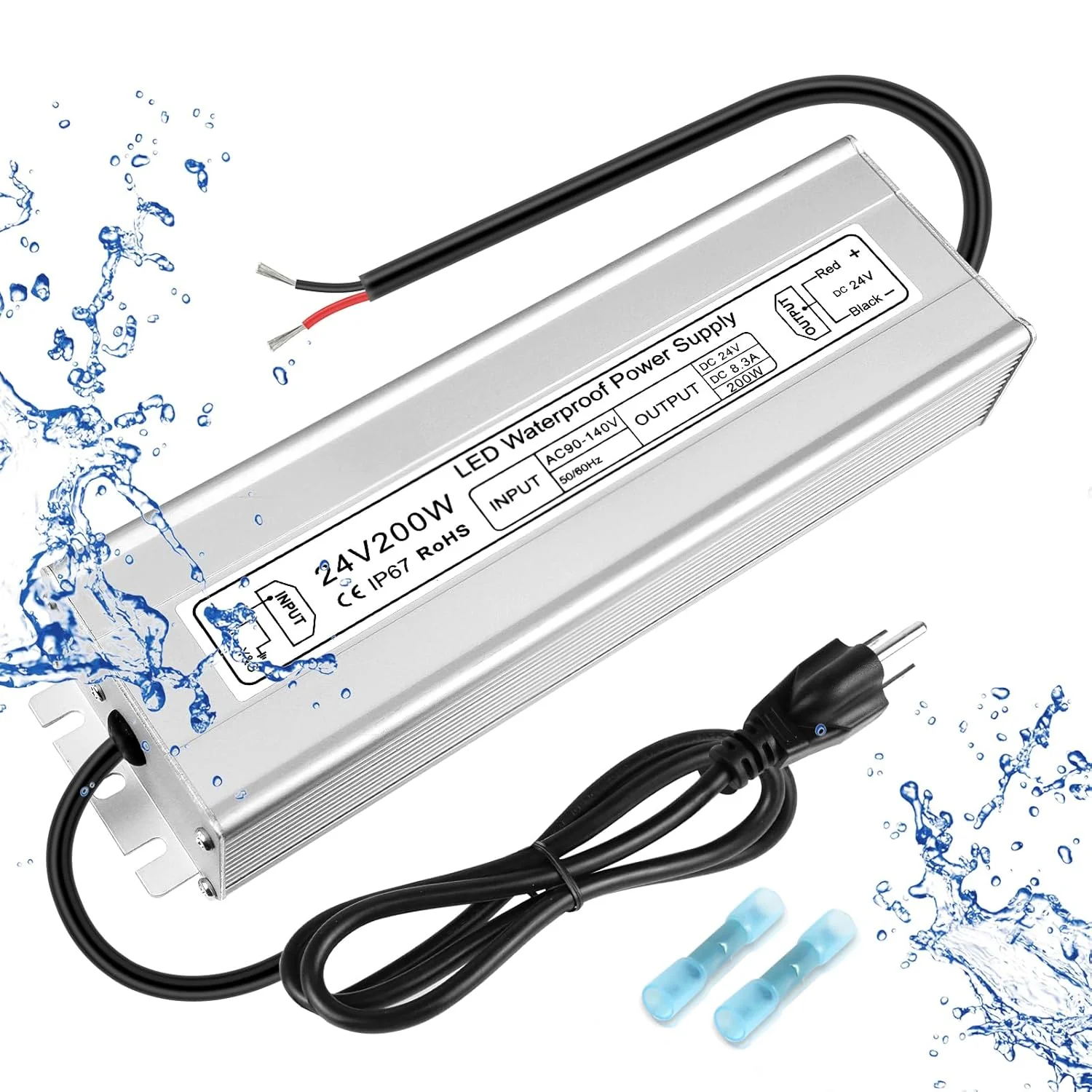

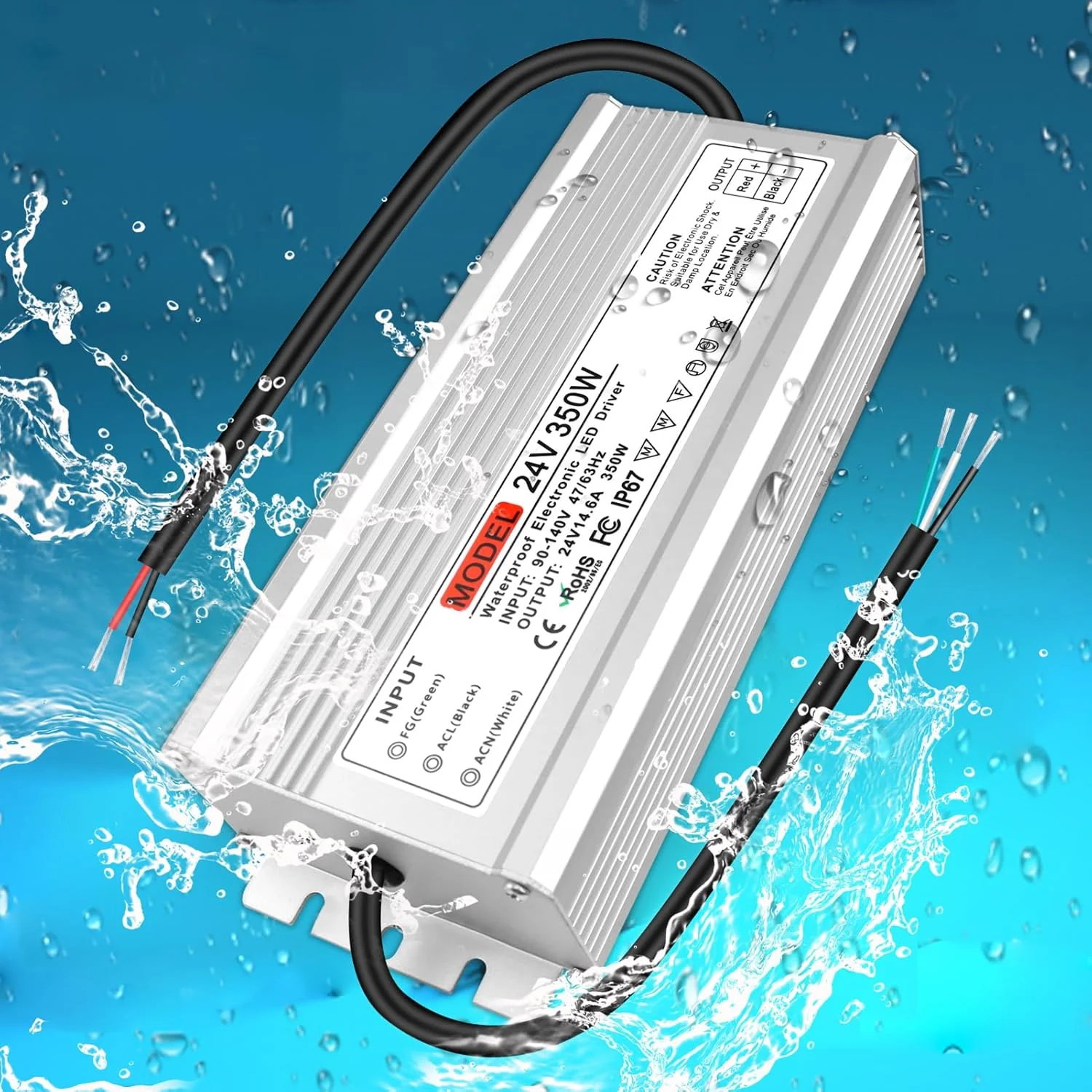

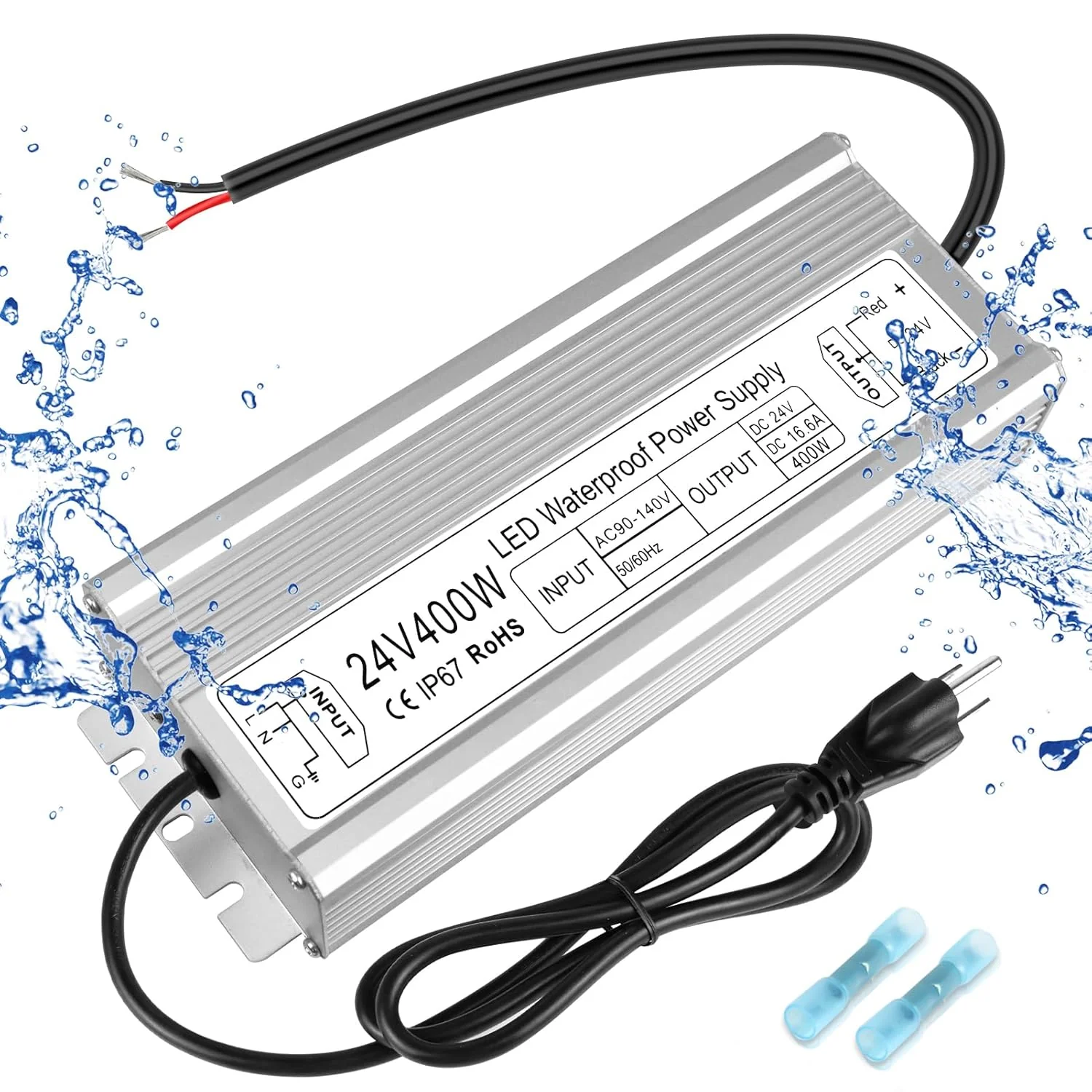

• 100% Waterproof IP67 protection; aluminum alloy housing ensures heat dissipation and stability for outdoor use
• Converts AC to stable DC output, widely used for LED strip lights, LED bulbs, outdoor lighting, and other 24V DC LED devices
• High-quality construction; dedicated seller support available

Order & Logistics

• Lead Time: Ships within 1–3 business days
• Packing: Protective cardboard box with user manual
• Ships from local warehouses (US, Canada, UK, Germany) with delivery in 3–7 days. In rare cases, shipment may be fulfilled from central warehouse if local stock is unavailable(9–18 days standard or 5–9 days express.)

Key Specifications

• Input Voltage: 90–140V AC, 50–60Hz
• Output Voltage / Wattage: 24V DC / 200W–500W
• Package Qty: 1-Pack
• Housing: Aluminum Alloy, Waterproof IP67

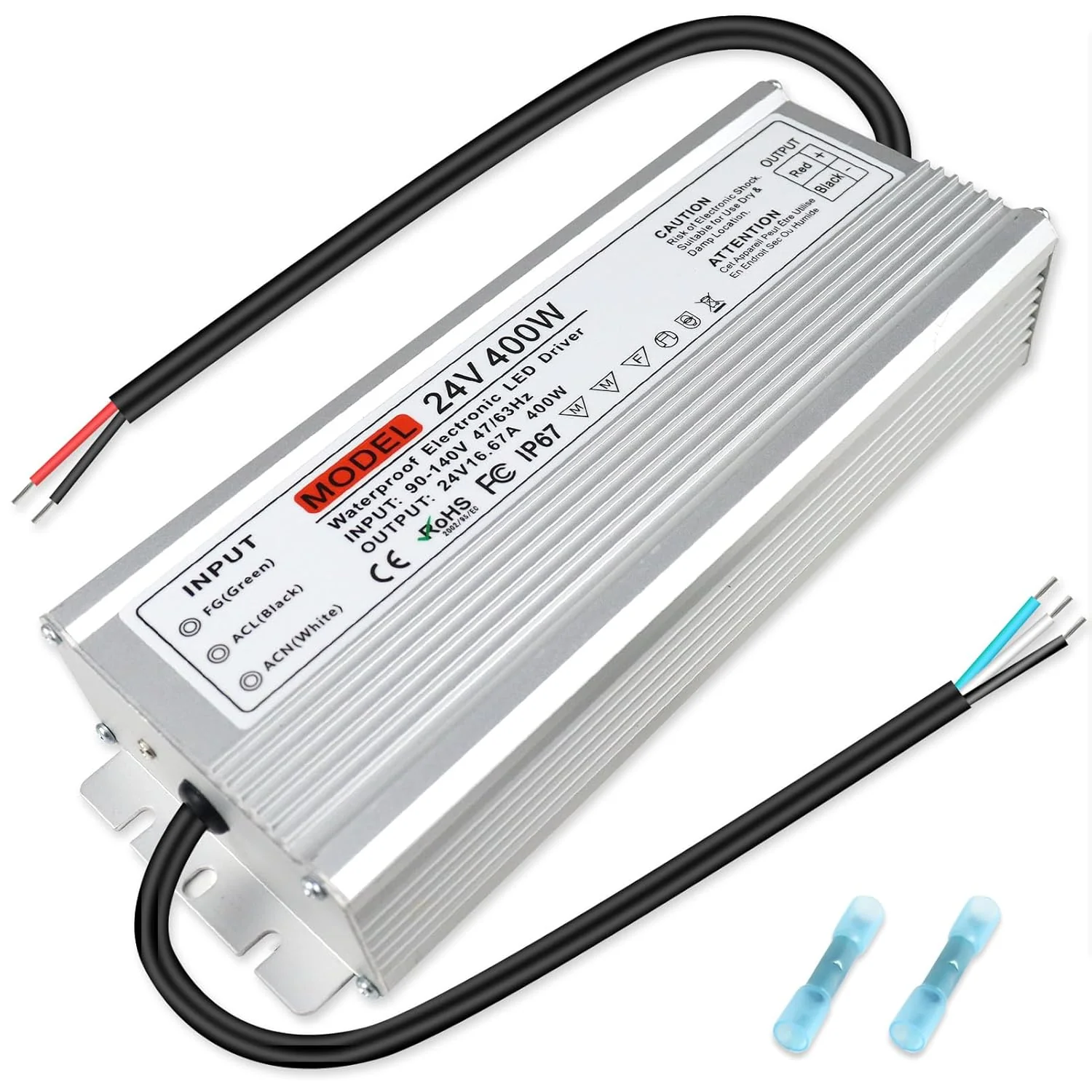

• Connector: Single / Dual Wire Output
• Protection: Short circuit, overload, over-voltage, over-current, high temperature (Hiccup mode, auto-recovery)

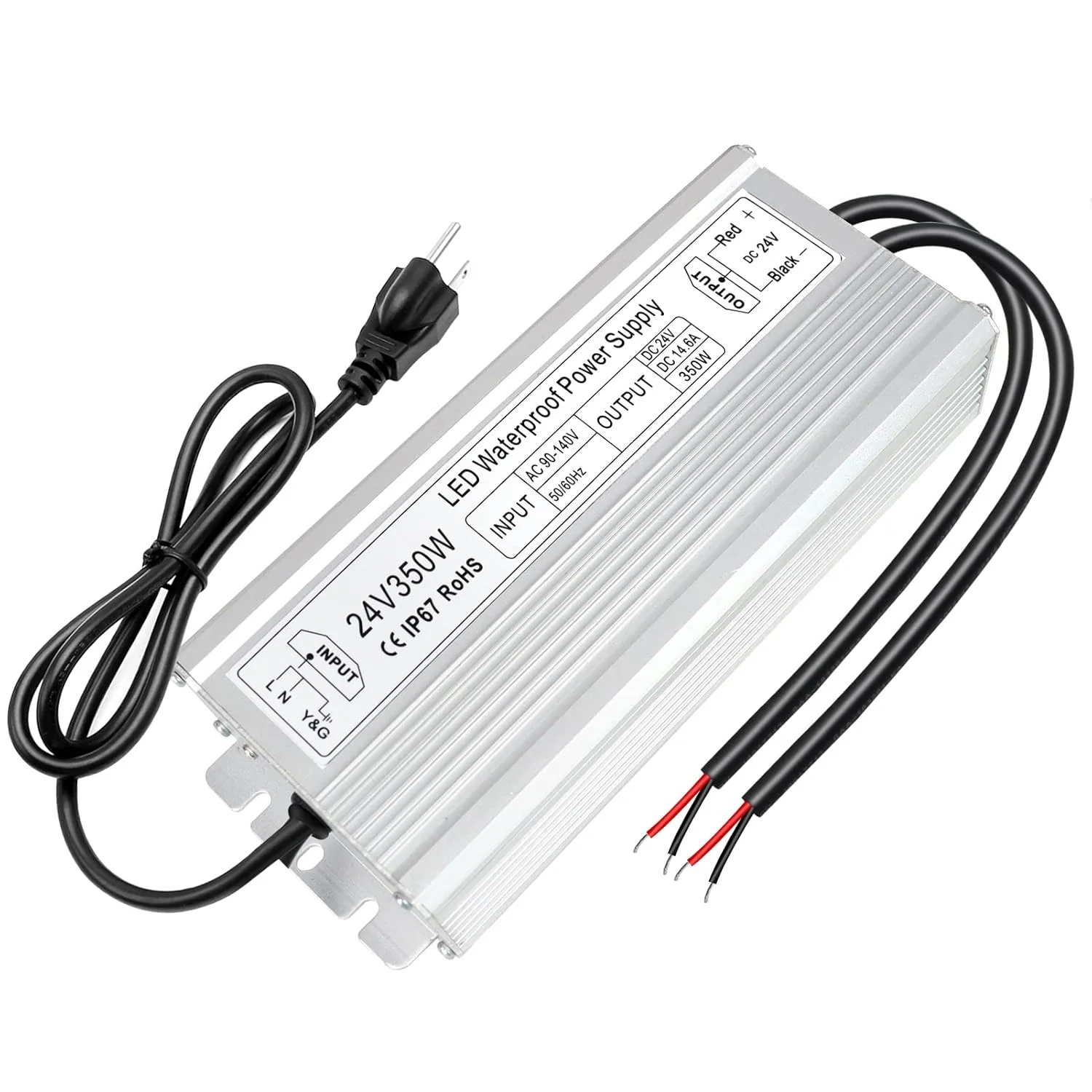

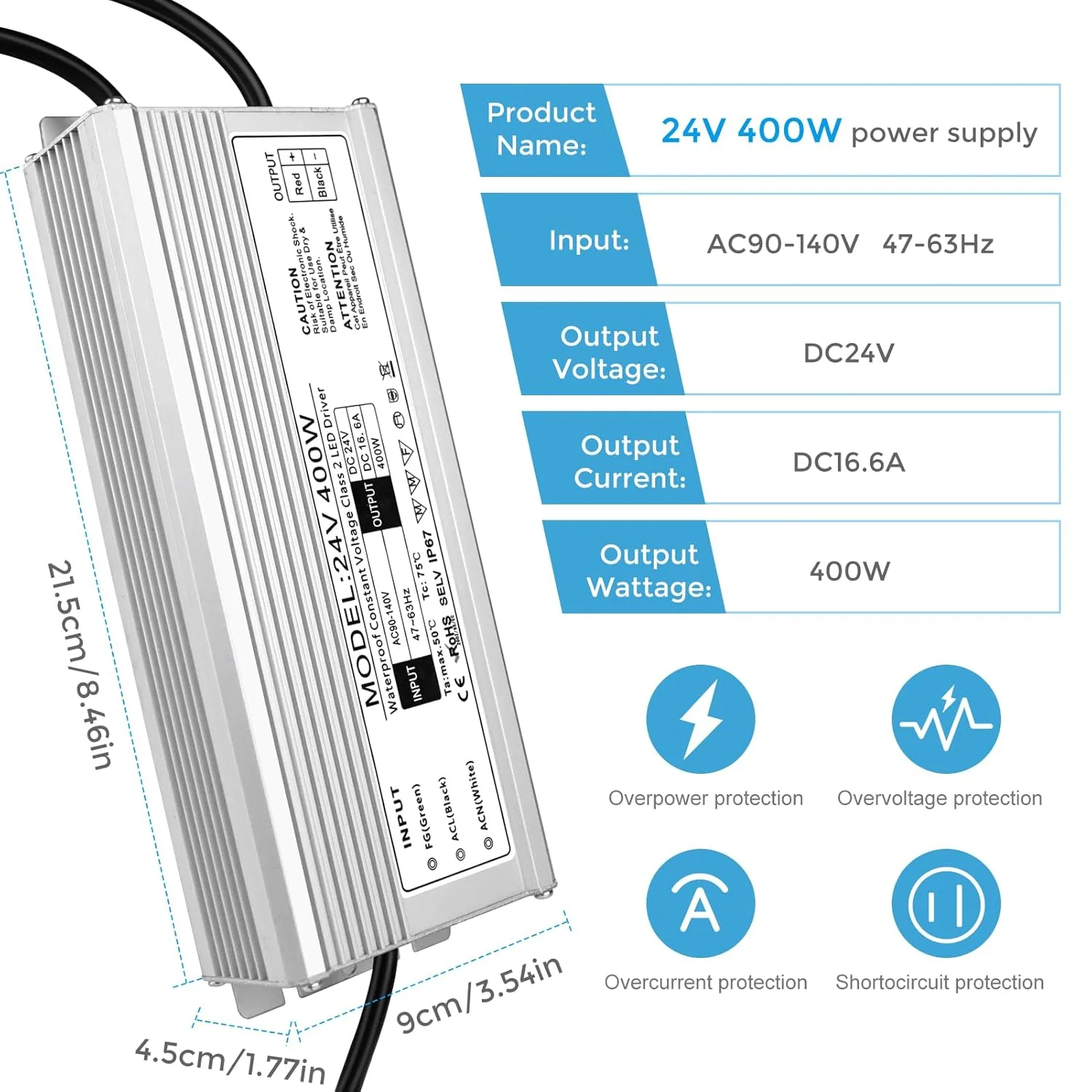

Model	PFH-200-24	PFH-350-24	PFH-400-24	PFH-500-24
Input voltage range	90–140V AC	110V AC	90–140V AC	110V AC
Output power	200W	350W	400W	500W
Rated output voltage	24V DC	24V DC	24V DC	24V DC
Rated output current	8.33A	14.6A	16.6A	20.8A
Output current range	0–8.33A	0–14.6A	0–16.6A	0–20.8A
Weight	1.11 kg	1.38 kg	1.54 kg	1.68 kg

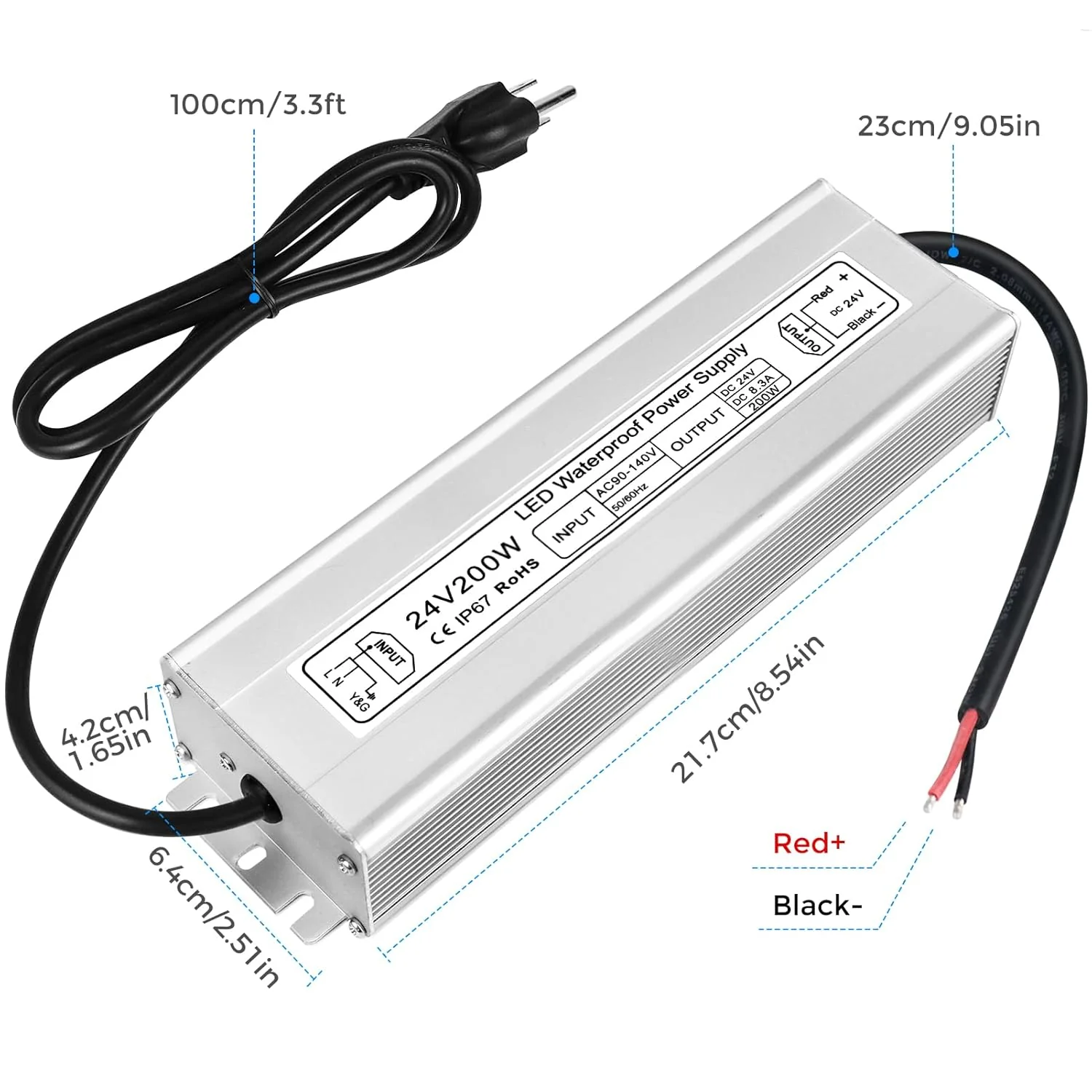

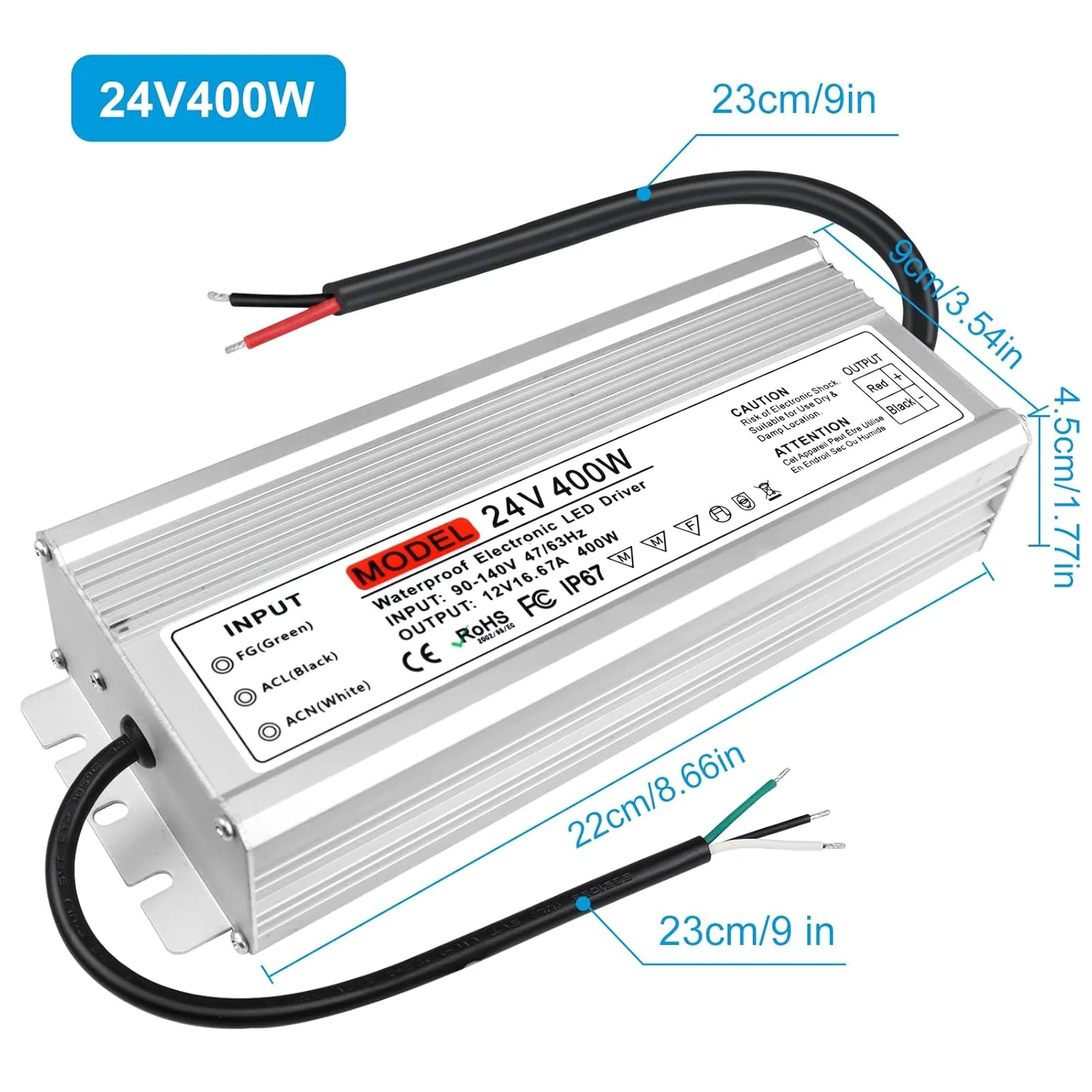

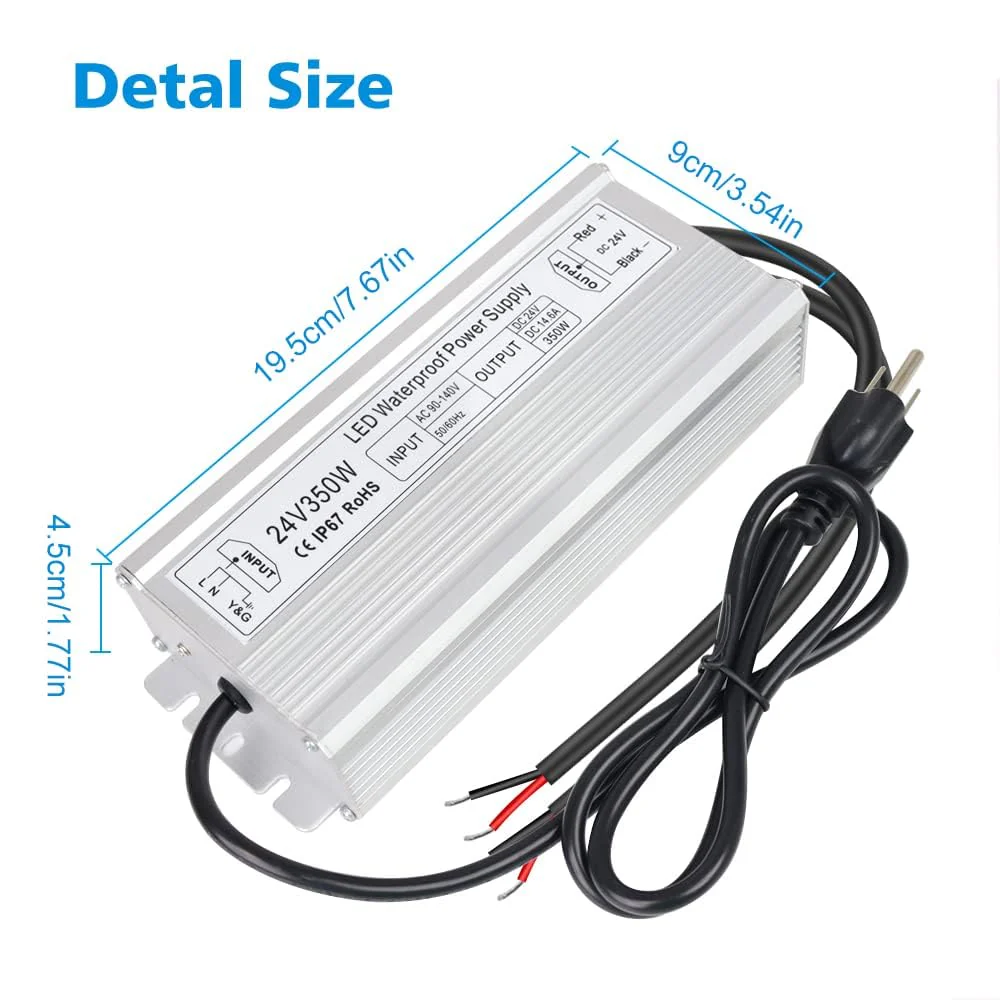

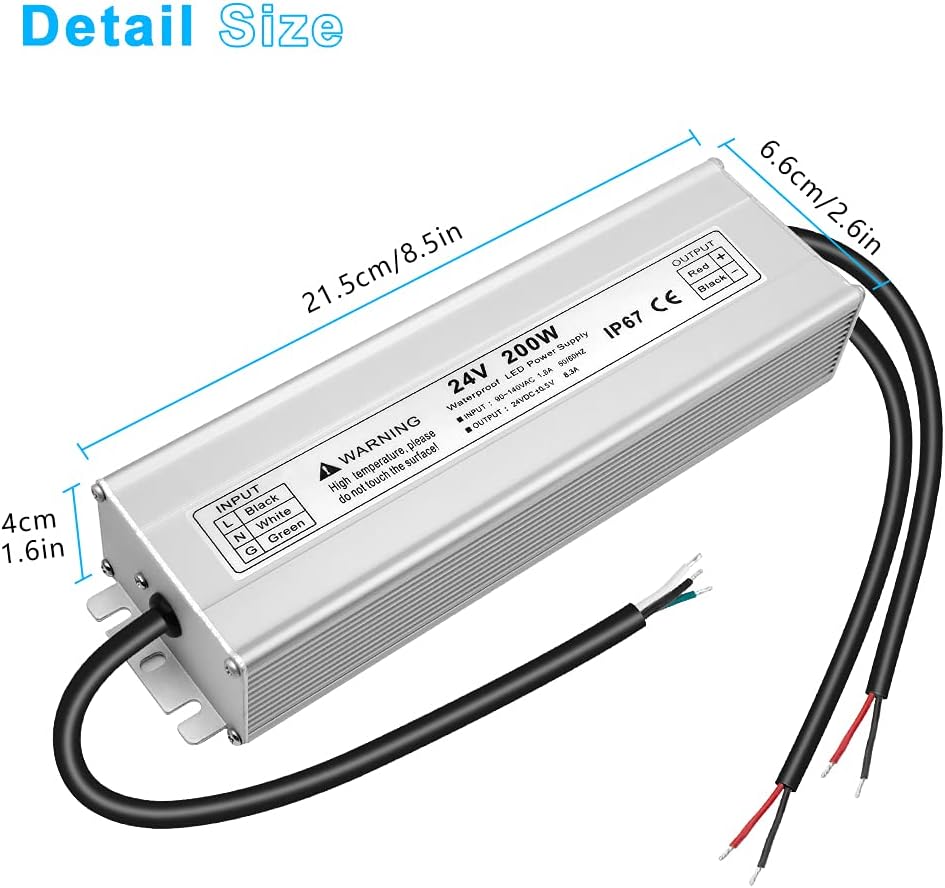

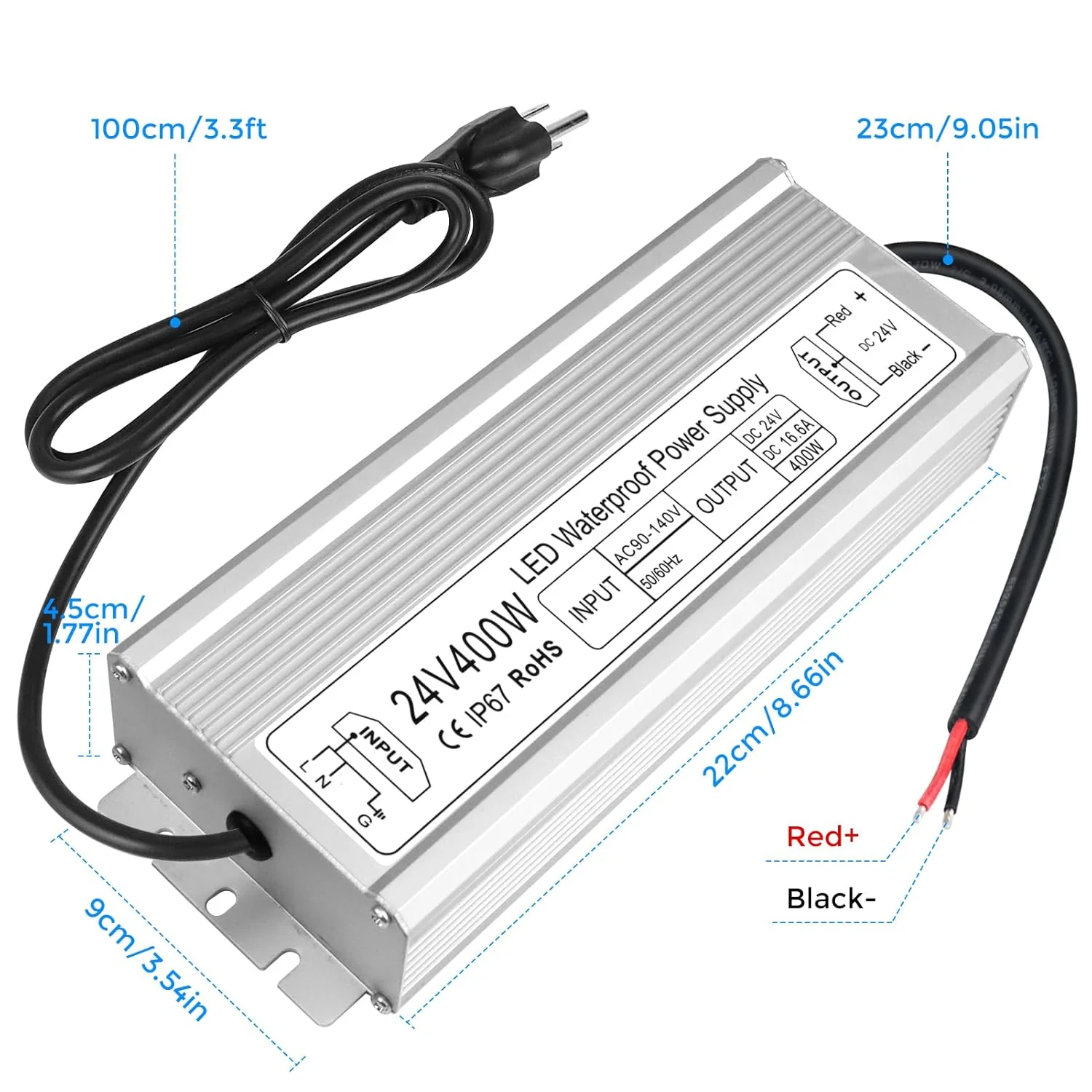

Product dimensions	10.87 × 4.09 × 2.2 in	11.1 × 5.59 × 2.24 in	11.06 × 5.47 × 2.24 in	11 × 5.3 × 2.7 in
Waterproof rating	IP67	IP67	IP67	IP67
Safety protection	Overload, over-voltage, over-temperature, overcurrent, and short-circuit protections.
Operating temperature	−20 °C to +60 °C, 20% to 90% RH (non-condensing)
PCB components	Using all-glass PCB (environmentally friendly, smoldering, high-temperature resistant, and long-life), and brand-new components.
Storage temperature	−20 °C to +85 °C, 10% to 95% RH (non-condensing)

Usage Notes / Installation Tips

• Check the rated voltage and wattage of your device before connecting (≤500W)
• Do not overload beyond the rated capacity
• Suitable for outdoor use with IP67 waterproof rating
• Disconnect power before installation or wiring adjustments
• Ensure ventilation and allow housing to dissipate heat for continuous operation

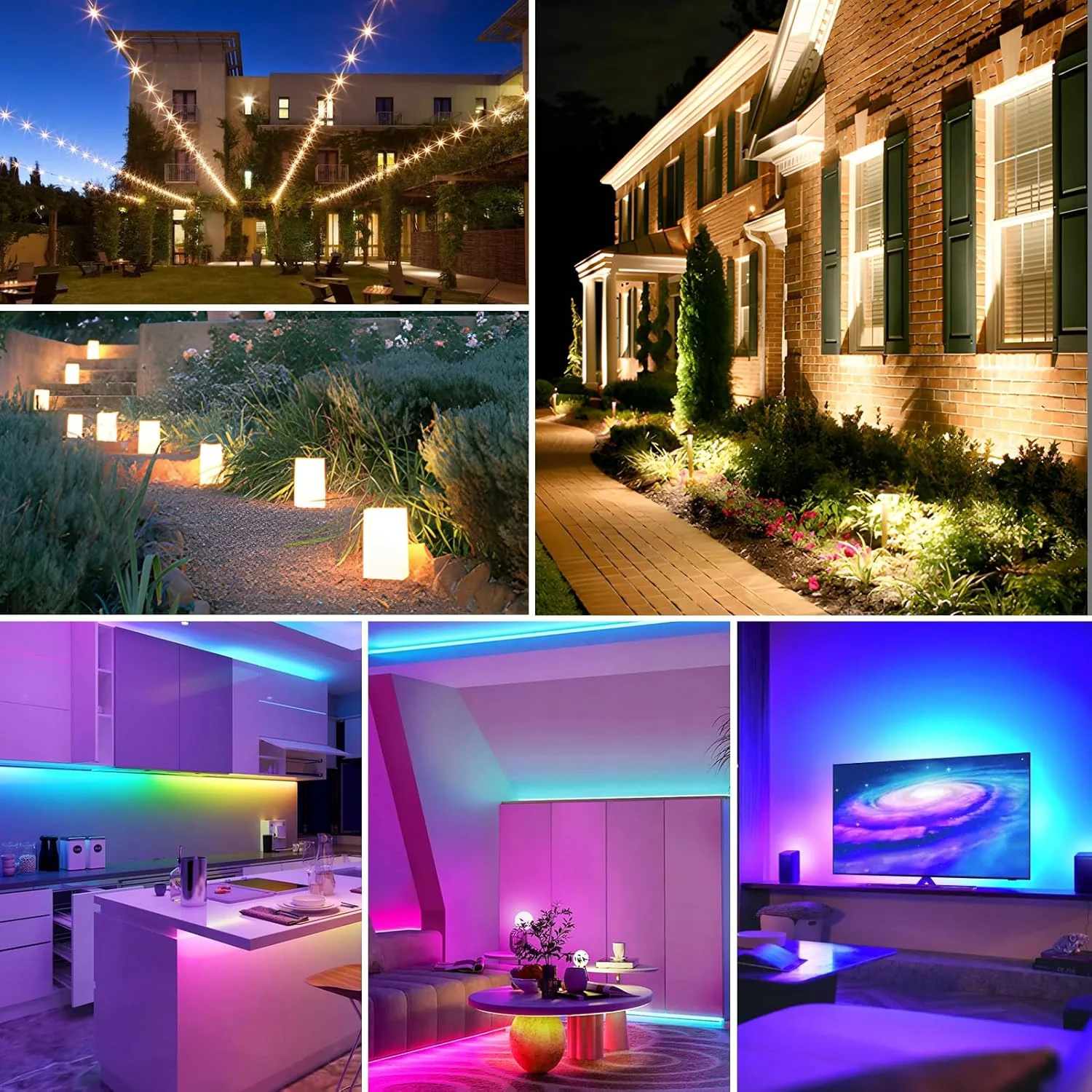

Applications

• LED strip lights and LED bulbs (≤500W)
• Outdoor landscape and decorative lighting
• Waterproof LED driver for signage
• DIY electronics projects requiring stable 24V supply
• Small appliances and pumps within 500W load
