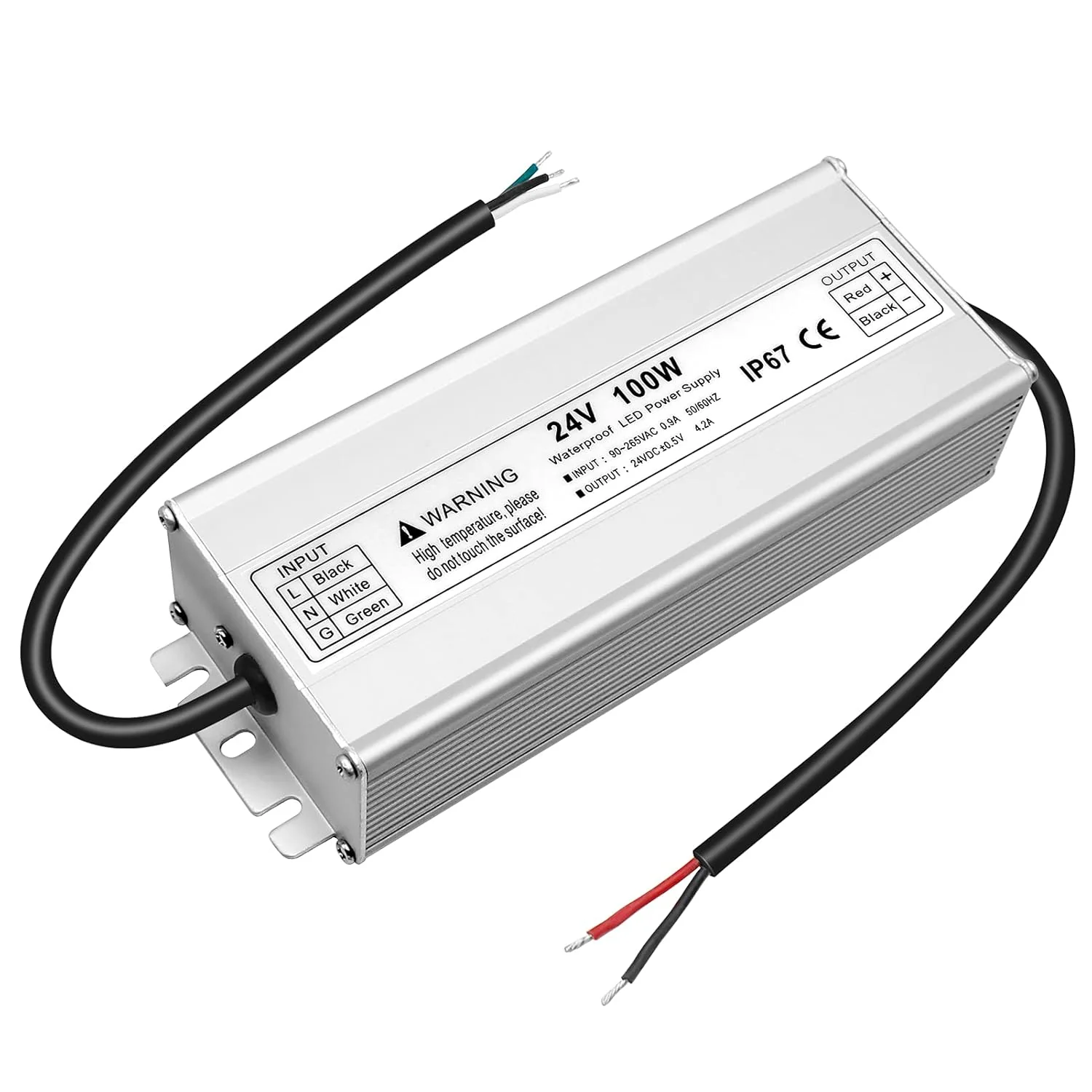

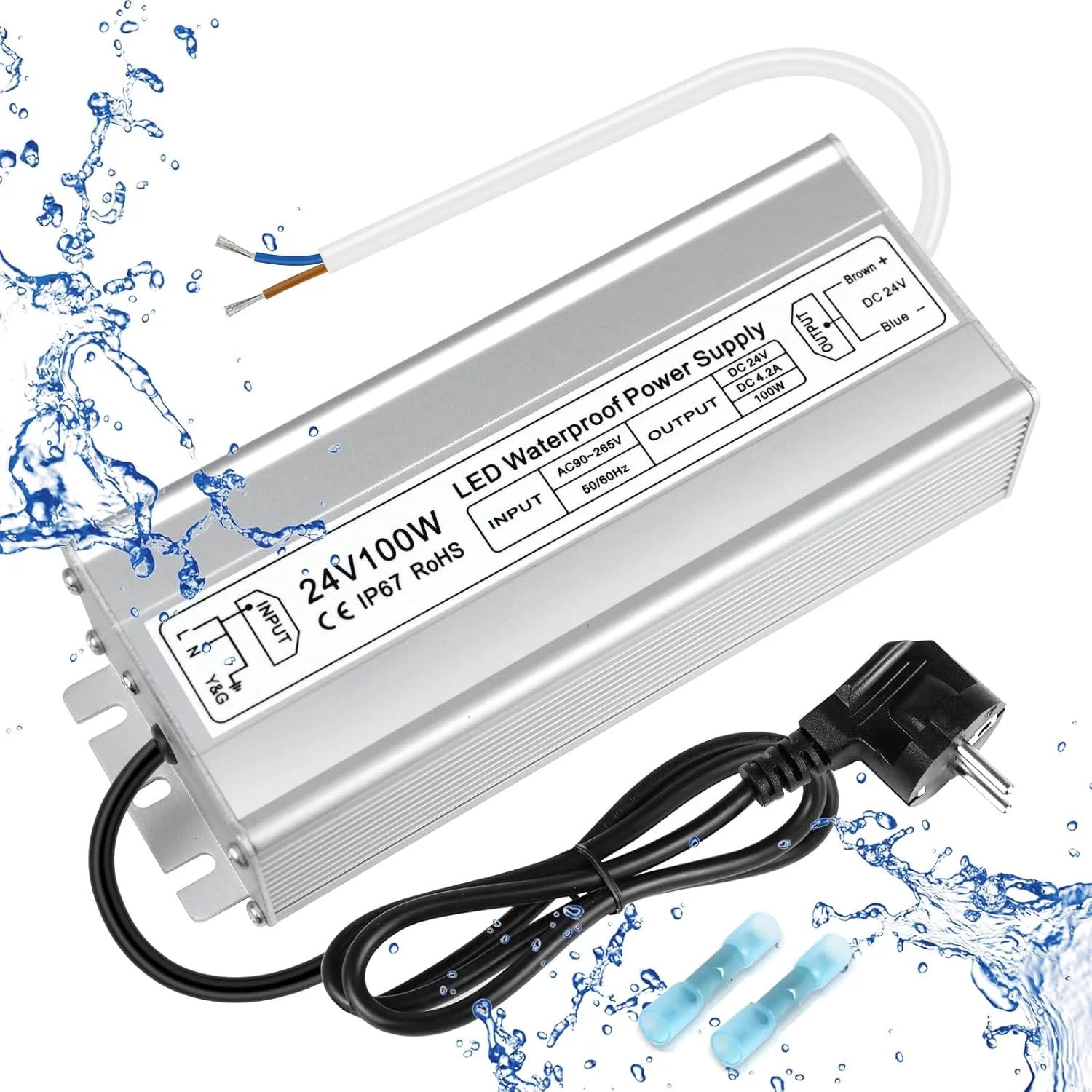

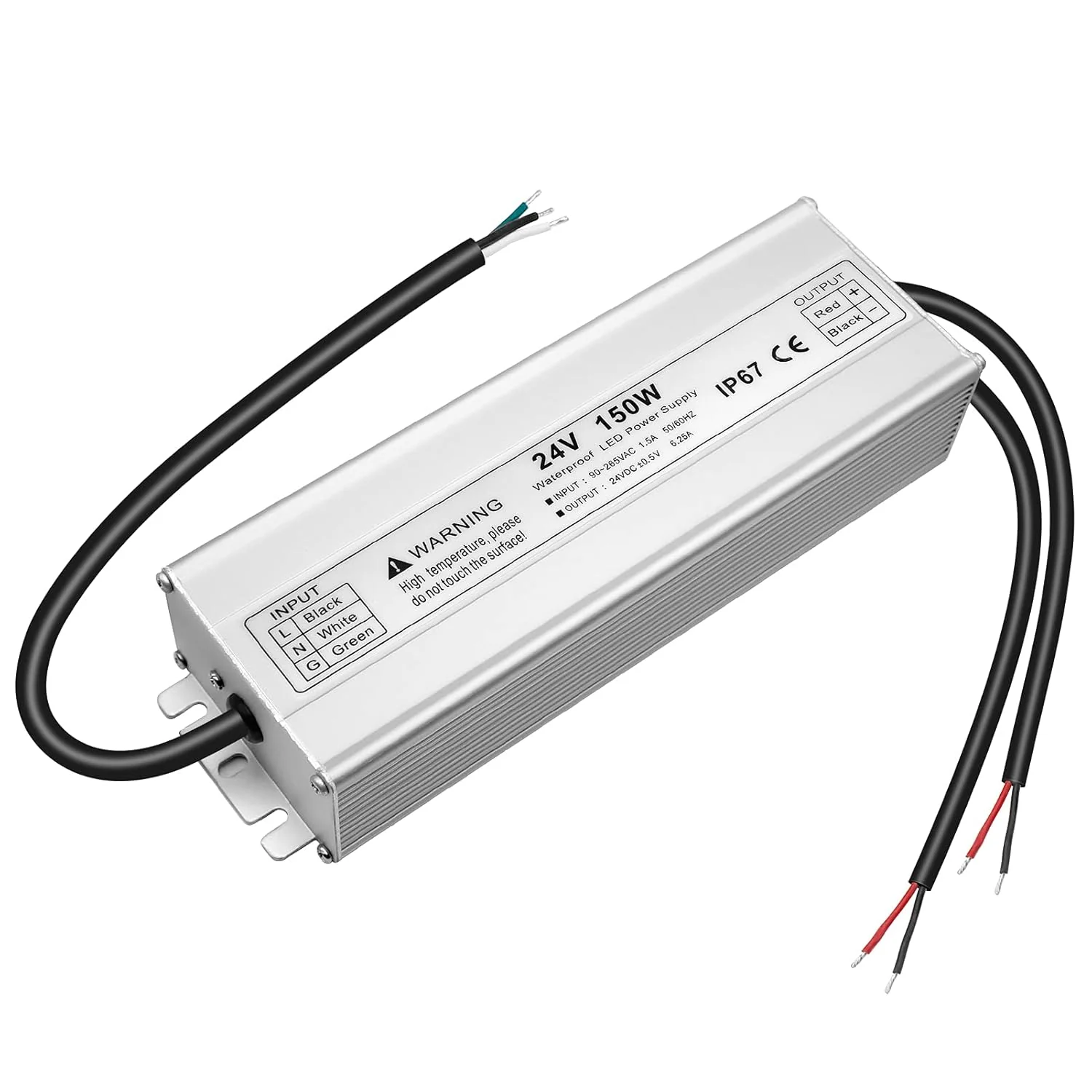

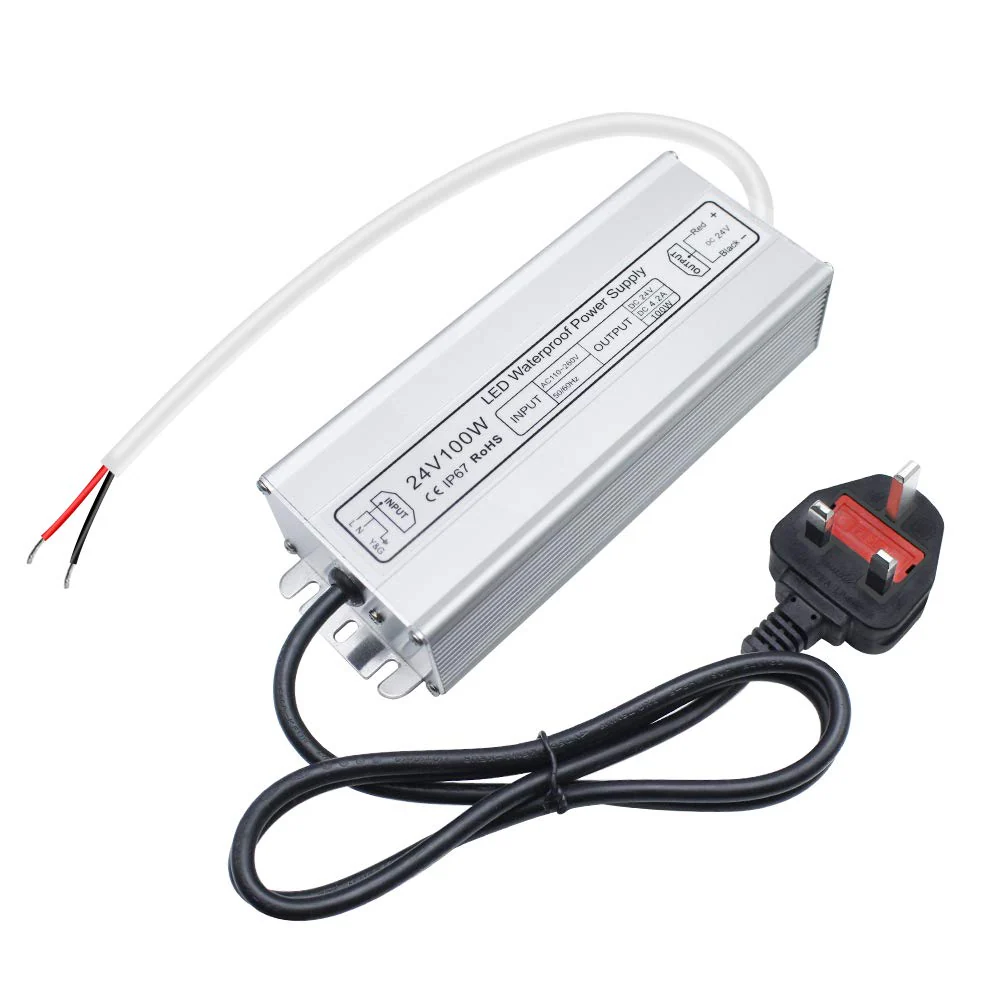

24V Waterproof LED Power Supply 30W–300W, 90–265V Input, Single/Dual Wire Output, Outdoor LED Driver, CE/RoHS/FCC — US/UK/EU Plug & Wire Leads Options
24V Waterproof LED Power Supply 30W–300W, 90–265V Input, Single/Dual Wire Output, Outdoor LED Driver, CE/RoHS/FCC — US/UK/EU Plug & Wire Leads Options
24V Waterproof LED Power Supply 30W–300W, 90–265V Input, Single/Dual Wire Output, Outdoor LED Driver, CE/RoHS/FCC — US/UK/EU Plug & Wire Leads Options
Package Included
| Version | Package Included |
|---|---|

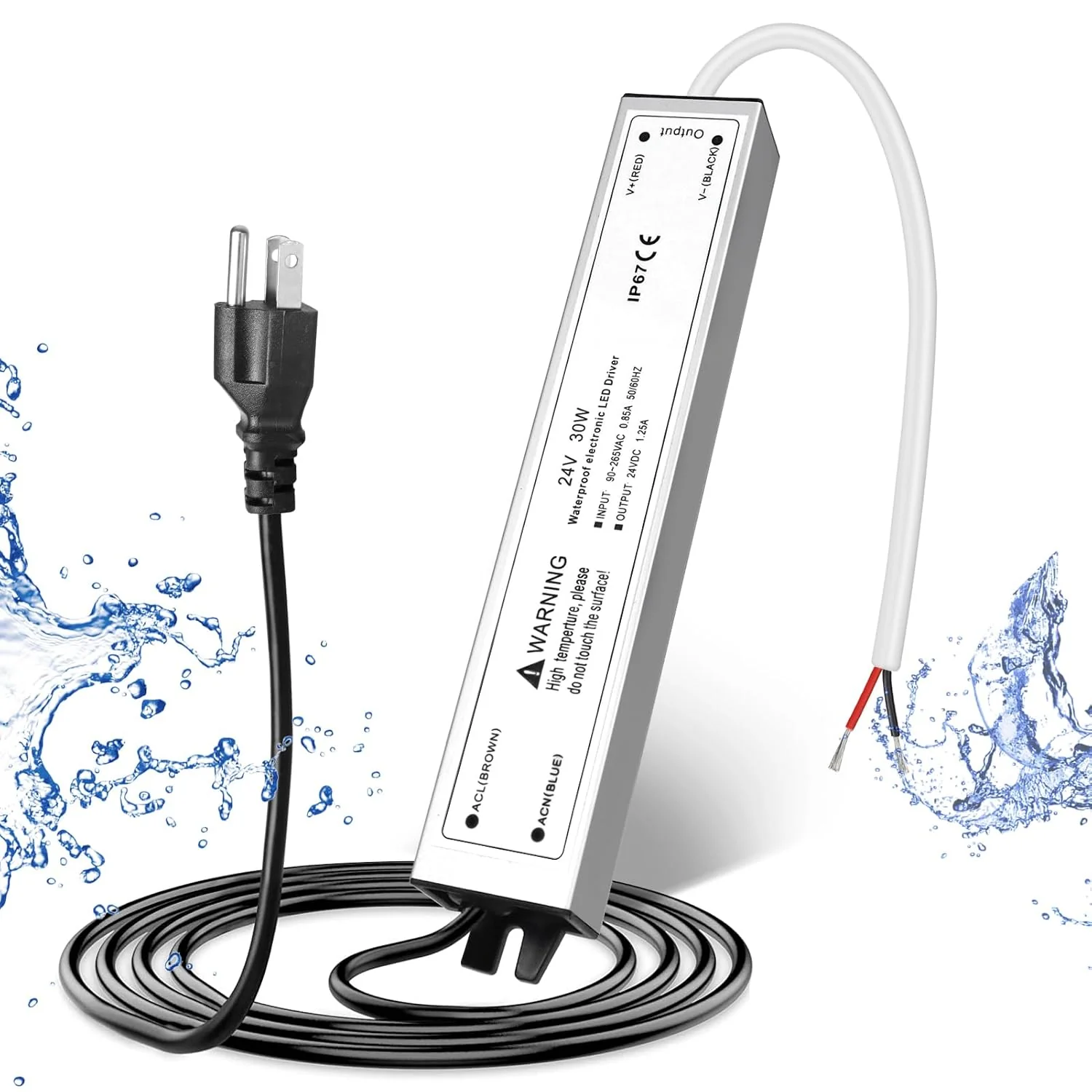

| 30W Single Wire US Plug | 1 × 30W Waterproof LED Power Supply, User Manual |
| 30W Single Wire UK Plug | 1 × 30W Waterproof LED Power Supply, User Manual |
| 30W Single Wire EU Plug | 1 × 30W Waterproof LED Power Supply, User Manual |
| 30W Single Wire Wire Leads (3-core) | 1 × 30W Waterproof LED Power Supply, User Manual |

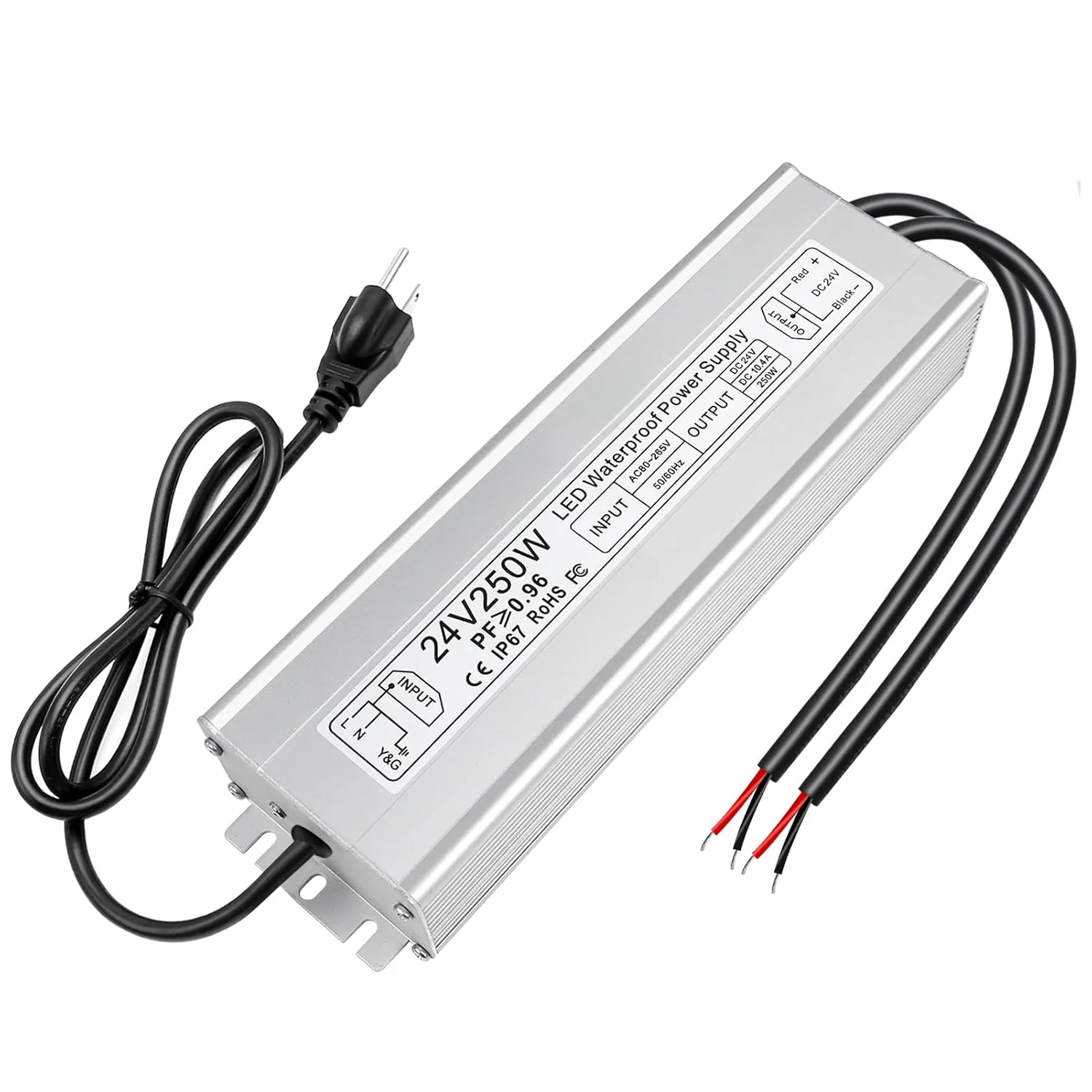

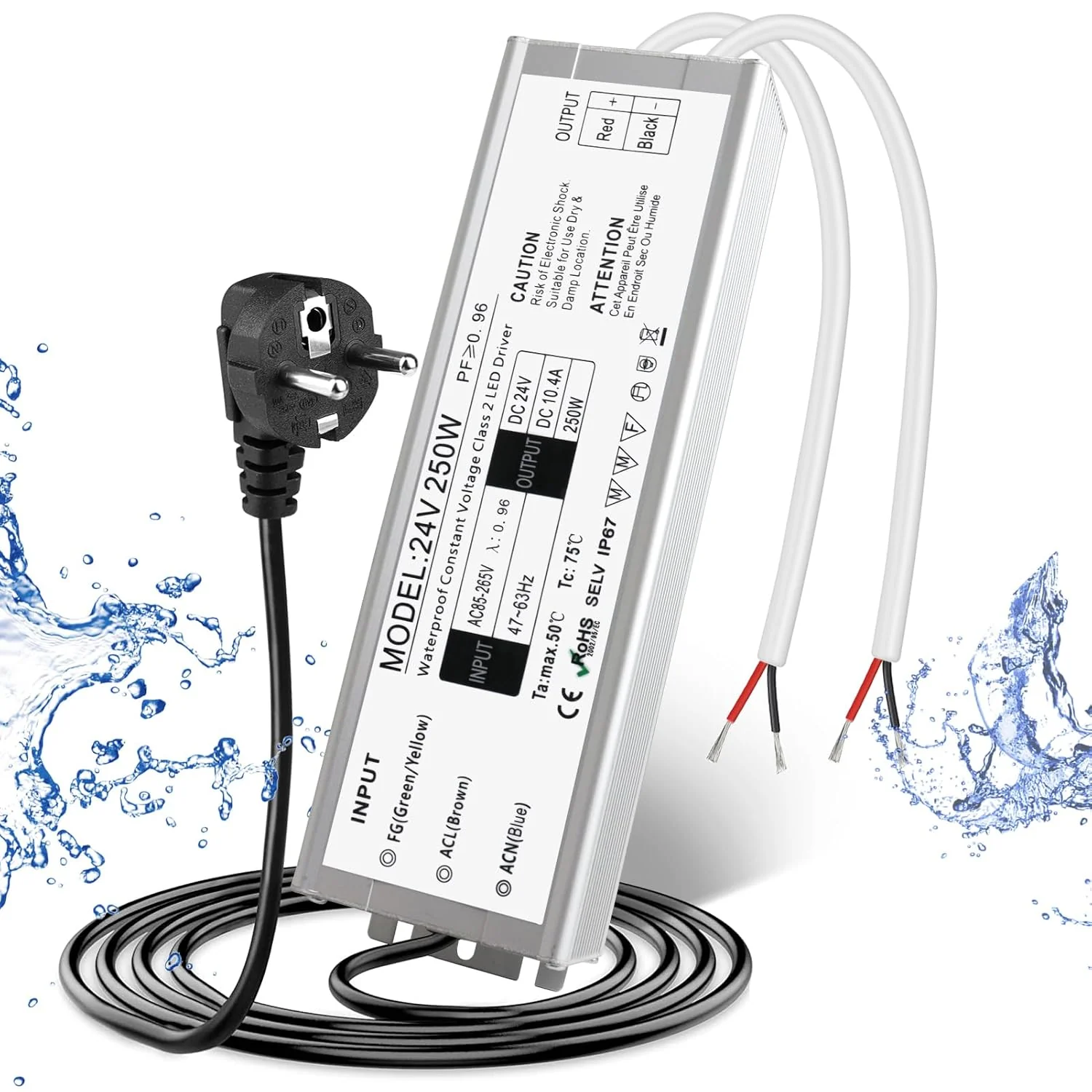

| 250W Dual Wire US Plug | 1 × 250W Waterproof LED Power Supply, User Manual |
About this item
- Input: 90–265V AC, 50/60Hz. Output: 24V DC (up to 100W per unit)
- Converts AC to stable DC output, widely used for LED strip lights, LED bulbs, and other 24V DC LED devices

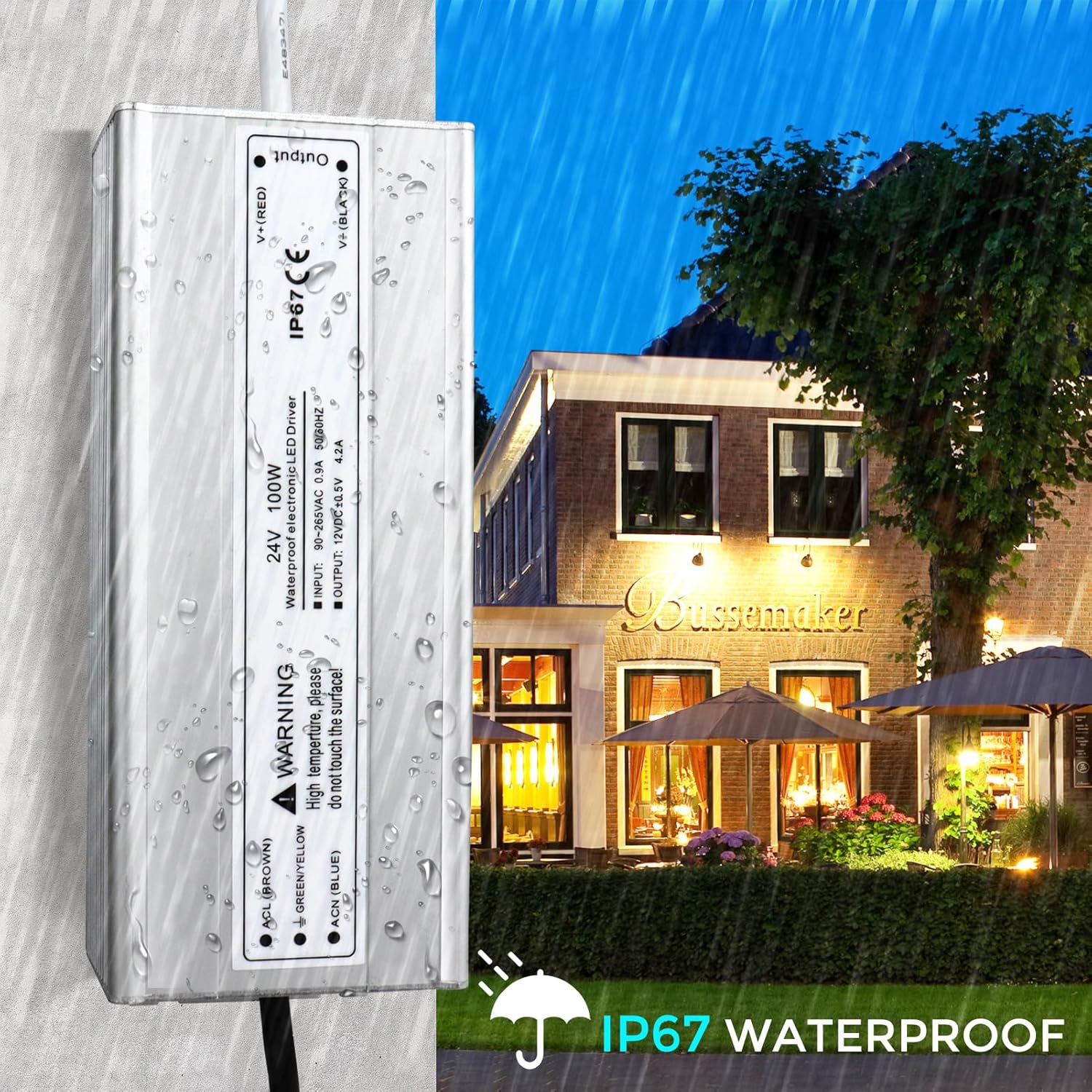

- Aluminum alloy metal housing ensures heat dissipation and stability; 100% Waterproof IP67 protection for outdoor use
- Automatic protection for short circuit, overload, over-voltage, over-current, and high temperature (Hiccup mode, auto-recovery)
- High-quality construction with reliable performance; dedicated support team available
Order & Logistics
- Lead Time: Ships within 1–3 business days
- Packing: Protective cardboard box with user manual
- Ships from local warehouses (US, Canada, UK, Germany) with delivery in 3–7 days. In rare cases, shipment may be fulfilled from central warehouse if local stock is unavailable(9–18 days standard or 5–9 days express.)
Key Specifications
- Input Voltage: 90–265V AC, 50/60Hz
- Output Voltage / Wattage: 24V DC / 30W–300W
- Package Qty: 1-Pack
- Housing: Aluminum Alloy, Waterproof IP67
- Connector: Single / Dual Wire Output
- Protection: Short circuit, overload, over-voltage, over-current, high temperature (Hiccup mode, auto-recovery)

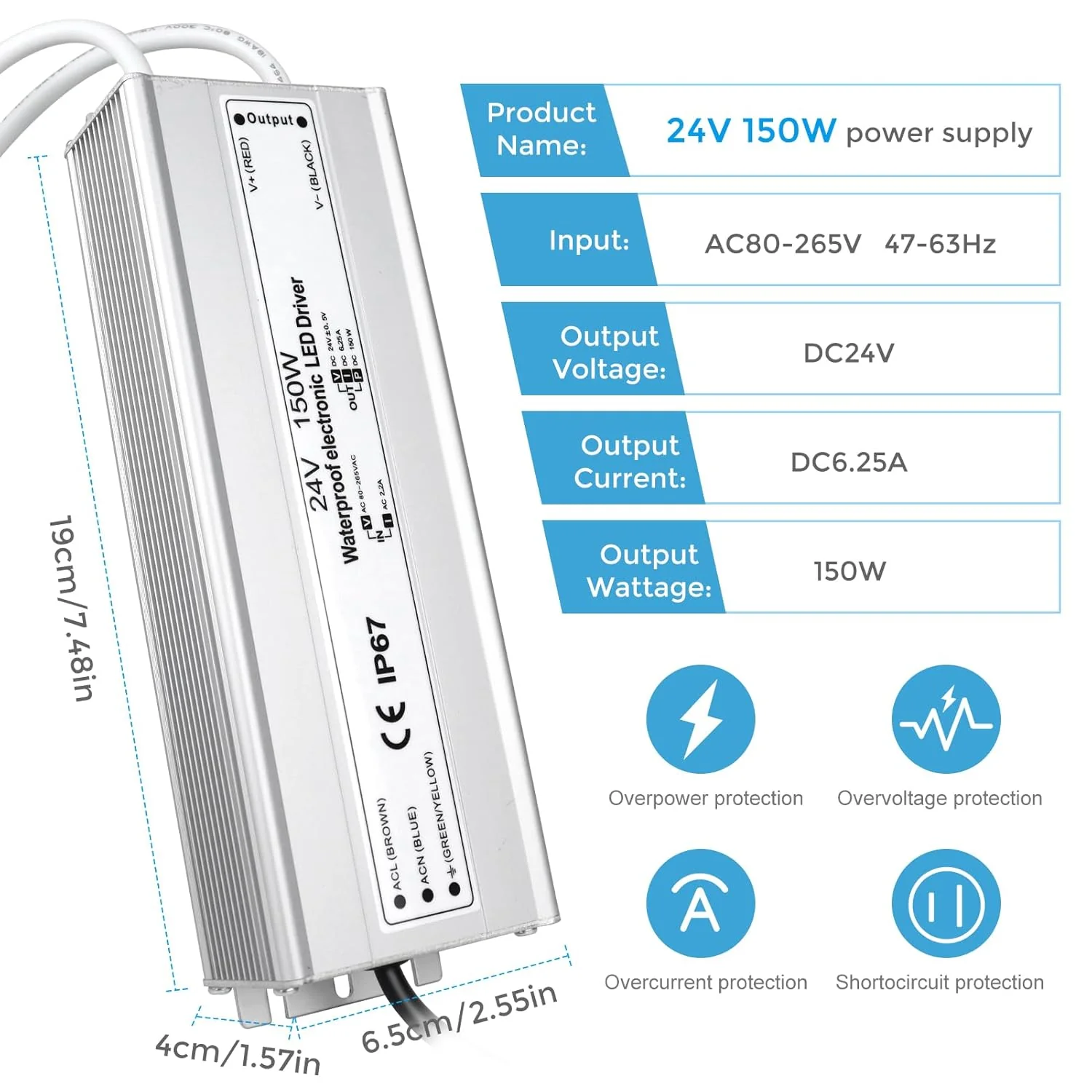

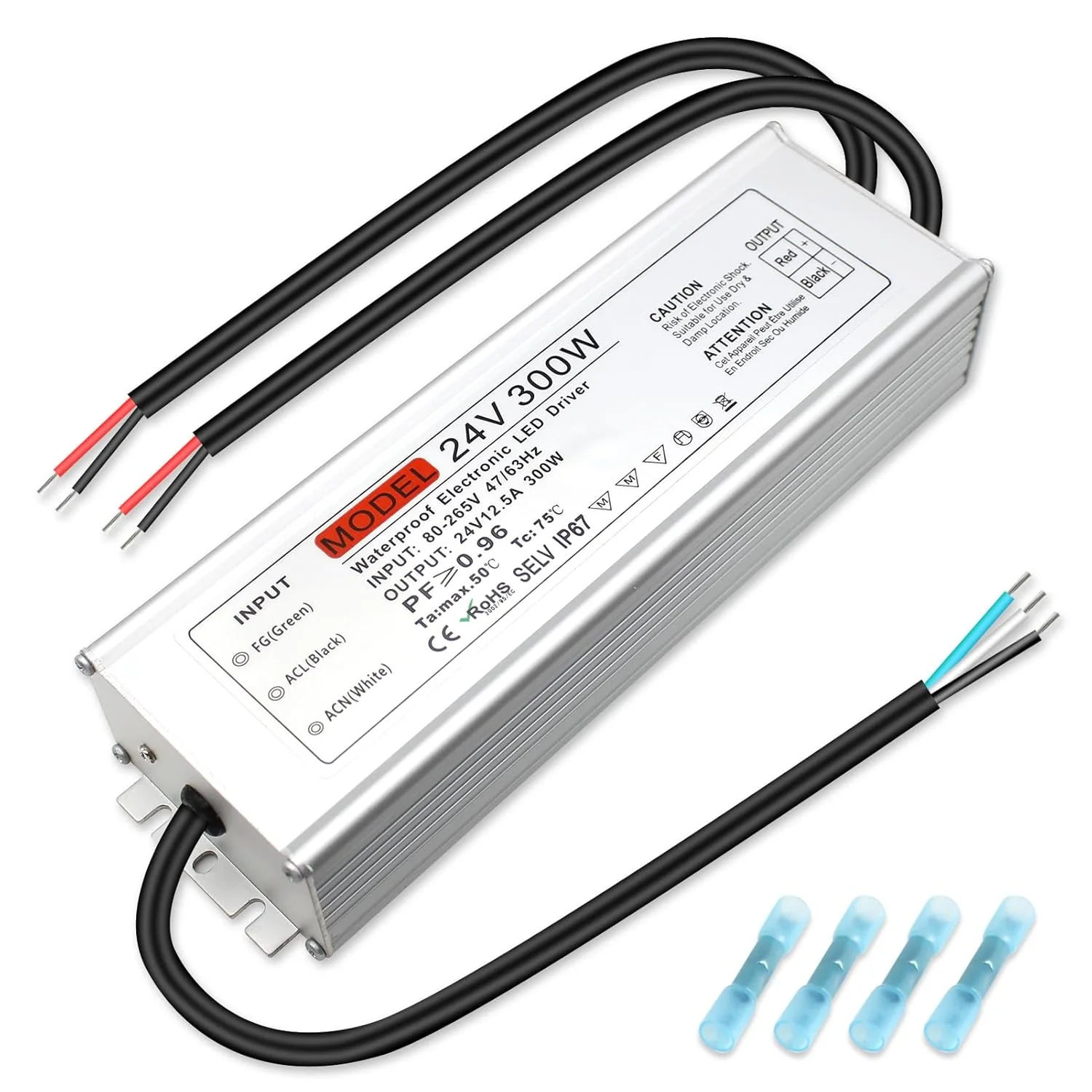

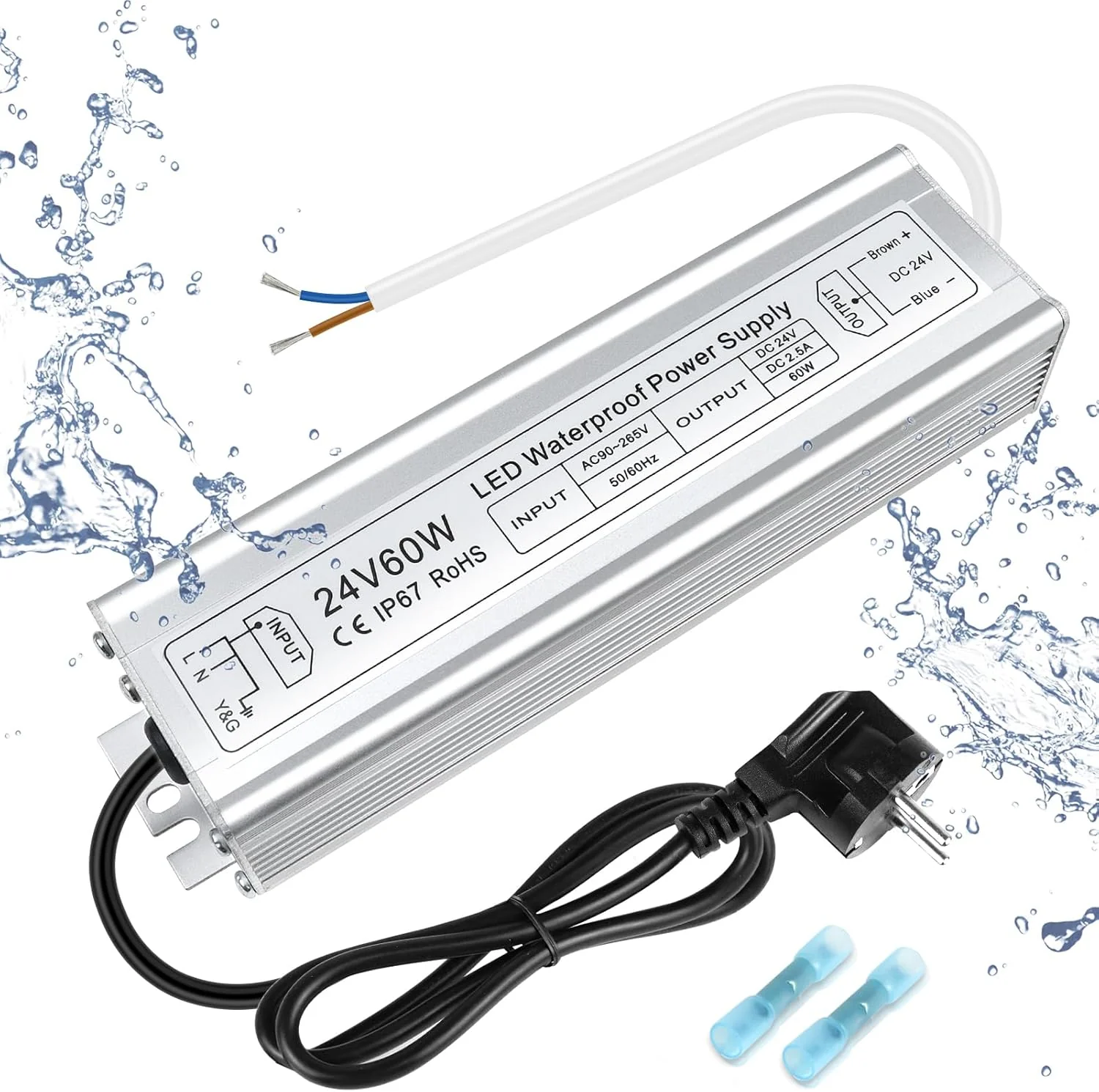

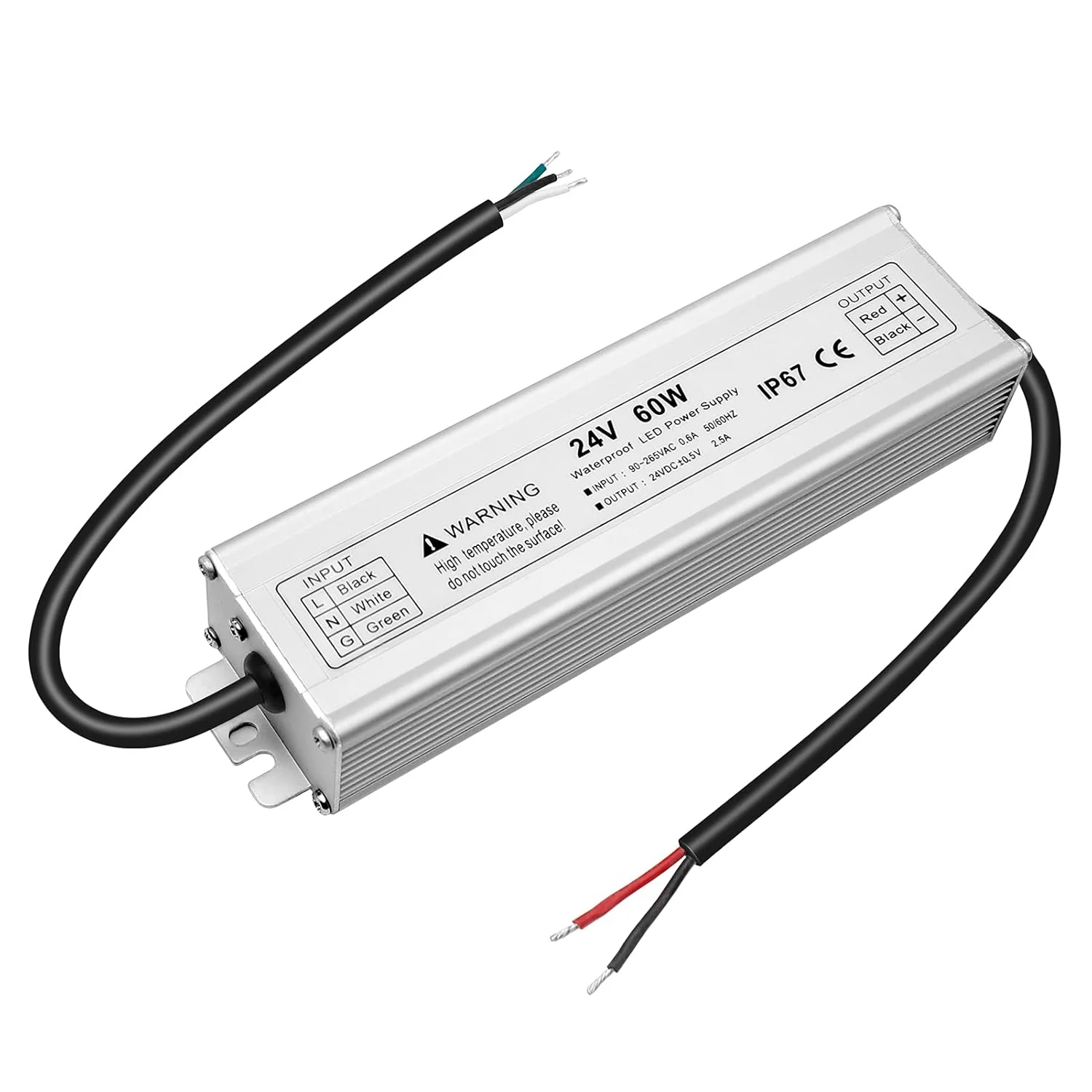

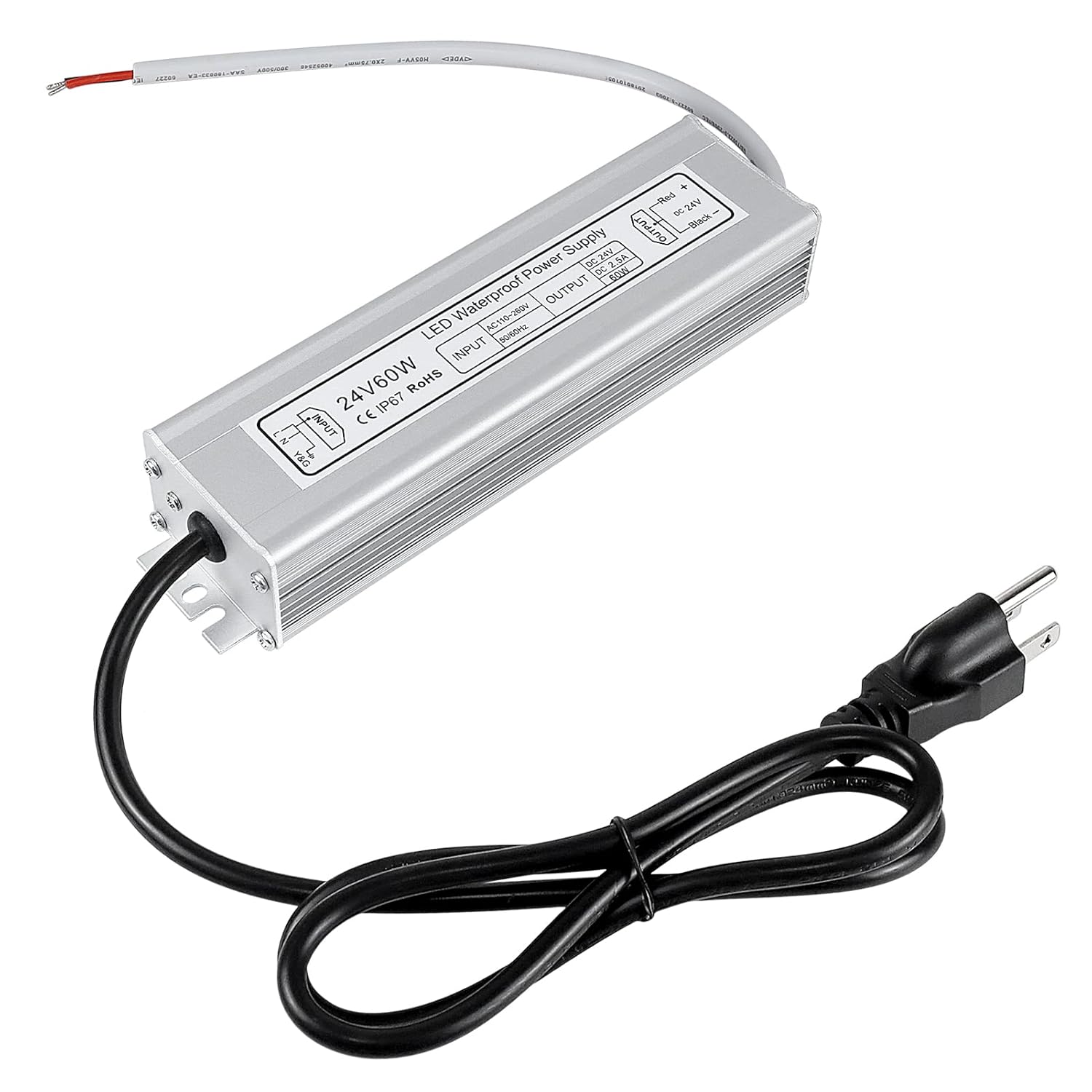

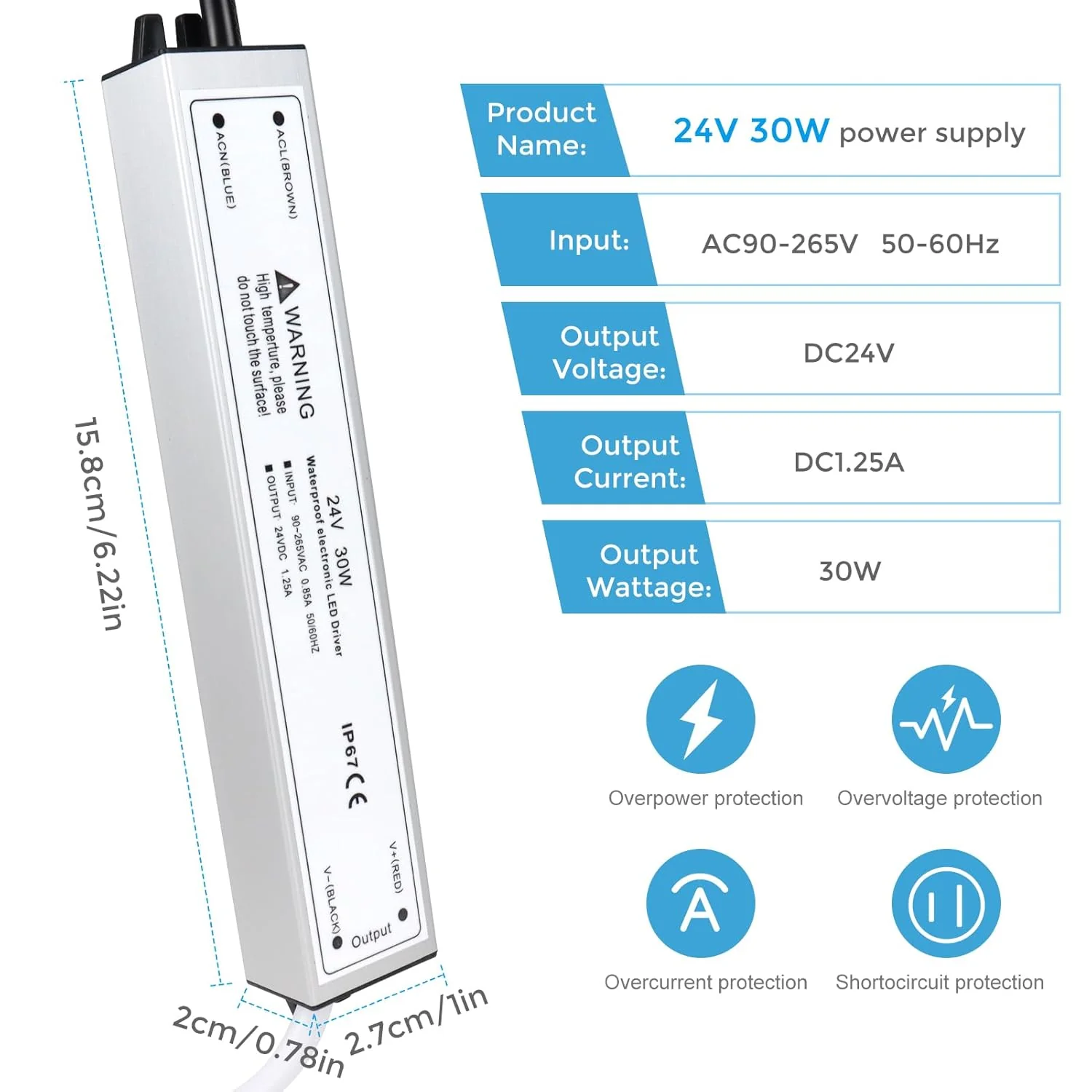

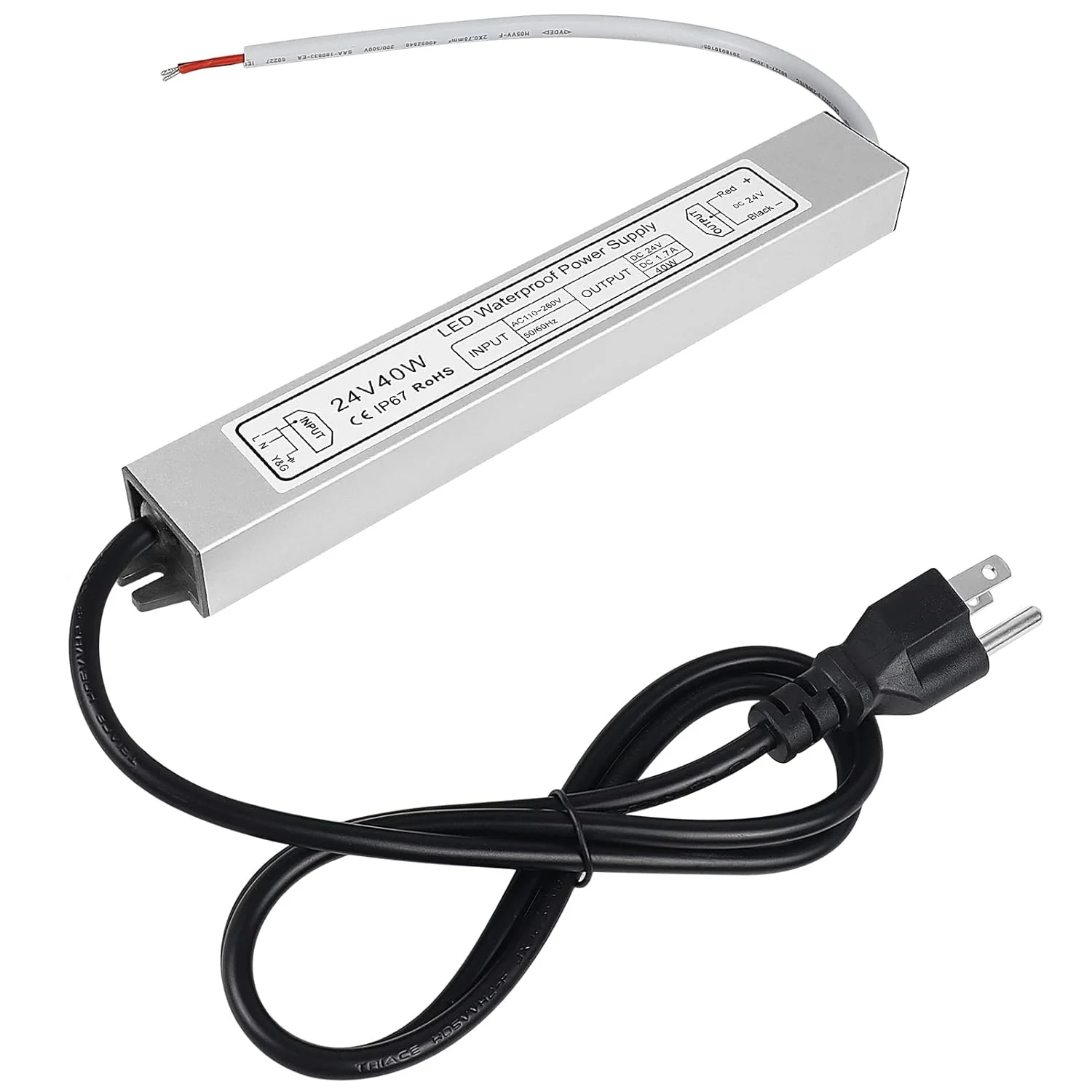

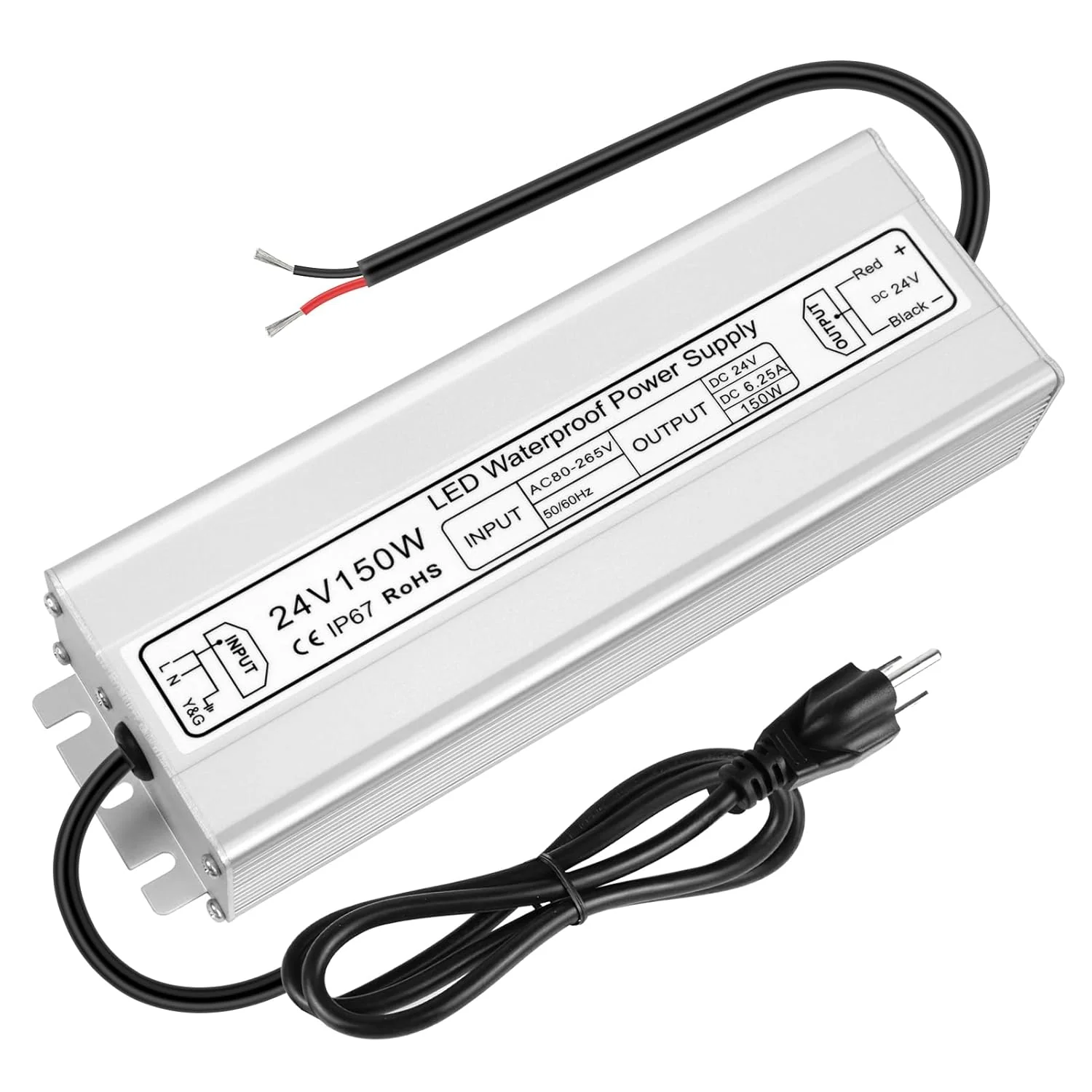

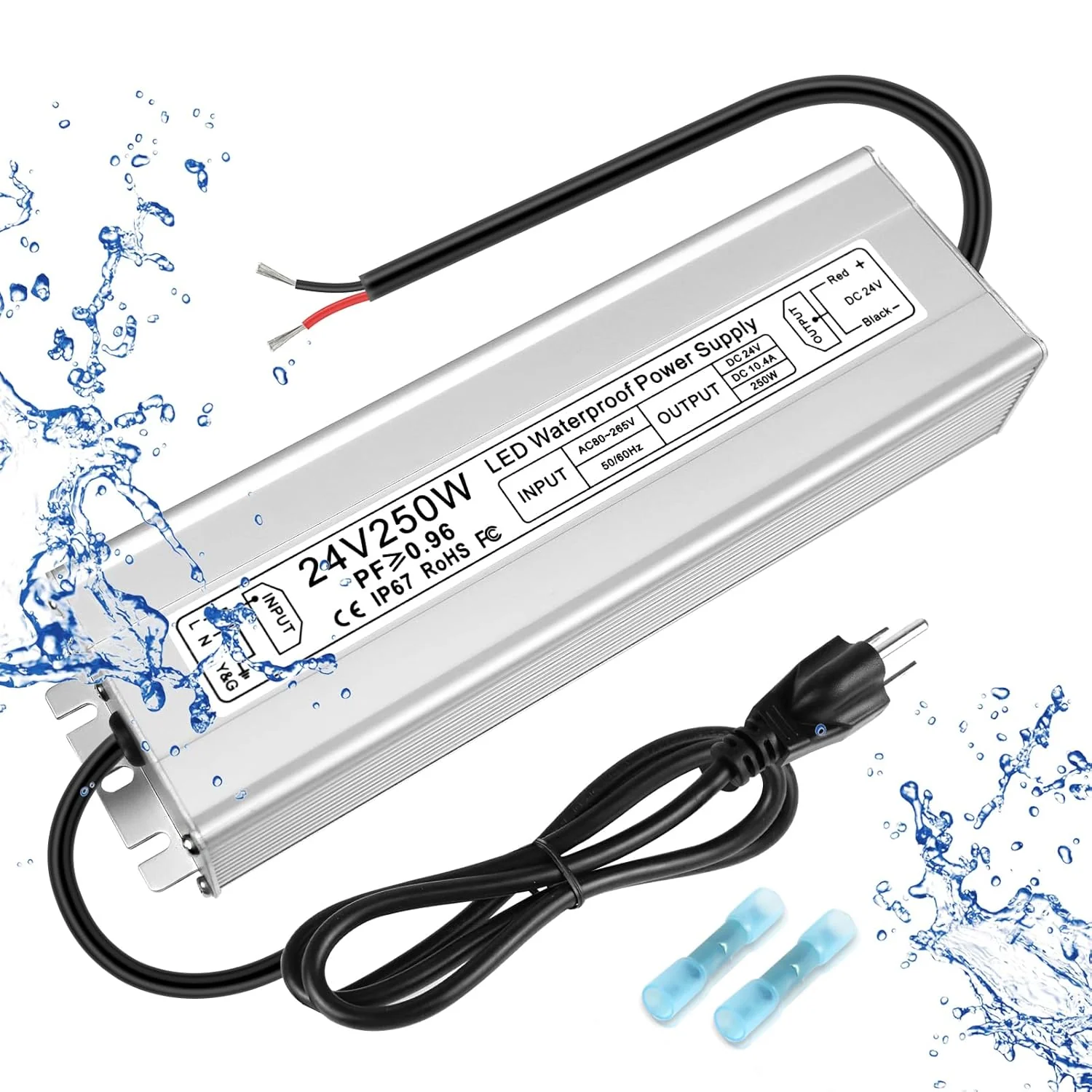

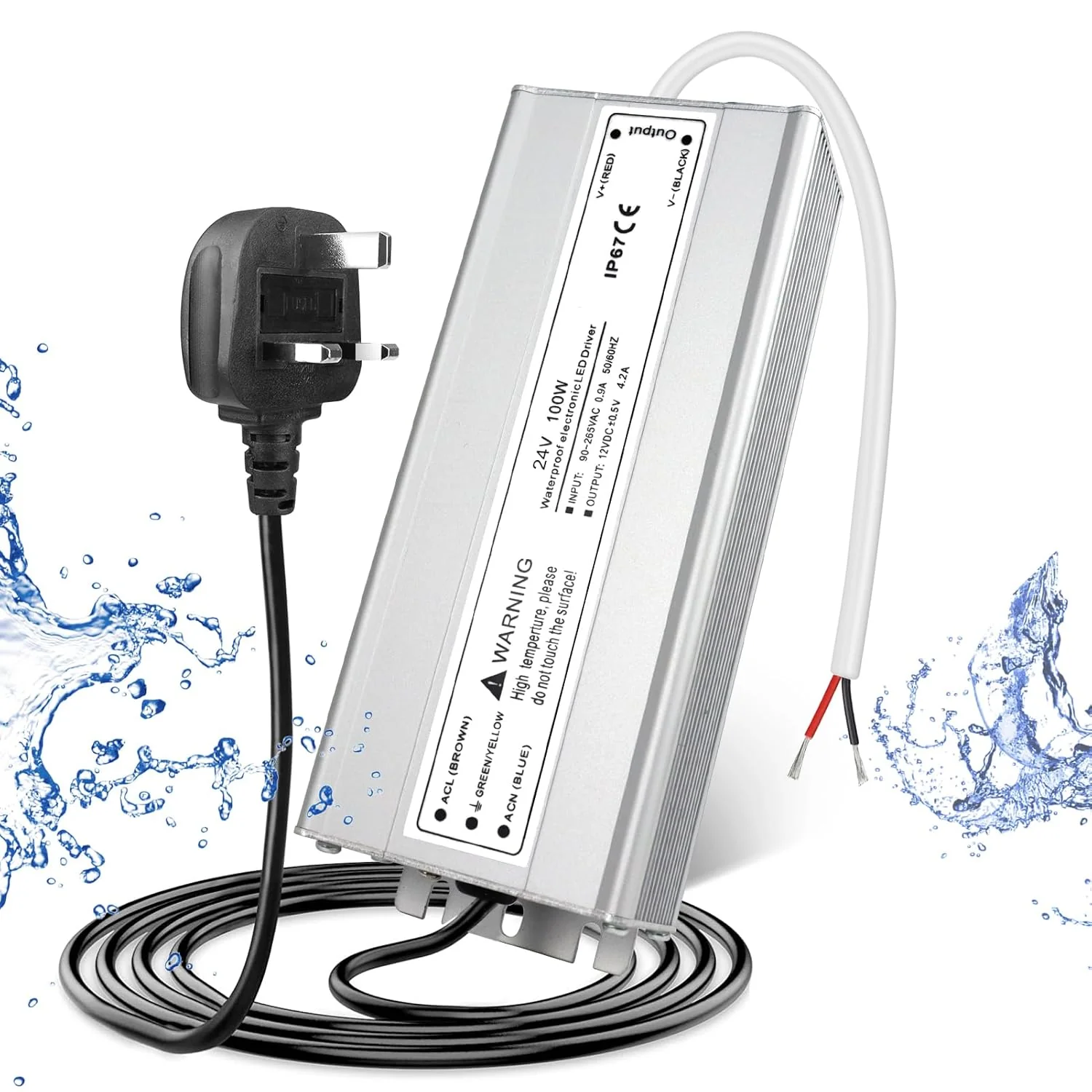

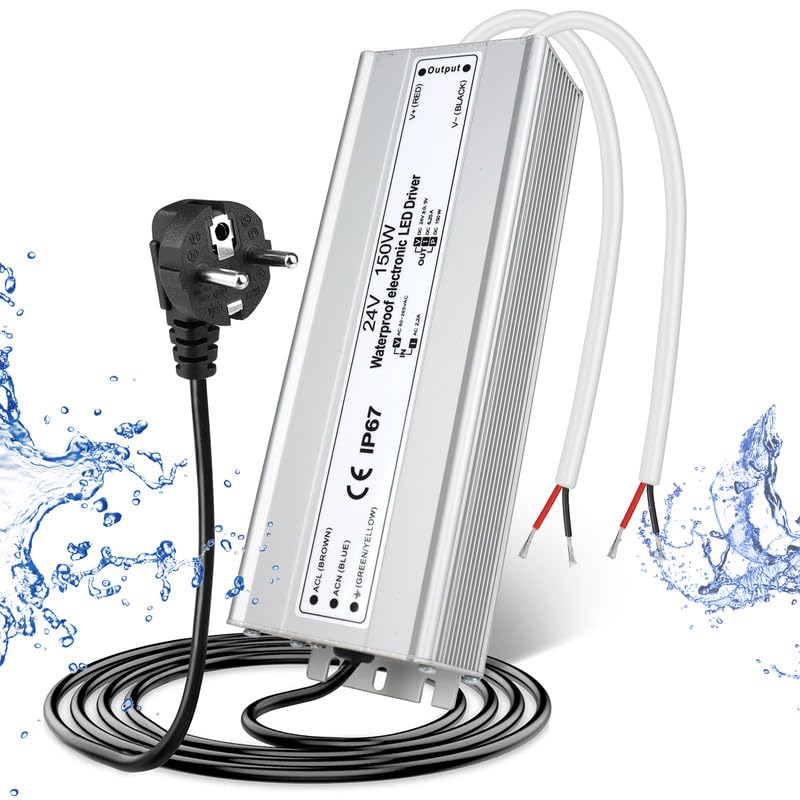

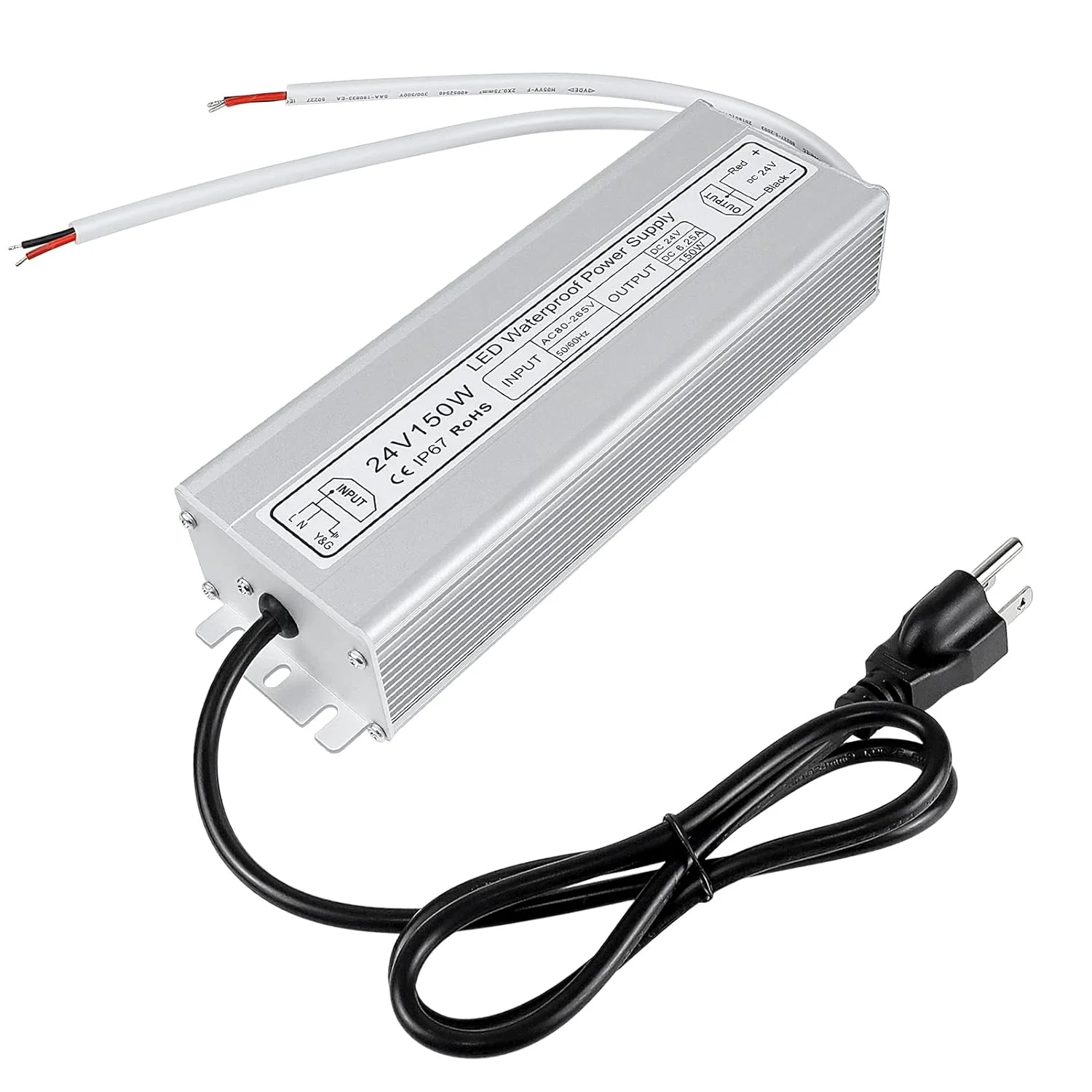

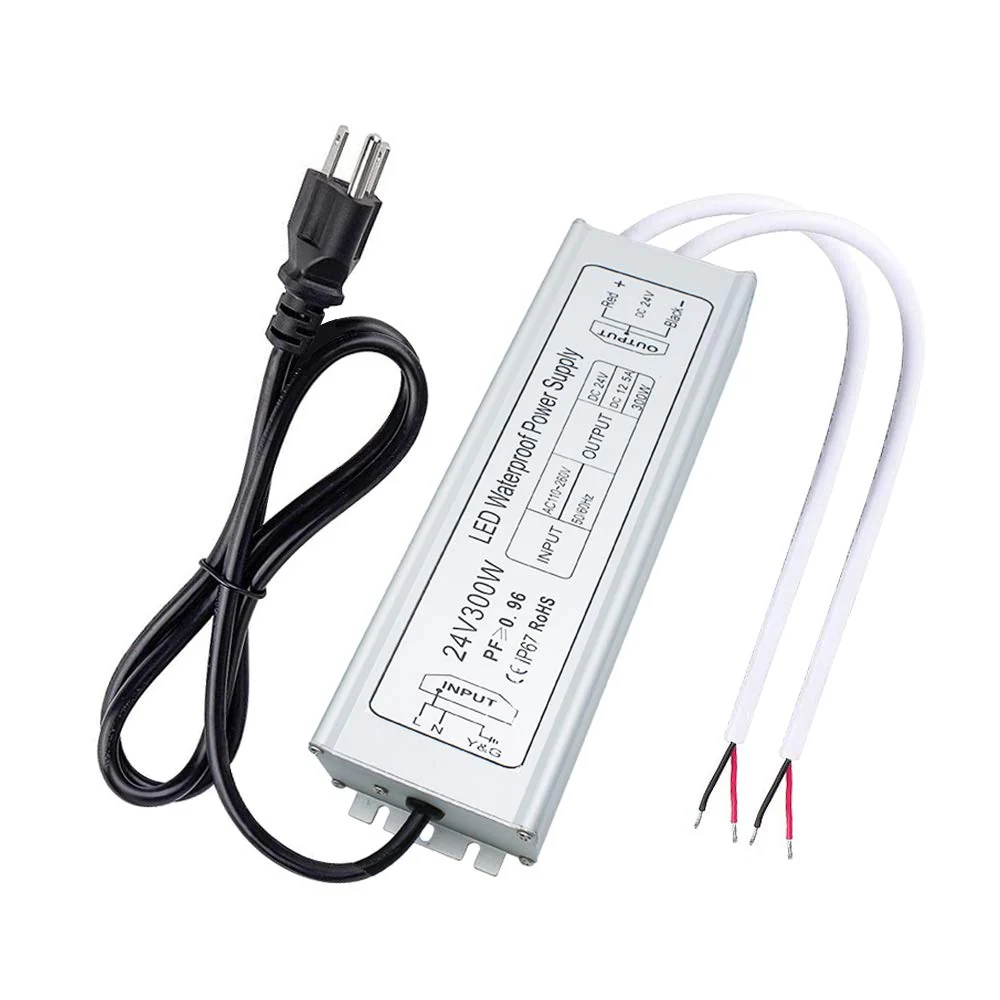

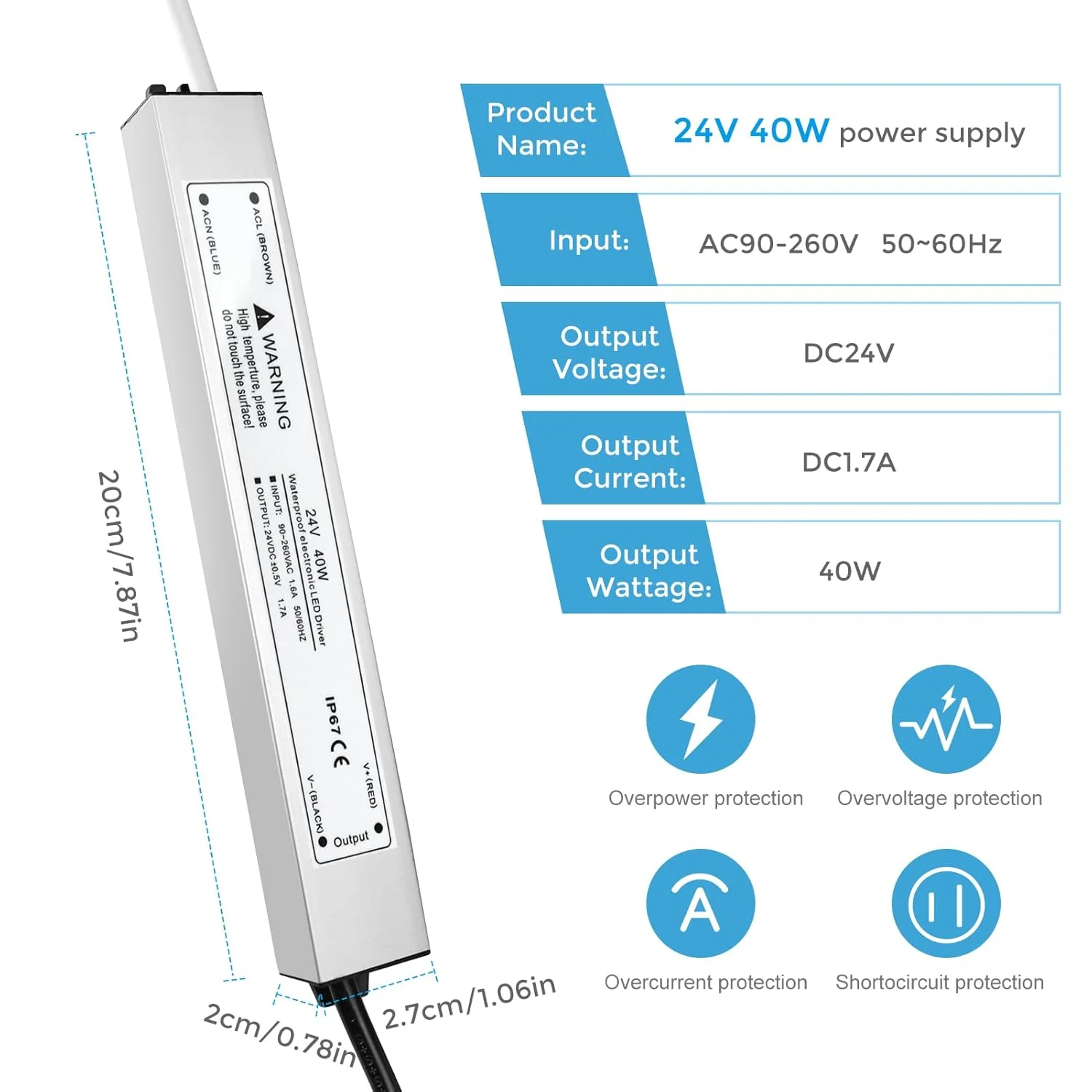

| Model | PFH-30-24 | PFH-40-24 | PFH-60-24 | PFH-100-24 | PFH-150-24 | PFH-250-24 | PFH-300-24 |
|---|---|---|---|---|---|---|---|
| Input voltage range | 90–260V AC | 90–260V AC | 90–265V AC | 100–240V AC | 90–265V AC | 80–265V AC | 110–260V AC |
| Output power | 30W | 40W | 60W | 100W | 150W | 250W | 300W |
| Rated output voltage | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Rated output current | 1.25A | 1.67A | 2.5A | 4.17A | 6.25A | 10.4A | 12.5A |
| Output current range | 0–1.25A | 0–1.67A | 0–2.5A | 0–4.17A | 0–6.25A | 0–10.4A | 0–12.5A |
| Weight | 0.25 kg | 0.3 kg | 0.6 kg | 0.8 kg | 0.9 kg | 1.10 kg | 2.76 lb (1.25 kg) |

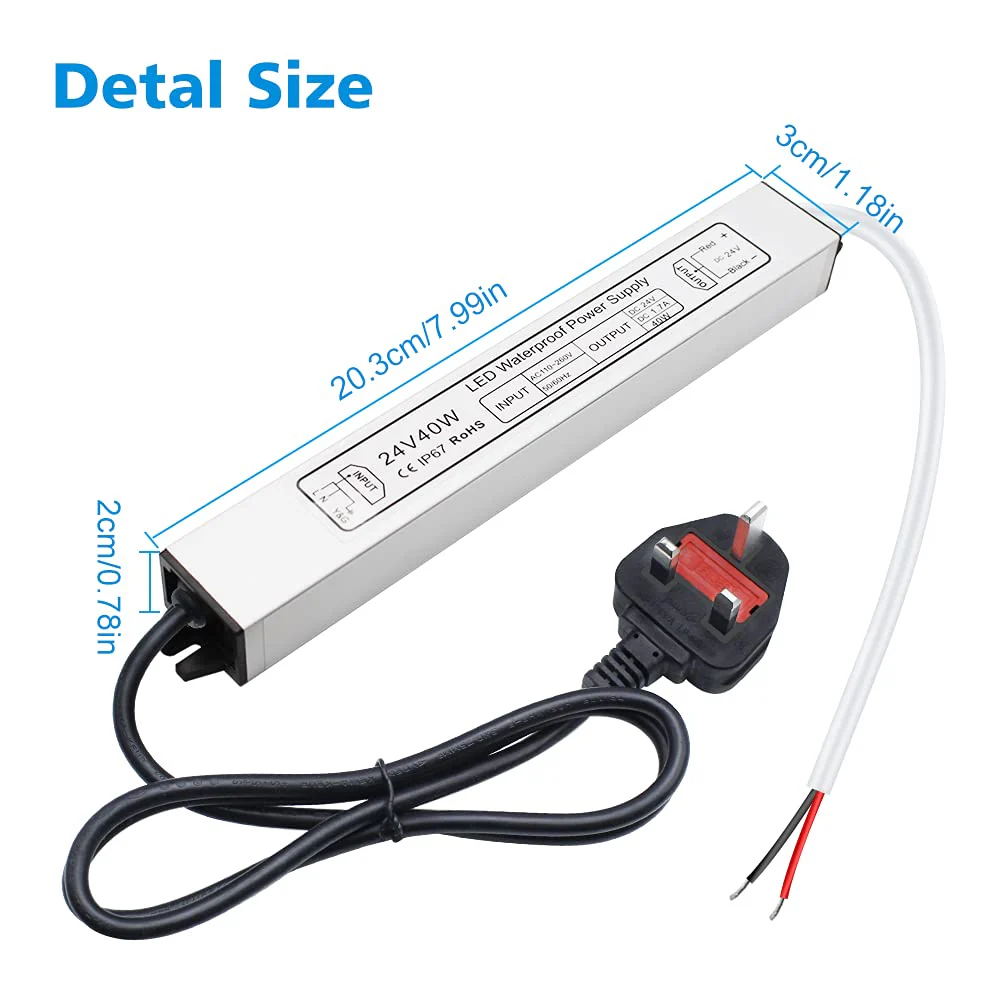

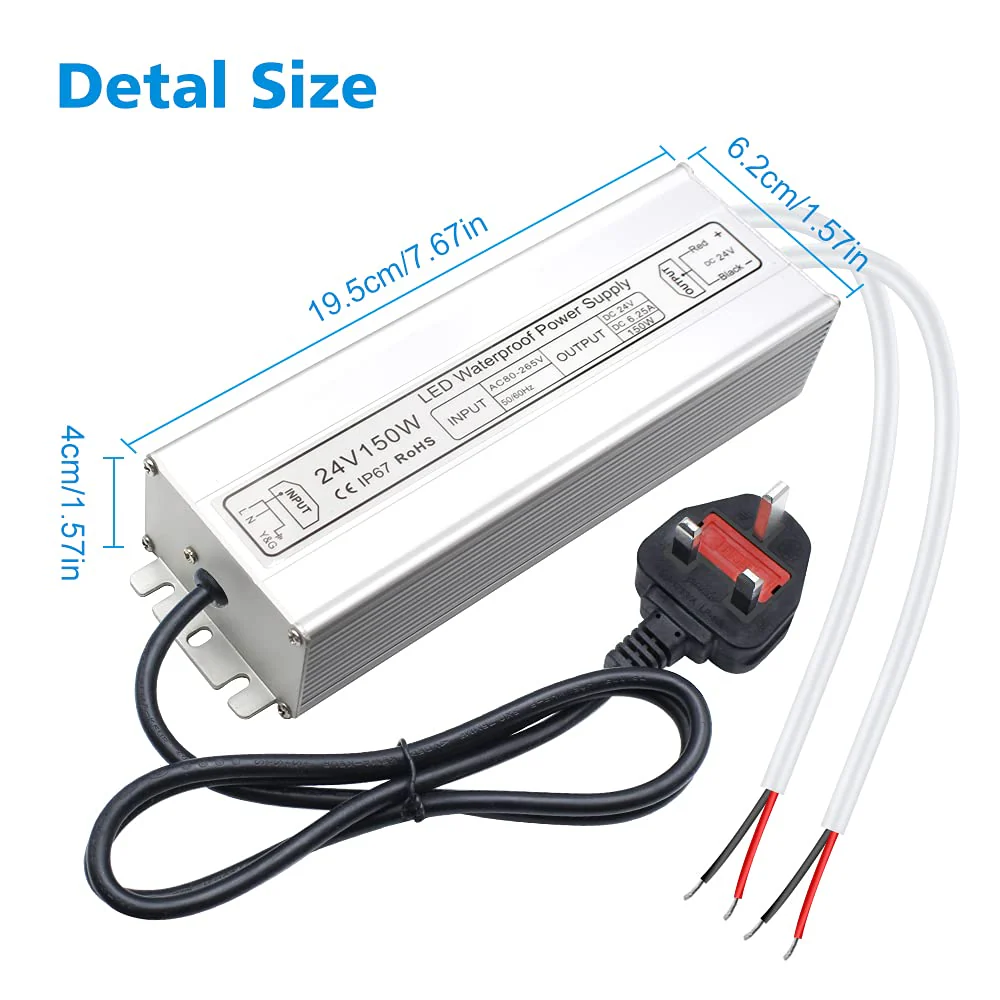

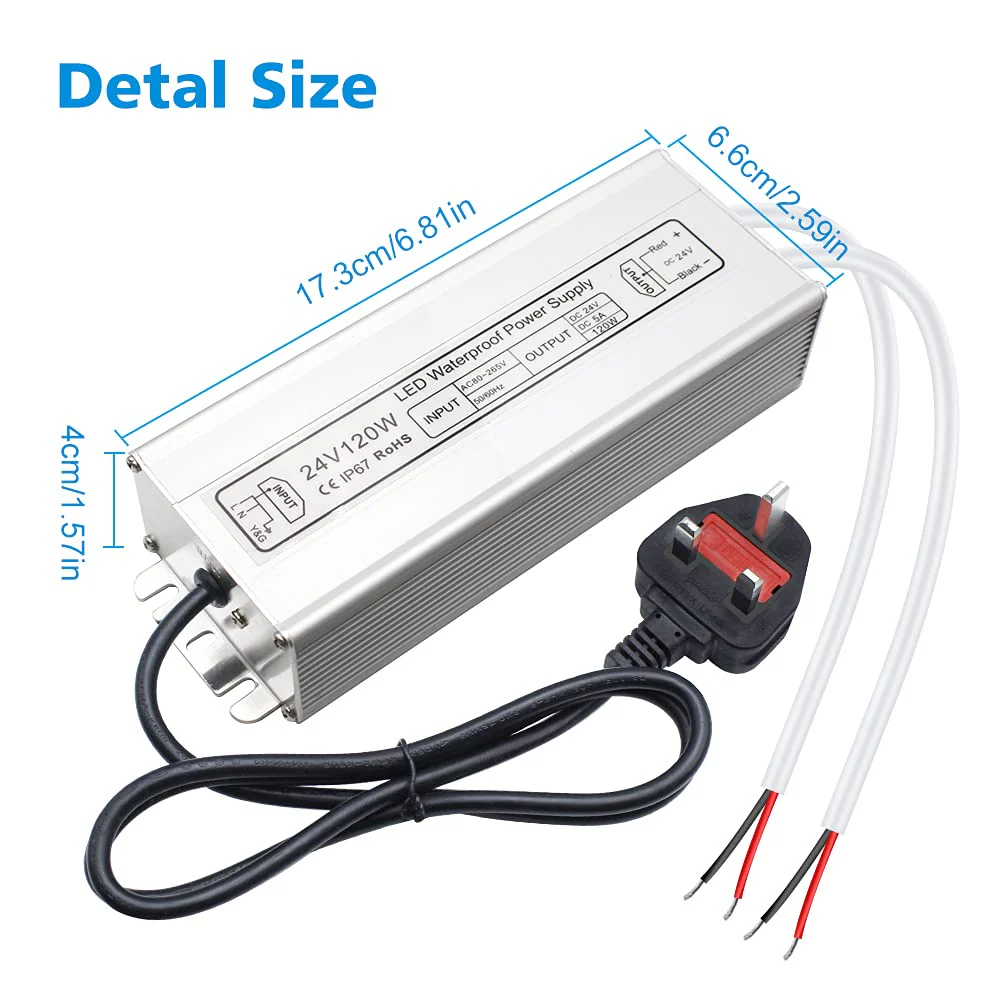

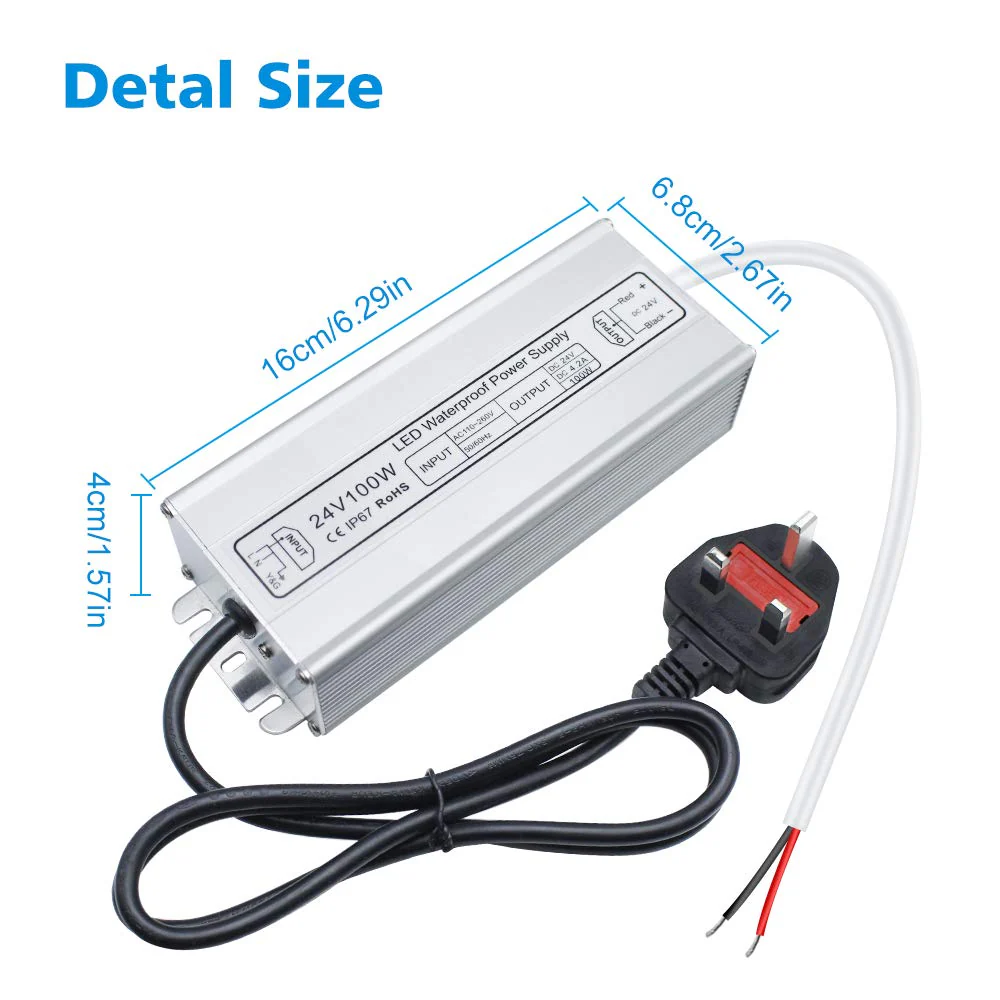

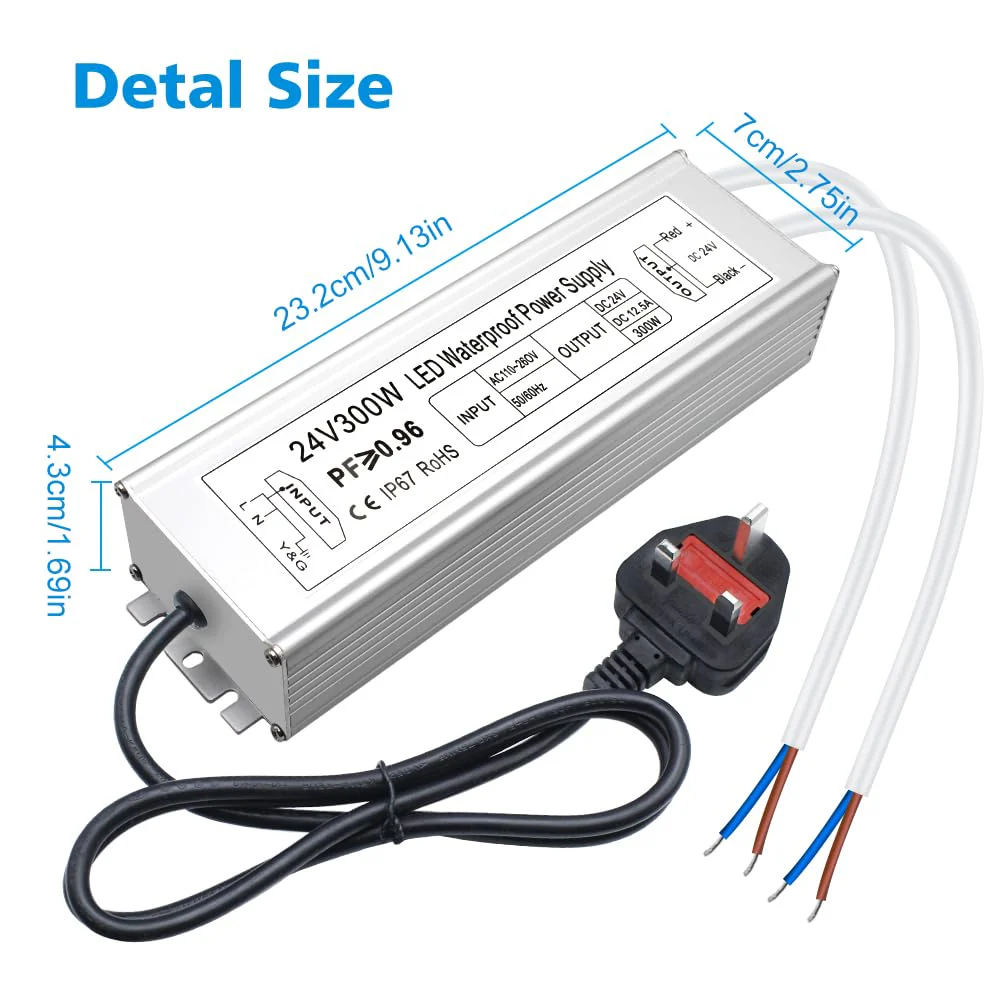

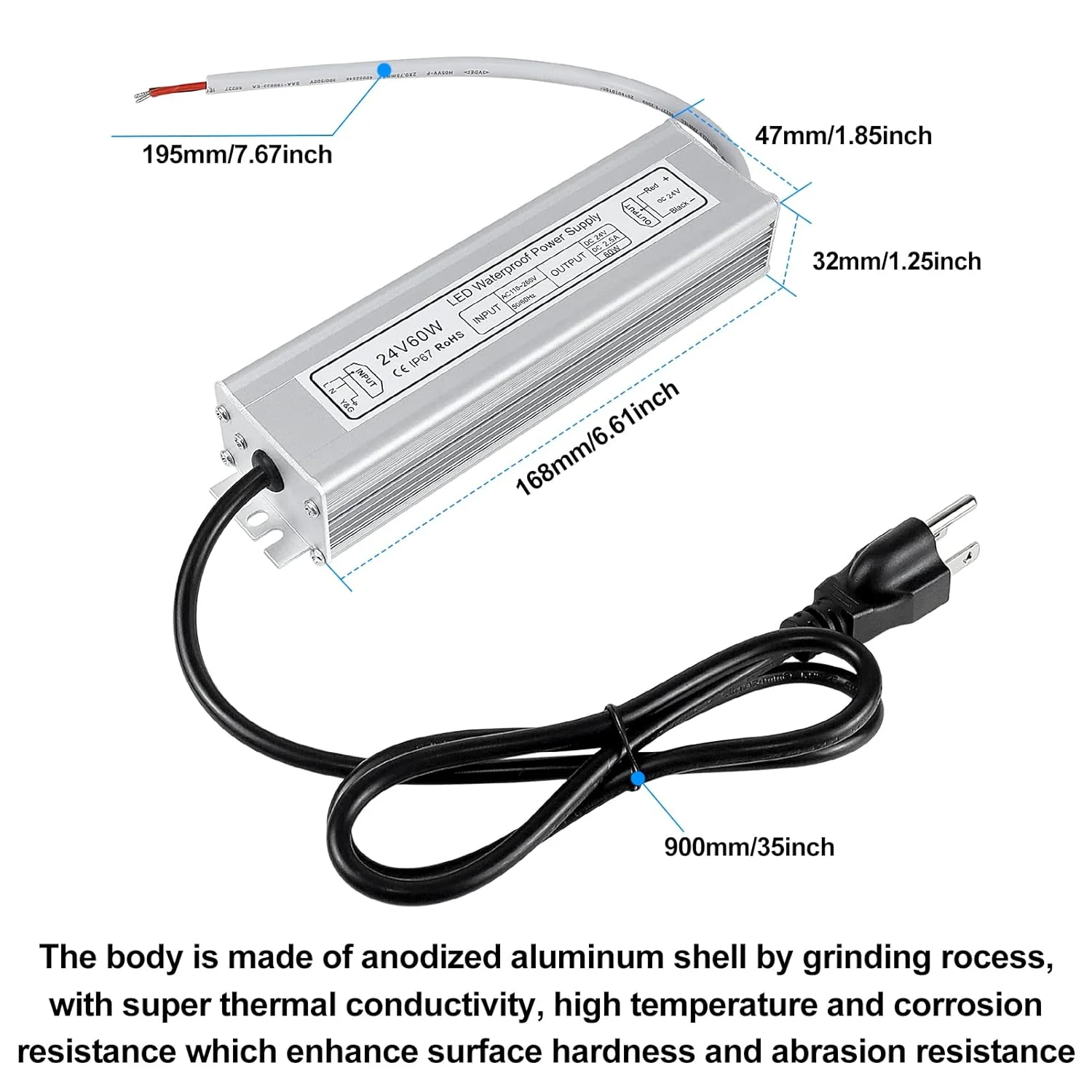

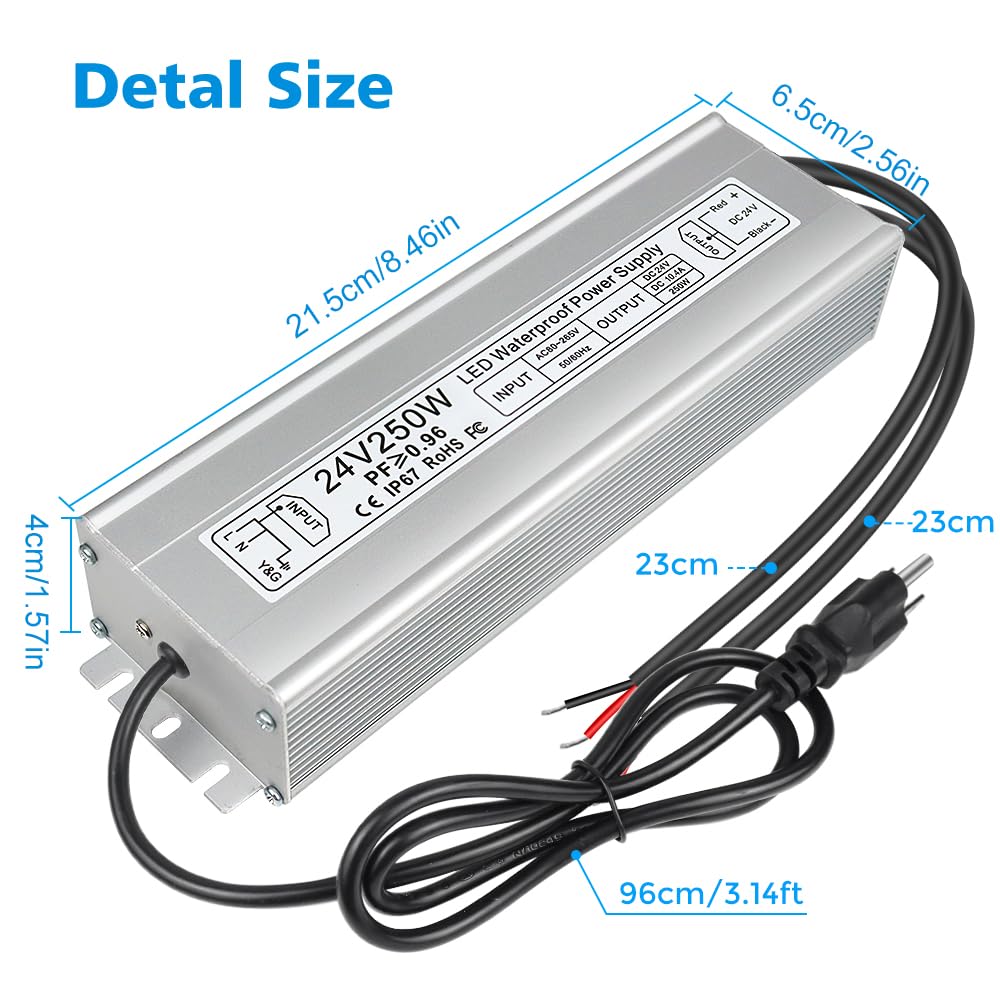

| Product dimensions | 6.37 x 3.54 x 1.77 in | 1.11 × 0.78 × 1.11 in | 8.74 × 3.66 × 2.24 in | 8.6 × 2.7 × 1.6 in | 10.67 × 4.37 × 2.13 in | 10.87 × 4.25 × 2.24 in | 10.94 × 3.98 × 2.24 in |
| Waterproof rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Safety protection | Overload, over-voltage, over-temperature, overcurrent, and short-circuit protections. | ||||||
| Operating temperature | -20°C to +60°C, 20% to 90% RH (non-condensing) | ||||||
| PCB components | Using all-glass PCB (environmentally friendly, smoldering, high-temperature resistant, and long-life), and brand-new components. | ||||||
| Storage temperature | -20°C to +85°C, 10% to 95% RH (non-condensing) | ||||||
Usage Notes / Installation Tips
- Check the rated voltage and wattage of your device before connecting (≤100W per unit)
- Do not overload beyond the rated capacity (200W–500W)
- Suitable for outdoor use with IP67 waterproof rating
- Disconnect power before installation or wiring adjustments
- Ensure ventilation and allow housing to dissipate heat for continuous operation
Applications
- LED strip lights and LED bulbs (≤300W)
- Outdoor landscape and decorative lighting
- Waterproof LED driver for signage
- DIY electronics projects requiring stable 24V supply
- Small appliances and pumps within 300W load
