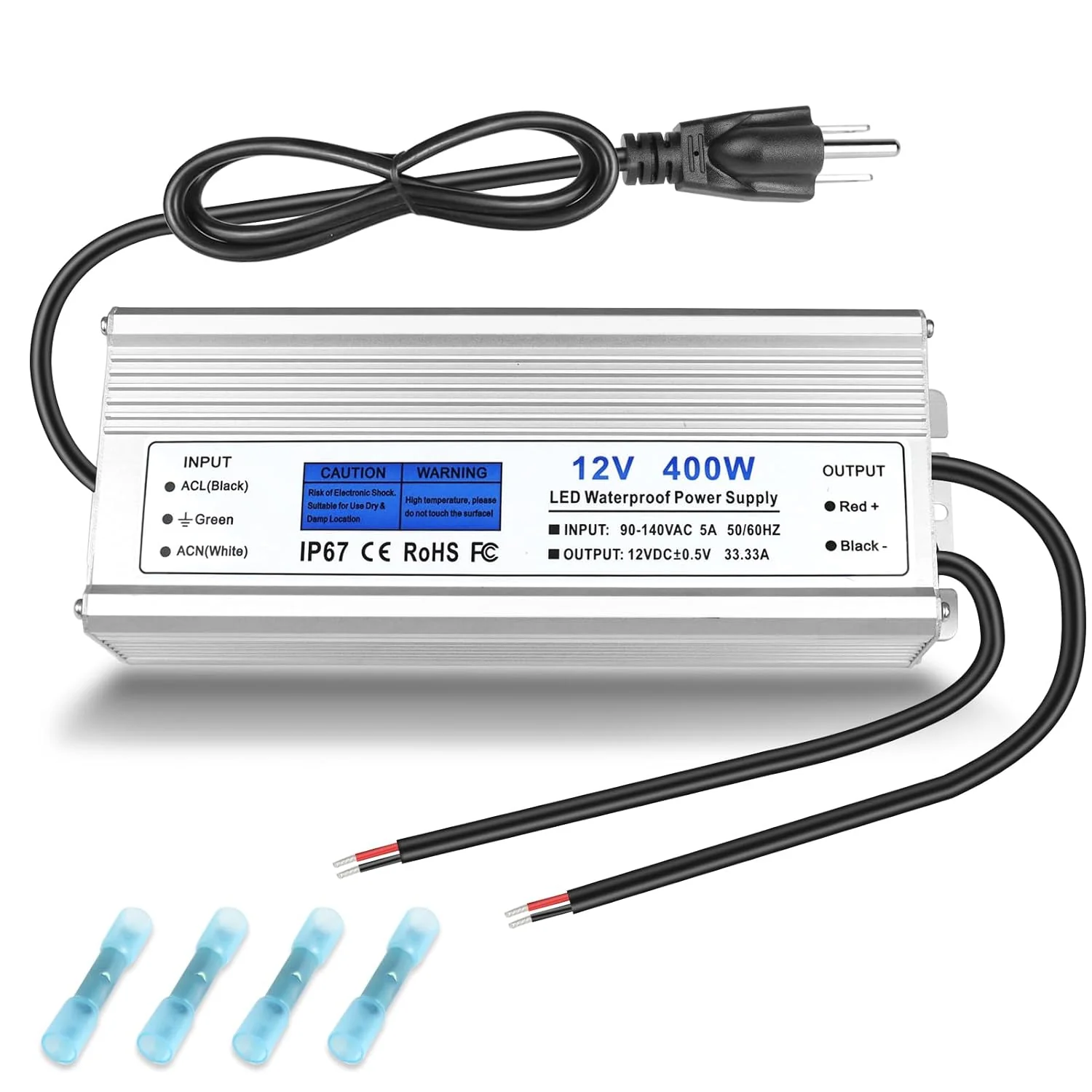

12V Waterproof LED Transformer, 90–140V Input, 200W–500W, Single/Dual Wire Output, CE/RoHS/FCC — US Plug & Wire Leads Options

12V Waterproof LED Transformer, 90–140V Input, 200W–500W, Single/Dual Wire Output, CE/RoHS/FCC — US Plug & Wire Leads Options

Package Included

Version	Package Included

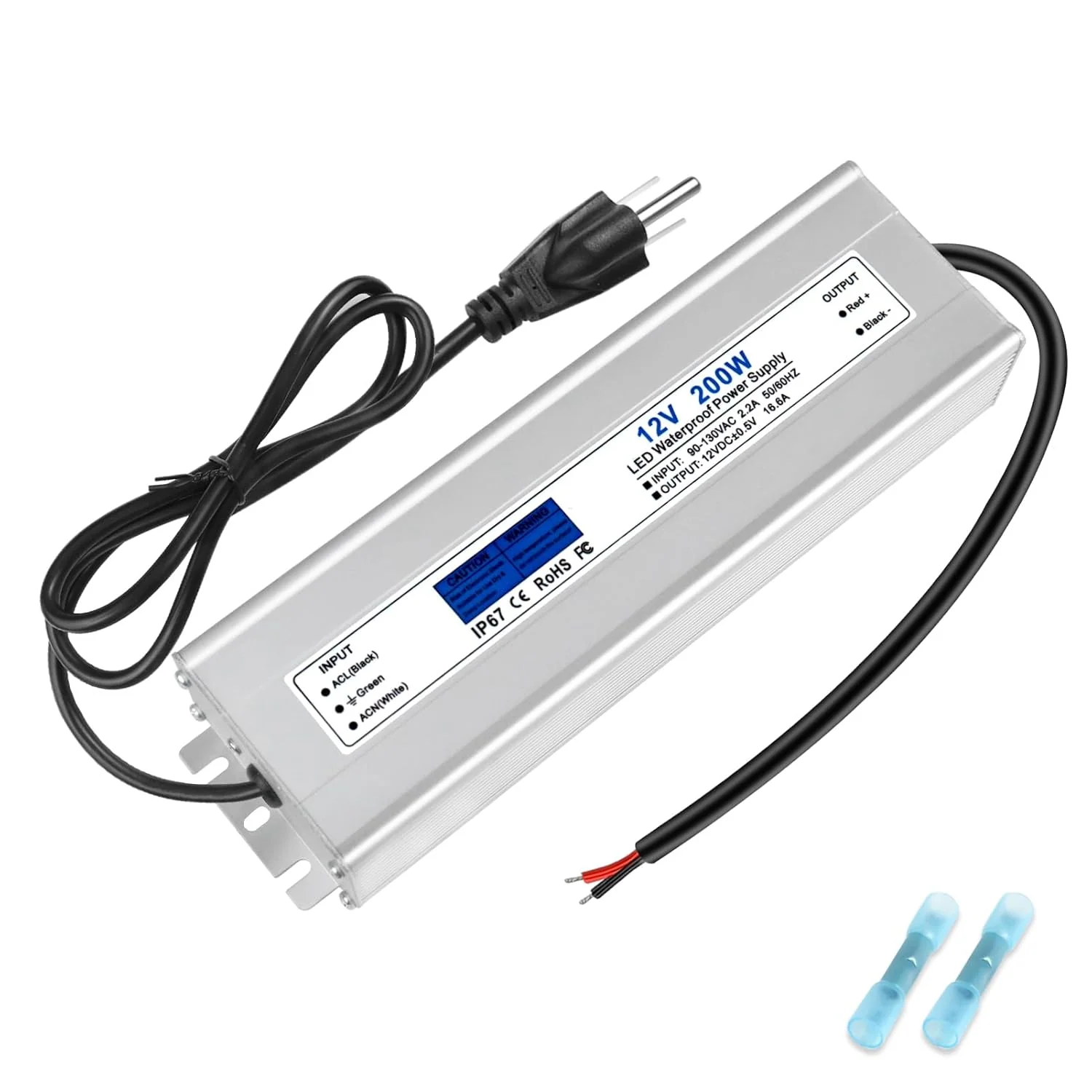

200W Single Wire US Plug	1 × 200W Waterproof LED Transformer, User Manual

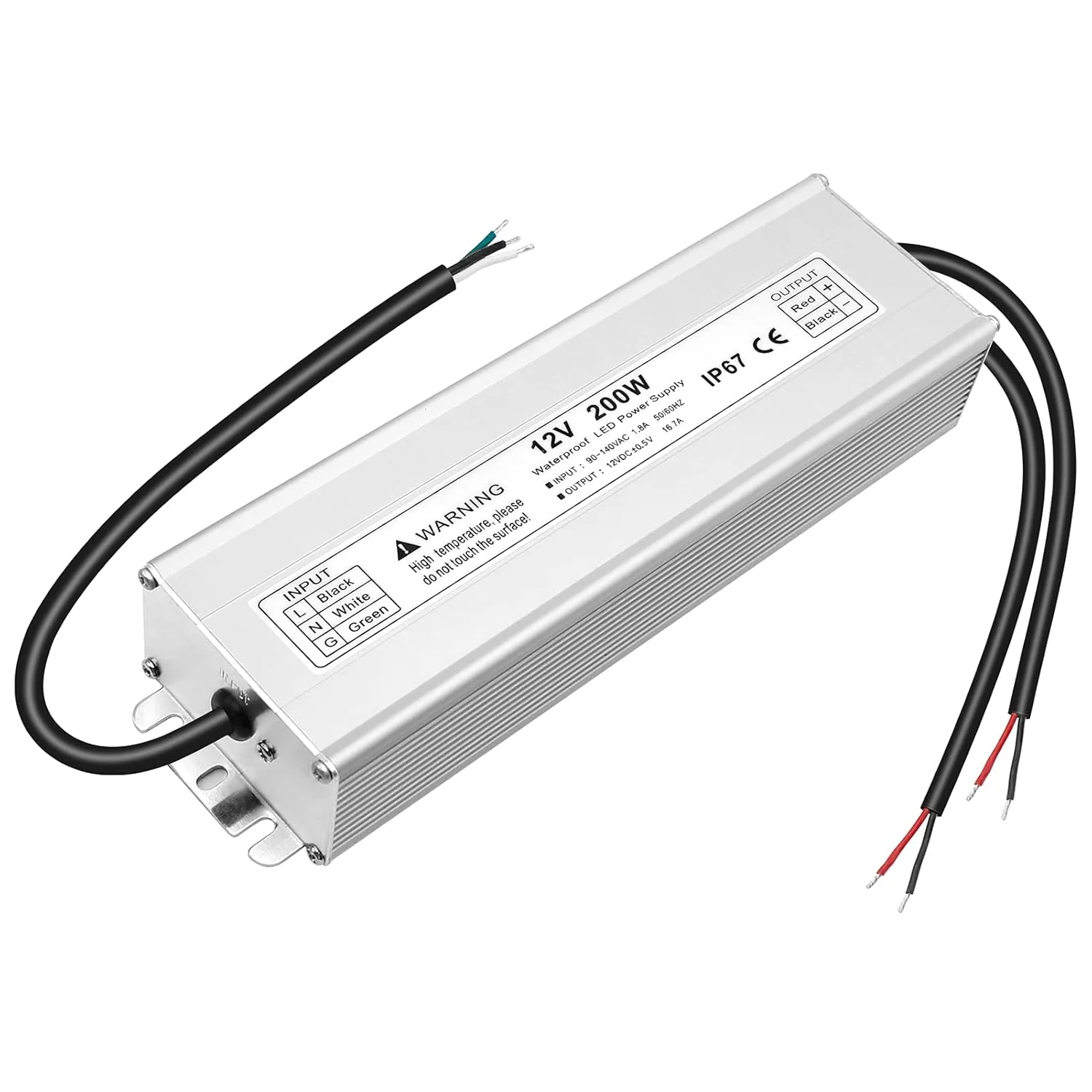

200W Single Wire Wire Leads (3-core)	1 × 200W Waterproof LED Transformer, User Manual
200W Dual Wire US Plug	1 × 200W Waterproof LED Transformer, User Manual
200W Dual Wire Wire Leads (3-core)	1 × 200W Waterproof LED Transformer, User Manual
350W Single Wire US Plug	1 × 350W Waterproof LED Transformer, User Manual

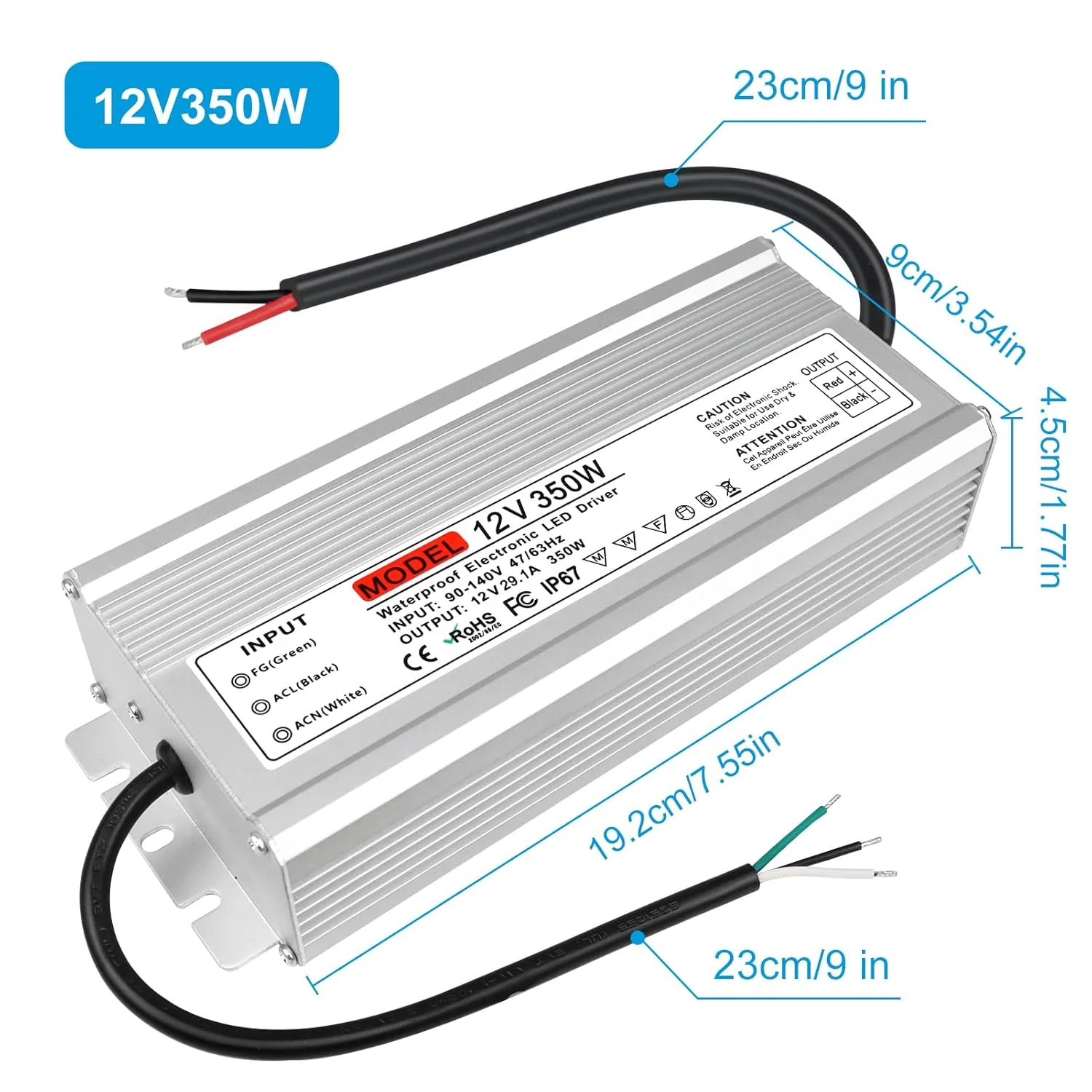

350W Single Wire Wire Leads (3-core)	1 × 350W Waterproof LED Transformer, User Manual

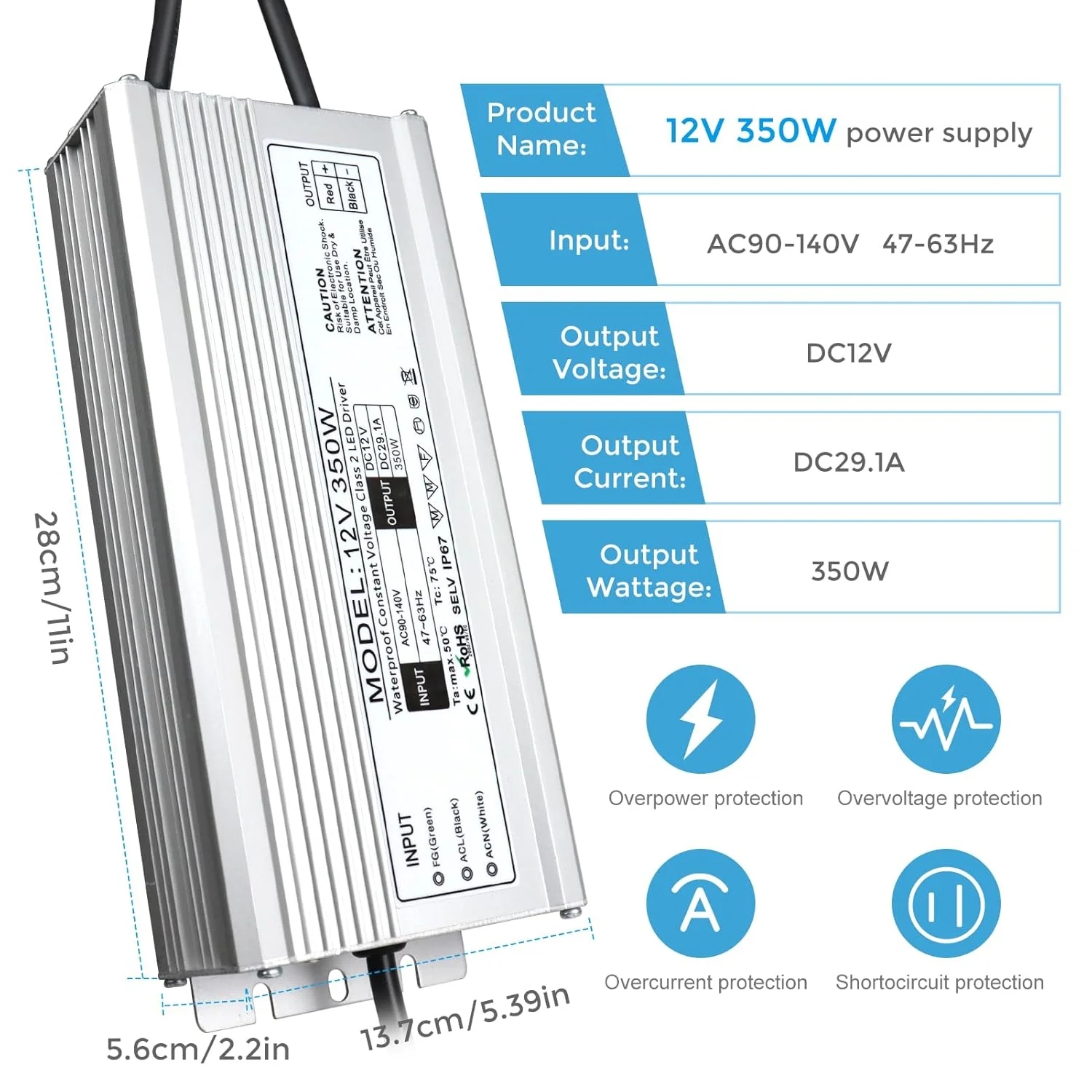

350W Dual Wire US Plug	1 × 350W Waterproof LED Transformer, User Manual
350W Dual Wire Wire Leads (3-core)	1 × 350W Waterproof LED Transformer, User Manual
400W Single Wire US Plug	1 × 400W Waterproof LED Transformer, User Manual
400W Single Wire Wire Leads (3-core)	1 × 400W Waterproof LED Transformer, User Manual

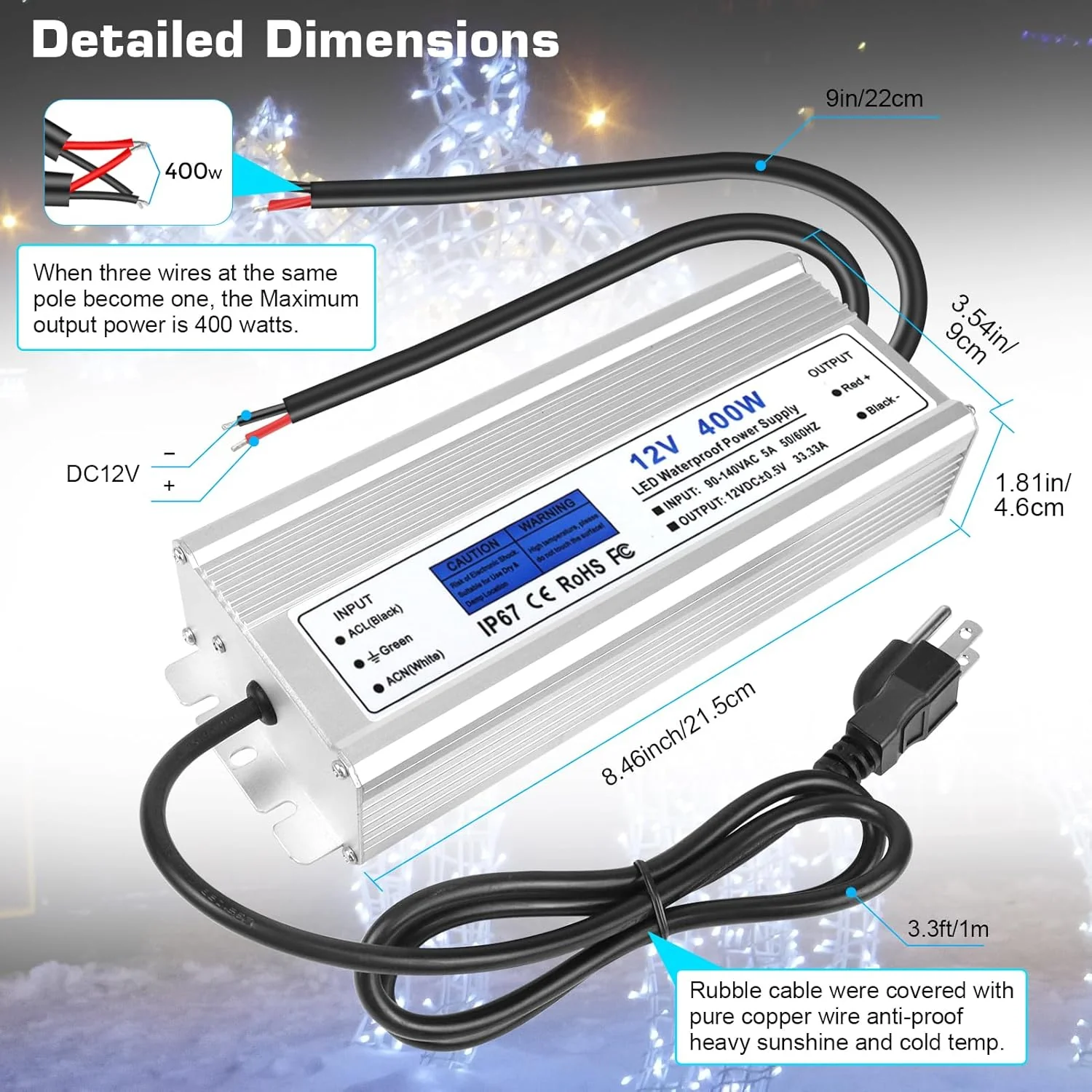

400W Dual Wire US Plug	1 × 400W Waterproof LED Transformer, User Manual
400W Dual Wire Wire Leads (3-core)	1 × 400W Waterproof LED Transformer, User Manual

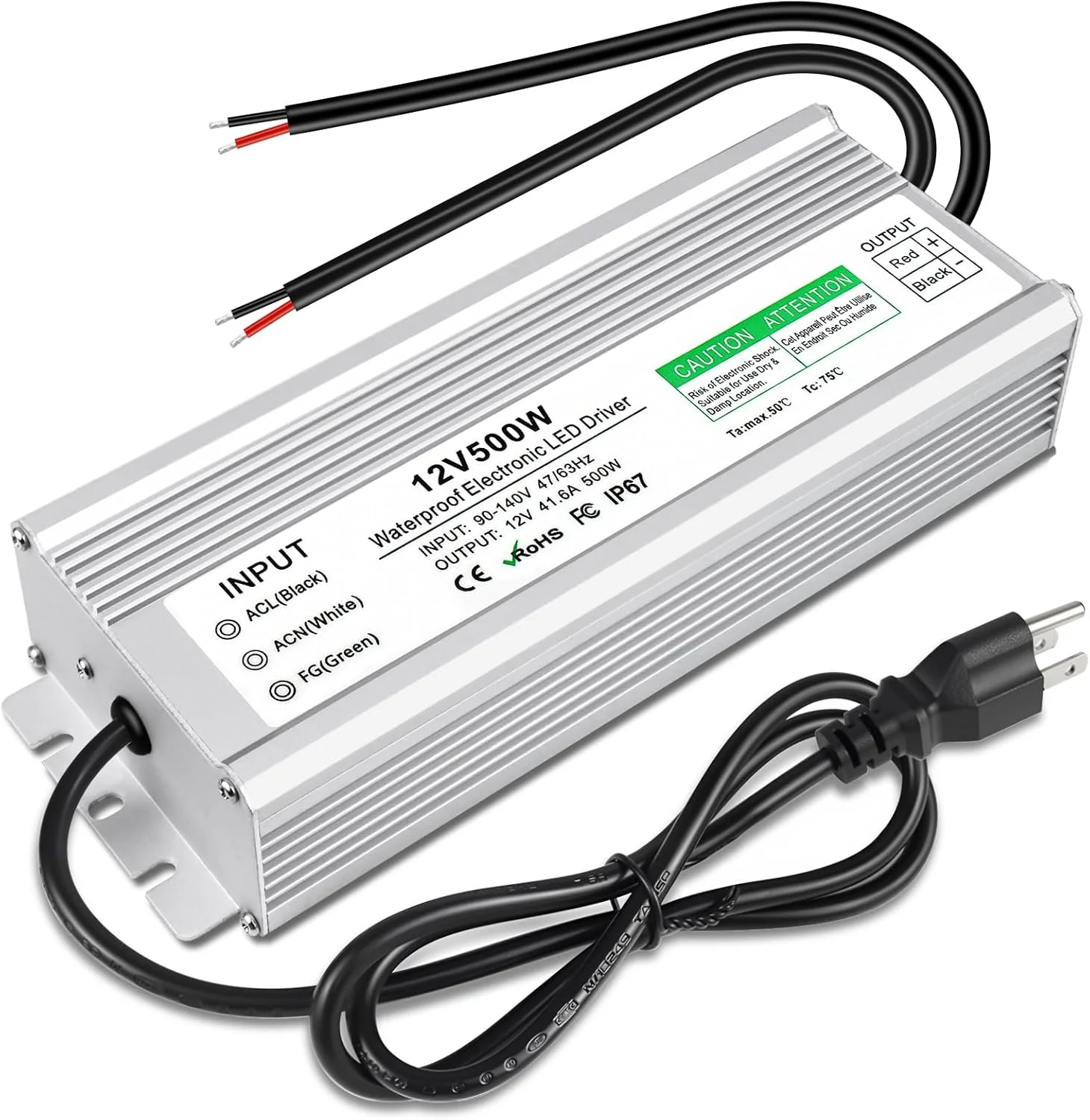

500W Dual Wire US Plug	1 × 500W Waterproof LED Transformer, User Manual
500W Dual Wire Wire Leads (3-core)	1 × 500W Waterproof LED Transformer, User Manual

About this item

• Wide input voltage 90–140V AC, 50/60Hz, designed for stable performance
• Converts AC to stable DC output (12V / 200W–500W options)
• Compact design with aluminum alloy waterproof housing for outdoor use
• Suitable for LED strip lights, LED bulbs, outdoor signage and decorative lighting

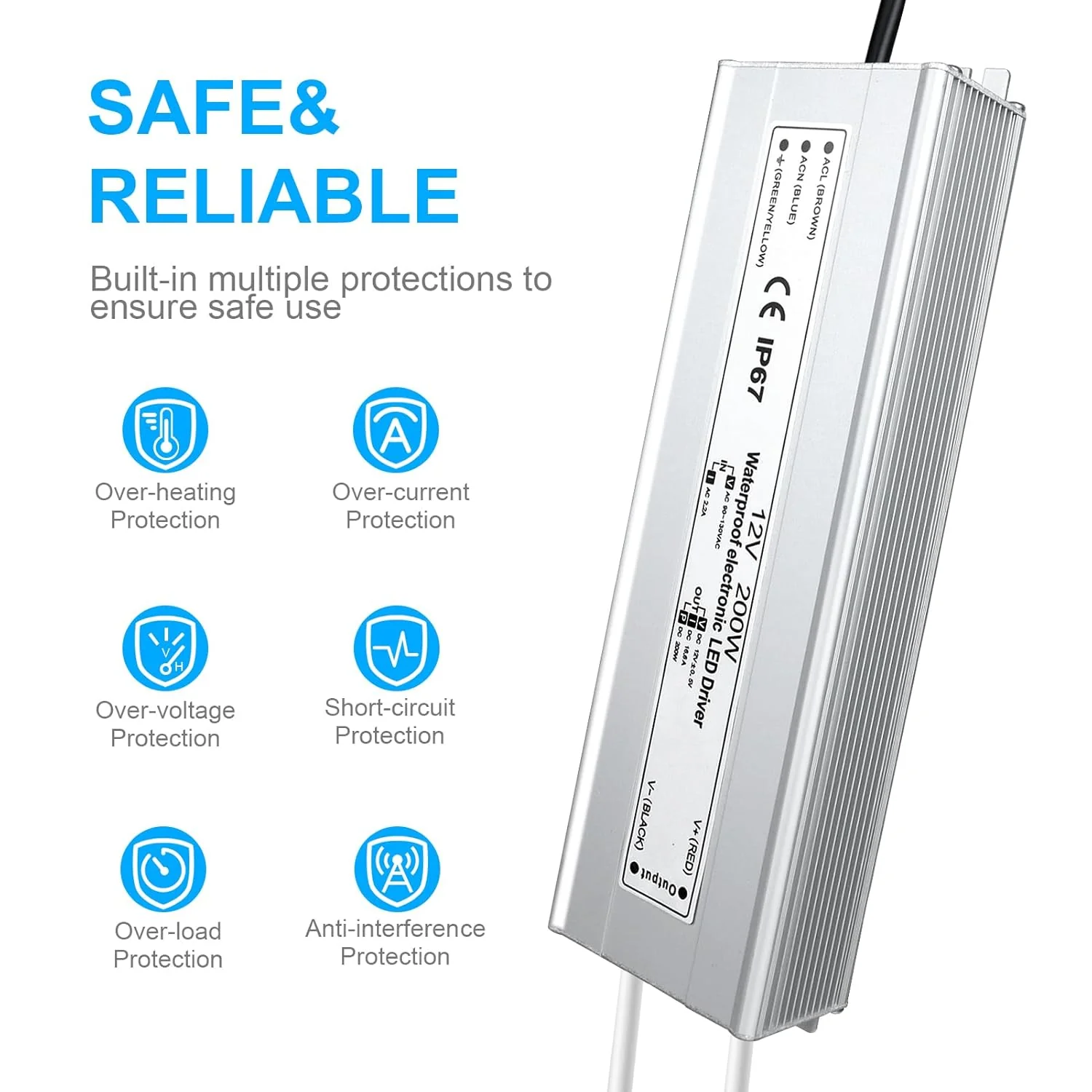

• Safe and reliable with overload, short-circuit, over-voltage, and high temperature protection
• Available in single or dual wire output, with US Plug & Wire Leads options

Order & Logistics

• Lead Time: Ships within 1–3 business days
• Packing: Protective cardboard box with user manual
• Shipping: Ships from local warehouses (US, Canada, UK, Germany) with delivery in 3–7 days. In rare cases, shipment may be fulfilled from central warehouse if local stock is unavailable(9–18 days standard or 5–9 days express.)

Key Specifications

• Input Voltage: 90–140V AC, 50/60Hz
• Output Voltage / Wattage: 12V DC / 200W–500W
• Plug Type: US Plug & Wire Leads Options
• Package Qty: 1-Pack
• Housing: Aluminum Alloy, Waterproof
• Protection: Overload, Short-circuit, Over-voltage, High Temperature

Model	PFH-200-12	PFH-350-12	PFH-400-12	PFH-500-12
Input voltage range	90–140V AC	90–140V AC	90–140V AC	110V AC
Output power	200W	350W	400W	500W
Rated output voltage	12V DC	12V DC	12V DC	12V DC
Rated output current	16.67A	29.17A	33.33A	41.67A
Output current range	0–16.67A	0–29.17A	0–33.33A	0–41.67A
Weight	1.0 kg	1.40 kg	1.60 kg	1.70 kg

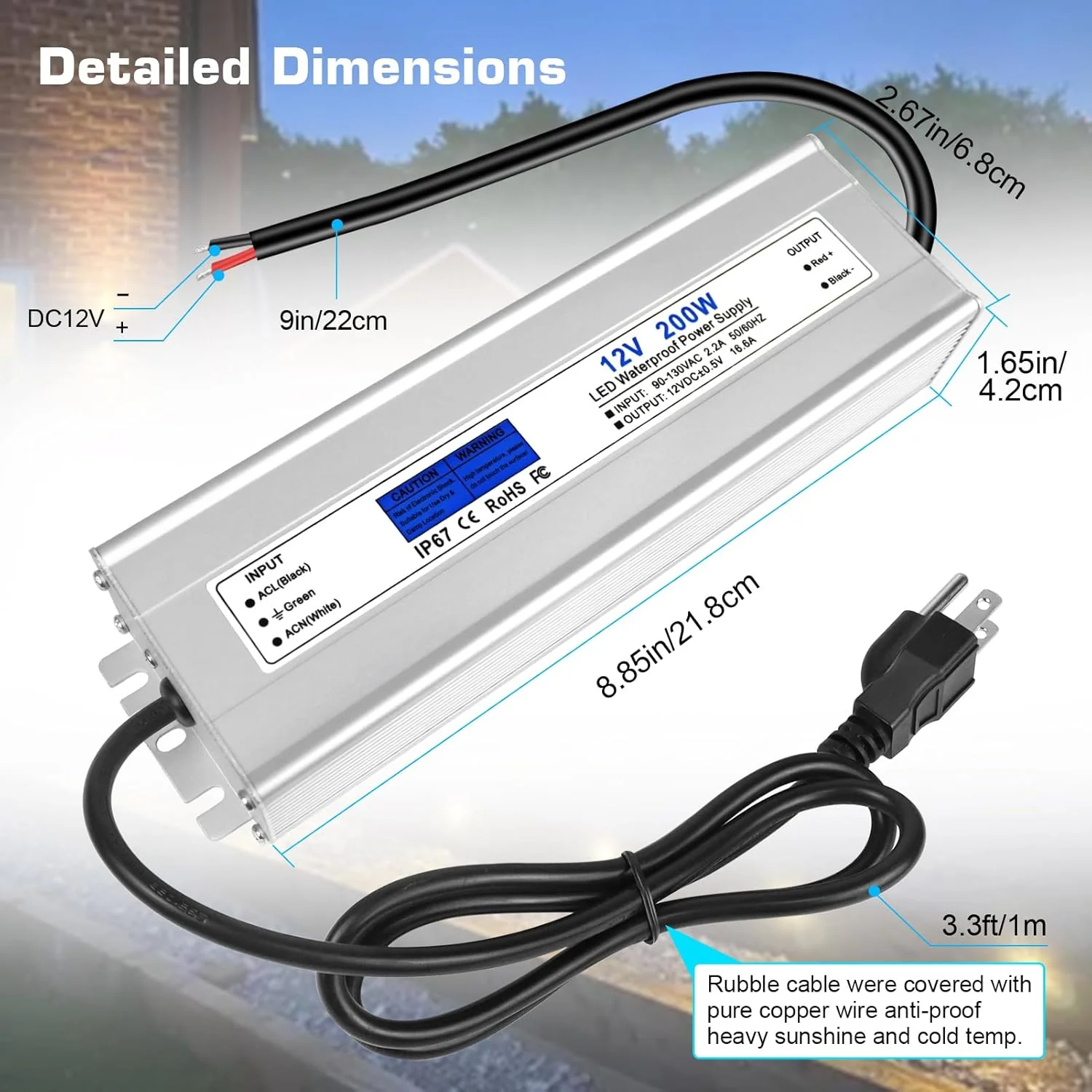

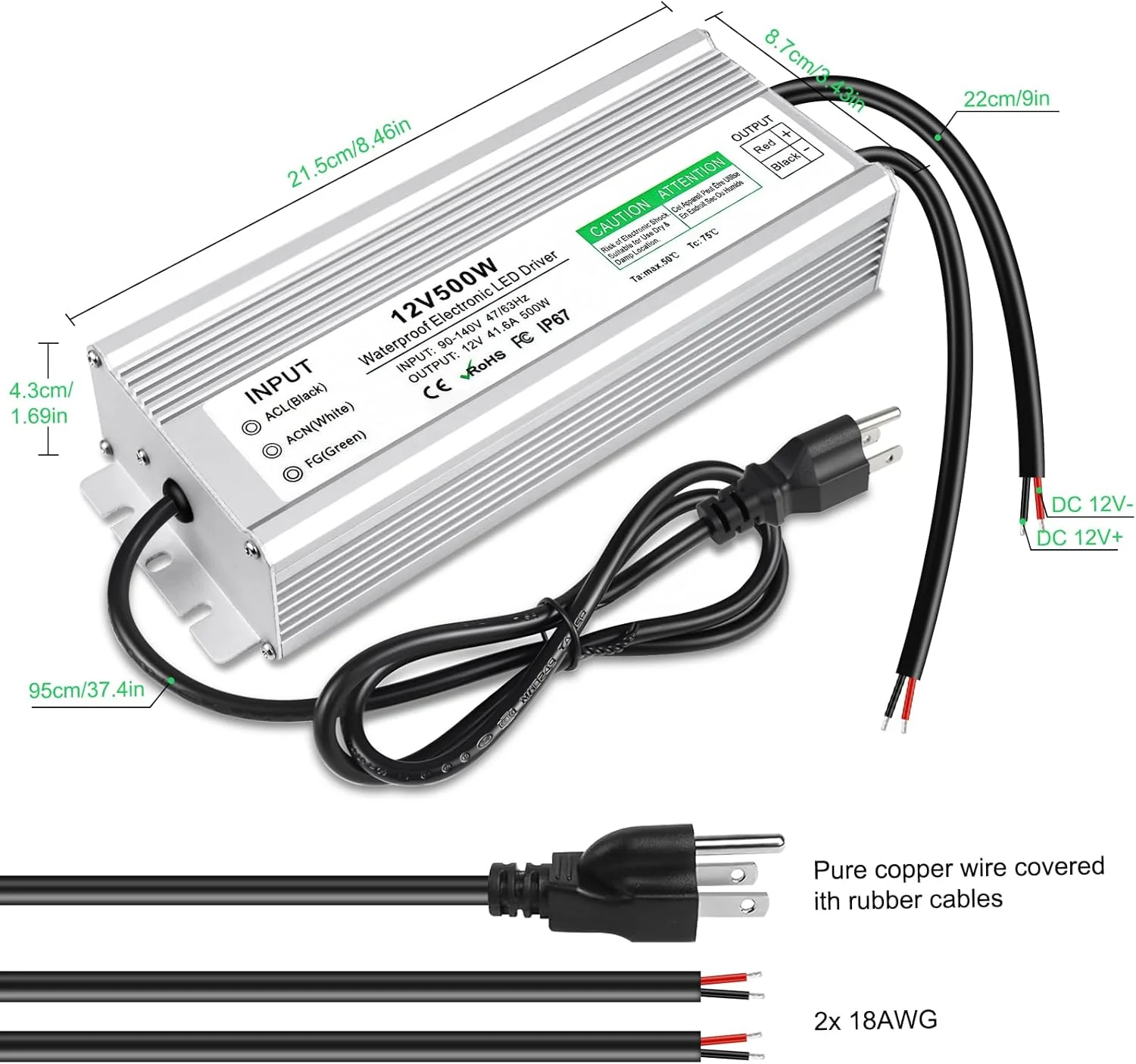

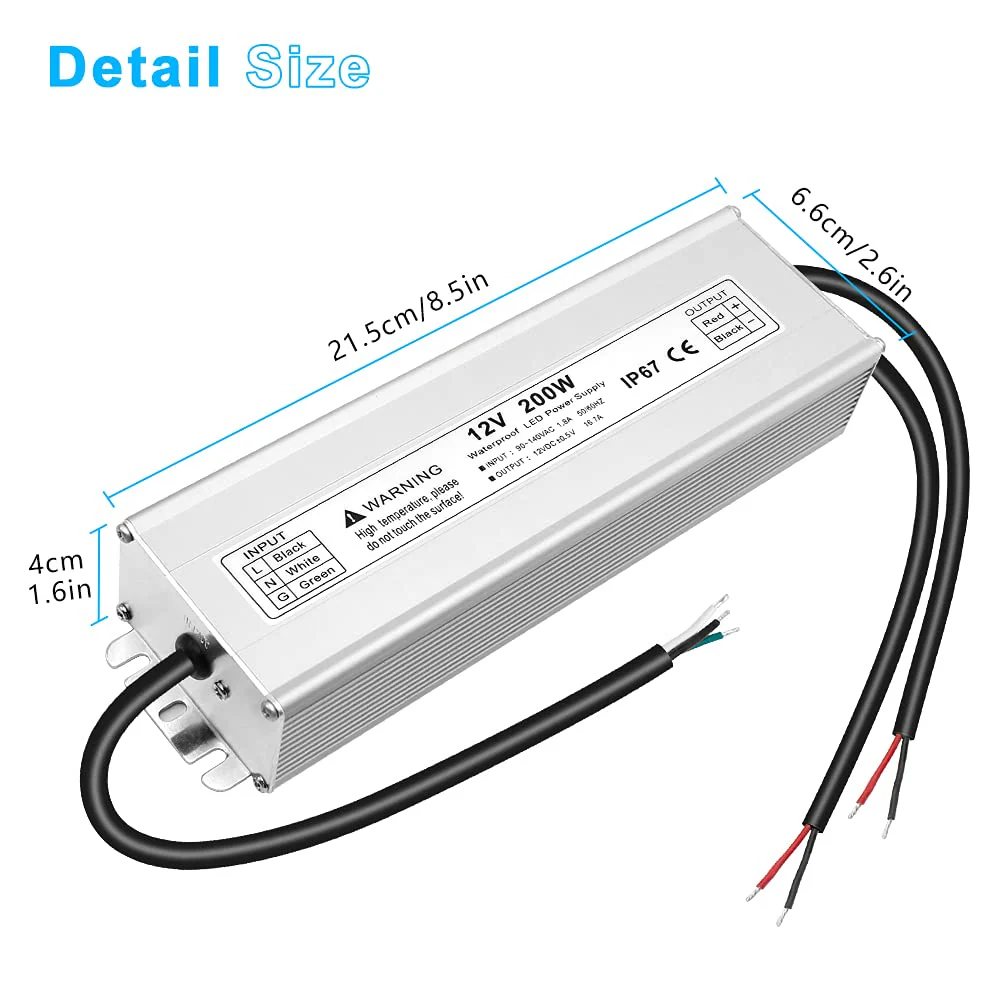

Product dimensions	10.83 × 4.21 × 2.17 in	11.14 × 5.55 × 2.13 in	11.26 × 5.59 × 2.13 in	11 × 5.3 × 2.7 in

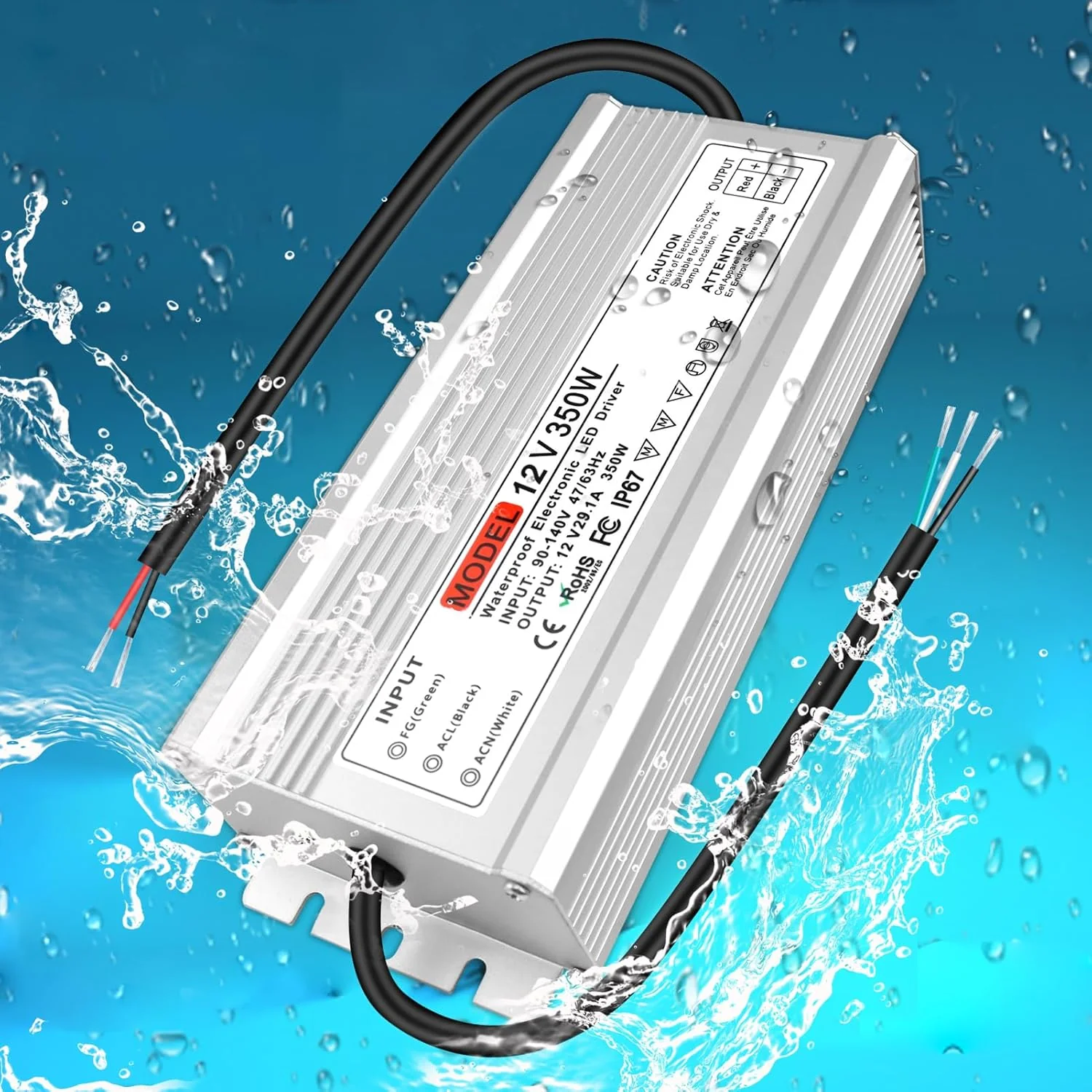

Waterproof rating	IP67	IP67	IP67	IP67
Safety protection	Overload, over-voltage, over-temperature, overcurrent, and short-circuit protections.
Operating temperature	-20°C to +60°C, 20% to 90% RH (non-condensing)
PCB components	Using all-glass PCB (environmentally friendly, smoldering, high-temperature resistant, and long-life), and brand-new components.
Storage temperature	-20°C to +85°C, 10% to 95% RH (non-condensing)

Usage Notes / Installation Tips

• Check the rated voltage and wattage of your device before connecting (≤500W)
• Do not overload beyond the rated capacity
• Suitable for outdoor use with waterproof rating
• Disconnect power before installation or wiring adjustments
• Ensure ventilation and allow housing to dissipate heat for continuous operation

Applications

• LED strip lights and LED bulbs (≤500W)
• Outdoor landscape and decorative lighting
• Waterproof LED driver for signage
• DIY electronics projects requiring stable 12V supply
• Small appliances and pumps within 500W load
