U Shape LED Channel U04-A – 20mm | Silver / Black | Milky White Cover | With Installation Accessories | – Heavy-Duty Aluminum Profile – 1m / 2m / 3m | 50 / 100-Pack

U Shape LED Channel U04-A – 20mm | Silver / Black | Milky White Cover | With Installation Accessories | – Heavy-Duty Aluminum Profile – 1 m / 2 m / 3 m | 50 / 100-Pack

Package Included

Version	Package Included
Silver – 1 m × 50-Pack	50 × 1 m Aluminum Channel (Silver); 50 × 1 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws
Silver – 2 m × 50-Pack	50 × 2 m Aluminum Channel (Silver); 50 × 2 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws
Silver – 3 m × 100-Pack	100 × 3 m Aluminum Channel (Silver); 100 × 3 m Milky White PC Lens; 200 × End Caps; 600 × Mounting Clips,Expansion tube, screws
Black – 1 m × 50-Pack	50 × 1 m Aluminum Channel (Black); 50 × 1 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws
Black – 2 m × 50-Pack	50 × 2 m Aluminum Channel (Black); 50 × 2 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws
Black – 3 m × 100-Pack	100 × 3 m Aluminum Channel (Black); 100 × 3 m Milky White PC Lens; 200 × End Caps; 600 × Mounting Clips,Expansion tube, screws

About this item

• U04-A aluminum profile kit is a heavy-duty solution for DIY under-cabinet and decorative lighting
• Suitable for recessed or surface mounting on furniture, cabinets, shelves, walls, ceilings, steps, and niches
• Milky white PC diffuser softens light output for uniform, glare-free illumination

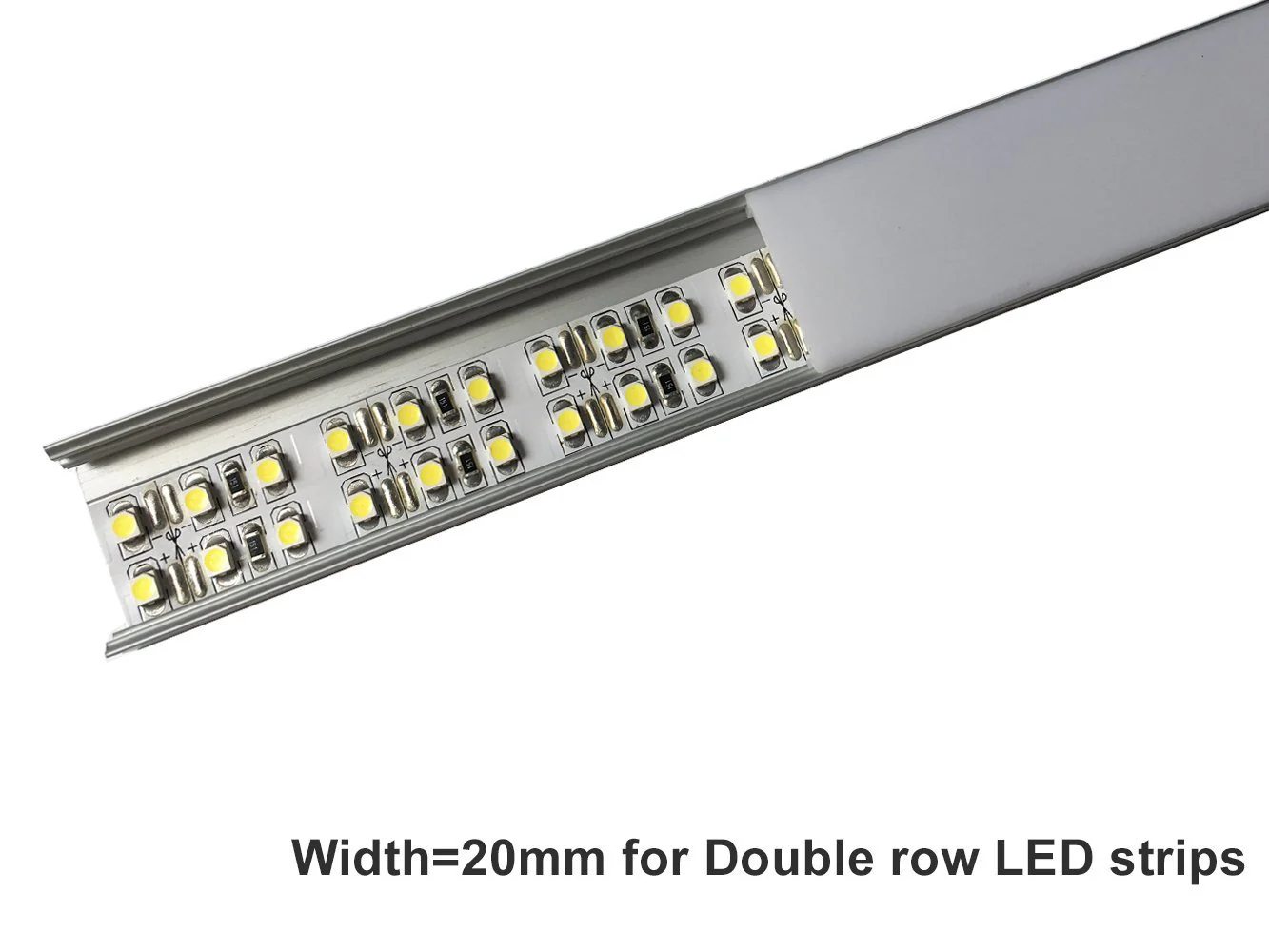

• Compatible with LED flexible or rigid strip lights up to 20 mm wide

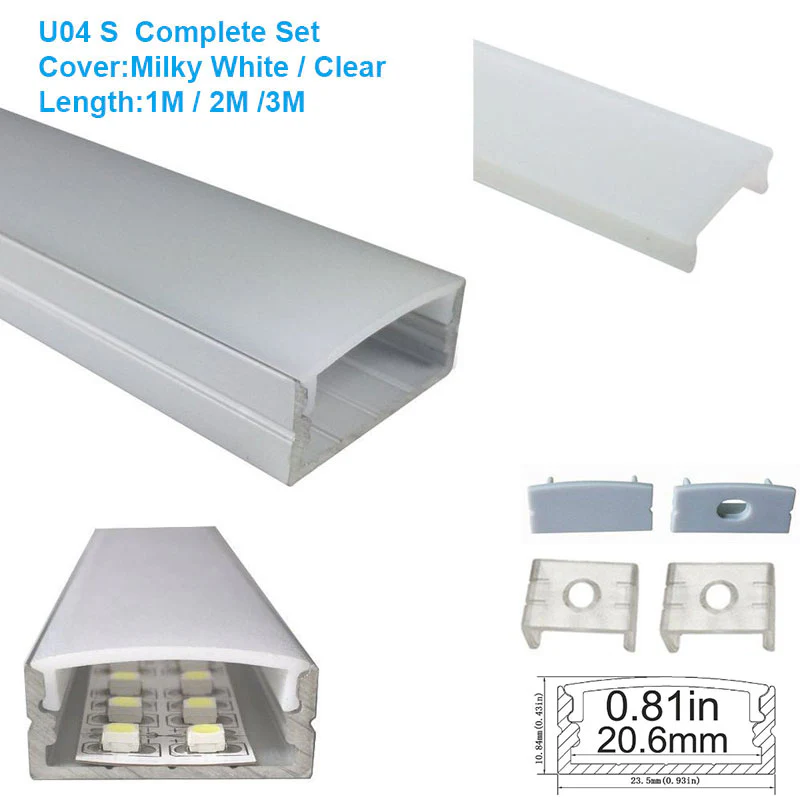

• Each kit includes aluminum channel, diffuser cover, end caps, and mounting clips
• Extendable design allows seamless connections for continuous runs

Order & Logistics

• Lead Time: Ships within 3–8 business days after order confirmation
• Packing: Heavy-duty cardboard box with protective padding
• Shipping Note:
• LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)

• Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, buyer will be contacted before dispatch

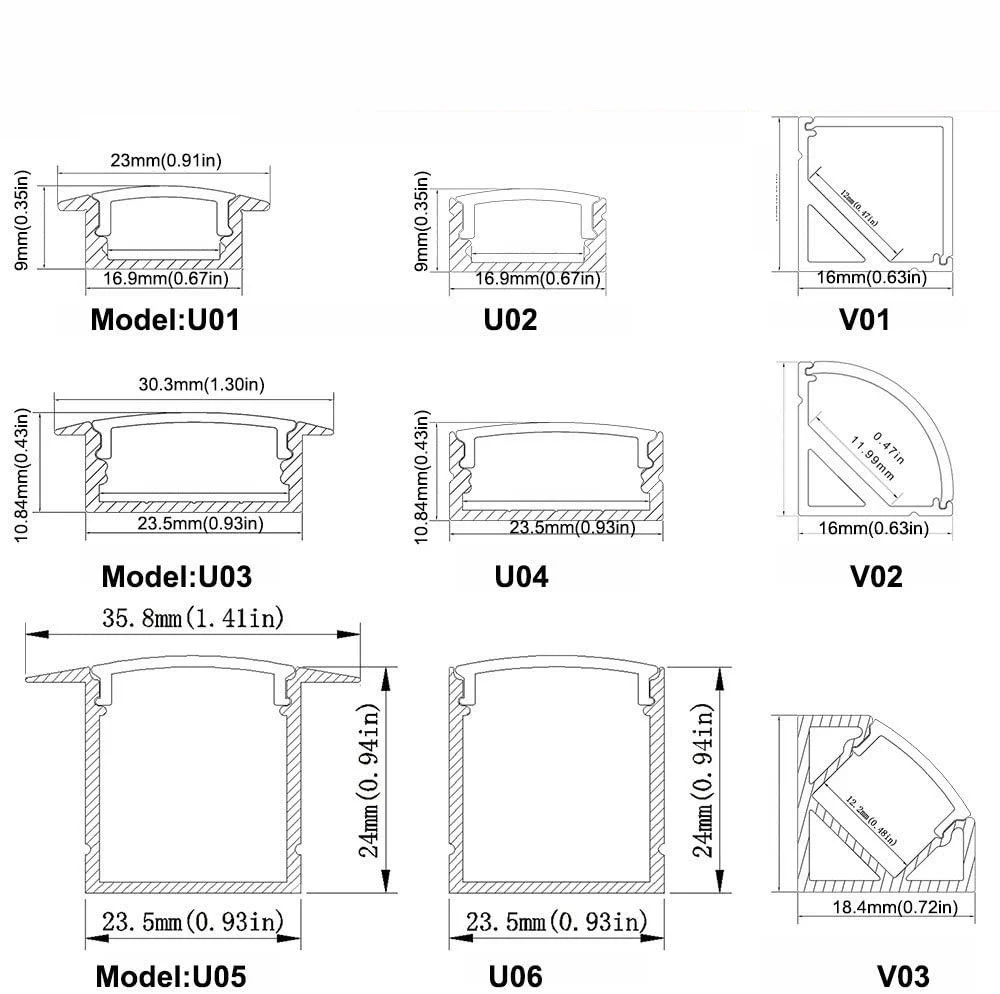

Key Specifications

Specification	Value
Configuration	U-shape aluminum channel
Material	Extruded aluminum + milky PC cover
Colors	Silver / Black
Height	0.43 in (10.84 mm)
Inner Diameter	0.81 in (20.6 mm)
Top Width	0.93 in (23.5 mm)
Back Width	0.93 in (23.5 mm)
Compatible LED Strip Width	≤ 20 mm

Usage Notes / Installation Tips

• Cut aluminum channels to required length before installation
• Mount with included clips or recess into surfaces for a flush finish
• Insert LED strip (check voltage and polarity) and snap on diffuser cover
• Use indoors; provide ventilation for heat dissipation

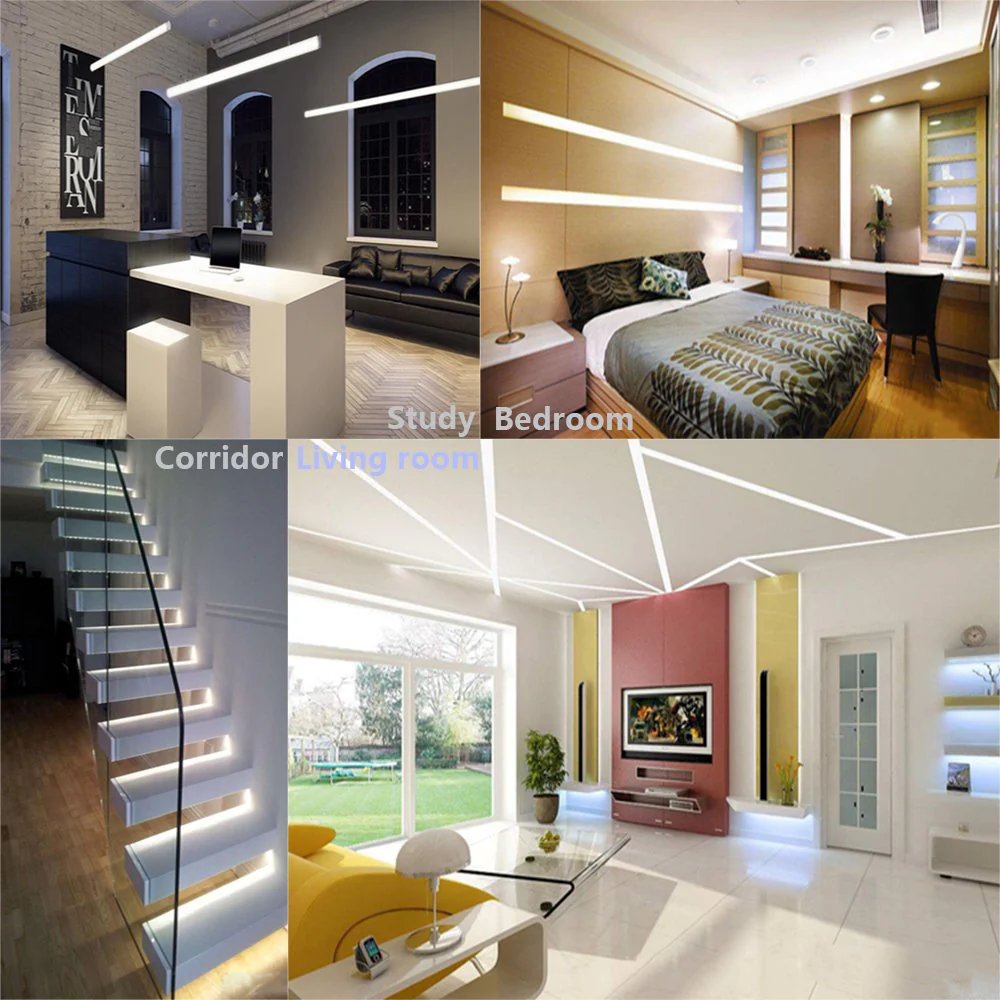

Applications

• Under-cabinet and shelf lighting
• Accent lighting for walls, ceilings, steps, and niches
• Retail display and showcase illumination
• Residential and commercial decorative lighting projects
