U Shape LED Channel U02-A – 12mm | Silver / Black | Milky White Cover | With Installation Accessories | – Heavy-Duty Aluminum Profile – 1m / 2m / 3m | 50 / 100-Pack

U Shape LED Channel U02-A – 12mm | Silver / Black | Milky White Cover | With Installation Accessories | Heavy-Duty Aluminum Profile – 1 m / 2 m / 3 m | 50 / 100-Pack

Package Included

Version	Package Included
Silver – 1 m × 50-Pack	50 × 1 m Aluminum Channel, 50 × 1 m PC/PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws
Silver – 2 m × 50-Pack	50 × 2 m Aluminum Channel, 50 × 2 m PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws
Silver – 3 m × 100-Pack	100 × 3 m Aluminum Channel, 100 × 3 m PMMA Lens, 200 × End Caps, 600 × Mounting Clips,Expansion tube, screws
Black – 1 m × 50-Pack	50 × 1 m Aluminum Channel, 50 × 1 m PC/PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws
Black – 2 m × 50-Pack	50 × 2 m Aluminum Channel, 50 × 2 m PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws
Black – 3 m × 100-Pack	100 × 3 m Aluminum Channel, 100 × 3 m PMMA Lens, 200 × End Caps, 600 × Mounting Clips,Expansion tube, screws

About this item

• U02-A aluminum profile kit is a cost-effective solution for DIY under-cabinet lighting.
• Supports recessed or surface mounting on furniture, cabinets, shelves, drywall, partitions, walls, ceilings, floors, steps, and niches.

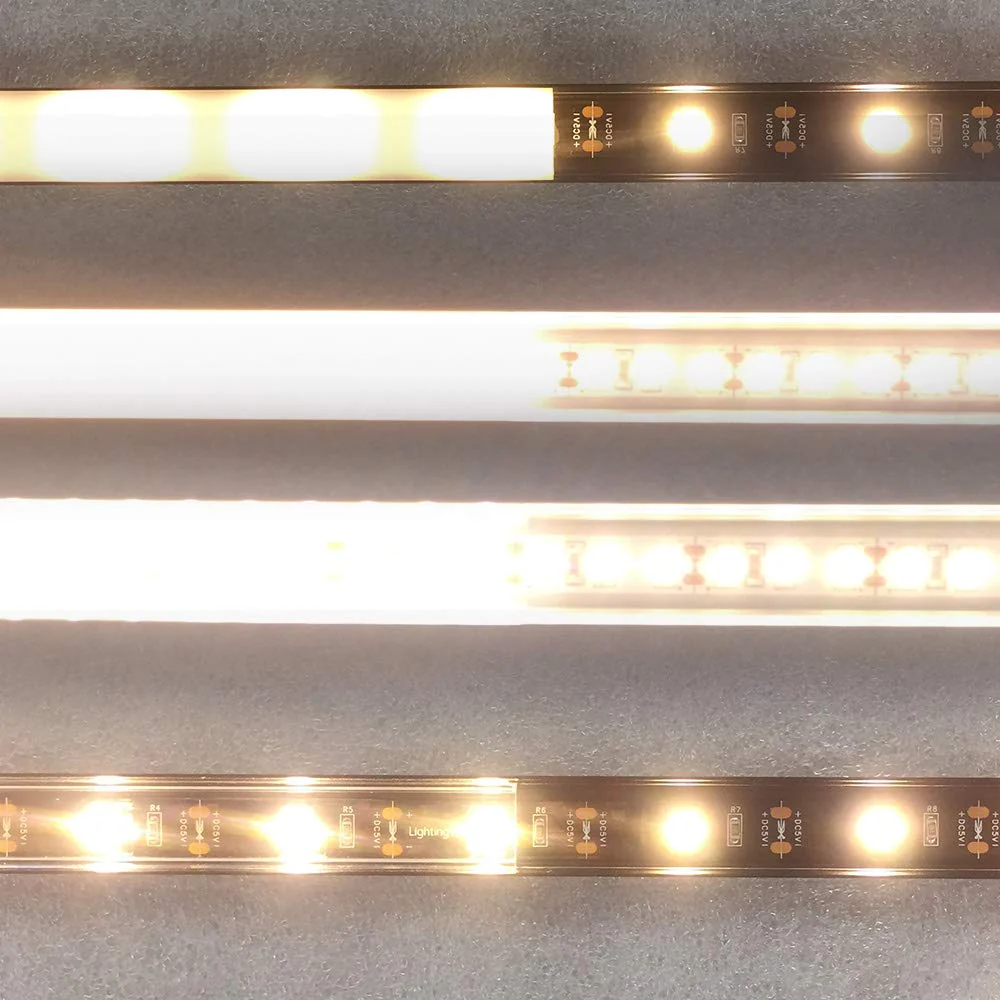

• Opal milky PC diffuser softens output for uniform, glare-free illumination.

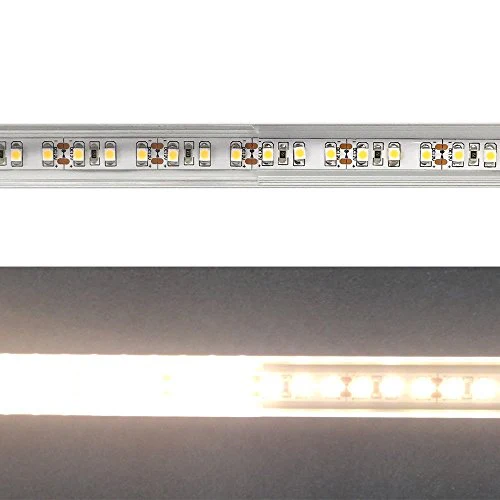

• Compatible with flexible or rigid LED strip lights up to 12.15 mm wide.

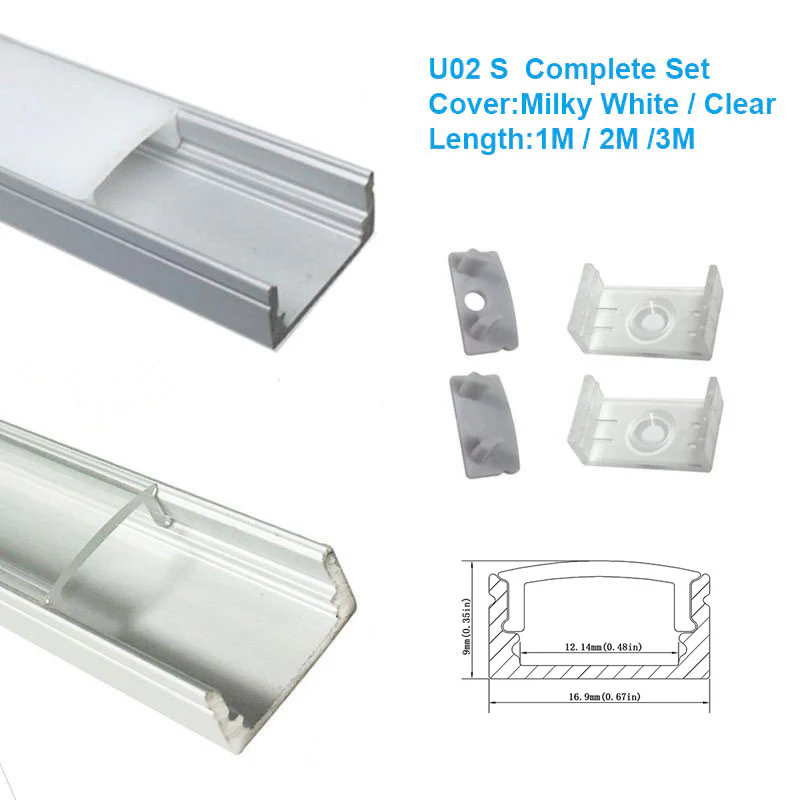

• Each kit includes channel, diffuser cover, end caps, and mounting clips for a complete installation.
• Extendable design allows seamless connection for longer continuous runs.

Order & Logistics

• Lead Time: Ships within 3–8 business days after order confirmation
• Packing: Heavy-duty cardboard box with protective padding
• Shipping Note:
• LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)
• Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, buyer will be contacted before dispatch

Key Specifications

Specification	Value

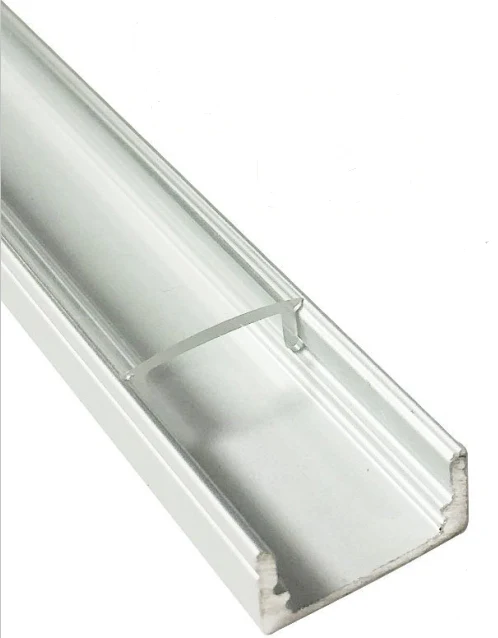

Channel Type	U-Shape LED aluminum channel
Material	Extruded aluminum + milky PC/PMMA cover
Color Options	Silver / Black

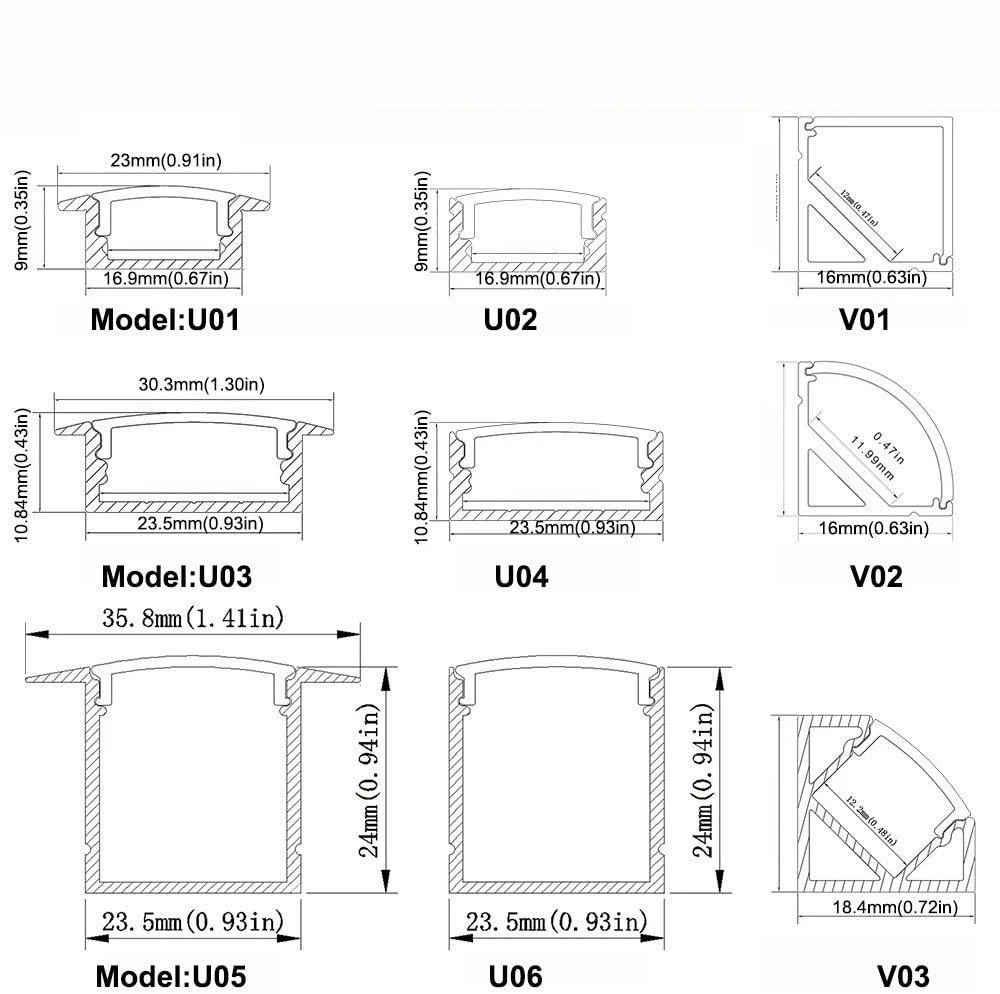

Dimensions	Height 0.35 in (9 mm); Inner width 0.48 in (12.15 mm); Top width 0.91 in (23 mm); Back width 0.67 in (16.9 mm)
Compatible Strip Width	≤ 12 mm
Segment Length Options	1 m / 2 m / 3 m
Pack Options	50 / 100 segments

Usage Notes / Installation Tips

• Cut channels to required length before installation.
• Mark mounting positions and pre-drill if necessary for clean, flush mounting.
• Fix channel with flat-head screws or mounting clips (screws not included).
• Place LED strip (observe voltage/polarity), then snap on diffuser cover.
• Intended for indoor use; ensure adequate ventilation for heat dissipation.

Applications

• Under-cabinet and shelf lighting
• Accent lines on walls, ceilings, steps, and niches
• Retail display and showcase illumination
• General decorative linear lighting for residential and commercial projects
