U Shape LED Channel U01-A – 12mm | Silver / Black | Milky White Cover | With Installation Accessories | – Heavy-Duty Aluminum Profile – 1m / 2m / 3m | 50 / 100-Pack

U Shape LED Channel U01-A – 12mm | Silver / Black | Milky White Cover | With Installation Accessories | Heavy-Duty Aluminum Profile – 1 m / 2 m / 3 m | 50 / 100-Pack

Package Included

Version	Package Included
5 × 1 m Pack	5 × 1 m Aluminum Channel, 5 × 1 m PC Lens, 10 × End Caps (5 with hole, 5 without), 10 × Mounting Clips,Expansion tube, screws
10 × 1 m Pack	10 × 1 m Aluminum Channel, 10 × 1 m PMMA Lens, 20 × End Caps (10 with hole, 10 without), 20 × Mounting Clips,Expansion tube, screws
25 × 1 m Pack	25 × 1 m Aluminum Channel, 25 × 1 m PMMA Lens, 50 × End Caps (25 with hole, 25 without), 100 × Mounting Clips,Expansion tube, screws
25 × 2 m Pack	25 × 2 m Aluminum Channel, 25 × 2 m PMMA Lens, 50 × End Caps (25 with hole, 25 without), 100 × Mounting Clips,Expansion tube, screws
50 × 2 m Pack	50 × 2 m Aluminum Channel, 50 × 2 m PMMA Lens, 100 × End Caps (50 with hole, 50 without), 300 × Mounting Clips,Expansion tube, screws
50 × 3 m Pack	50 × 3 m Aluminum Channel, 50 × 3 m PMMA Lens, 100 × End Caps (50 with hole, 50 without), 300 × Mounting Clips,Expansion tube, screws

About this item

• U01-A aluminum profile kit is a cost-effective solution for DIY under-cabinet lighting
• Designed for recessed or surface mounting; suitable for furniture, cabinets, shelves, partitions, walls, ceilings, floors, steps, and niches

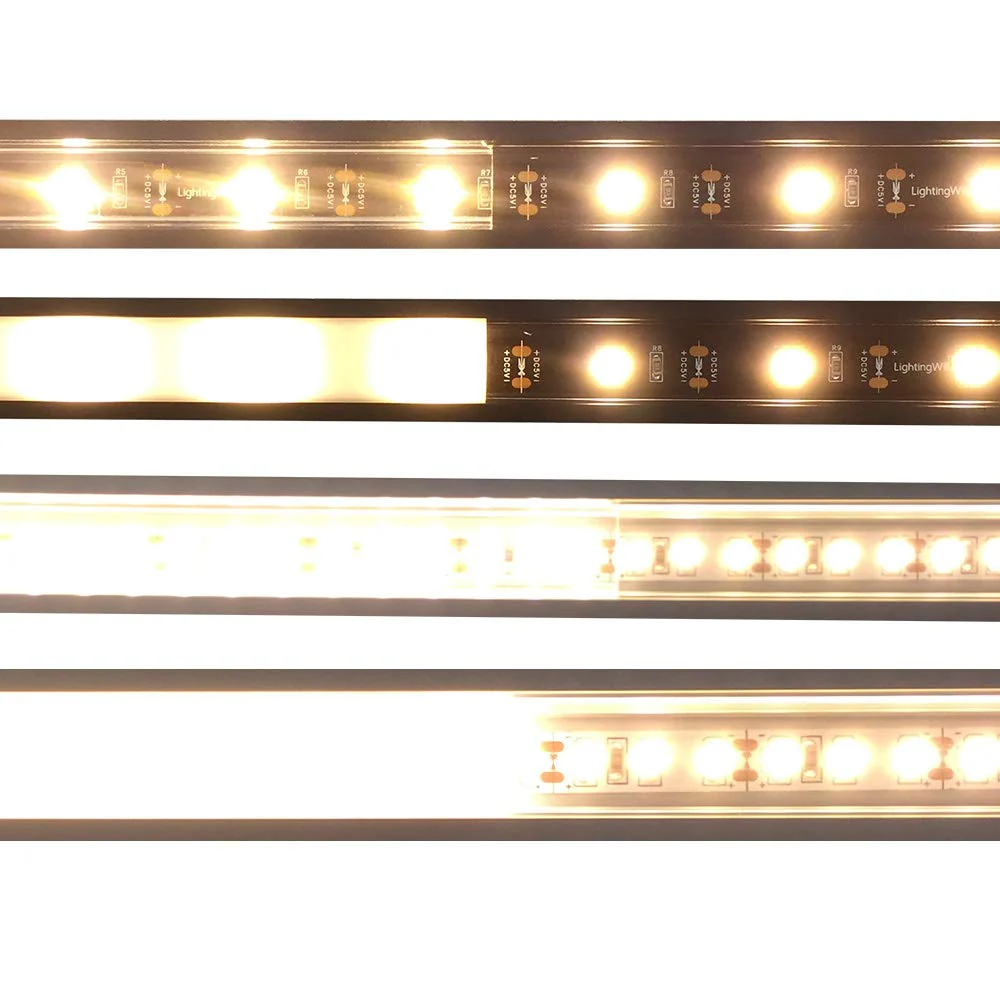

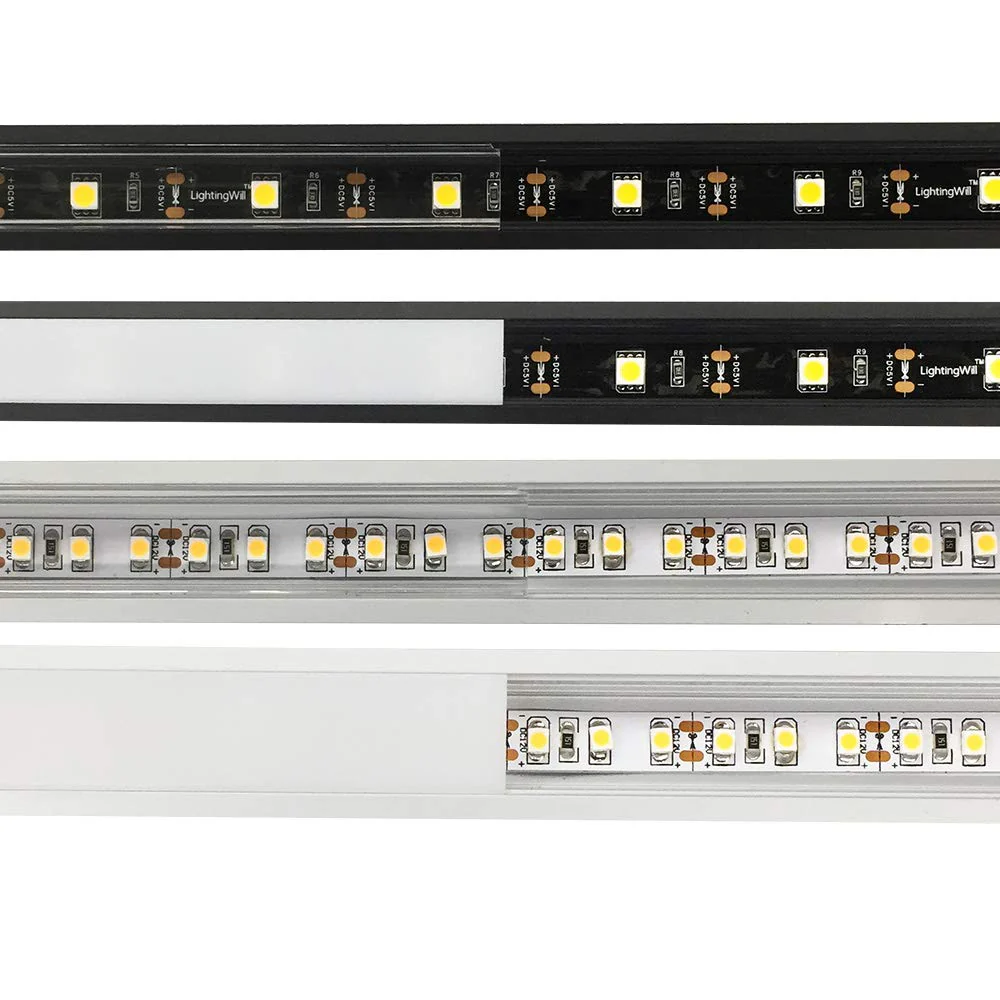

• Milky white PC cover diffuses light for a softer, more uniform glow
• Compatible with LED strip lights up to 12.15 mm wide (flexible or rigid)

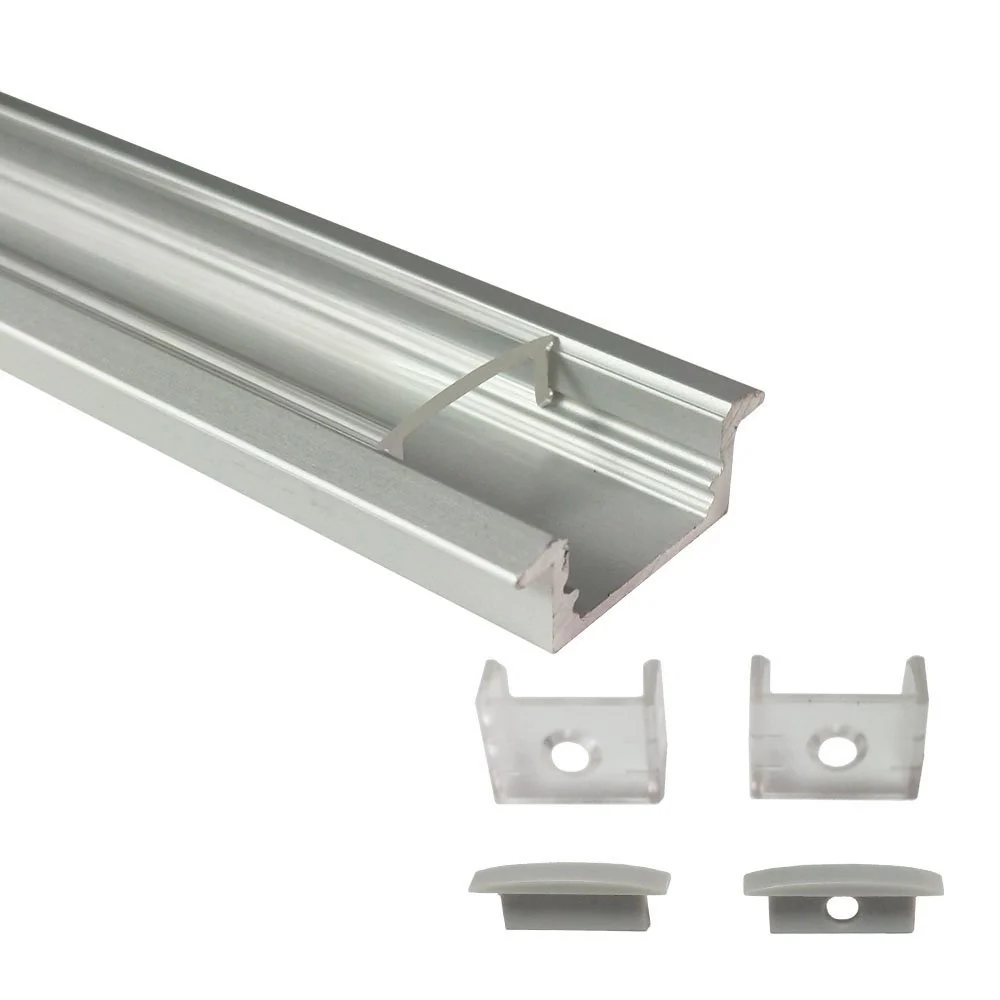

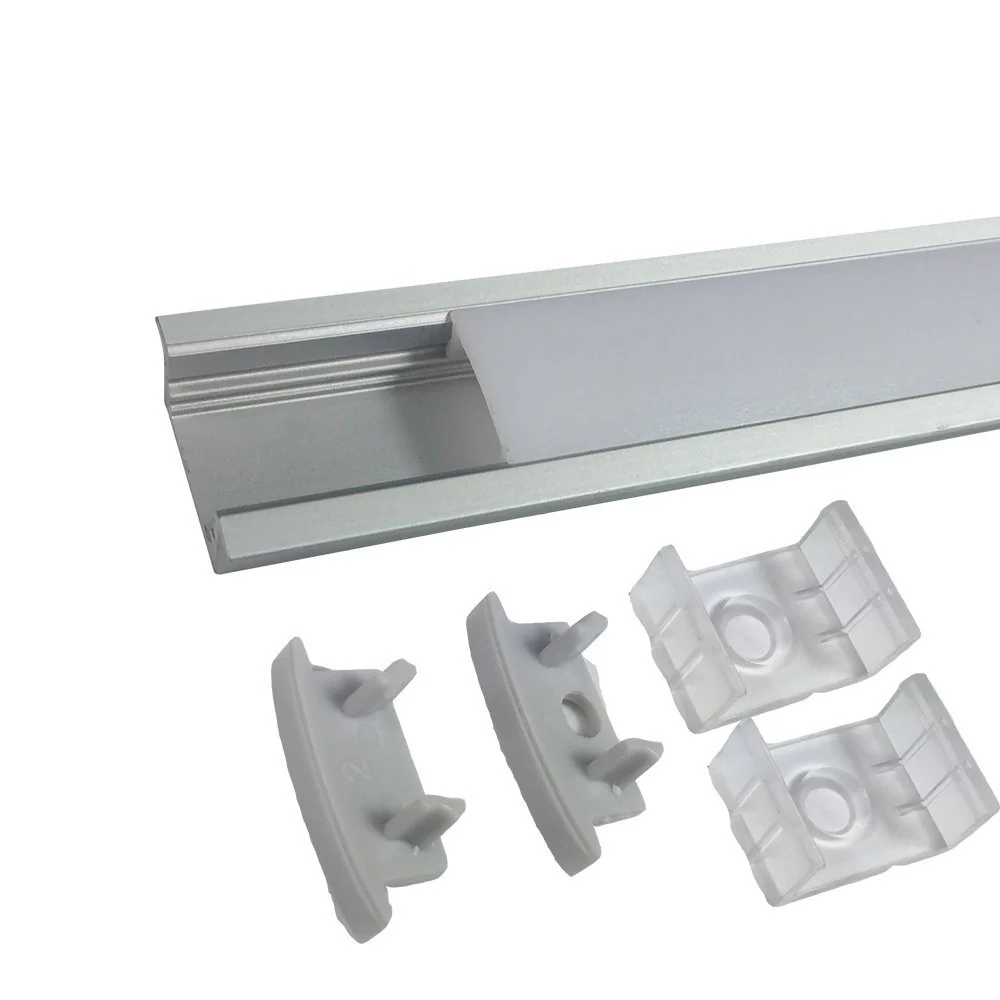

• Kit includes channel, cover, end caps, and mounting clips for a complete installation
• Extendable design allows seamless connection for longer runs

Order & Logistics

• Lead Time: Ships within 3–8 business days after order confirmation
• Packing: Heavy-duty cardboard box with protective padding
• Shipping Note:
• LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)
• Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, buyer will be contacted before dispatch

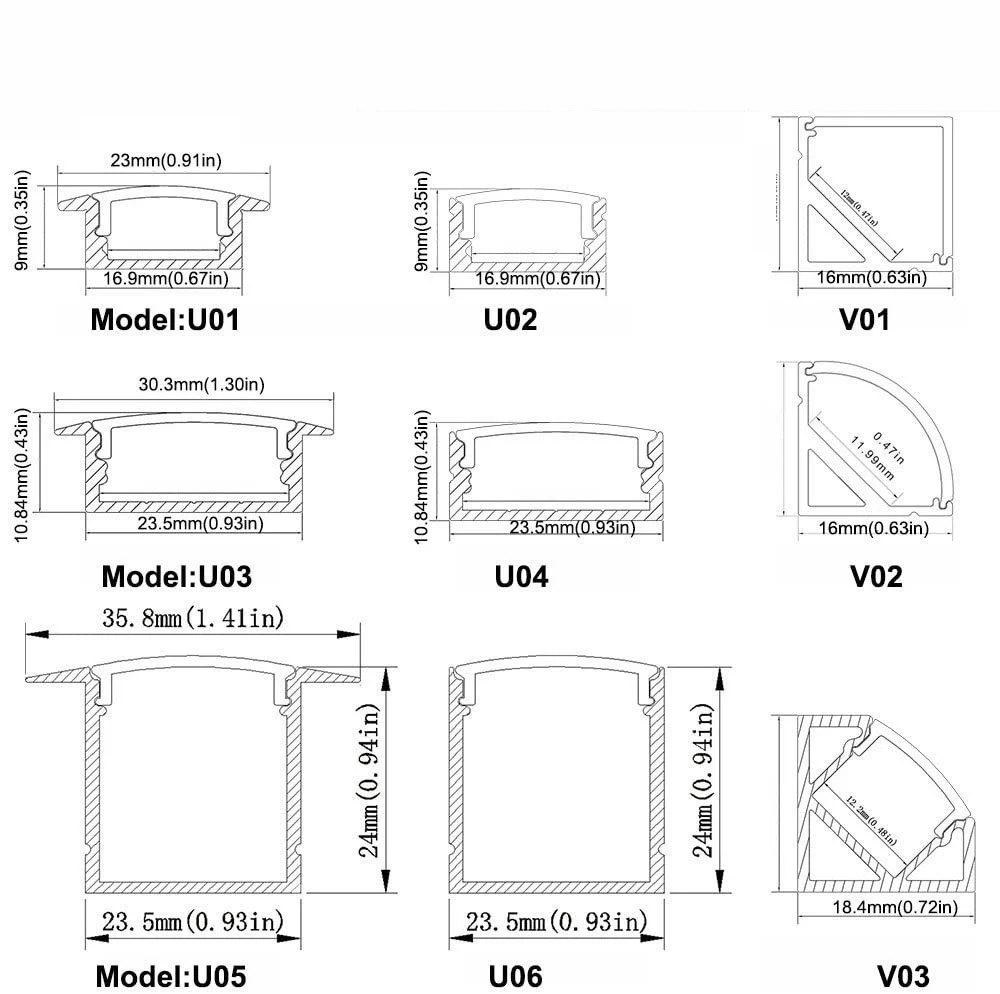

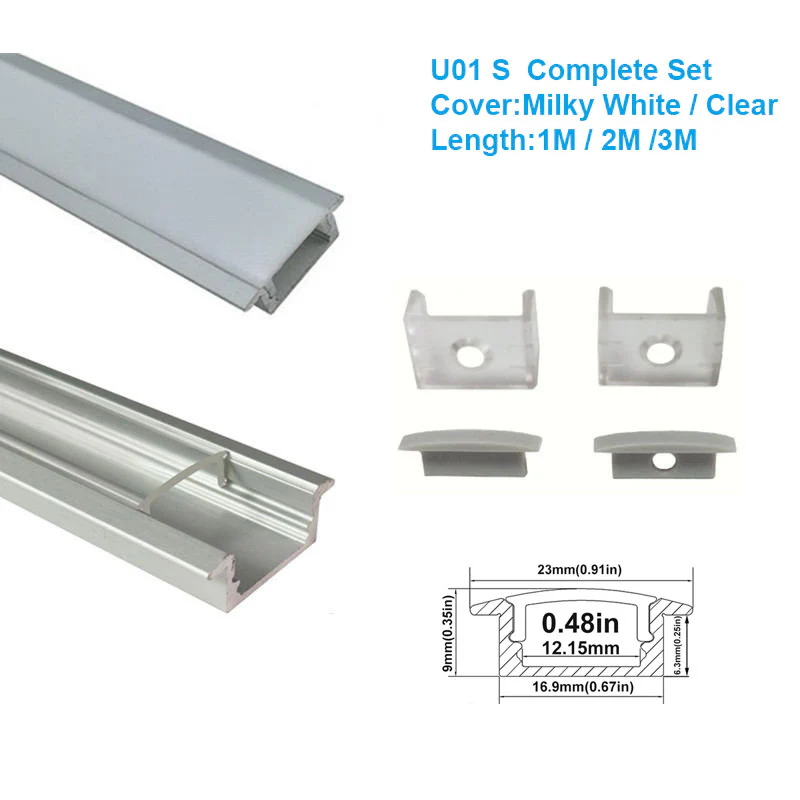

Key Specifications

Specification	Value
Configuration	U-shape channel
Material	Extruded aluminum + milky white PC cover
Height	0.35 in (9 mm)
Inner Width	0.48 in (12.15 mm)
Top Width	0.91 in (23 mm)
Back Width	0.67 in (16.9 mm)
Compatible LED Strip Width	≤ 12 mm

Usage Notes / Installation Tips

• Cut aluminum channels to desired length before installation
• Secure with included mounting clips or recess into desired surfaces
• Insert LED strip and snap diffuser cover for smooth light distribution
• Recommended for indoor applications; check LED strip width before purchase

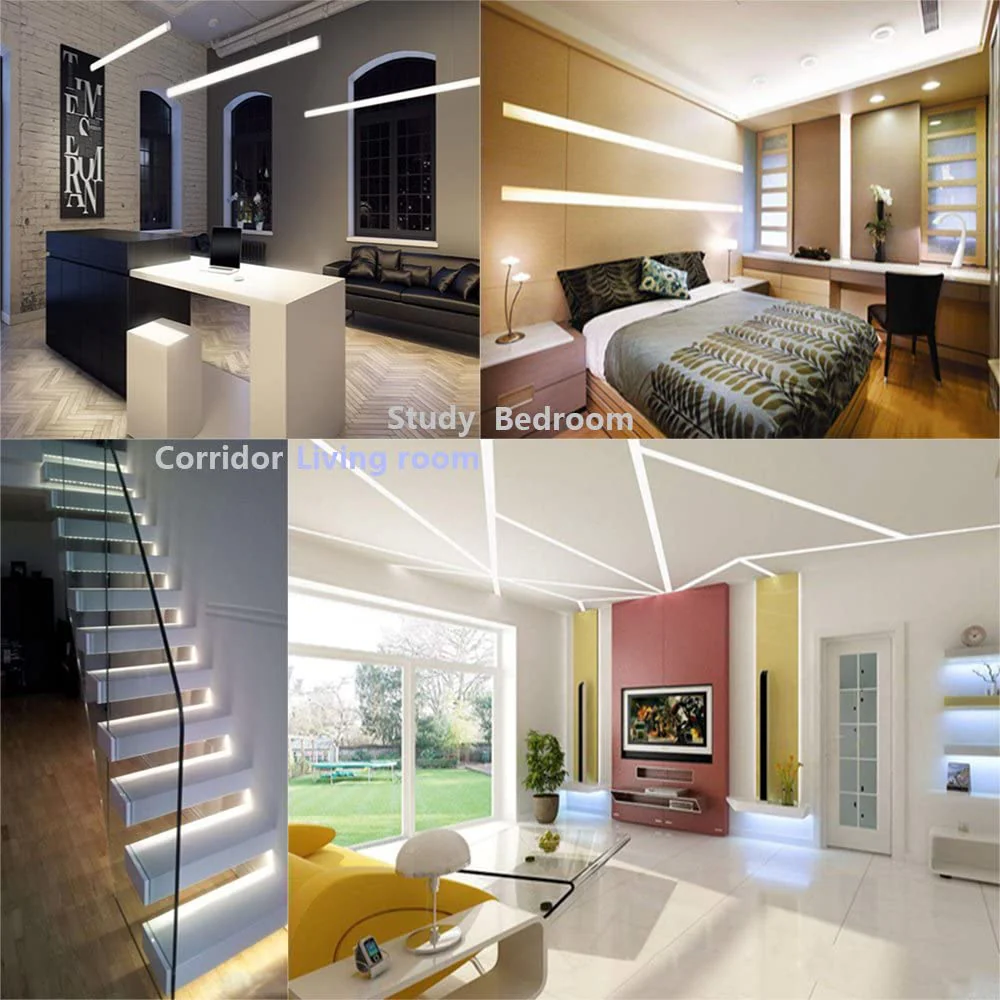

Applications

• Cabinet and shelf lighting
• Decorative linear lighting for walls, ceilings, steps, and niches
• Retail display and showcase illumination
• DIY residential and commercial lighting projects
