RD Series CE UL Certified Enclosed Power Supply – MD200PC5 / MQ300PC5 | 5V Output | 200W / 300W | For Indoor & Outdoor LED Display Projects

RD Series CE UL Certified Enclosed Power Supply – MD200PC5 / MQ300PC5 | 5V Output | 200W / 300W | For Indoor & Outdoor LED Display Projects

MD200PC5

MQ300PC5

• Small size: L190mm * W83mm * H30mm
• Light weight: About 600g
• High efficiency: ≥86% (see figure 4.3)
• Small Leakage current: ≤1.0mA (Vin=242Vac)
• Output voltage range: 4.90 – 5.10Vdc
• Wide operating temp. range: -30 – 70°C (+50°C – +70°C linear de-rated, See Figure 4.2.)
• Wide Input voltage range: 90Vac – 264Vac
• Power factor: ≥0.95
• Cooling mode: Ventilation cooling
• Protection Features: Output over-current protection, short-circuit protection

Select Output Voltage
Select Model | Output Power
From $5.98

Original: $19.95

-70%
RD Series CE UL Certified Enclosed Power Supply – MD200PC5 / MQ300PC5 | 5V Output | 200W / 300W | For Indoor & Outdoor LED Display Projects

$19.95

$5.98

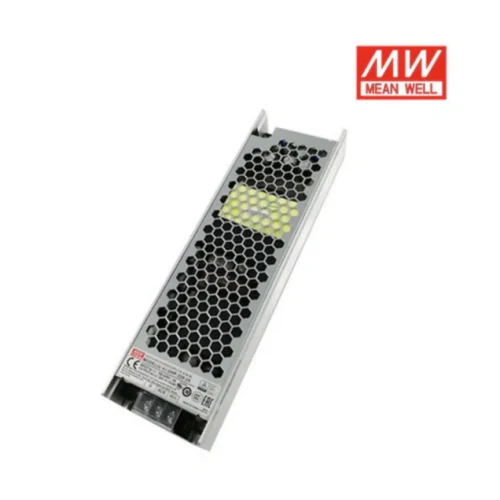

Product image 1
Product image 2

Description

MD200PC5

MQ300PC5

• Small size: L190mm * W83mm * H30mm
• Light weight: About 600g
• High efficiency: ≥86% (see figure 4.3)
• Small Leakage current: ≤1.0mA (Vin=242Vac)
• Output voltage range: 4.90 – 5.10Vdc
• Wide operating temp. range: -30 – 70°C (+50°C – +70°C linear de-rated, See Figure 4.2.)
• Wide Input voltage range: 90Vac – 264Vac
• Power factor: ≥0.95
• Cooling mode: Ventilation cooling
• Protection Features: Output over-current protection, short-circuit protection
