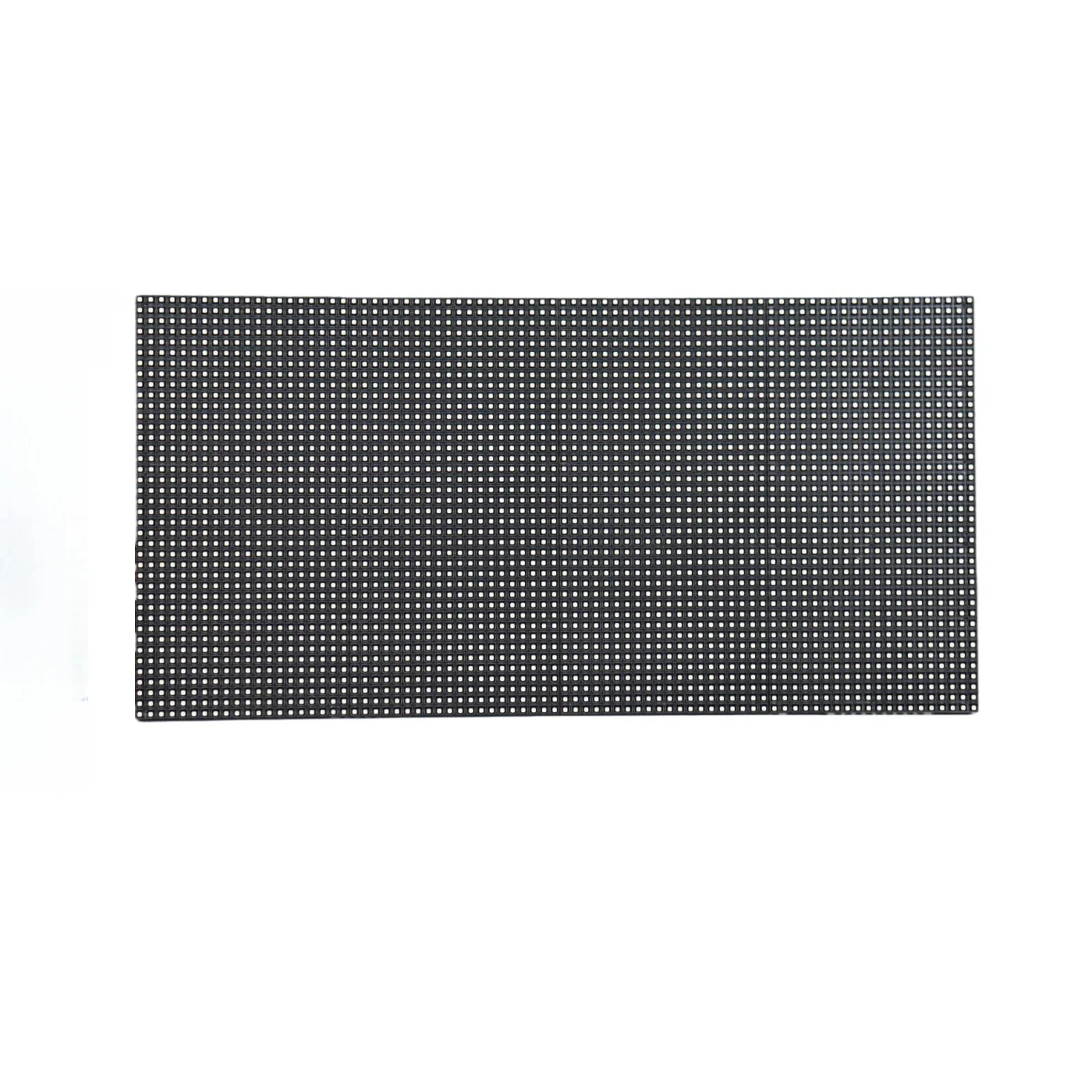

OF-3W Series Outdoor Flexible LED Module – P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 320×160mm Panel | IP65 Front Maintenance | >=4000nits

About this item

• Durable & Reliable – Designed for outdoor use, featuring IP65 waterproof front & back with silicone encapsulation and sealed power/data ports for stable performance in harsh environments.
• High Precision Visuals – P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10, 1/16 | 1/13 | 1/10 | 1/8 | 1/6 |1/5 |1/2 scan, vivid and smooth display with accurate color reproduction.  (NOTE: P5, P6.67, P8, P10 can make to order with MOQ. 120pcs request)
• Bright & Long-lasting – >=4000 nits brightness with low lumen depreciation, delivering consistent output over 100,000 hours.
• Wide Viewing Angle – 140° horizontal / 130° vertical viewing for consistent color and brightness across the screen.
• Flexible Installation – Seamless splicing supports curved or cylindrical shapes. Requires receiving card, sending card, control software, and DC 5V power supply.
• Seamless Compatibility with Regular Modules
  Fully compatible with OF-WS outdoor LED modules, allowing mixed use in the same project for flat surfaces and corner or curved areas. It requires combining enclosures of different thicknesses to achieve this. Ideal for Flat & Corner Installations : Rigid modules provide excellent flatness and stability, while flexible modules handle corners and irregular shapes for a continuous visual effect.

Package Included

Version	Package Included
1pcs Sample Pack	1 × 5V Power Cable 1-to-2 Split 1 × 16 PIN Flat Cable 1 × 320×160mm RGB Full Color LED Display Module
40pcs Standard Pack	20 × 5V Power Cable 1-to-2 Split 40 × 16 PIN Flat Cable 40 × 320×160mm RGB Full Color LED Display Module
120pcs Standard Pack	60 × 5V Power Cable 1-to-2 Split 120 × 16 PIN Flat Cable 120 × 320×160mm RGB Full Color LED Display Module

Order & Logistics

• Lead Time: Typically ships within 1–3 business days. If none in stock will need 7-10 business days.
• Packing: Cardboard box with protective packaging.
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Structure & Design Features

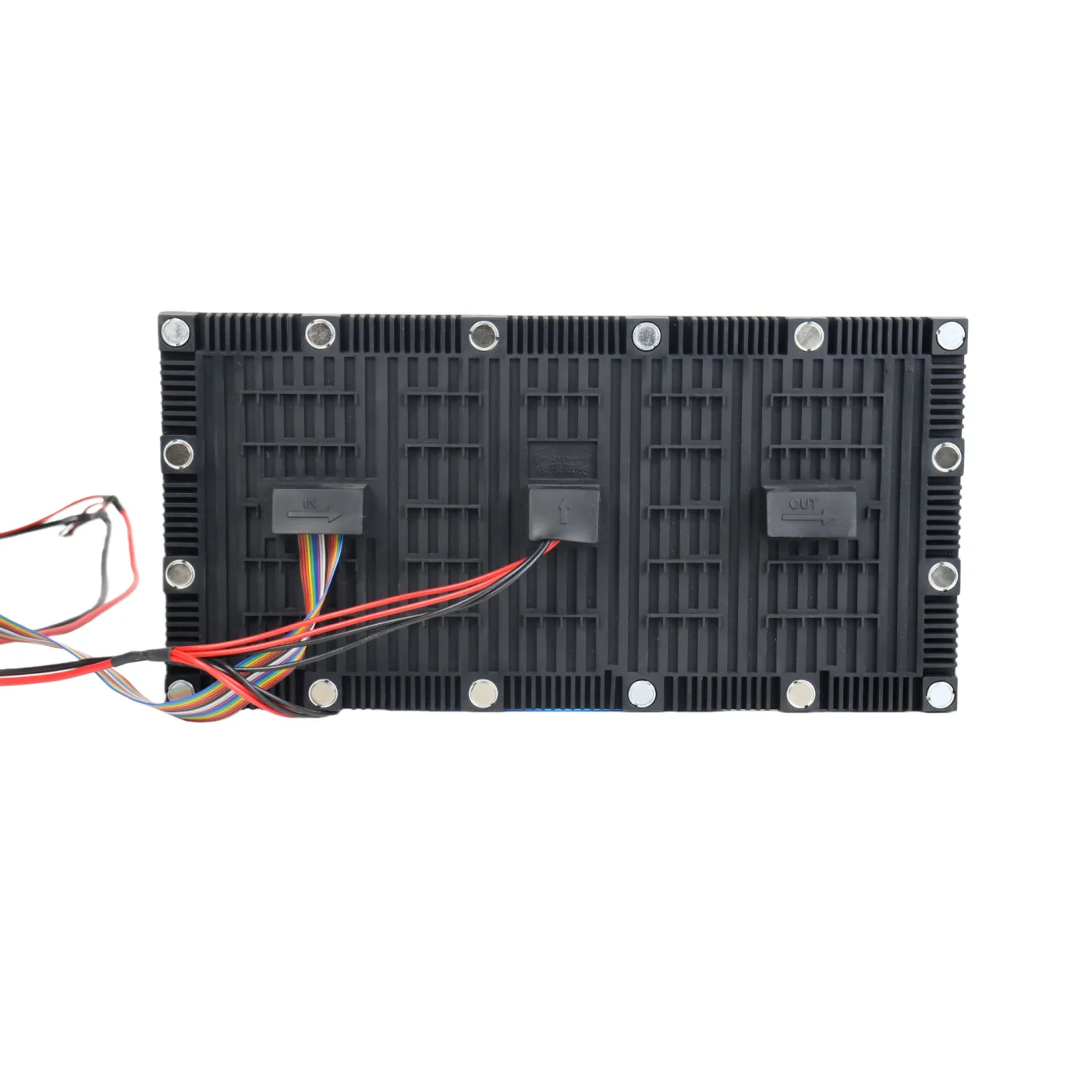

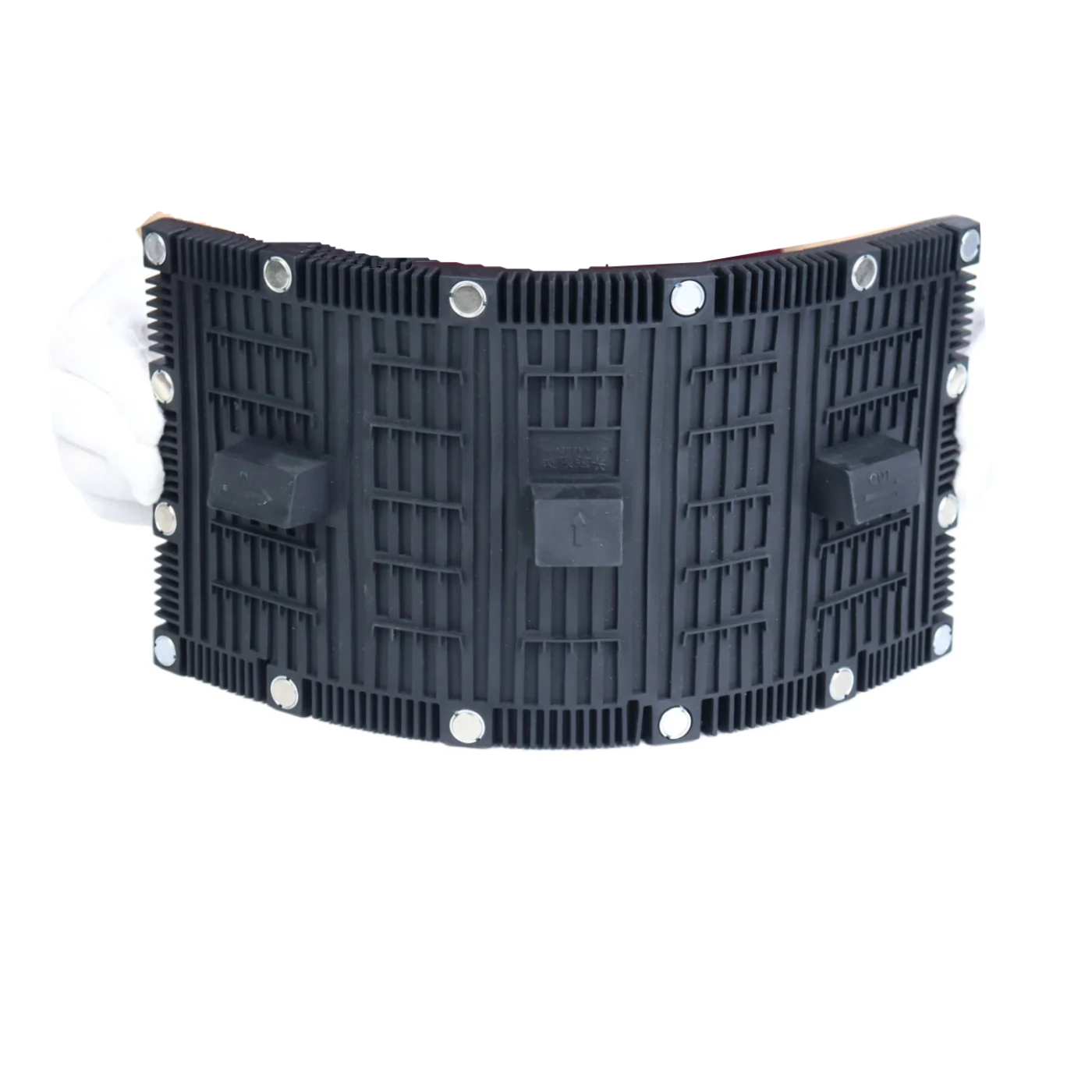

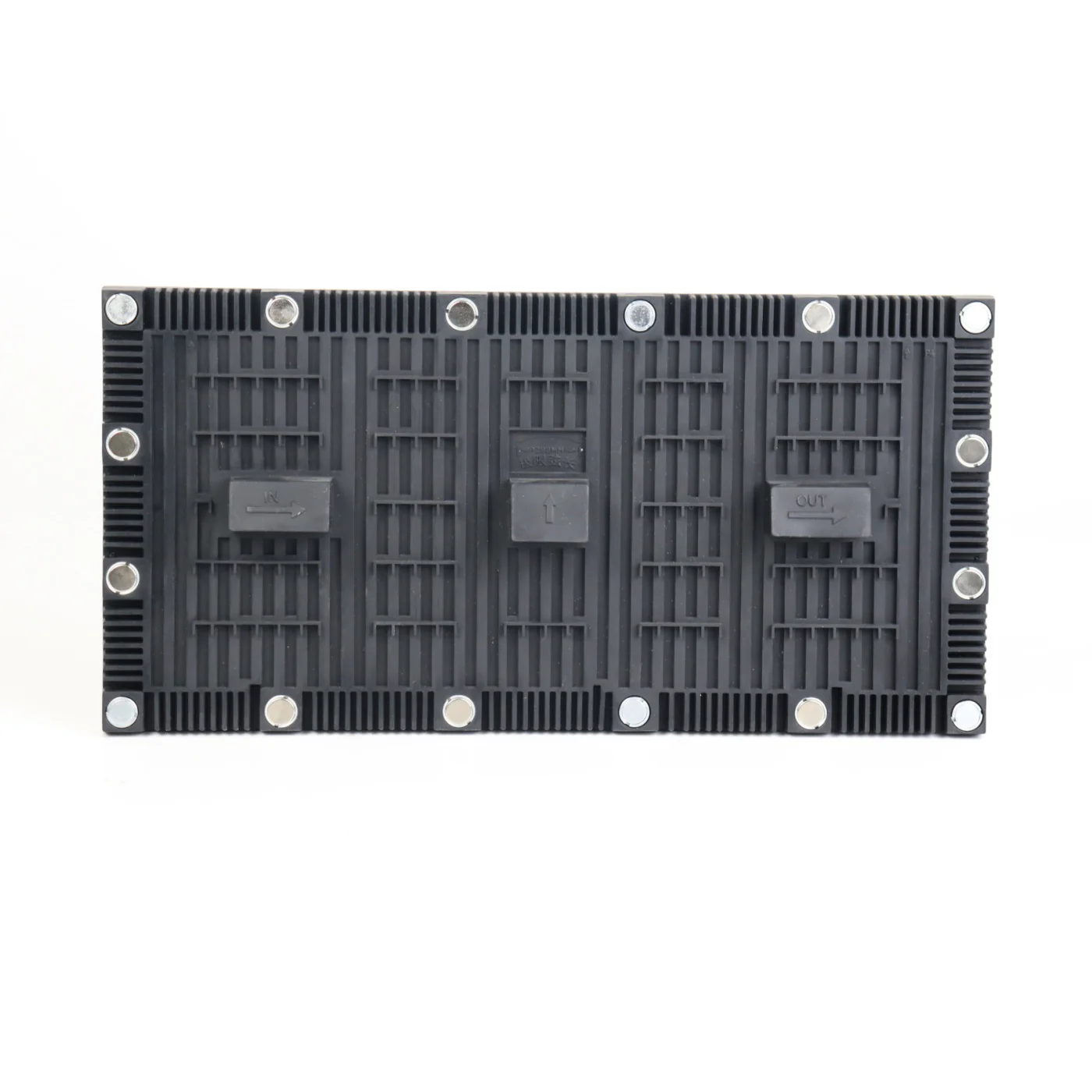

• Outdoor flexible LED module with full silicone encapsulation on front and back, and sealed power/data ports for enhanced weather resistance.

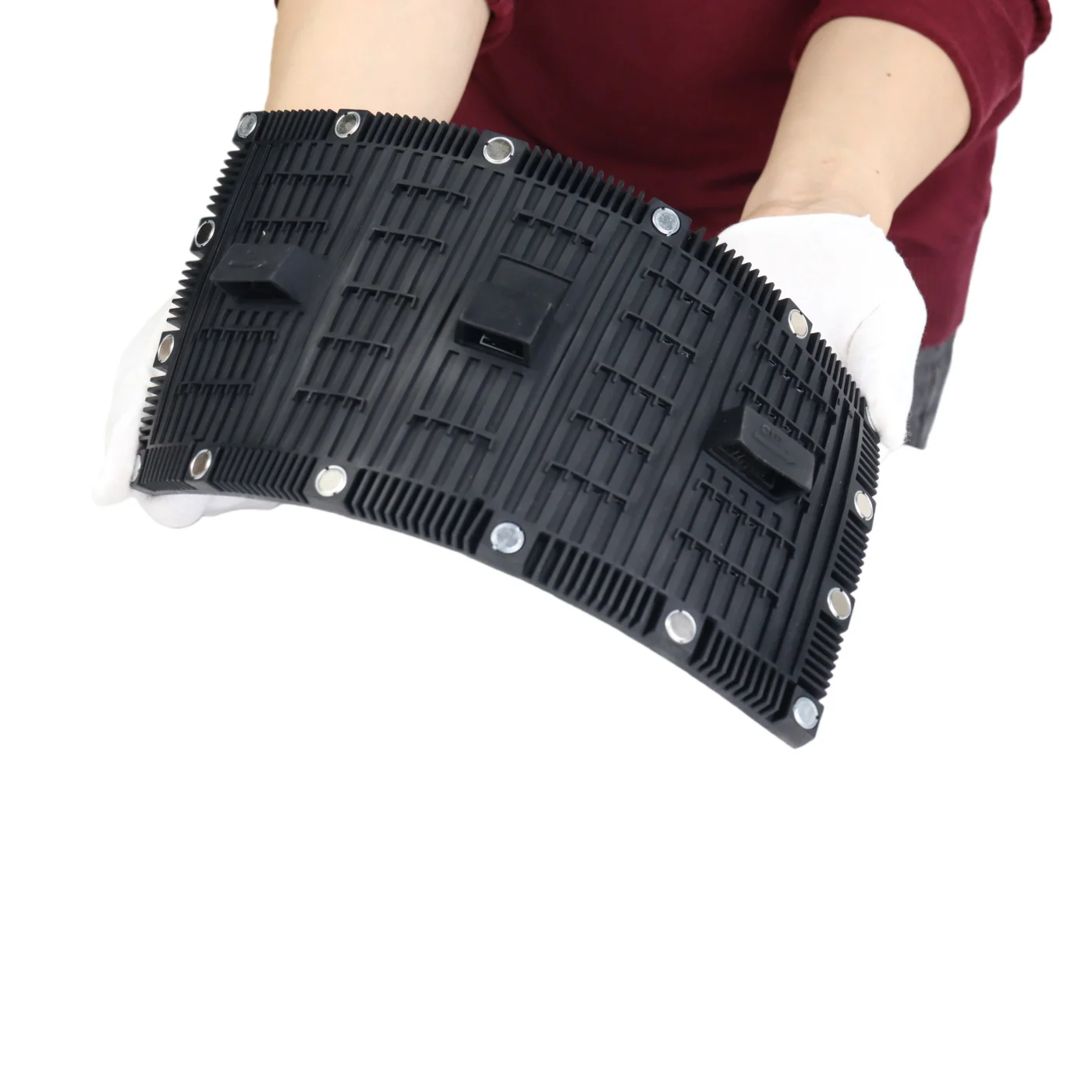

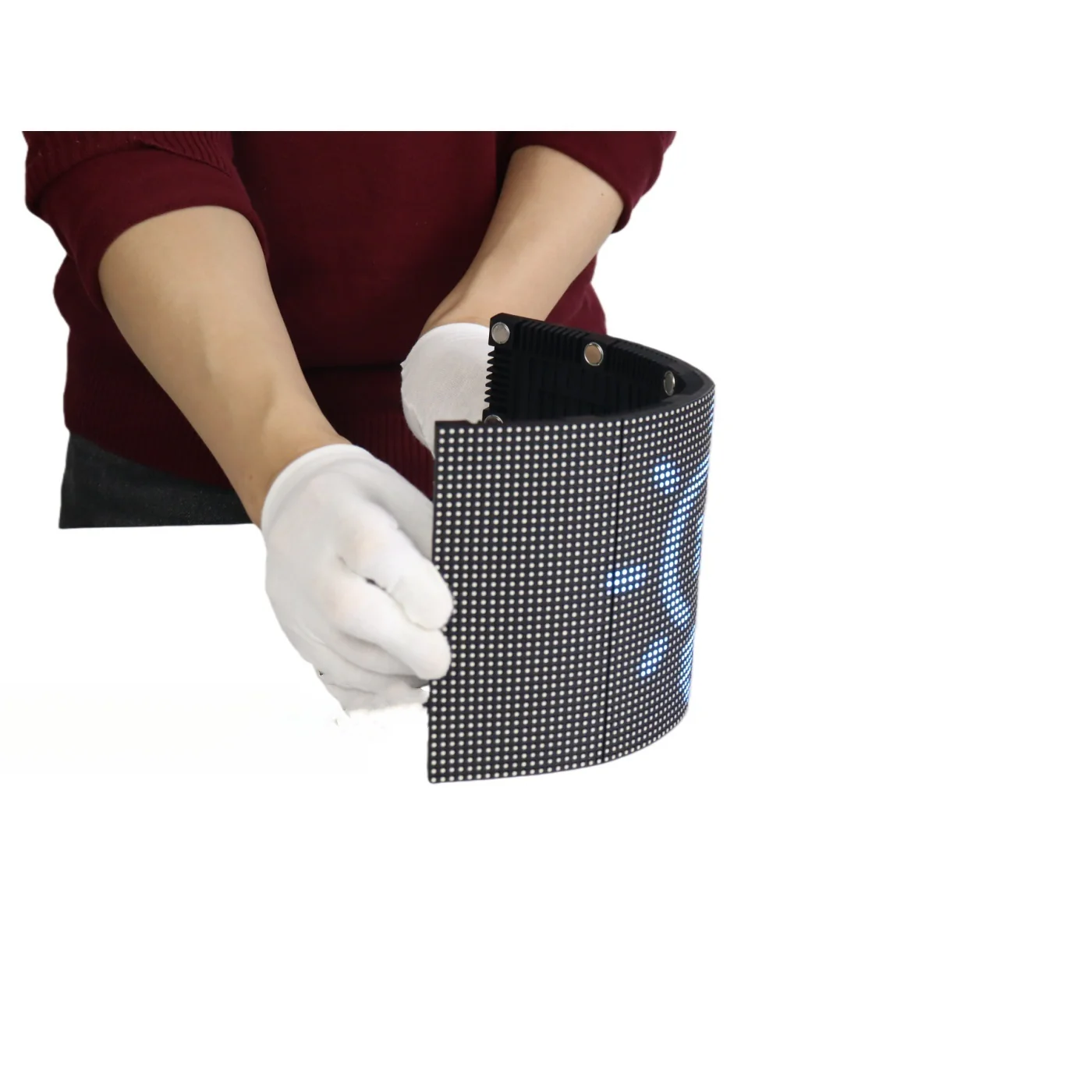

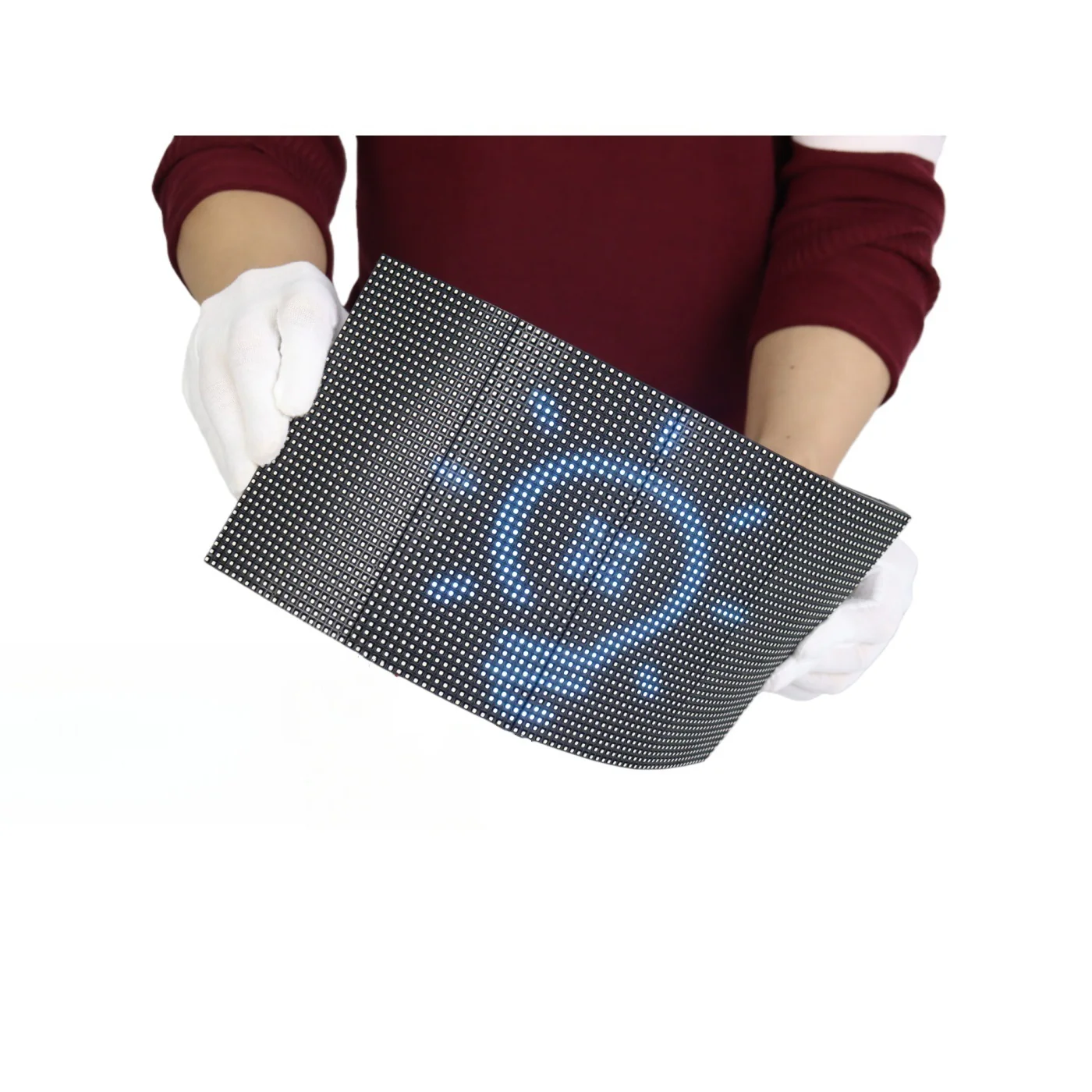

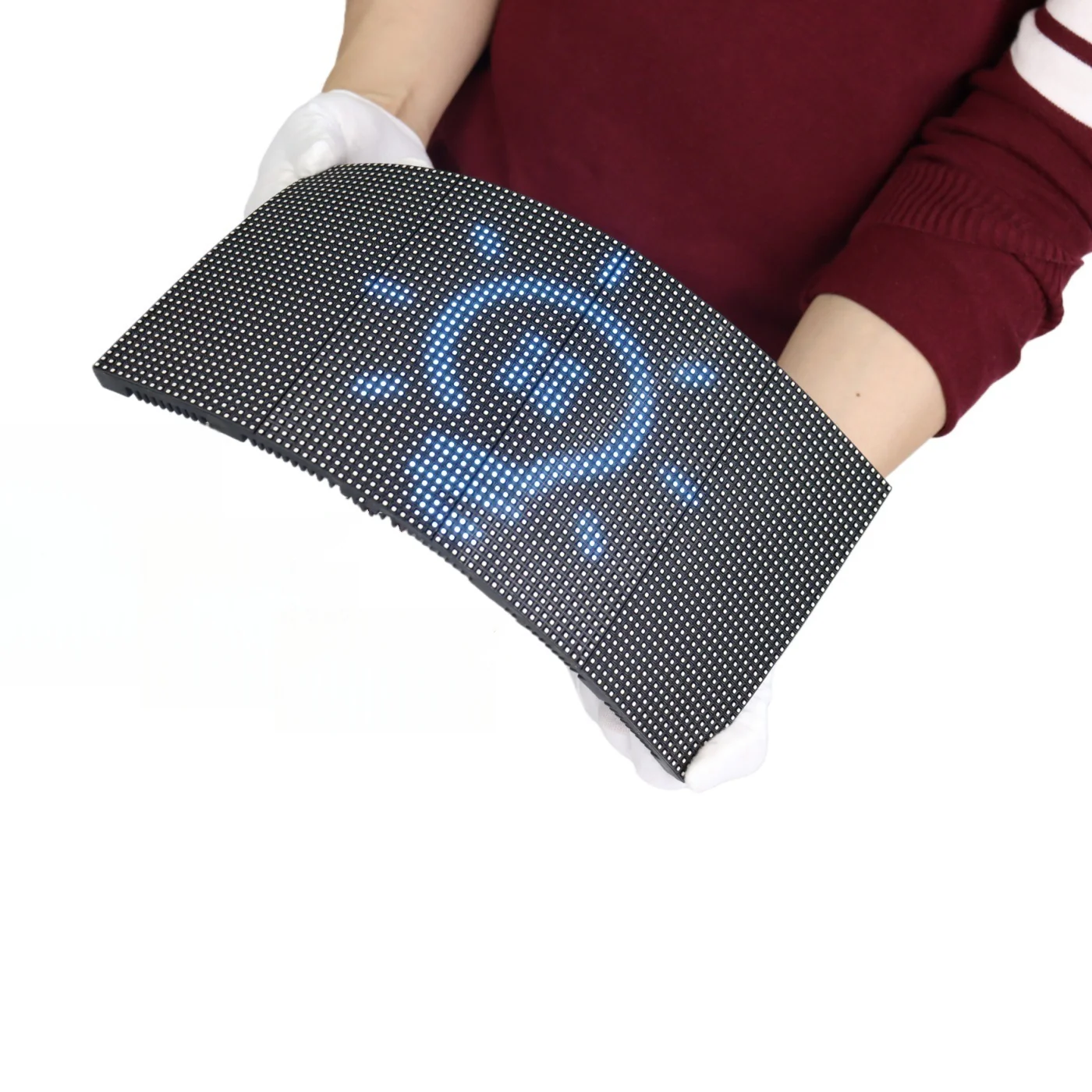

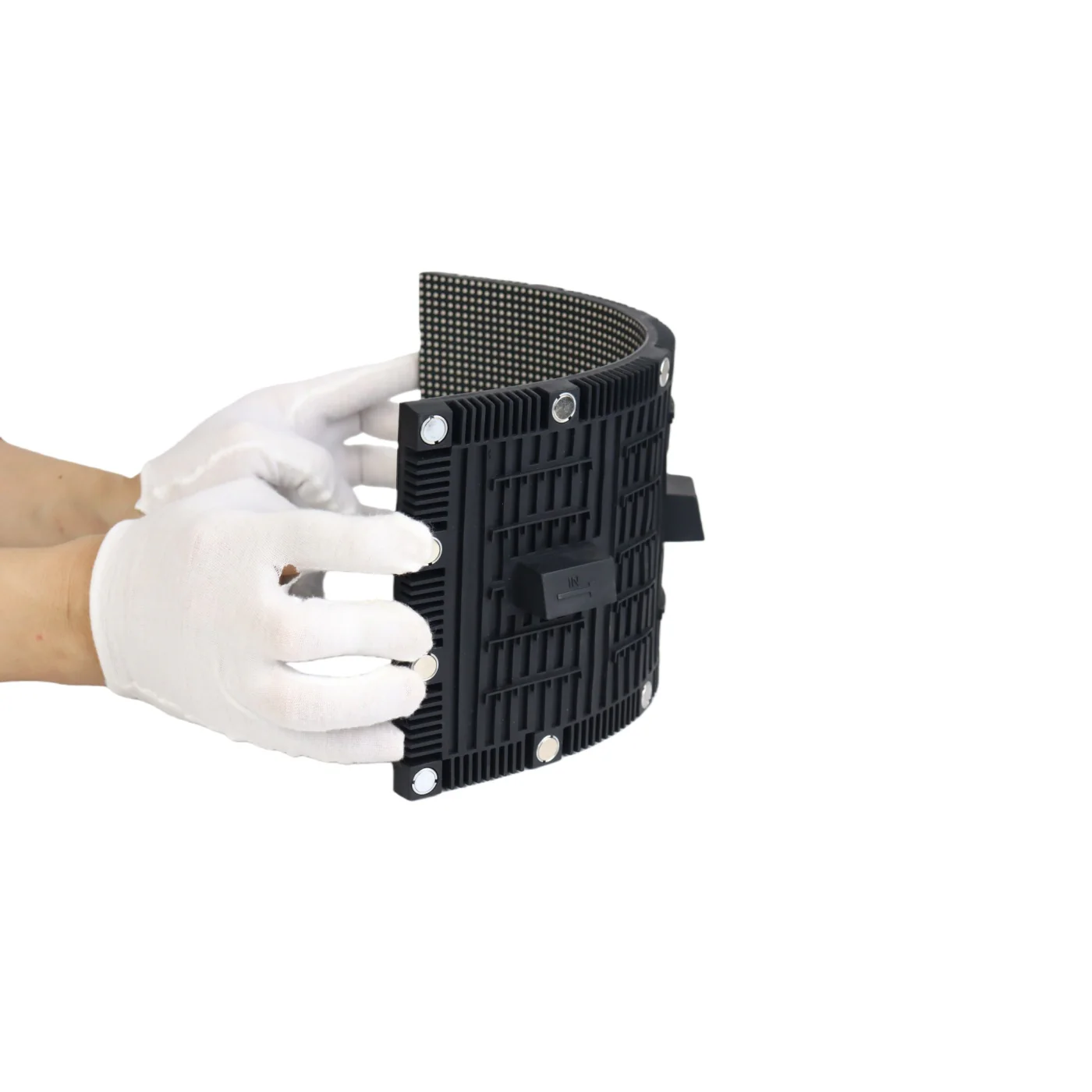

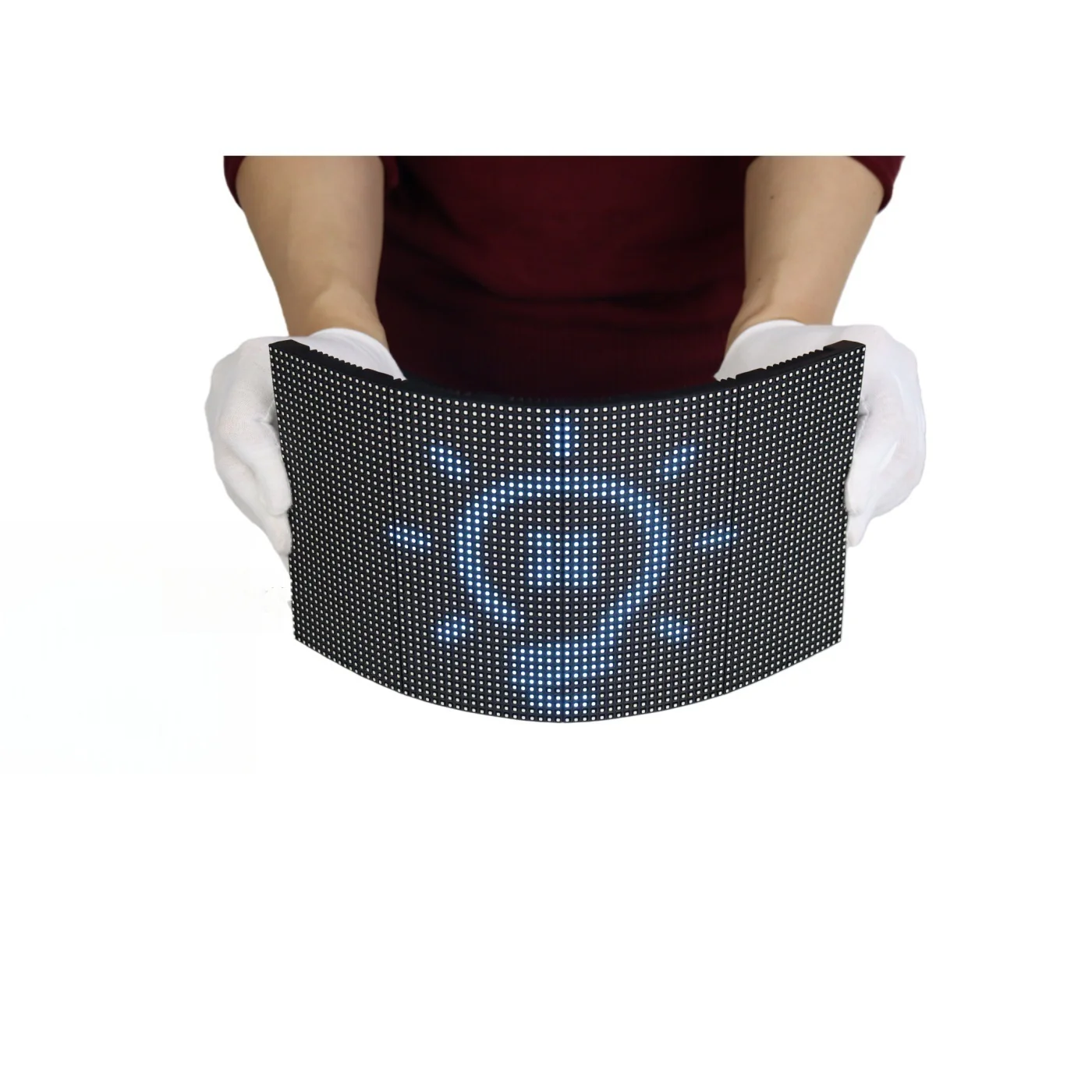

• Supports ≥145° curvature, ideal for creative curved or cylindrical display shapes.

Installation Tips

• Disconnect power before installation or maintenance.
• Ensure correct polarity for power and data connections.
• Do not bend or twist the PCB beyond the rated tolerance.
• Use with compatible receiving card, sending card, control software, and DC 5V power supply.

Technical Specifications

Item		P2.5	P3.076	P4
Parameter	Pixel configuration	1R1G1B (Full Color)	1R1G1B (Full Color)	1R1G1B (Full Color)
	LED package specifications	SMD1415	SMD1921	SMD1921
	Pixel density (dots/㎡)	160000	105625	62500
	Module size (mm) (Length x Height x Depth)	320x160x12	320x160x12	320x160x12
	Module resolution	128x64	104x52	80x40
	Scanning method	16-scan	13-scan	10-scan
	Standard constant current IC	PWM	PWM	PWM
	Refresh rate (Hz)	3840HZ	3840HZ	3840Hz
	Frame rate (Hz)	60HZ	60HZ	60Hz
	Grayscale level (bit)	13-bit	13-bit	13-bit
	Assembly diameter	1019mm	1019mm	1019mm
	Bending radius	145°	145°	145°
	Signal interface method	HUB75 (One inlet, one outlet)	HUB75 (One inlet, one outlet)	HUB75 (One inlet, one outlet)
	Module base material	Silicone soft bottom case	Silicone soft bottom case	Silicone soft bottom case
	Module weight (g/sheet)	400g	400g	400g
	Smoothness (mm)			≤ 0.5 mm
	Module protection level	IP65 (with sealed enclosure)	IP65 (with sealed enclosure)	IP65 (with sealed enclosure)
	Installation/maintenance method	Front/Back Access	Front/Back Access	Front/Back Access
Optical	Brightness (cd)	4000cd	4000cd	4000cd
	Color temperature (K)	9000-9500K adjustable	9000-9500K adjustable	9000-9500K adjustable
	Coordinates	X:0.2800 Y:0.3000 ± 0.01	X:0.2800 Y:0.3000 ± 0.01	X:0.2800 Y:0.3000 ± 0.01
	Horizontal/vertical viewing angles	X:140° / Y:130°	X:140° / Y:130°	X:140° / Y:130°
Electrical	Module DC supply voltage (V)	5V	5V	5V
	Module maximum DC current (A)	6.2A	6.6A	6.6A
	Module maximum power consumption (w/sheet)	15W	15W	16W
	Operating AC input voltage (V)	120V/220V	120V/220V	120V/220V
	Peak power consumption (w/m²)	600W	600W	600W
	Average power consumption (w/m²)	300W	300W	300W
Usage	Typical lifespan (h)	100,000h	100,000h	100,000h
	Operating temperature range (°C)	-20-60 ℃	-20-60 ℃	-20-60 ℃
	Operating humidity range (RH)	10%-95%RH	10%-95%RH	10%-95%RH

Applications

• Outdoor: Billboards, stadium displays, event stages, transportation hubs.
• Creative: Curved splicing, cylindrical LED screens, artistic installations.
