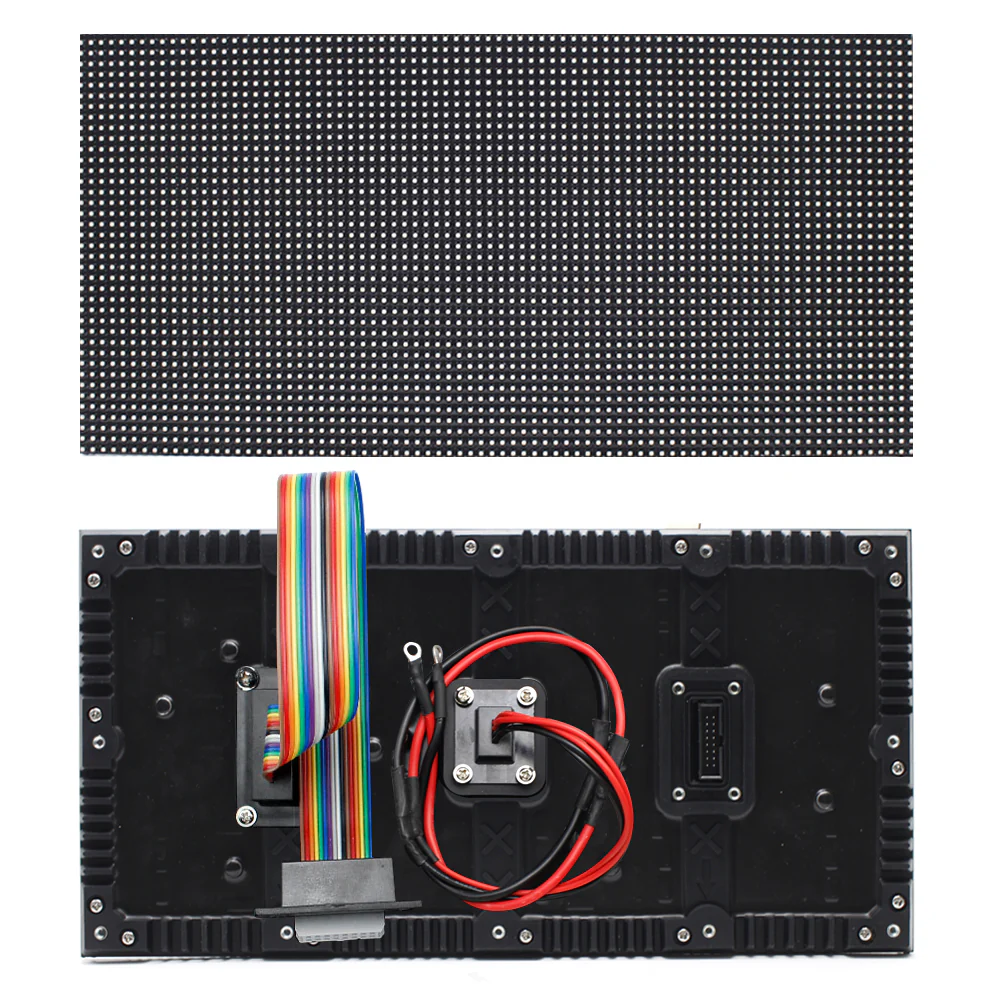

OF-3N Series Outdoor Flexible LED Module – P4 | 320×160mm Panel | IP65 Dual Maintenance | 4500nits | Nationstar LEDs
OF-3N Series Outdoor Flexible LED Module – P4 | 320×160mm Panel | IP65 Dual Maintenance | 4500nits | Nationstar LEDs
OF-3N Series Outdoor Flexible LED Module – P4 | 320×160mm Panel | IP65 Dual Maintenance | 4500nits | Nationstar LEDs
About this item
- Durable & Reliable – IP65 waterproof on both front and back with silicone sealing; supports front & rear maintenance for stable outdoor operation.
- High Precision Visuals – Pixel pitch 4 mm, 1/24 scan for smooth motion and accurate color.
- Bright & Long-lasting – ≥4500 nits brightness with auto-adjustment; low lumen depreciation ensures consistent performance over time.
- Wide Viewing Angle – 160° (H) / 140° (V) for uniform color and brightness across the screen.
- Flexible Installation – Seamless splicing; supports creative shapes (curved, cylindrical, custom sizes). Requires receiving card, sending card, software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pcs Sample Pack | 1 × 5V Power Cable 1-to-2 Split 1 × 16 PIN Flat Cable 1 × P4 320×160 mm RGB Full Color LED Display Module |
| 30pcs Standard Pack | 15 × 5V Power Cable 1-to-2 Split 30 × 16 PIN Flat Cable 30 × P4 320×160 mm RGB Full Color LED Display Module |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Protection & Design Features
- Outdoor Series: IP65 Waterproof – silicone encapsulation on front and back; sealed power/data ports for enhanced weather resistance.
- Flexible module options for creative curved or cylindrical displays.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity for power/data connections.
- Avoid bending or twisting the PCB beyond rated tolerance (for flexible models).
- Use compatible receiving card, sending card, software, and DC 5V power supply.
Technical Specifications
| Specification | Value |
| Module size | 320 × 160 mm |
| Pixel pitch | 4 mm |
| LED type | Nationstar SMD1921 |
| Brightness | ≥4500 nits |
| Scan rate | 1/24 scan |
| Refresh Rate | 3840HZ |
| Viewing angle | 160° (H) / 140° (V) |
| Input voltage | DC 5V |
Applications
- Outdoor: Billboards, stadiums, event stages, transportation hubs.
- Creative: Curved displays, cylindrical screens, artistic installations.
Select Pixel Pitch
Select Package QTY.
From $22.79
Original: $75.95
-70%OF-3N Series Outdoor Flexible LED Module – P4 | 320×160mm Panel | IP65 Dual Maintenance | 4500nits | Nationstar LEDs—
$75.95
$22.79
