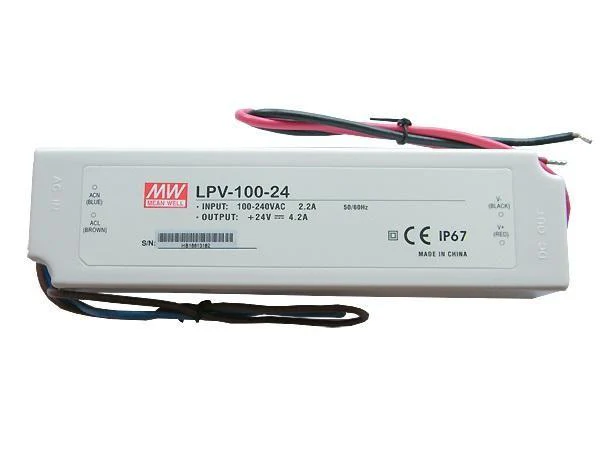

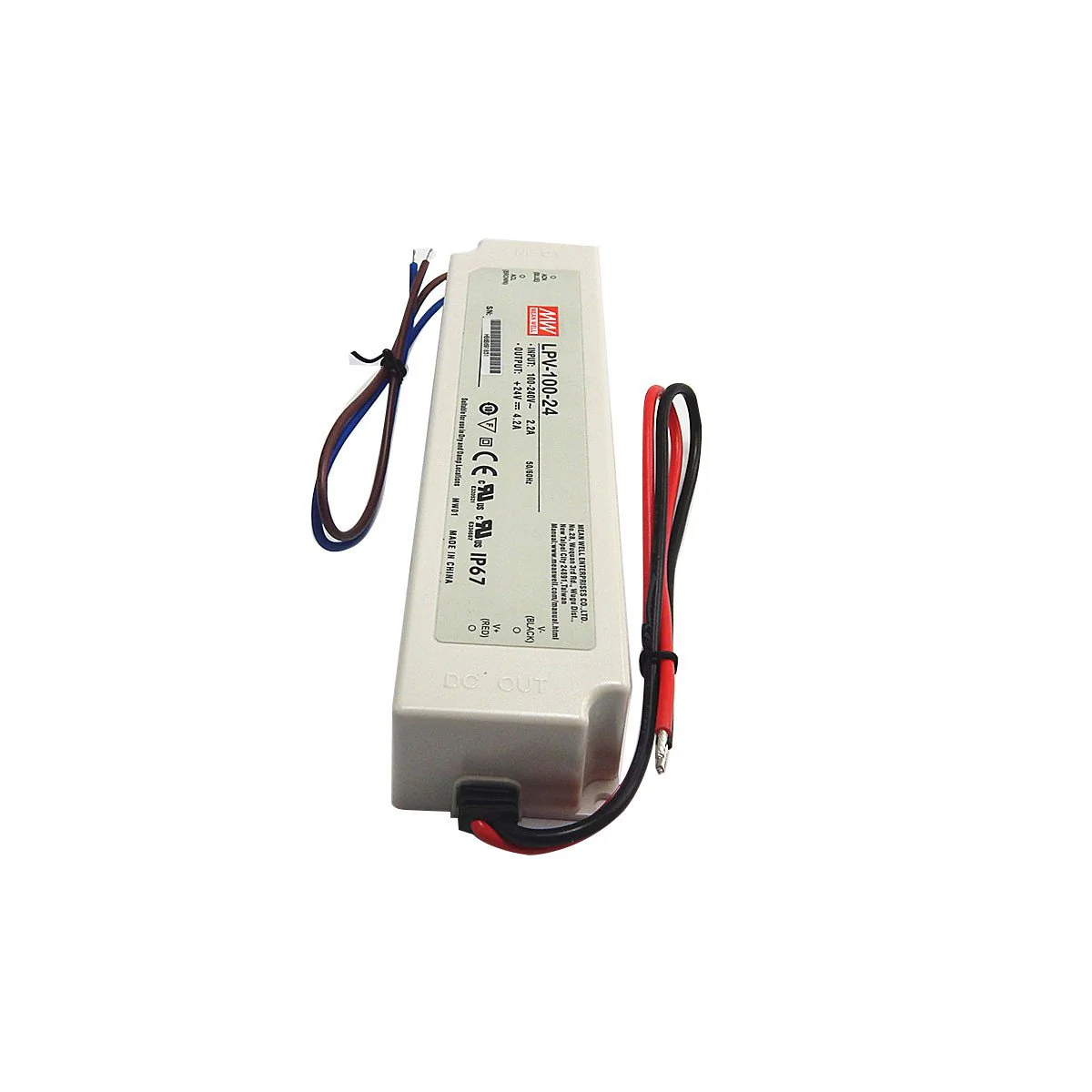

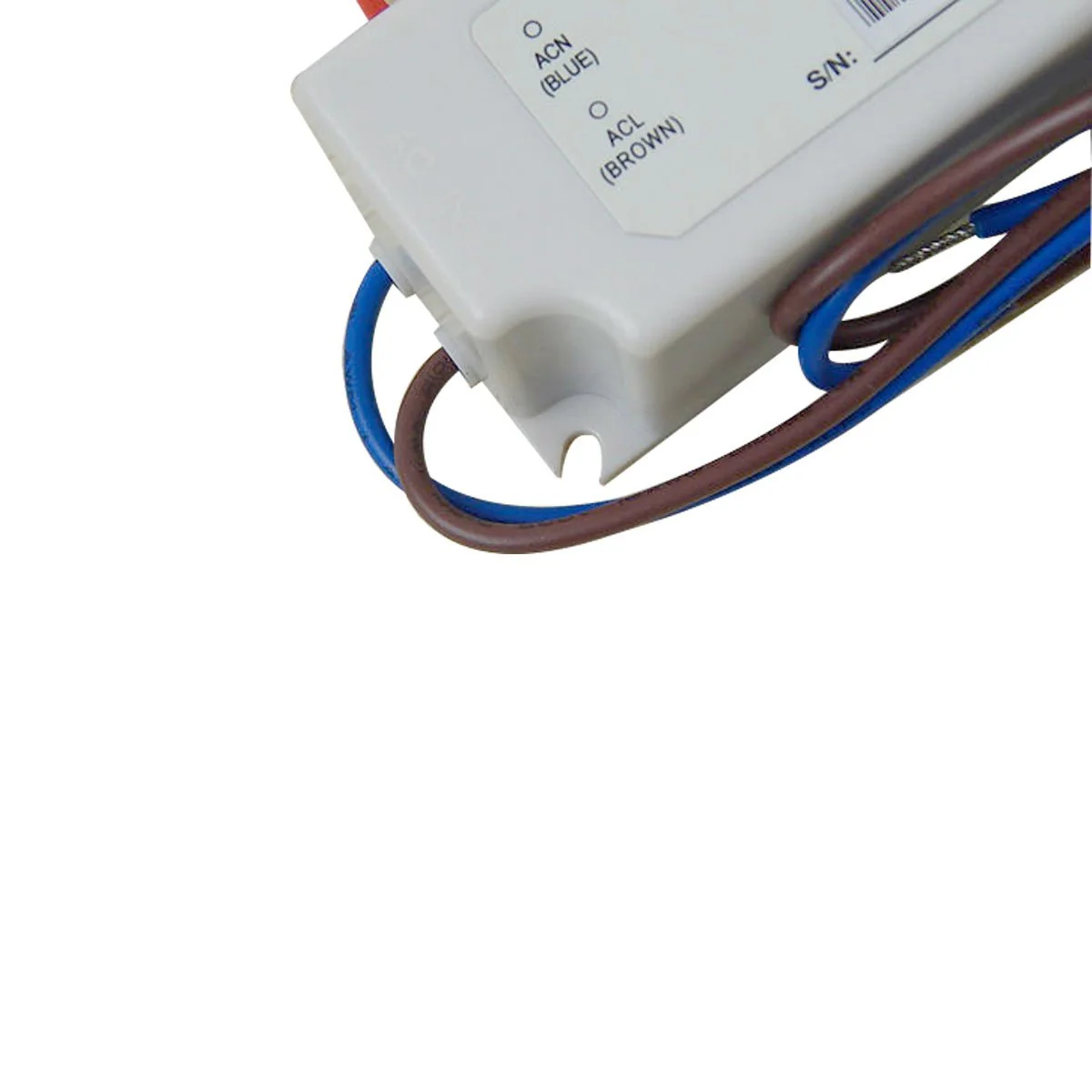

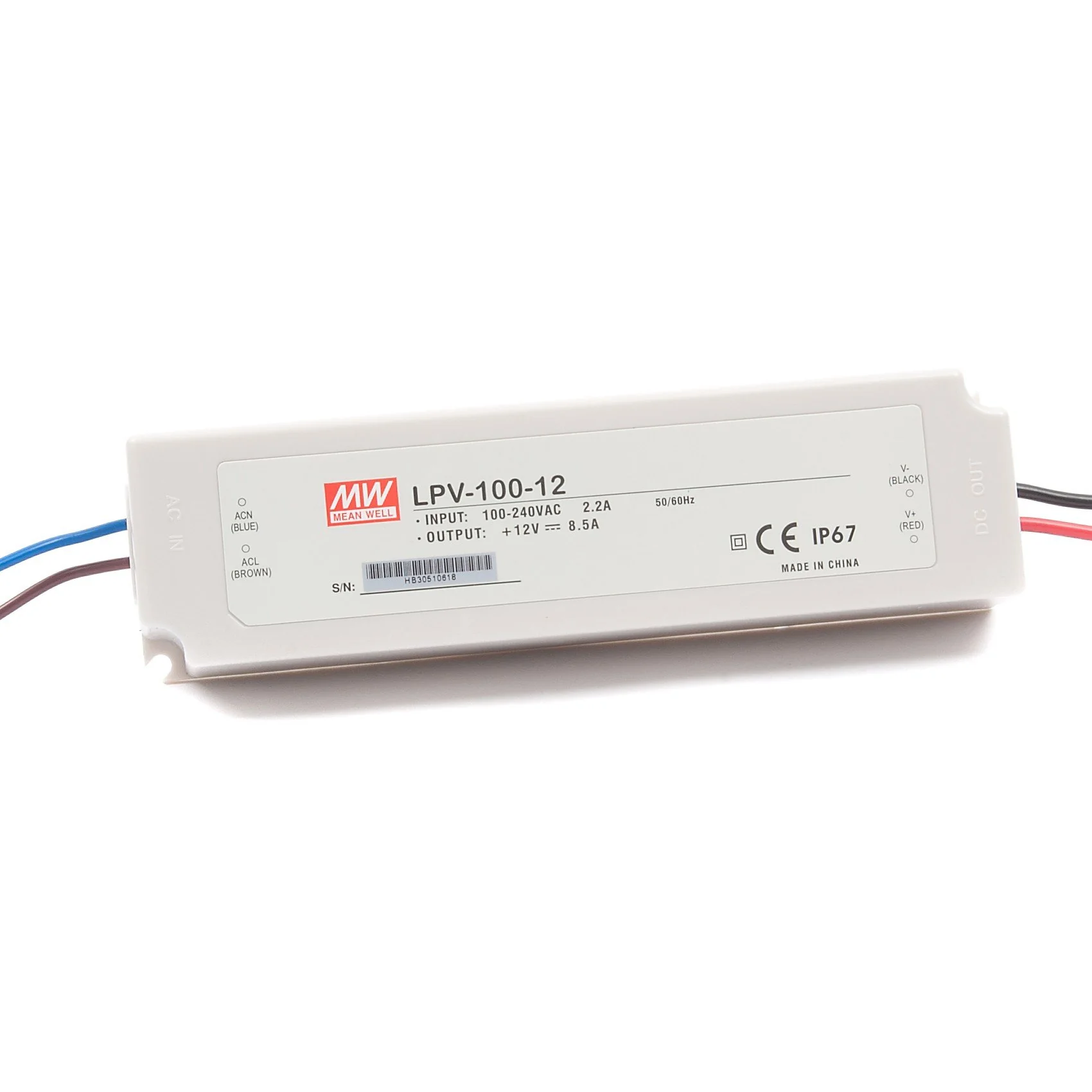

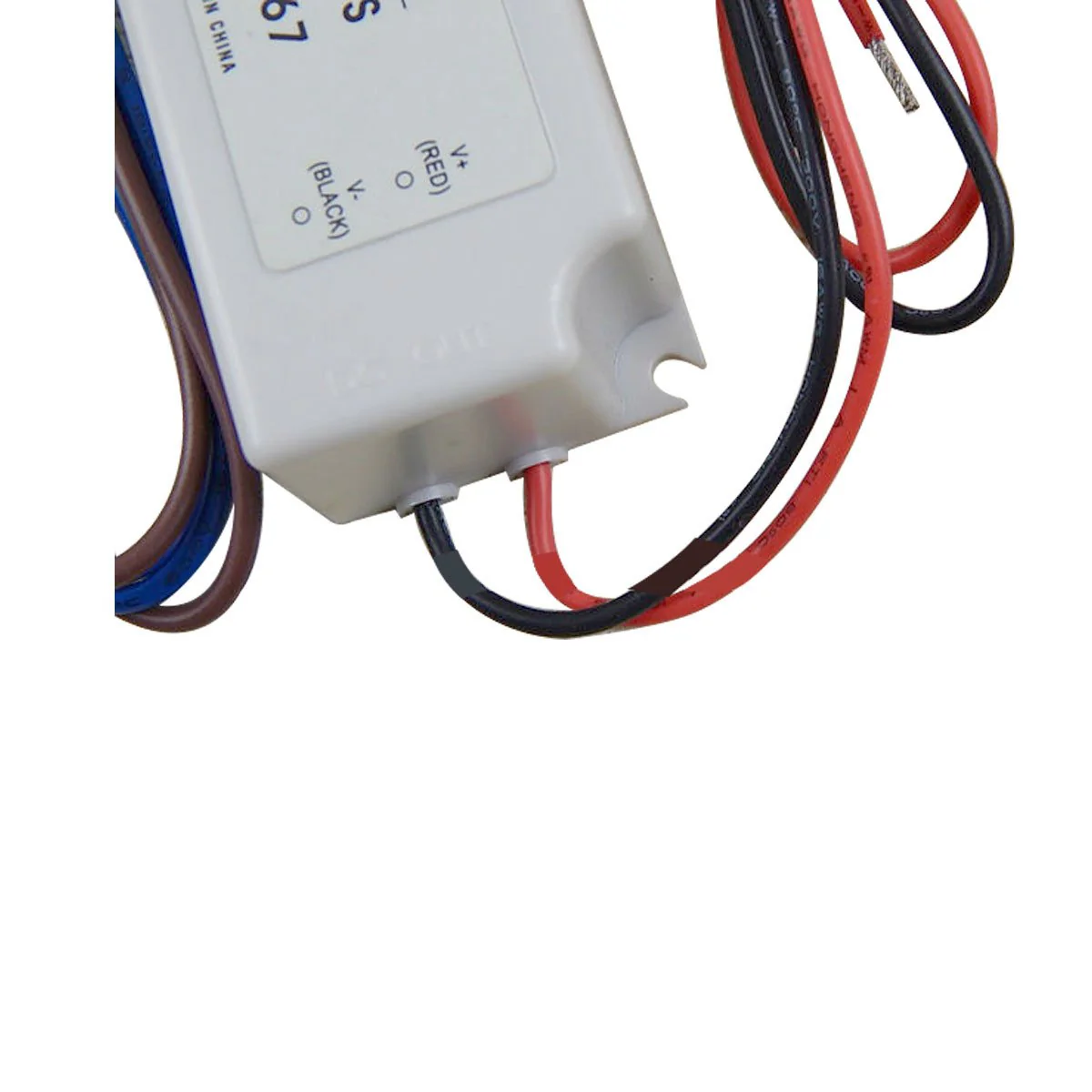

MEANWELL LPV Series IP67 Waterproof Switching Power Supply - 12V / 24V DC Output Voltage | 35W / 60W / 100W / 150W | AC90-264V | IP67 Waterproof | UL / CE Certified

Package Included

Version	Package Included
12V 35W 1-Pack	1 × MEANWELL LPV Series Power Supply (12V / 35W), user manual
24V 35W 1-Pack	1 × MEANWELL LPV Series Power Supply (24V / 35W), user manual
12V 60W 1-Pack	1 × MEANWELL LPV Series Power Supply (12V / 60W), user manual
24V 60W 1-Pack	1 × MEANWELL LPV Series Power Supply (24V / 60W), user manual
12V 100W 1-Pack	1 × MEANWELL LPV Series Power Supply (12V / 100W), user manual
24V 100W 1-Pack	1 × MEANWELL LPV Series Power Supply (24V / 100W), user manual
12V 150W 1-Pack	1 × MEANWELL LPV Series Power Supply (12V / 150W), user manual
24V 150W 1-Pack	1 × MEANWELL LPV Series Power Supply (24V / 150W), user manual

About this item

• Constant voltage design for stable 12V or 24V DC output
• Universal AC input / full range: AC 90–264V, suitable for most regions
• Withstands 300VAC surge input for 5 seconds for improved input resilience
• Protection features: short circuit, overload, and over voltage protection
• Cooling by free air convection for quiet, fanless operation
• Fully encapsulated design with IP67 waterproof level for outdoor and wet locations
• Fully isolated plastic case for enhanced insulation and durability
• Class power unit (no FG) and Class 2 power unit for common low-voltage LED applications
• Meets LPS (Limited Power Source) requirement for added safety in supported models
• UL / CE certified for compliance and reliability

Order & Logistics

• Lead Time: Ships within 1–3 business days.
• Packing: Cardboard box.
• Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.

Key Specifications

• Input Voltage: AC 90–264V, 50/60Hz
• Output Voltage Options: 12V DC / 24V DC
• Output Power Options: 35W / 60W / 100W / 150W
• Output Type: Constant voltage
• Waterproof Rating: IP67, fully encapsulated
• Cooling: Free air convection (fanless)
• Surge Withstand: 300VAC input surge for 5 seconds
• Protection: Short circuit / Overload / Over voltage
• Case: Fully isolated plastic housing
• Class Rating: Class power unit (no FG); Class 2 power unit
• Safety Standard: Pass LPS (model-dependent)
• Certification: UL / CE

Technical Specifications

Model	LPV-35-12	LPV-35-24	LPV-60-12	LPV-60-24	LPV-100-12	LPV-100-24	LPV-150-12	LPV-150-24
Rated output voltage	12V DC	24V DC	12V DC	24V DC	12V DC	24V DC	12V DC	24V DC
Rated output current	3A	1.5A	5A	2.5A	8.5A	4.2A	10A	6.3A
Output current range	0–3A	0–1.5A	0–5A	0–2.5A	0–8.5A	0–4.2A	0–10A	0–6.3A
Rated output power	36W	36W	60W	60W	102W	100.8W	120W	151.2W
Ripple & noise (max)	120mVp-p	150mVp-p	120mVp-p	150mVp-p	120mVp-p	150mVp-p	200mVp-p	200mVp-p
Input voltage range	AC 90–264V	AC 90–264V	AC 90–264V	AC 90–264V	AC 90–264V	AC 90–264V	AC 180–305V	AC 180–305V
Frequency range	47–63Hz	47–63Hz	47–63Hz	47–63Hz	47–63Hz	47–63Hz	47–63Hz	47–63Hz
Efficiency (typ.)	84%	85%	83%	86%	85%	88%	87%	89%
Product dimensions (L × W × H)	148 × 40 × 30 mm	148 × 40 × 30 mm	162.5 × 42.5 × 23 mm	162.5 × 42.5 × 23 mm	190 × 52 × 37 mm	190 × 52 × 37 mm	191 × 63 × 37.5 mm	191 × 63 × 37.5 mm
Operating temperature	-30°C to 65°C
Protection	Short circuit / Overload / Over voltage
Waterproof level	IP67 (fully encapsulated)
Cooling	Free air convection
Safety & compliance	UL / CE (series certified, model-dependent)

Usage Notes / Installation Tips

• Confirm the required DC output voltage (12V or 24V) before ordering
• Select wattage based on your total load and keep headroom for stable operation
• For outdoor use, seal and protect all wire connections even with IP67 power supplies
• Provide airflow around the unit and avoid wrapping it tightly with insulation materials
• Disconnect AC power before wiring, mounting, or troubleshooting

Applications

• Outdoor LED strips and landscape lighting
• LED modules, signage lighting, and low-voltage lighting systems
• Garden, pathway, yard, and architectural lighting projects
• Wet location installations requiring IP67 waterproof protection
• General constant-voltage DC power for compatible devices
