8MM Wide COB Flexible LED Strip Light - 12V / 24V | 320 / 480 / 512 LEDs/M | 3000K / 4000K / 6500K / Red / Blue / Green / Pink / Yellow | 8mm PCB | CRI 80+ | Dot-Free Continuous Lighting | Non-Waterproof | for Cabinets,Kitchen Office Lighting | 5/50M
8MM Wide COB Flexible LED Strip Light - 12V / 24V | 320 / 480 / 512 LEDs/M | 3000K / 4000K / 6500K / Red / Blue / Green / Pink / Yellow | 8mm PCB | CRI 80+ | Dot-Free Continuous Lighting | Non-Waterproof | for Cabinets,Kitchen Office Lighting | 5/50M
8MM Wide COB Flexible LED Strip Light - 12V / 24V | 320 / 480 / 512 LEDs/M | 3000K / 4000K / 6500K / Red / Blue / Green / Pink / Yellow | 8mm PCB | CRI 80+ | Dot-Free Continuous Lighting | Non-Waterproof | for Cabinets,Kitchen Office Lighting | 5/50M
Package Included
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 10 Rolls × 5 m (164 ft total) (Strip Only) | 10 Rolls × 5 m (164 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
About this item
-
High CRI80 Lighting – Delivers natural, true-to-life color rendering for professional indoor lighting projects.
-
Multiple Density Options – Choose from 320 LEDs/m (8W), 480 LEDs/m (10W), depending on brightness requirements.
-

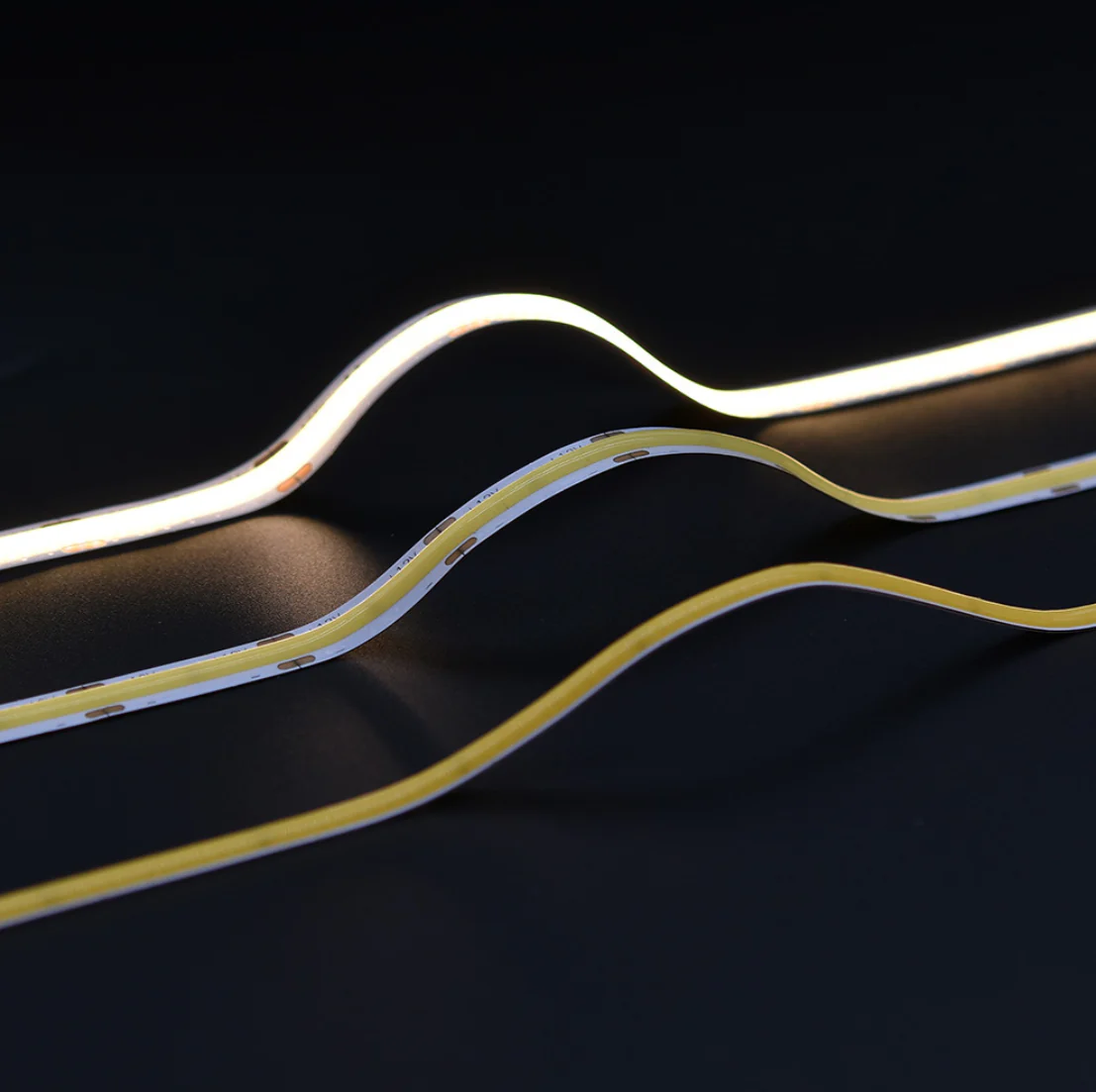

Flexible & Uniform Glow – COB technology provides continuous, dot-free illumination along the strip for smooth linear lighting.
-
Customizable Voltage – Supports both 12V and 24V DC systems for versatile installations.
-

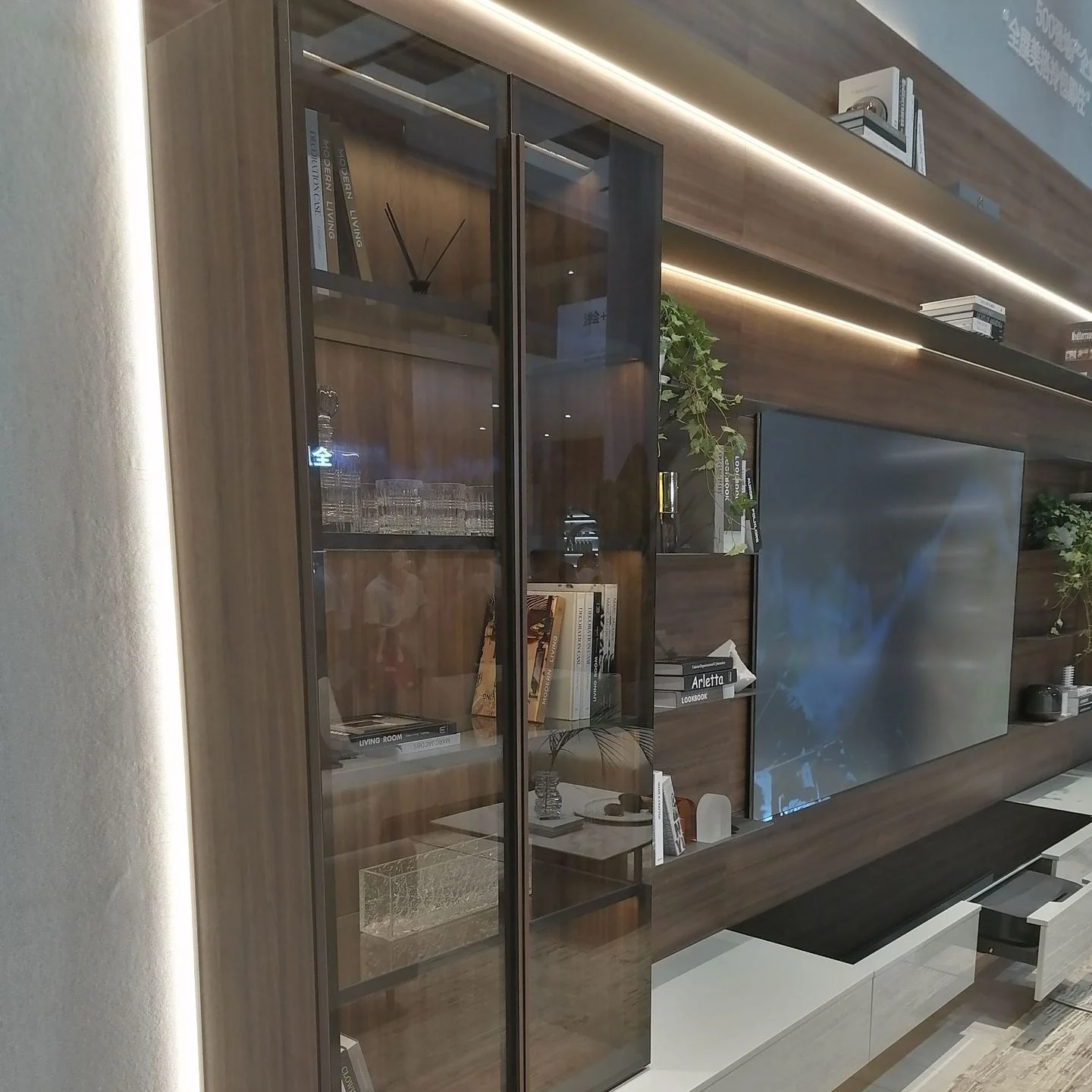

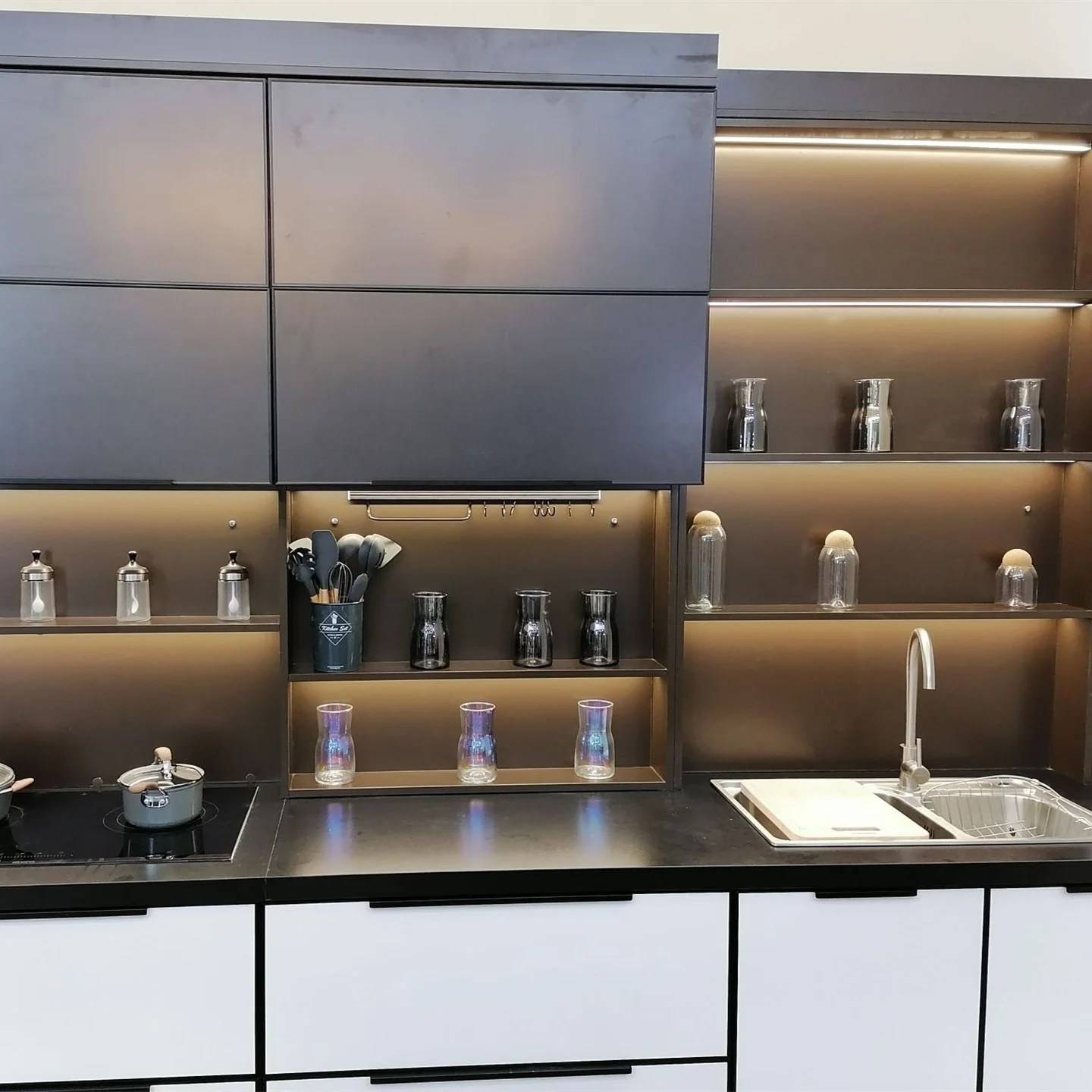

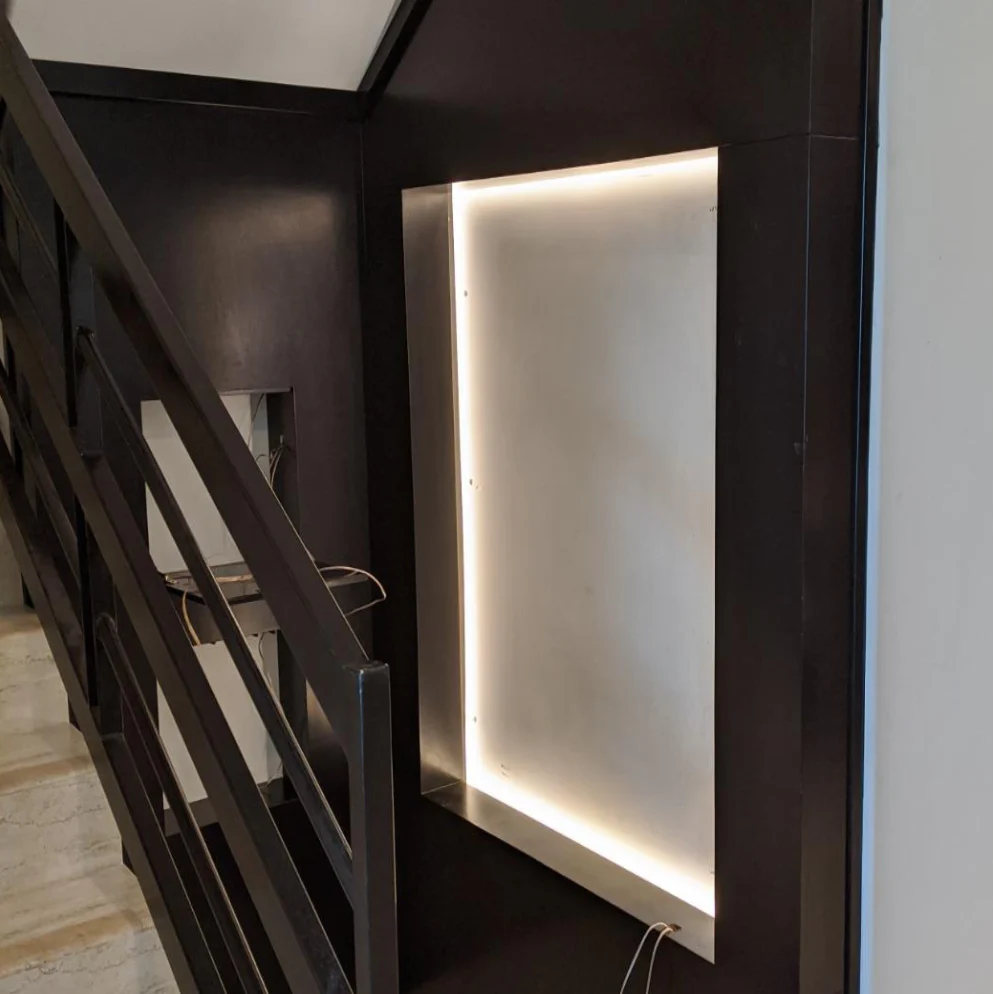

Indoor Applications – Non-waterproof IP00 design ideal for cabinets, shelves, signage, and architectural accents.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
Key Specifications

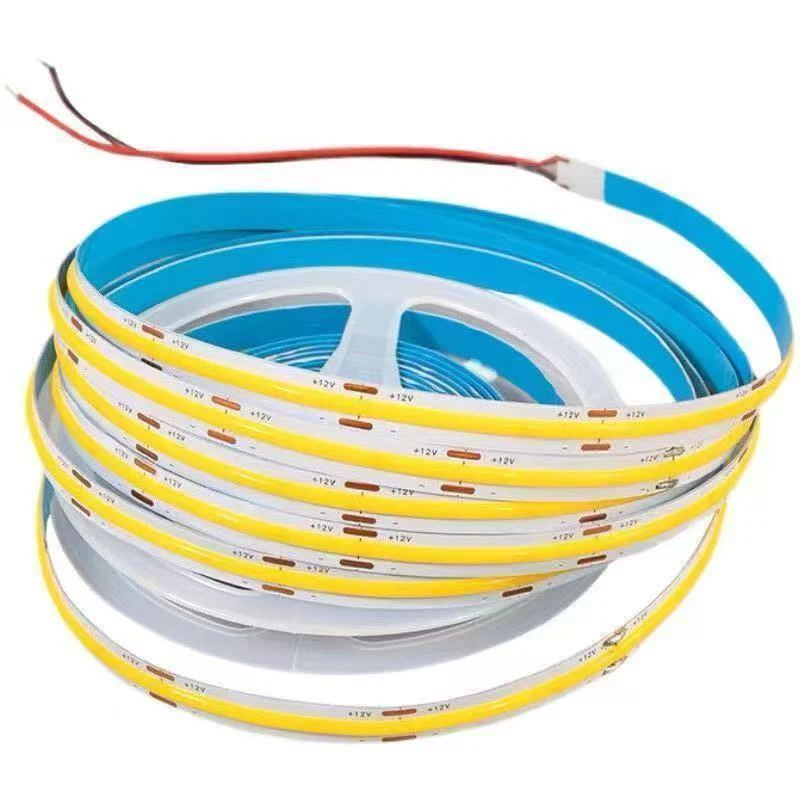

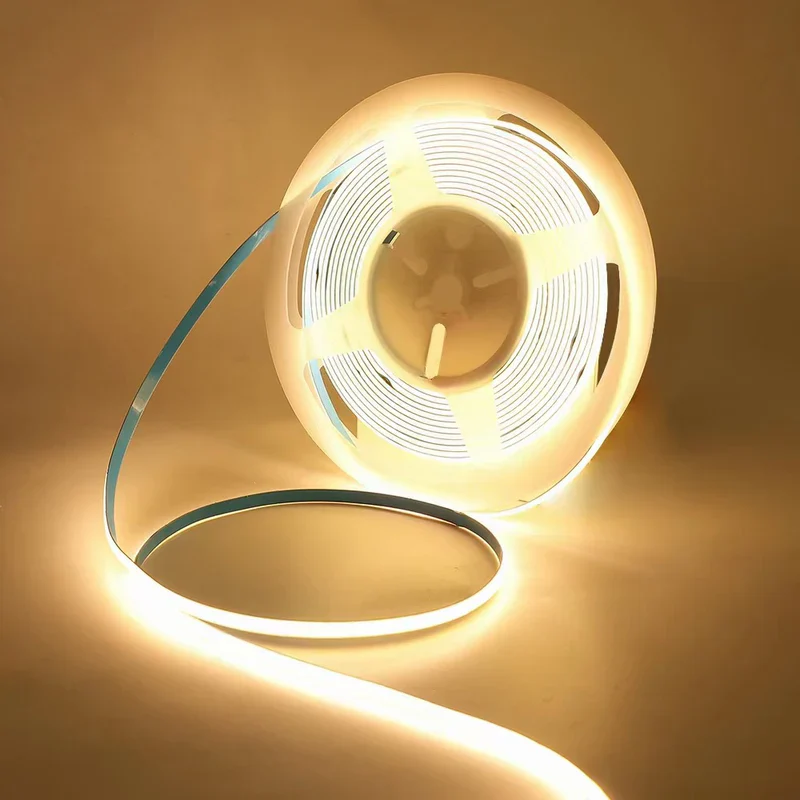

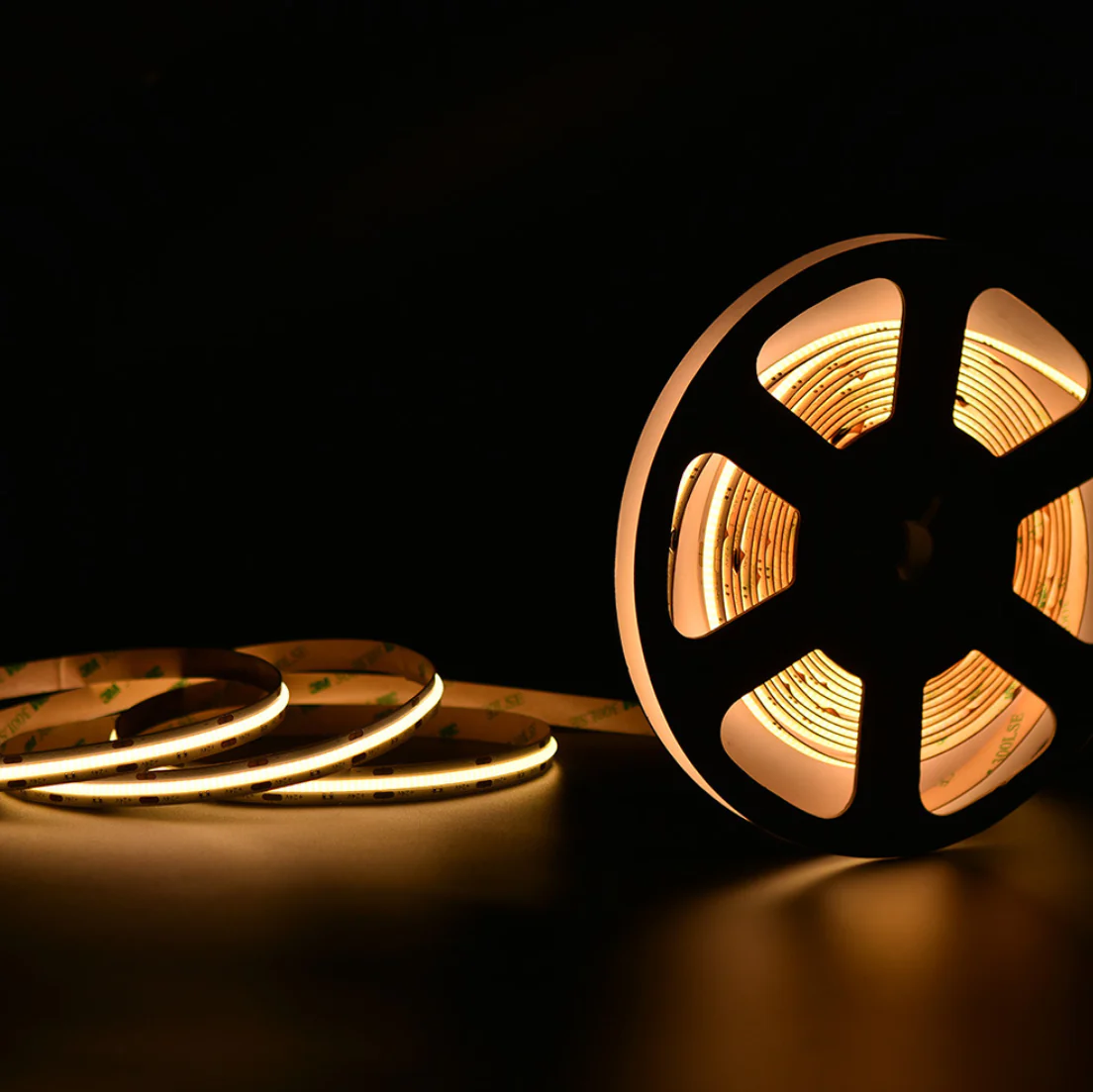

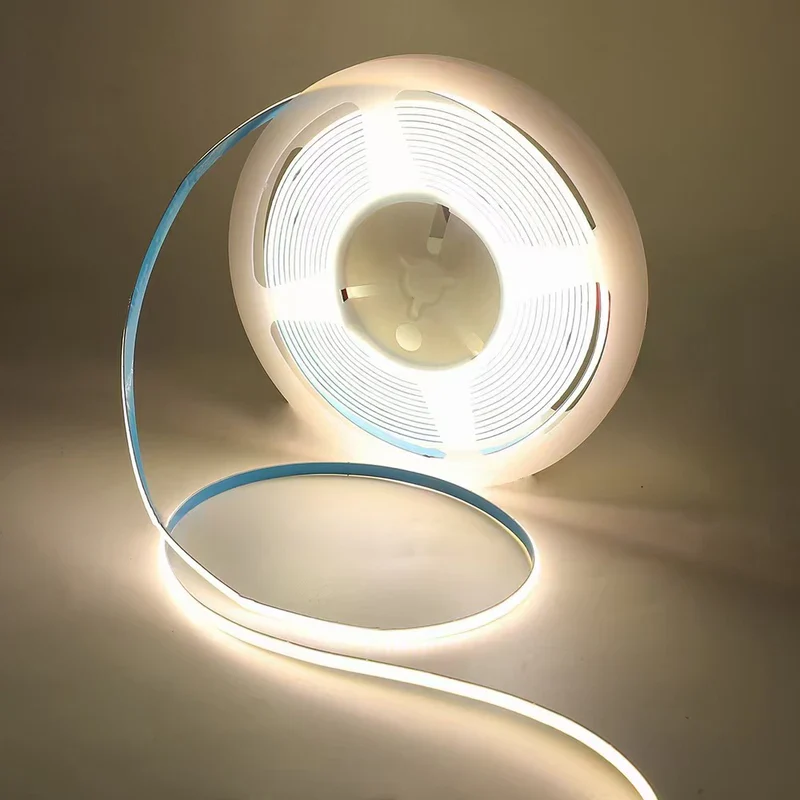

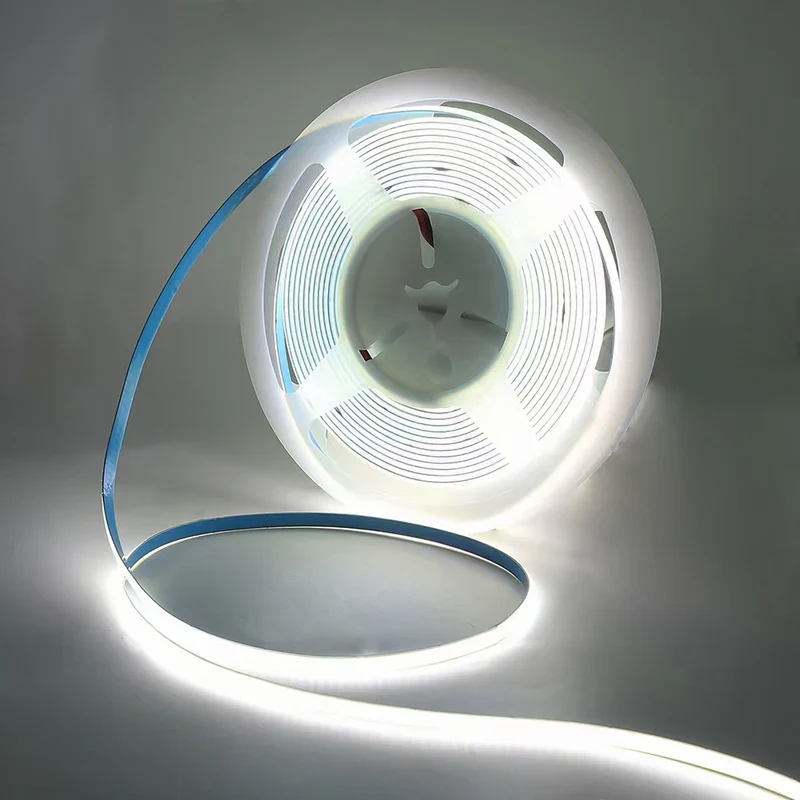

- Product Name: COB Flexible LED Strip Light
- Length per Roll: 5m (16.4 ft)
- LED Type: COB (Chip-on-Board)
- Color Options: 3000K, 4000K, 6500K, Red, Blue, Green, Pink, Yellow
- CRI: ≥80
- LED Density: 320 LEDs/m (8W/m) | 480 LEDs/m (10W/m) | 512LEDs/m (12W/m)
- Input Voltage: 12V DC / 24V DC
- Power Consumption: 8W/m, 10W/m, 12W/m depending on LED density
- PCB Width: 8mm
- Cut Section: 50mm (2'')
- Dimmable: Yes
- Waterproof Rating: Non-Waterproof, IP00
- Package Options: 1 Roll × 5m / 10 Rolls × 5m

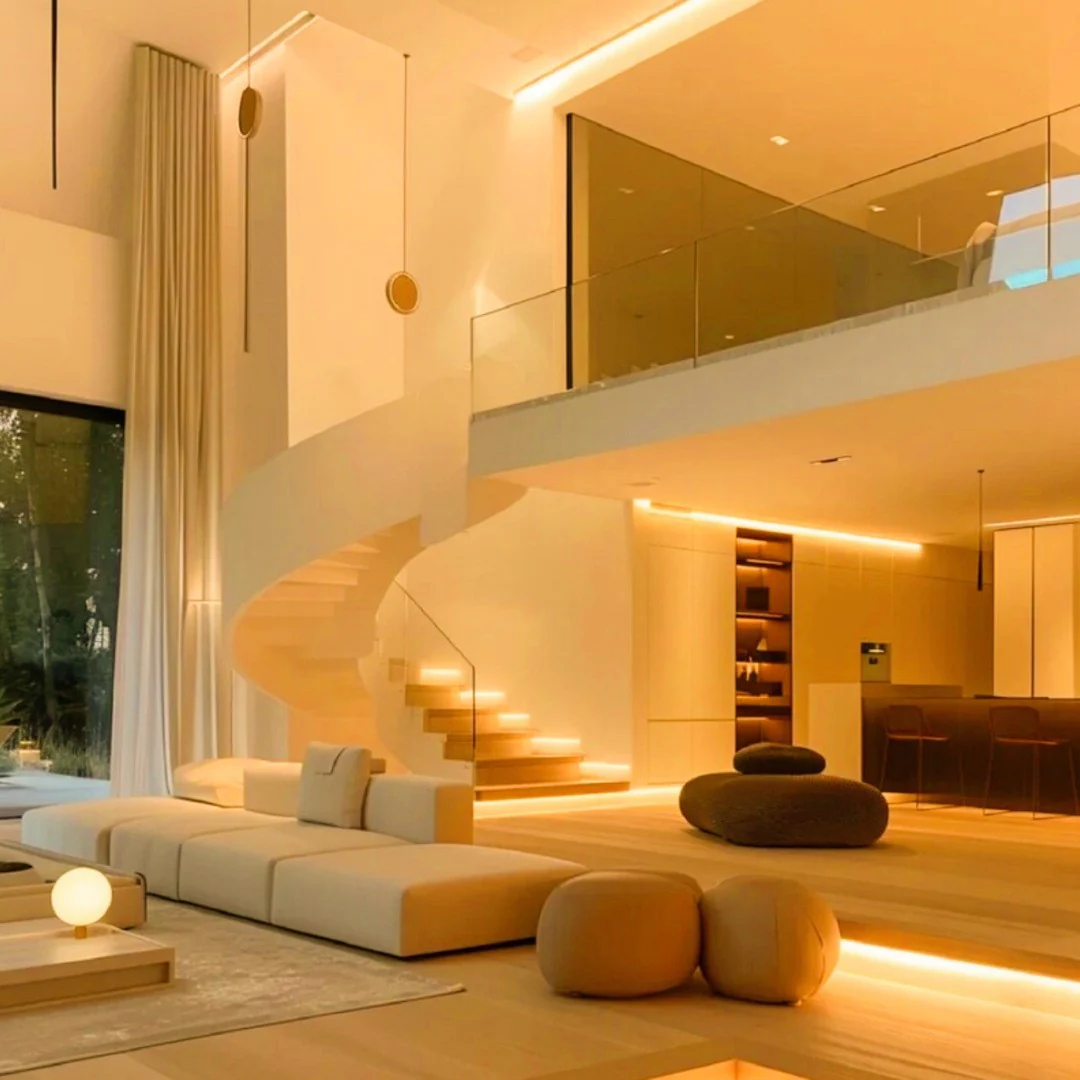

- Applications: Indoor accent lighting, shelves, furniture, signage, architectural use
- LED Density Options: 12V 320 LEDs/m, 24V 320 LEDs/m, 12V 480 LEDs/m, 24V 480 LEDs/m, 12V 512 LEDs/m, 24V 512 LEDs/m
- Beam Angle: 180°
- Lumen per LED: 26 lm
- Power Factor: 0.75
- Lifetime: 50,000 hours
- Size: 5000 × 8 mm
- Net Weight: 160 g
- Control Type: DC powered
- Certification: CE
- Origin: China
- Custom Service: Custom length available
Technical Specifications
| Specification | Details |
| Product Name | COB Flexible LED Strip Light |
| Length per Roll | 5m (16.4 ft) |
| LED Type | COB (Chip-on-Board) |
| Color Options | 3000K, 4000K, 6500K, Red, Blue, Green, Pink, Yellow |
| CRI | ≥80 |
| LED Density | 320 LEDs/m (8W/m) | 480 LEDs/m (10W/m) | 512LEDs/m (12W/m) |
| Input Voltage | 12V DC / 24V DC |
| Power Consumption | 8W/m, 10W/m, 12W/m depending on LED density |
| PCB Width | 8mm |
| Cut Section | 50mm (2'') |
| Dimmable | Yes |
| Waterproof Rating | Non-Waterproof, IP00 |
| Package Options | 1 Roll × 5m / 10 Rolls × 5m |
| Applications | Indoor accent lighting, shelves, furniture, signage, architectural use |
| LED Density Options | 12V 320 LEDs/m, 24V 320 LEDs/m, 12V 480 LEDs/m, 24V 480 LEDs/m, 12V 512 LEDs/m, 24V 512 LEDs/m |
| Beam Angle | 180° |
| Lumen per LED | 26 lm |
| Power Factor | 0.75 |
| Lifetime | 50,000 hours |
| Size | 5000 × 8 mm |
| Net Weight | 160 g |
| Control Type | DC powered |
| Certification | CE |
| Origin | China |
| Custom Service | Custom length available |
Usage Notes / Installation Tips
- Power Wiring Methods:
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power. We suggest using a higher wattage transformer than the strip’s rated power to avoid full load working. A higher power transformer will not harm the strip and improves safety.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value.
Applications
- General Information:
