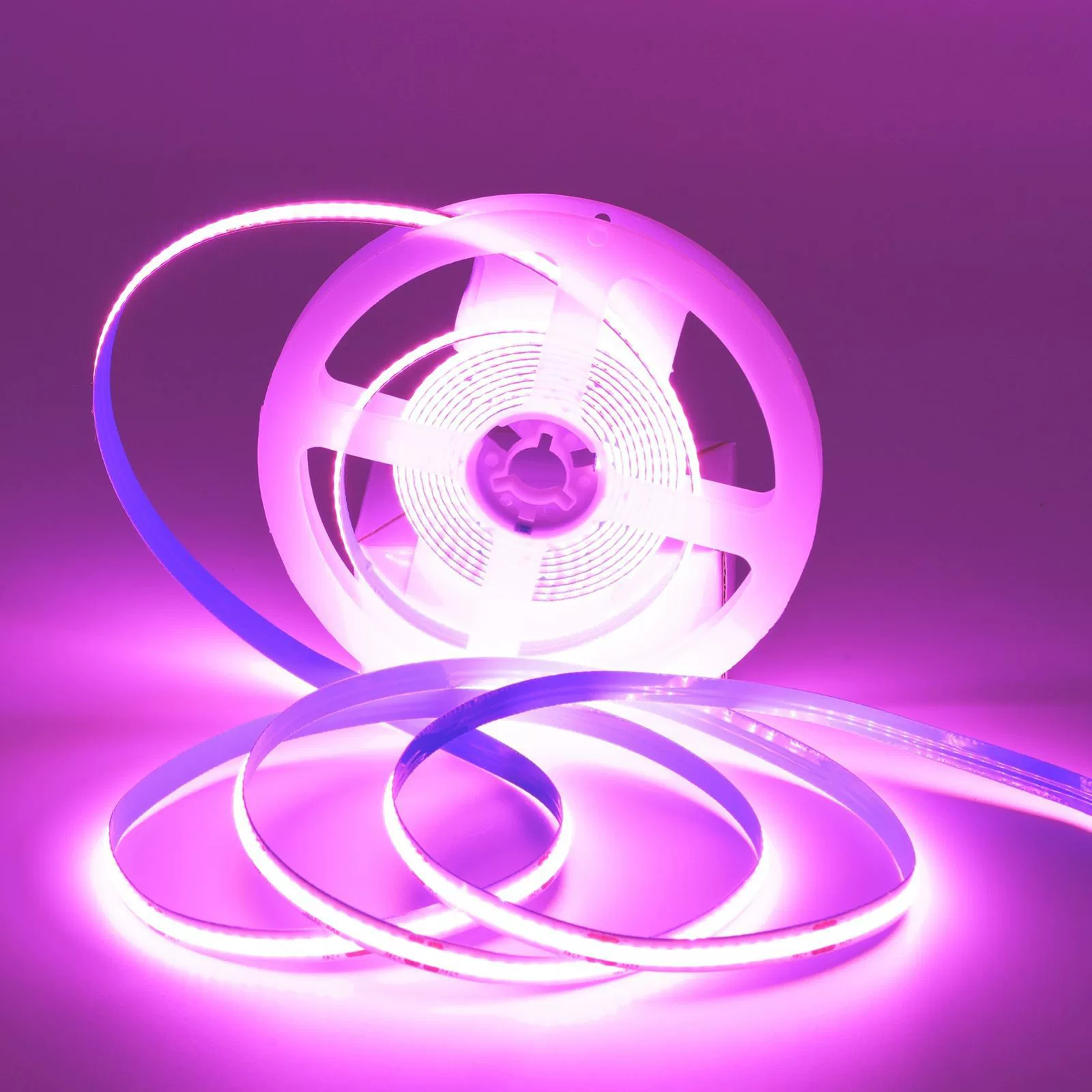

5MM Wide COB Flexible LED Strip Light - 12V / 24V | 384 LEDs/M | 3000K / 4000K / 6500K / Red / Blue / Green / Pink / Yellow | 5mm PCB | CRI 90+ | Dot-Free Continuous Lighting | Non-Waterproof | for Cabinets,Kitchen Office Lighting | 5/50M

5MM Wide COB Flexible LED Strip Light - 12V / 24V | 384 LEDs/M | 3000K / 4000K / 6500K / Red / Blue / Green / Pink / Yellow | 5mm PCB | CRI 90+ | Dot-Free Continuous Lighting | Non-Waterproof | for Cabinets,Kitchen Office Lighting | 5/50M

Package Included

Version	Package Included
1 Roll × 5 m (16.4 ft total) (Strip Only)	1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller
10 Rolls × 5 m (164 ft total) (Strip Only)	10 Rolls × 5 m (164 ft total) LED Strip Light Only, Do not include Power Supply and Controller

About this item

• Ultra-Narrow 5mm PCB – Designed for tight spaces and slim channels while maintaining stable, continuous COB illumination.

• Dot-Free Continuous Lighting – COB technology delivers smooth, uniform light output with no visible hotspots for clean linear lighting.

• High CRI 90+ – Provides accurate color rendering for premium cabinet, kitchen, and office lighting applications.

• Multiple Light Colors – Available in 3000K, 4000K, 6500K, Yellow, Blue, Red, Pink, and Green to match different lighting needs.

• 12V / 24V Options – Supports both 12V and 24V DC systems for flexible installation planning.

Order & Logistics

• Lead Time: Ships directly from headquarters. Handling time 3–5 business days
• Packing: Cardboard box, sealed with anti-static bag
• Shipping:

  This series enjoys our Free Shipping Policy for orders over $399.

• HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.

Key Specifications

• Input Voltage: 12V / 24V
• Type: Single Color
• Protection Rating: Non-Waterproof
• LED Chip Brand: San’an Optoelectronics
• Control Type: Switch Control
• Model: COB LED Strip
• LED Type: COB
• LED Quantity: 384 LEDs/m
• Luminous Flux per LED: 20 lm
• Beam Angle: 180°
• Power Factor: 0.9
• Dimmable: Yes
• Effective Lifetime: 30,000 hours
• Width: 5 mm
• Color Temperature / Light Colors: 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White), Yellow, Blue, Red, Pink, Green
• Color Rendering Index (CRI): 90+
• Power: 10W
• Lifespan: 50,000 hours
• Minimum Packaging: 10 meters
• Switch Type: Manual
• Light Source: COB

Technical Specifications

Specification	Details
Input Voltage	12V / 24V
Type	Single Color
Protection Rating	Non-Waterproof
LED Chip Brand	San’an Optoelectronics
Control Type	Switch Control
Model	COB LED Strip
LED Type	COB
LED Quantity	384 LEDs/m
Luminous Flux per LED	20 lm
Beam Angle	180°
Power Factor	0.9
Dimmable	Yes
Effective Lifetime	30,000 hours
Width	5 mm
Color Temperature / Light Colors	3000K (Warm White), 4000K (Neutral White), 6500K (Cool White), Red, Blue, Green, Pink, Yellow
Color Rendering Index (CRI)	90+
Power	10W
Lifespan	50,000 hours
Minimum Packaging	10 meters
Switch Type	Manual
Light Source	COB

Applications

• Cabinets
• Kitchen lighting
• Office lighting

Usage Notes / Installation Tips

• Power Wiring Methods:

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power. We suggest using a higher wattage transformer than the strip’s rated power to avoid full load working. A higher power transformer will not harm the strip and improves safety.

Below please find the connection diagram for Single Color Light Strip for reference.

a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value.
