WiFi Music Pixel SPI LED Controller – DC12V-24V | Android APP + Sound Control | Aluminum Housing | For Addressable RGB/RGBW LED Strips

WiFi Music Pixel SPI LED Controller – DC12V-24V | Android APP + Sound Control | Aluminum Housing | For Addressable RGB/RGBW LED Strips

Package Included

Connector / Pack Size	Package Included

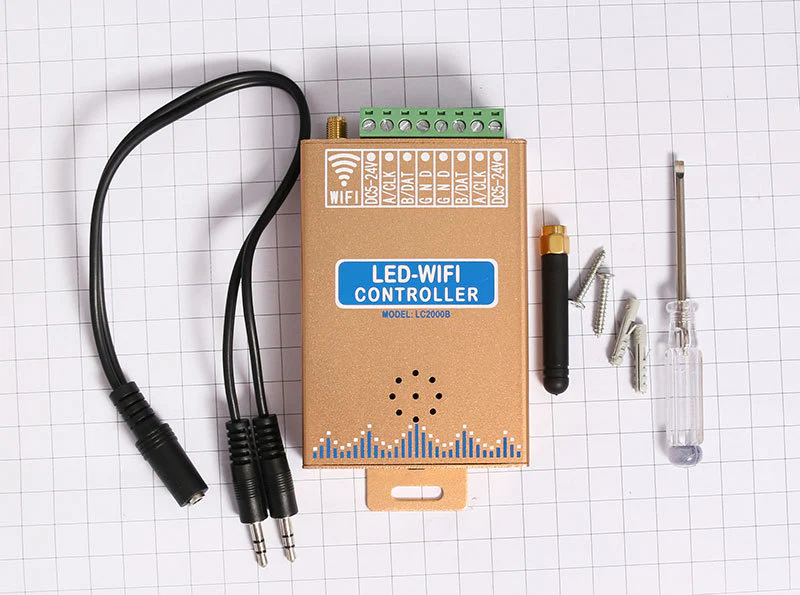

Screw Terminal Block / 1-Pack	1 × WiFi Music Pixel SPI LED Controller, 1 × User Manual

About this item

• Wide Voltage Input: Supports DC12–24V, suitable for RGB/RGBW addressable pixel LED strips with low-voltage power supply.
• APP + Sound Control: Control via mobile app or built-in music sync, making lights dance with rhythm and dynamic effects.
• High Pixel Capacity: Max control up to 2048 × 2 pixels, ideal for large-scale lighting projects.
• IC Compatibility: Works with TM1803, TM1804, TM1812, TM1914, WS2811, WS2812, WS2801, UCS1903, UCS2903, SM16703, LPD6803, LPD8806, APA102, INK1003, and more.
• Professional Use: Requires configuration via software such as Madrix or FreeStyle (software not included) for advanced effects.
• Durable Build: Aluminum housing provides excellent heat dissipation, durability, and protection.
• Applications: Suitable for stage lighting, clubs, architectural displays, signage, home decoration, and music-responsive LED strip setups.

Specification

• Input Voltage: DC12-24V

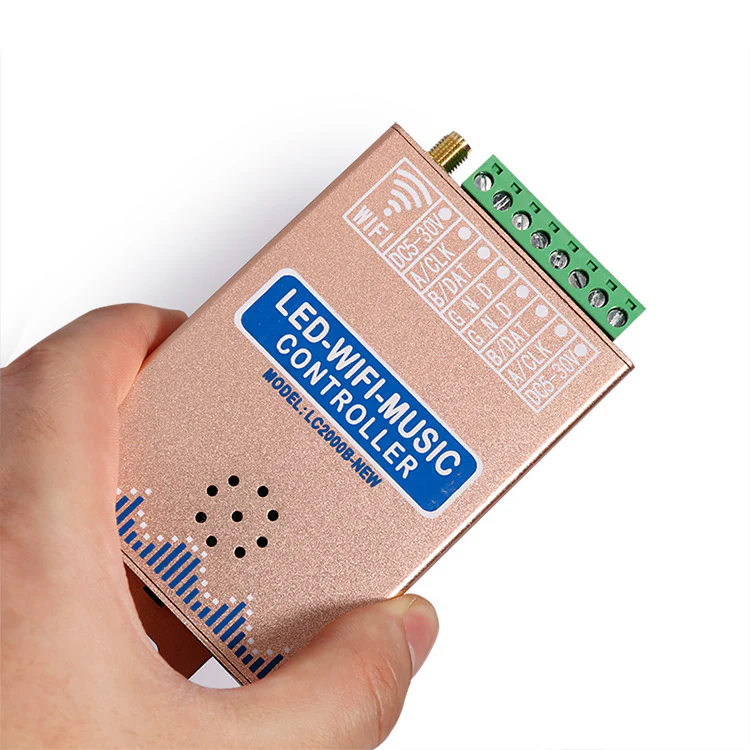

NOTE: The DC5-24V marking on the casing is inaccurate: This controller can control 5-24V LED strips, but the controller power supply must be 12V or 24V; if using a 5V LED strip, the strip and controller must be powered separately.

• Maximum 2048 points * 2CH
• 4 text playback modes, 6 music modes, 243 running light modes
• Adjustable RGB light sequence
• 32-level speed adjustment
• Power-off memory function
• Cascadable: the first controller in a cascaded system defaults to the host.
•  Music control function
• Text playback function
• WiFi connection, APP control (currently only supports Android)

Product Details

Android APP

Audio Connection Plug TypeWiring Diagram

Control of Various SPI LED Lights (Support most of the SPI IC models)

Order & Logistics

Lead Time

• Ships directly from headquarters. Handling time 3–5 business days

Shipping Note

• This series enjoys our Free Shipping Policy for orders over $399.
• HQ Fulfillment (when local stock is unavailable): Standard 9–18 days  |  Express 5–9 days.
• Packing: Cardboard box

Usage Notes / Installation Tips

• Ensure LED strips are single color and rated for DC12–24V
• Do not exceed 6A load capacity to prevent overheating
• Install the PIR sensor in an open area without obstructions for best detection
• Not suitable for outdoor use without proper waterproofing
• Disconnect power before wiring to avoid electric shock

Applications

• Closet and wardrobe lighting with automatic on/off
• Cabinets, bookshelves, or display cases
• Hallway and staircase safety lighting
• Under-cabinet kitchen lighting
• Garage, basement, or storage room illumination
