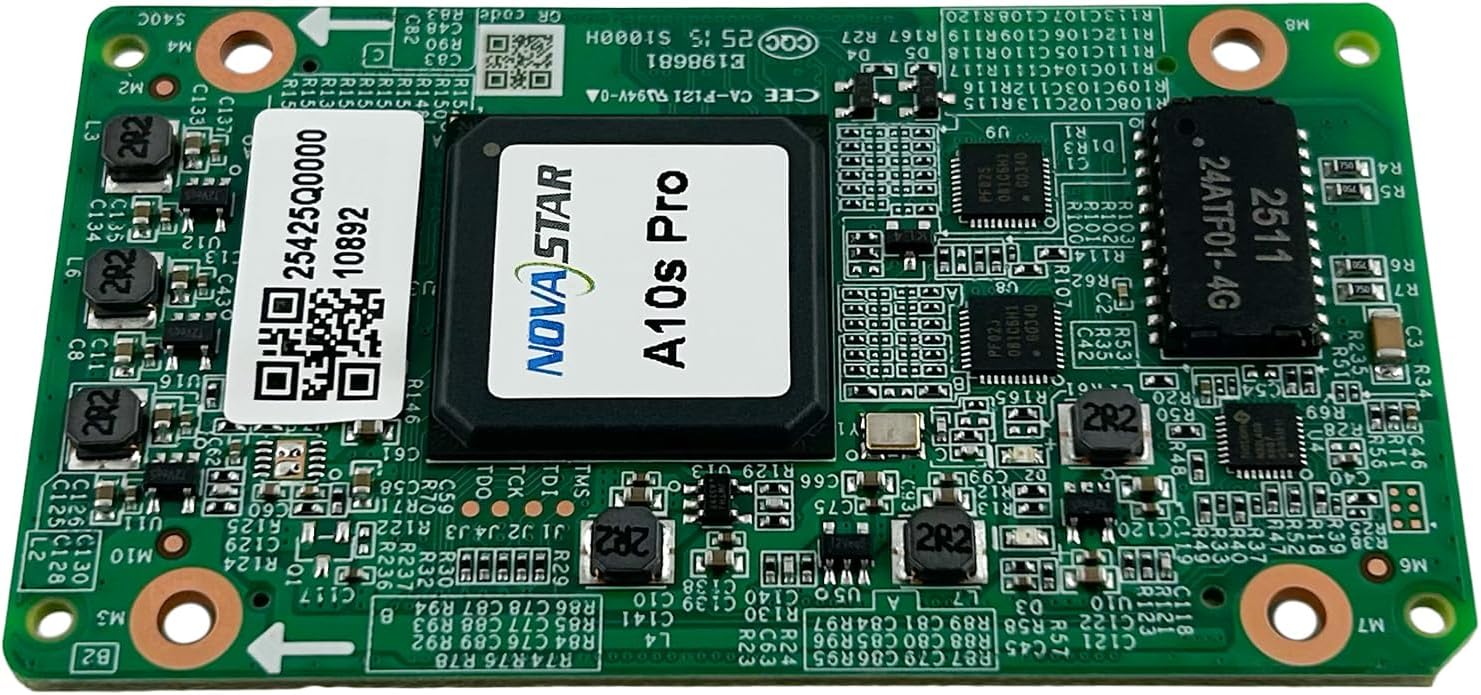

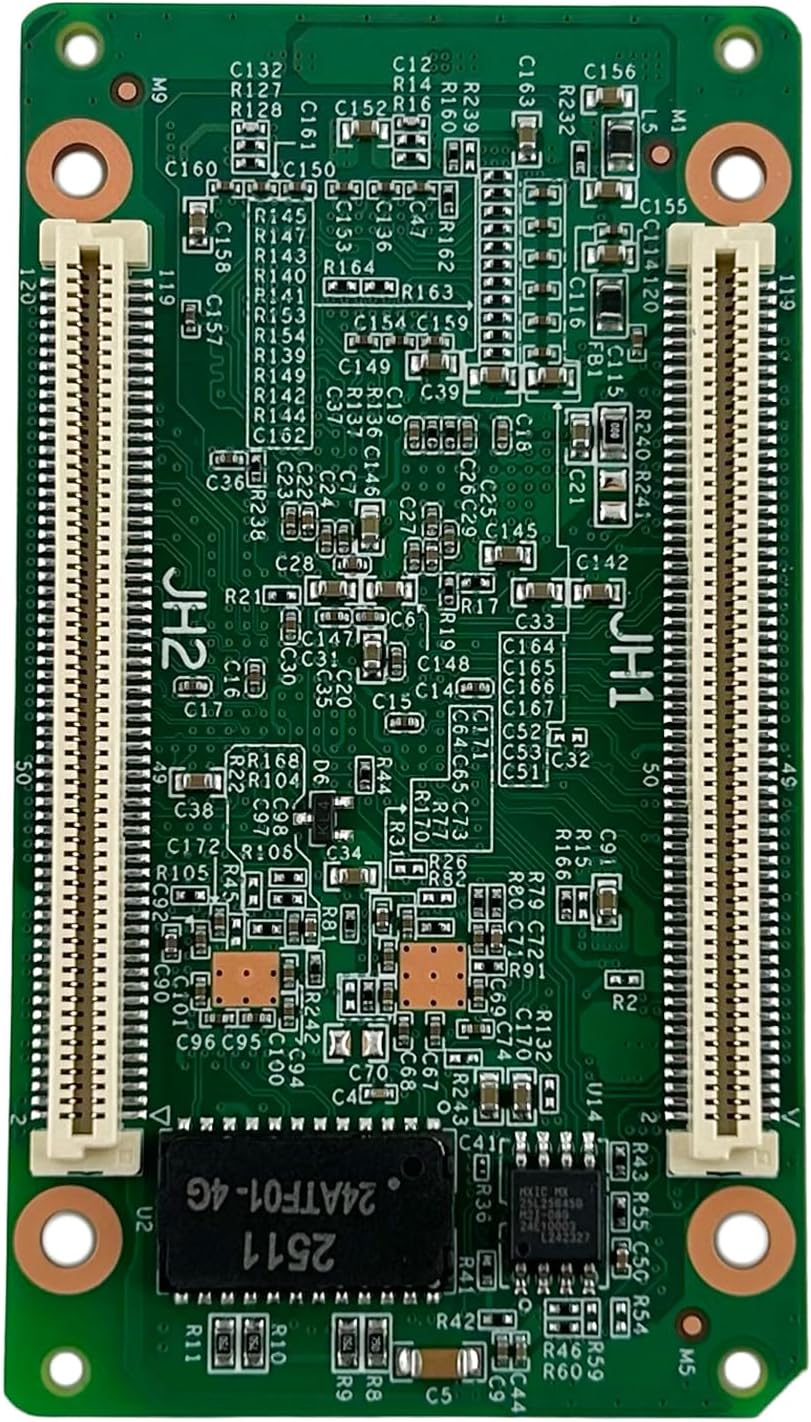

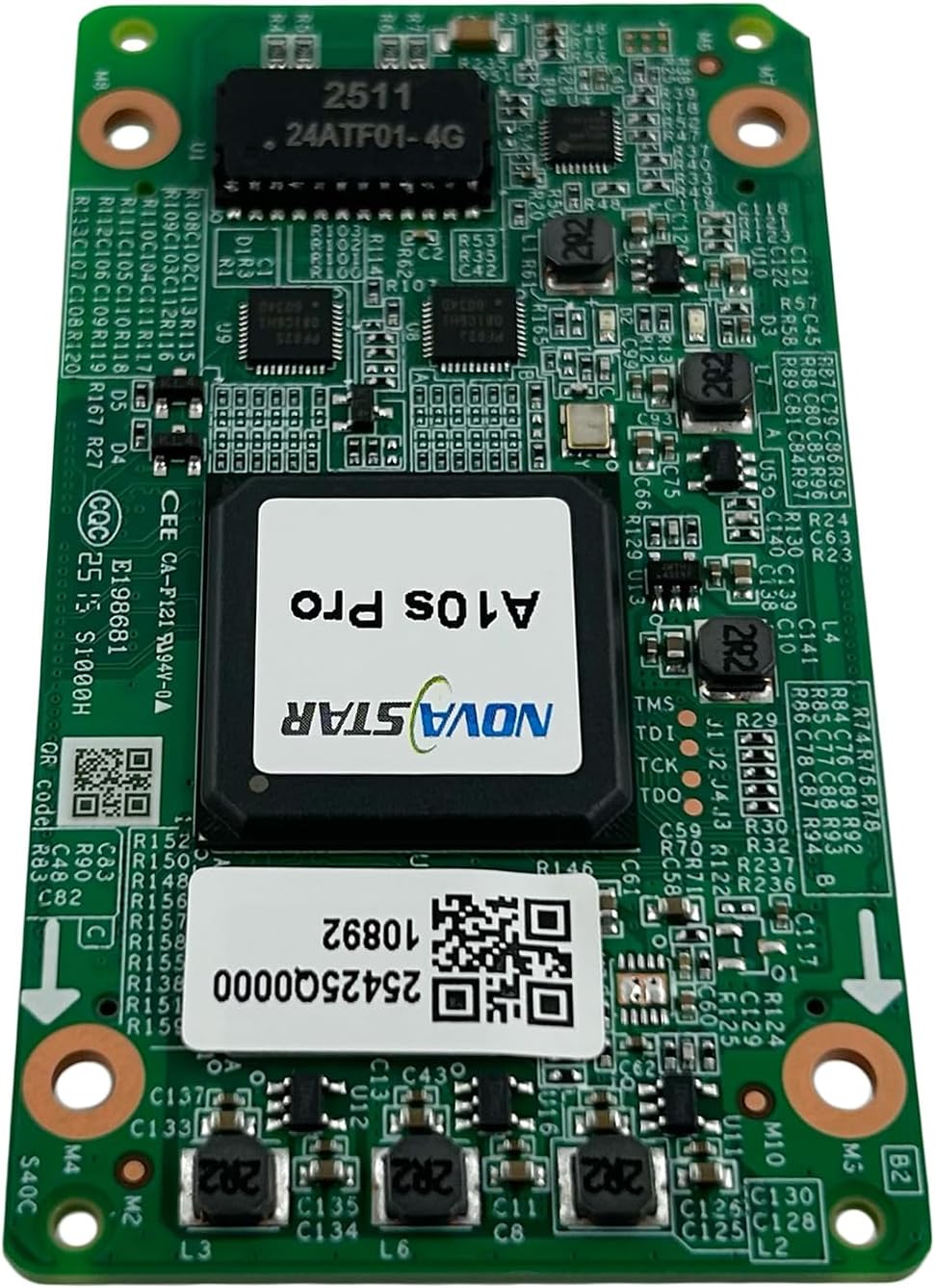

NovaStar A10s Pro Receiving Card – 512×512 Pixels | 5G Transmission‑Ready LED Display Control Card for LED Display Screens

Package Included

Version	Package Included
A10s Pro	A10s Pro receiving card

About this item

• High-performance LED screen controller supporting 512×512 pixels and 32-group RGB parallel data or 64-group serial data
• Compatible with multiple LED module pixel pitches, up to 512×512 resolution
• Advanced features such as HDR10 and HLG video input, pixel-level brightness and chroma calibration for enhanced stability
• Compact design with optimized hardware for stable, long-term operation
• Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups

Order & Logistics

• Lead Time: Typically ships within 2–5 business days
• Packing: Cardboard box
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Key Specifications

• Input Ports: Compatible with controllers supporting HDR10 / HLG
• Output Ports: 32-group RGB parallel data or 64-group serial data
• Supported Resolutions: Up to 512×512 pixels
• Control Method: Network connection via compatible sending controller
• Power Supply: DC 3.8–5.5 V
• Operating Temperature: -20°C to +70°C

Usage Notes / Installation Tips

• Always power off before connecting/disconnecting signal cables
• Use shielded network cables for stable data transmission
• Ensure adequate ventilation for prolonged operation

Technical Specifications

Model	A5s Plus	A8s-N	A10s Pro
Loading capacity	512×384	512×384	512×512
Parallel RGB data groups	32	32	32
Serial data groups	64	64	64
HDR	×	√	√
Mapping	√	√	√
Temperature, voltage and communication status monitoring	√	√	√
Dual-card backup	√	√	√
Automatic calibration	√	√	√
Pixel level brightness and chroma calibration	√	√	√
Calibration coefficient backup	×	√	√
Firmware program readback	√	√	√
Individual gamma adjustment for RGB	√	√	√
18bit+	√	√	√
22bit+	×	√	√
Precise grayscale	×	√	√
Color management	√	√	√
Full grayscale calibration	×	×	√
Shutter fit	×	×	√
Dynamic booster	×	×	√

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising
• Conference / exhibition displays

Description

NOTE: The A10S Plus-N has been replaced by A10s Pro. The two models cannot be mixed together to use.

Download

• A10s Pro




  Specifications
