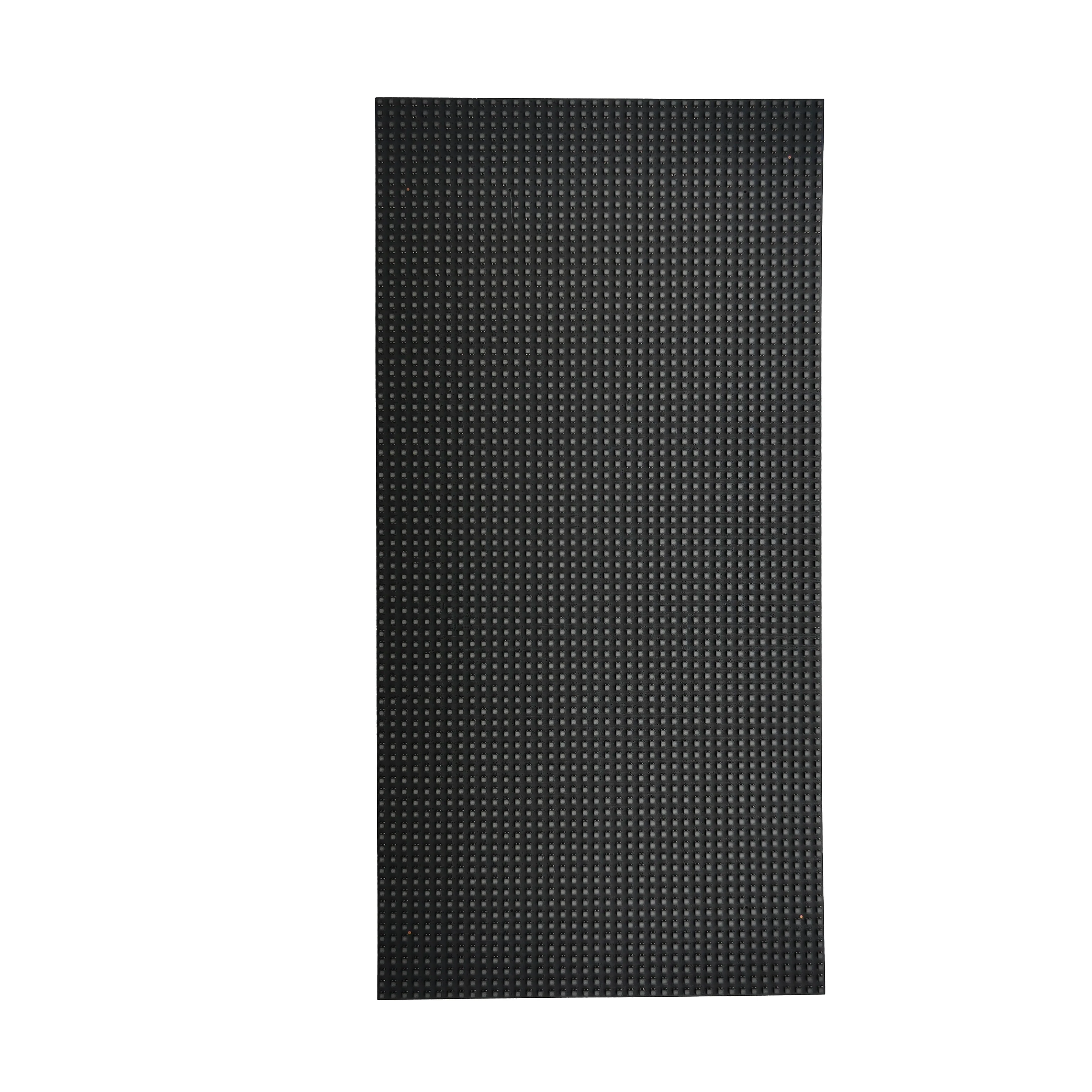

IF-2S Series Indoor Flexible LED Module – P3 | 240×120mm | SMD | Soft Back Shell with Magnet | 600nits

About this item

• Durable & Reliable – Designed for indoor use, featuring a soft back shell with magnetic mounting for secure installation and easy maintenance.
• High Precision Visuals – 3.0mm pixel pitch, 1/20 scan, vivid and smooth display with accurate color reproduction.
• Bright & Long-lasting – 600 nits brightness, adjustable color temperature (10,000–12,000K), and low lumen depreciation over time.
• Wide Viewing Angle – 140° horizontal / 120° vertical viewing for consistent color and brightness across the screen.
• Flexible Installation – Soft back shell with magnetic mounting, supports ≥150° curvature for creative splicing in curved or cylindrical shapes. Requires receiving card, sending card, control software, and DC 5V power supply.

Package Included

Version	Package Included
1pcs Sample Pack	1 × Power Cable 1 × Data Cable 1 × P3 240×120mm RGB Full Color LED Display Module
84pcs Standard Pack	84 × Power Cable 84 × Data Cable 84 × P3 240×120mm RGB Full Color LED Display Module

Order & Logistics

• Lead Time: Typically ships within 1–3 business days.
• Packing: Cardboard box with protective packaging.
• Shipping:
• Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Structure & Design Features

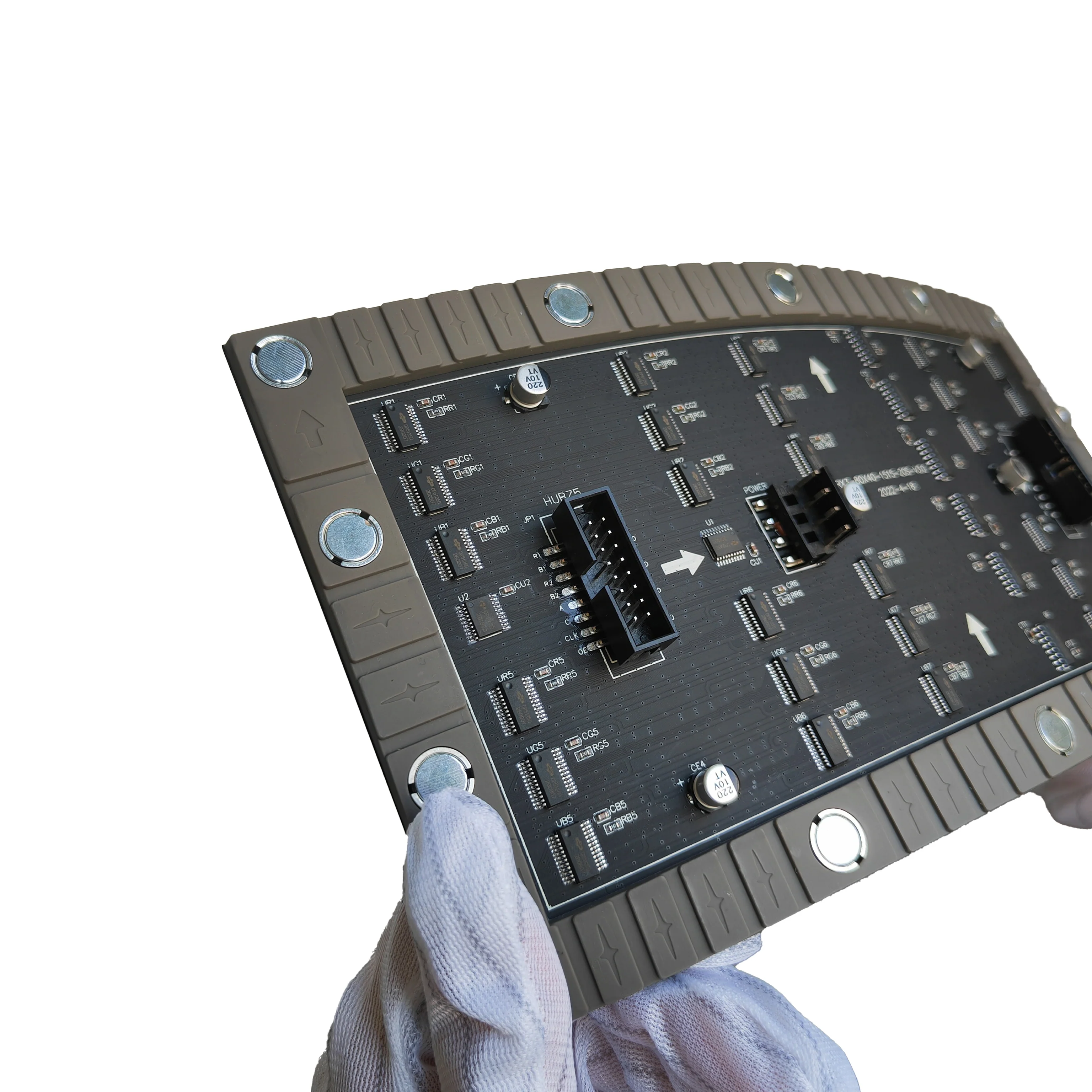

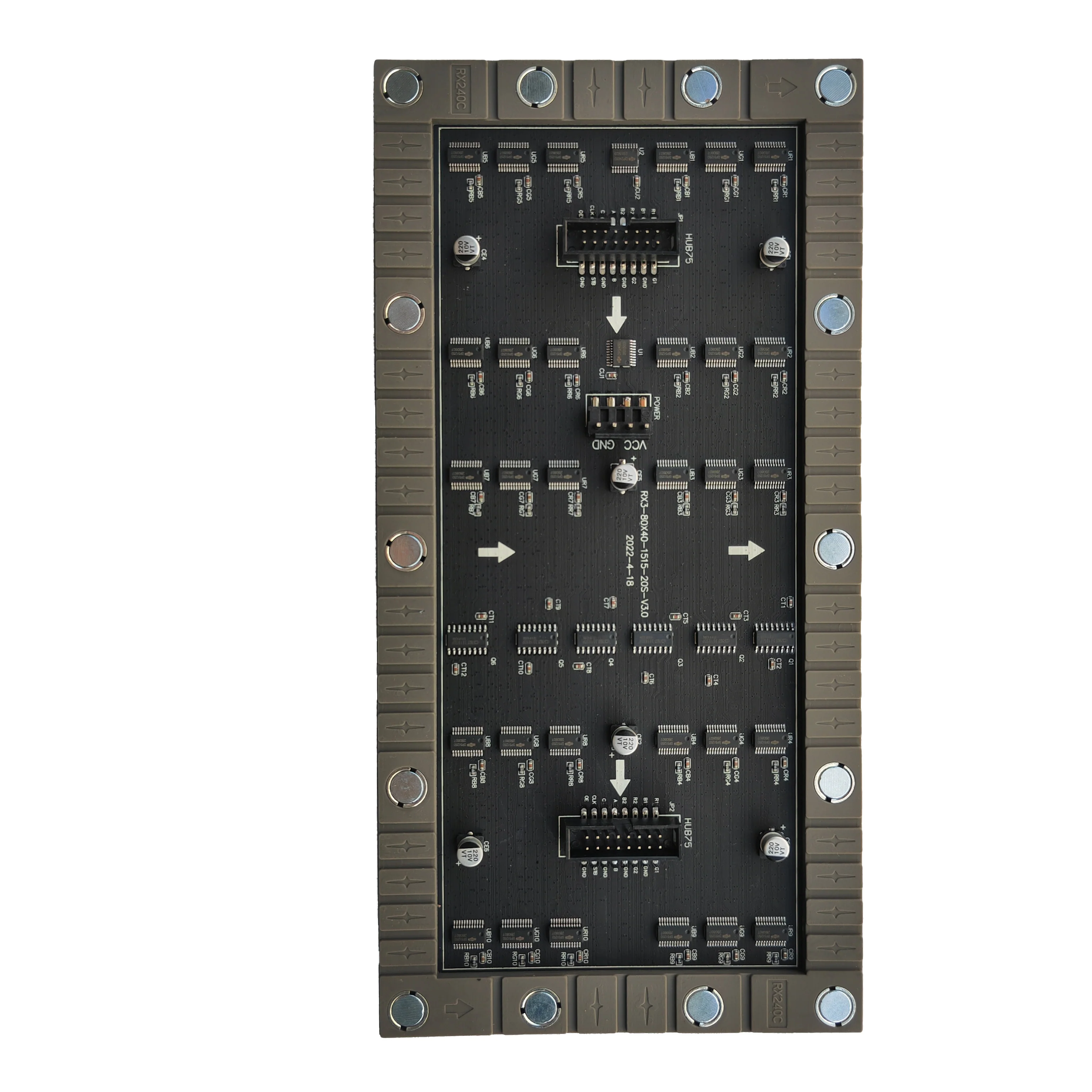

• Indoor flexible module with soft silicone back shell and magnetic mounting for easy and flexible assembly.
• Supports ≥150° curvature, ideal for creative curved and cylindrical display shapes.

Installation Tips

• Always disconnect power before installing or servicing the module.
• Ensure correct polarity for power and data connections.
• Avoid bending or twisting the PCB beyond the rated tolerance (≥150° curvature).
• Use compatible receiving card, sending card, control software, and DC 5V power supply.

Technical Specifications

Specification	Value
Module size	240 × 120 × 8.6 mm
Pixel pitch	3.0 mm
LED type	SMD2121
Brightness	>600 nits
Scan rate	1/20
Viewing angle	140° (H) / 120° (V)
Input voltage	DC 5V
Weight	0.2 kg
Pixel configuration	1R1G1B Full Color
Pixel density	111,111 dots/m²
Module resolution	80 × 40 dots
Refresh rate	3840 Hz
Gray scale	12-bit adjustable
Contrast ratio	≥5000:1
IP rating	IP20
Max power / module	15W
Lifespan	100,000 hrs
Operating temperature	-20°C ~ 40°C
Storage temperature	-20°C ~ 40°C
Humidity	20–75% RH (no condensation)

Applications

• Indoor: Retail shops, conference rooms, exhibitions, broadcast studios.
• Creative: Curved splicing, cylindrical screens, artistic installations.
