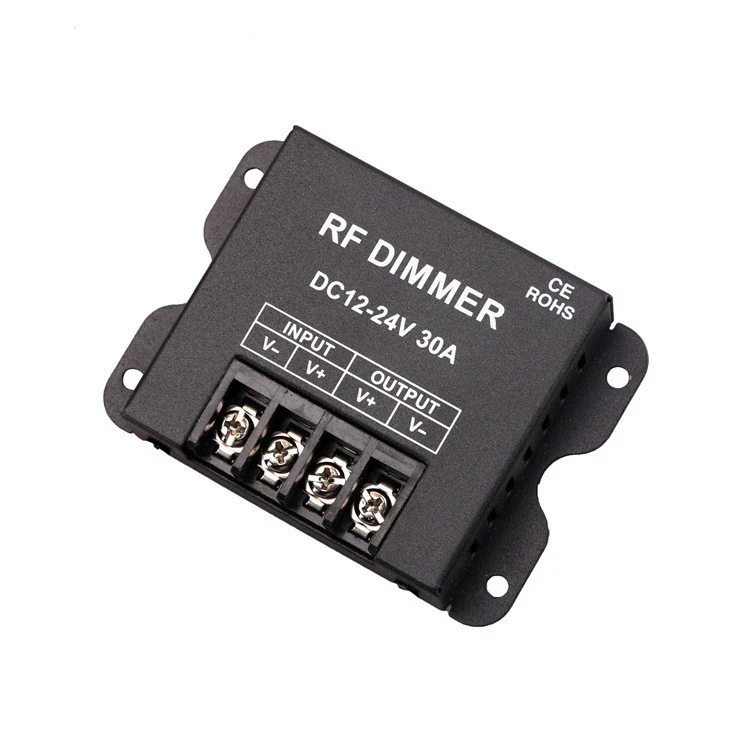

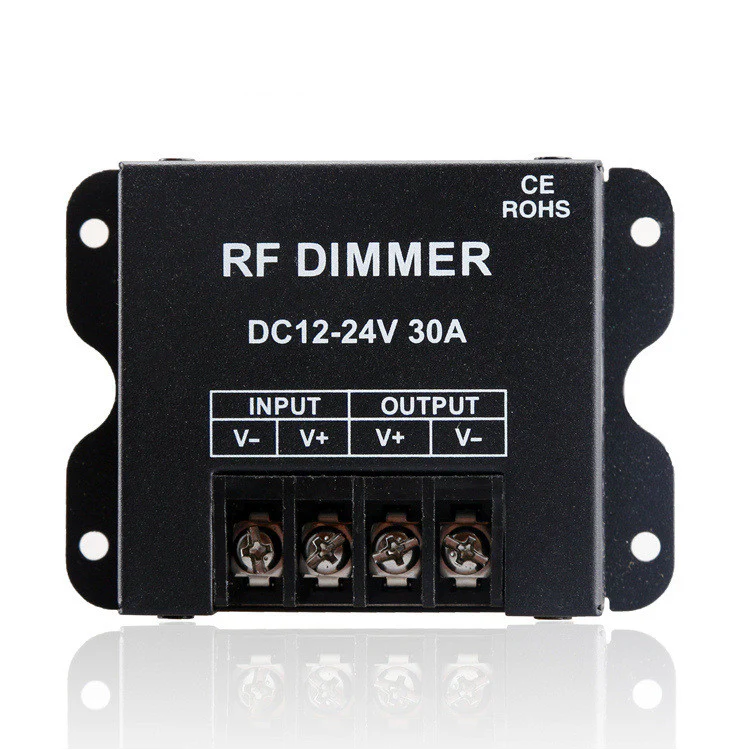

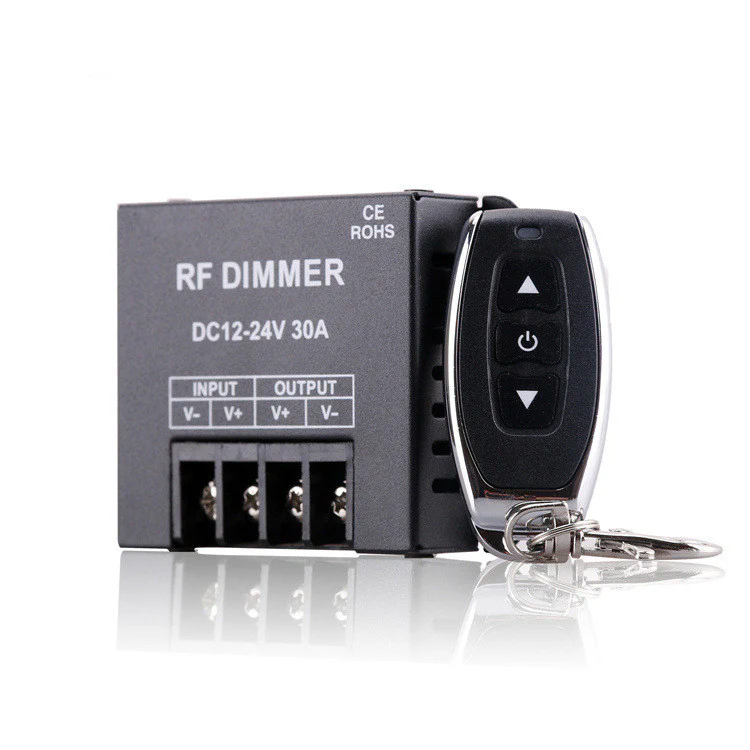

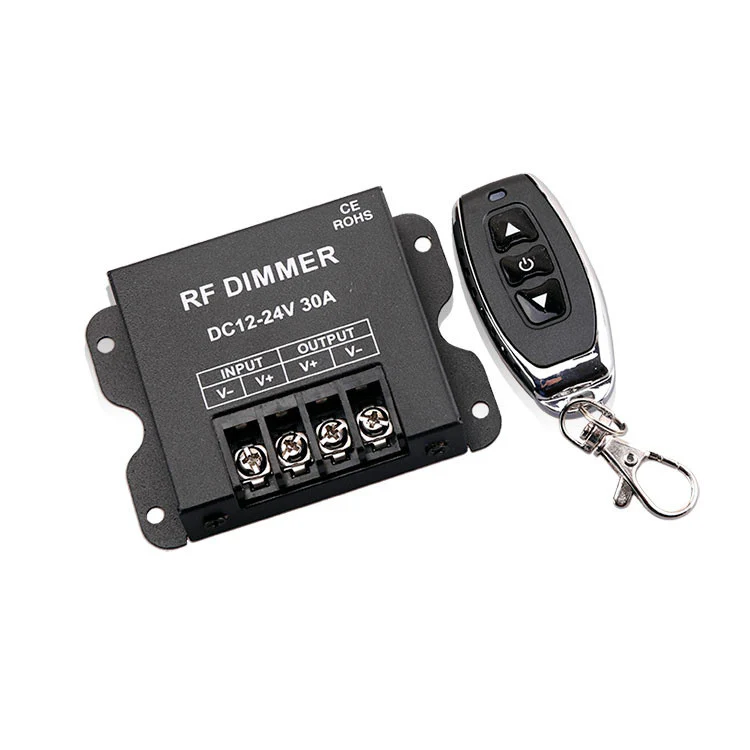

Single Color LED Strip Controller – DC12V-24V 30A | High Power RF Remote LED Dimmer Controller | For 5050/3528 LED Strips

Single Color LED Strip Controller – DC12V-24V 30A | High Power RF Remote LED Dimmer Controller | For 5050/3528 LED Strips

1. Package Included

Connector	Pack Size	Package Included
Screw Terminal Block	1-Pack	1 × Controller, 1 × RF Remote

Order & Logistics

Lead Time

• Ships directly from headquarters. Handling time 3–5 business days

Shipping Note

• This series enjoys our Free Shipping Policy for orders over $399.
• HQ Fulfillment (when local stock is unavailable): Standard 9–18 days  |  Express 5–9 days.
• Packing: Cardboard box

About this item

• High Power Controller: Designed for single color 5050/3528 LED strips with high load capacity
• Working Voltage: DC 12V–24V, Max Current ≤30A
• Dimming Range: 0–100% stepless dimming, smooth and flicker-free
• Operation: Controlled by RF remote, easy to install and adjust brightness
• Stable Performance: PWM digital dimming, prevents inrush current and extends LED lifespan

Key Specifications

• Input Voltage: DC 12V–24V
• Input Current: ≤30A
• Max Power: 12V ≤360W / 24V ≤720W
• Dimming Range: 0–100% brightness adjustable
• Working Temperature: -20°C ~ 60°C
• Net Weight: 100g / Gross Weight: 110g
• Material: Metal Housing
• Dimensions: 85 × 66 × 20 mm
• Control Method: RF Remote (stepless dimming + dynamic modes)

Usage Notes / Installation Tips

• Ensure your LED strips are single color and operate within DC 12–24V
• Do not exceed 30A total load; use amplifiers if more strips need to be connected
• Check screw terminal wiring carefully to avoid polarity errors
• Install in dry and ventilated environments for best heat dissipation
• Keep remote within range; avoid obstacles for stable control

Applications

• Single color LED strips (5050/3528)
• Residential lighting: living rooms, bedrooms, kitchens
• Commercial spaces: shops, offices, restaurants
• Display cases and retail counters
• DIY LED dimming projects requiring high load capacity
