DC12V Aluminum Channel Rigid LED Strip Light - 14x7mm | SMD5730 72LEDs/M | 0.5M / 1M | Warm White / Daylight White | IP65 Waterproof | for Indoor & Outdoor Lighting | 10 / 50PCS
DC12V Aluminum Channel Rigid LED Strip Light - 14x7mm | SMD5730 72LEDs/M | 0.5M / 1M | Warm White / Daylight White | IP65 Waterproof | for Indoor & Outdoor Lighting | 10 / 50PCS
DC12V Aluminum Channel Rigid LED Strip Light - 14x7mm | SMD5730 72LEDs/M | 0.5M / 1M | Warm White / Daylight White | IP65 Waterproof | for Indoor & Outdoor Lighting | 10 / 50PCS
Package Included:
| Version | Package Included |
| 0.5M Warm White - 10PCS | 10pcs of the 0.5 Meter 3000K–3500K Warm White LED Rigid Strip |
| 0.5M Warm White - 50PCS | 50pcs of the 0.5 Meter 3000K–3500K Warm White LED Rigid Strip |
| 0.5M Daylight White - 10PCS | 10pcs of the 0.5 Meter 6000K–6500K Daylight White LED Rigid Strip |
| 0.5M Daylight White - 50PCS | 50pcs of the 0.5 Meter 6000K–6500K Daylight White LED Rigid Strip |
| 1M Warm White - 10PCS | 10pcs of the 1 Meter 3000K–3500K Warm White LED Rigid Strip |
| 1M Warm White - 50PCS | 50pcs of the 1 Meter 3000K–3500K Warm White LED Rigid Strip |
| 1M Daylight White - 10PCS | 10pcs of the 1 Meter 6000K–6500K Daylight White LED Rigid Strip |
| 1M Daylight White - 50PCS | 50pcs of the 1 Meter 6000K–6500K Daylight White LED Rigid Strip |
Order & Logistics:
- Lead Time: Typically 5–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features
-

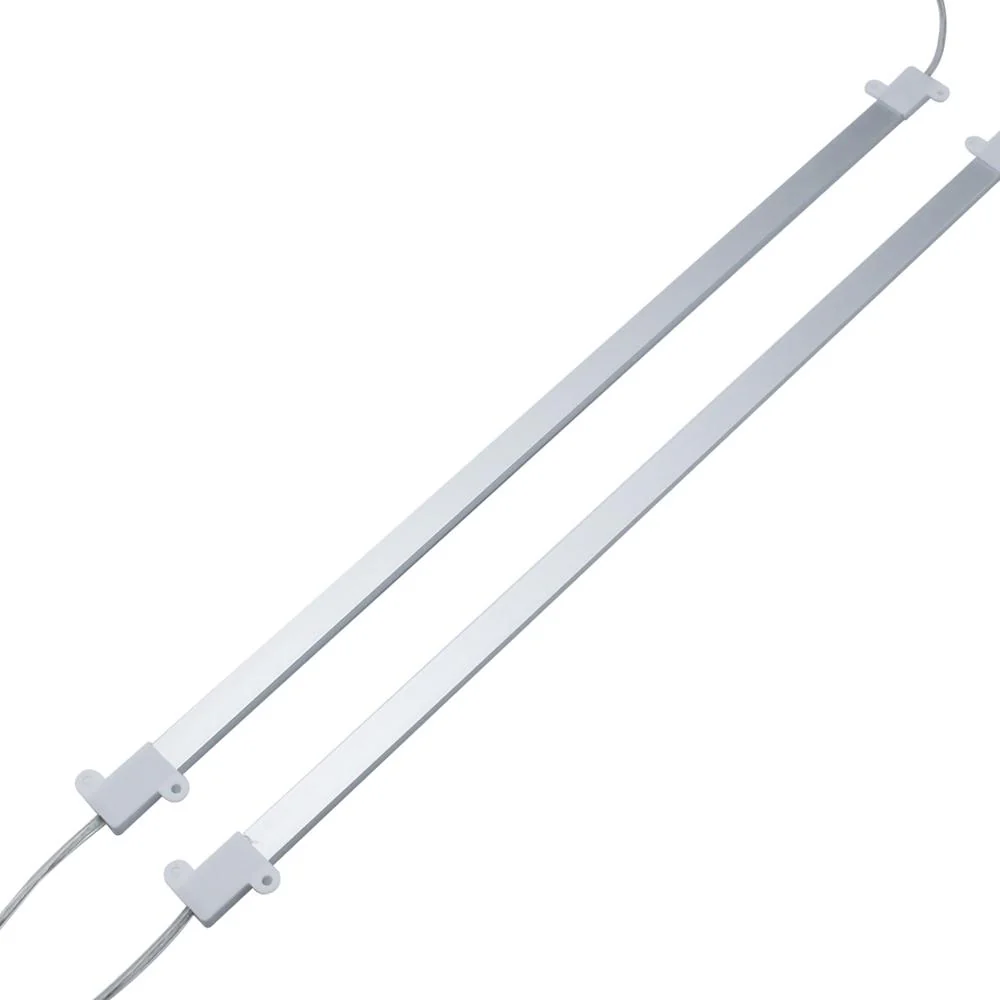

Aluminum Channel with Built-in Diffuser – Compact 14×7mm aluminum housing provides strong rigidity, effective heat dissipation, and a professional lighting finish.
-
Waterproof IP65 Rated – Silicone-sealed design protects against moisture and dust, ideal for kitchens, shop displays, or semi-outdoor covered spaces.
-

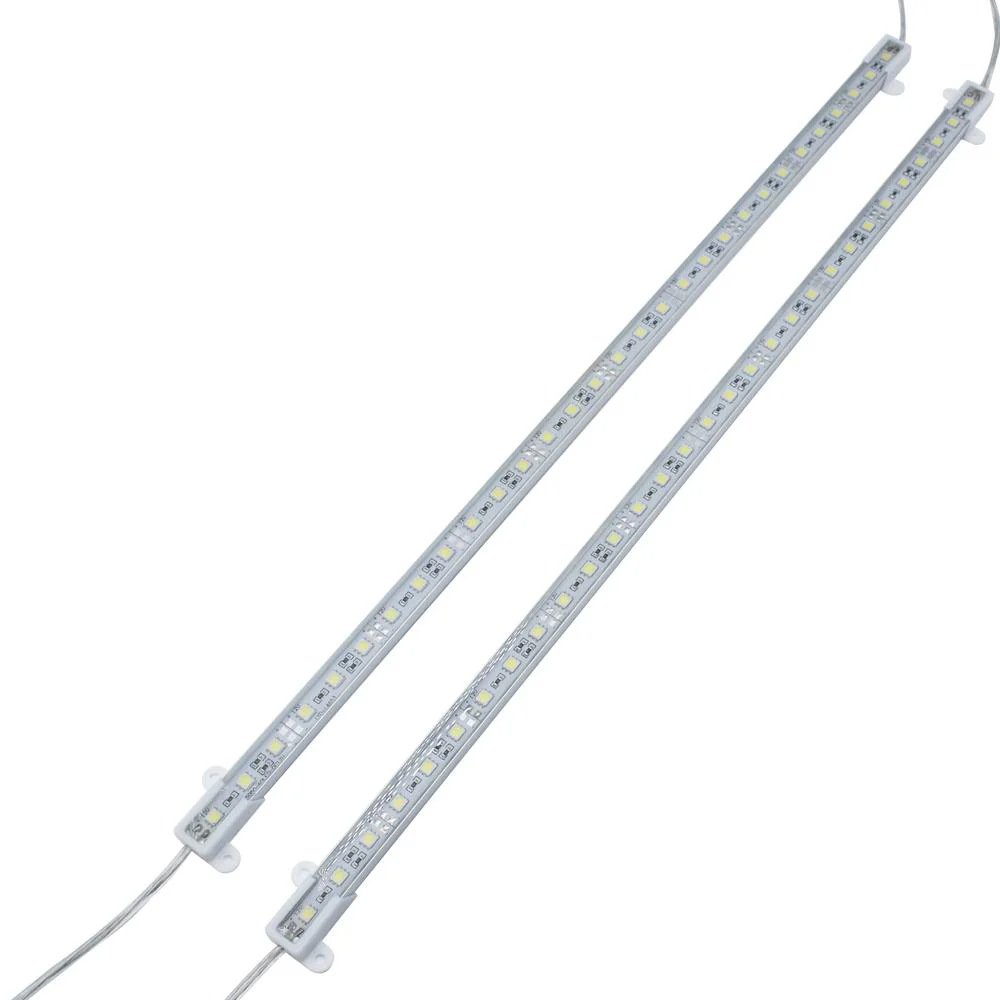

High-Efficiency 5630 SMD LEDs – Equipped with 72 high-lumen LED chips per meter for bright, even light output and superior color rendering.
-
Selectable Color Temperatures – Choose Warm White (3000K) for soft, cozy lighting or Daylight White (6000K) for clean, crisp illumination.
-
Multiple Length & Pack Options – Available in 0.5m (20") and 1m (40") lengths, with bulk pack options (10 / 50 pcs) to meet both DIY and commercial project needs.
Specification
| Specification | Details |
| Product Type | Rigid LED Strip Light with Aluminum Channel |
| LED Type | SMD5630 |
| LED Density | 72 LEDs per meter |
| Housing Dimensions | 14 × 7 mm (Aluminum + Diffuser) |
| Length Options | 0.5 m (20”) / 1 m (40”) |
| Voltage | DC 12V |
| Power Consumption | 9Watt for 0.5Meters; 18W for 1Mete |
| Color Temperature Options | Warm White (3000K) / Daylight White (6000K) |
| Beam Angle | 120° |
| Waterproof Rating | IP65 (Splash & Dust Resistant) |
| Material | Aluminum Channel + Silicone Cover + LED PCB |
| Operating Temperature | -20°C ~ +50°C |
| Package Quantity | 10 pcs / 50 pcs per pack |
| Certifications | CE, RoHS |
| Applications | Under-cabinet lighting, shop displays, signage, shelves, outdoor decoration |
NOTEs:

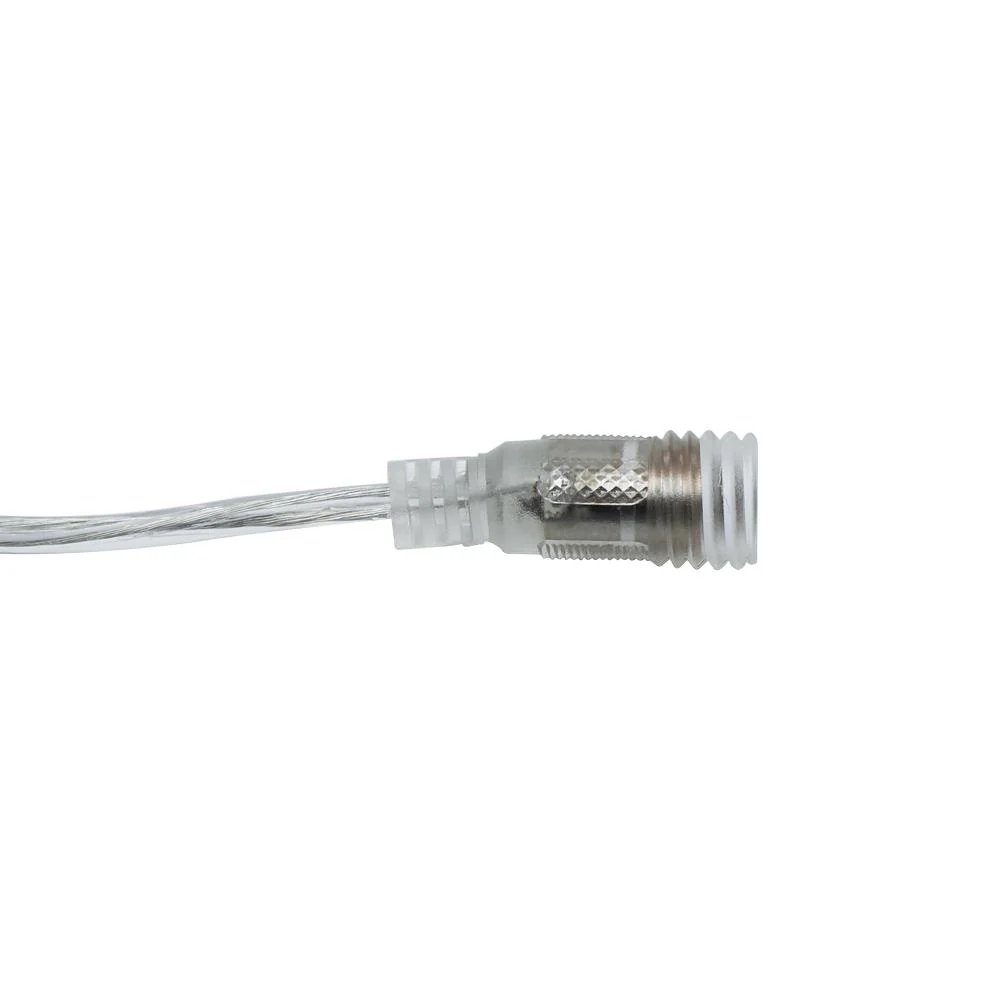

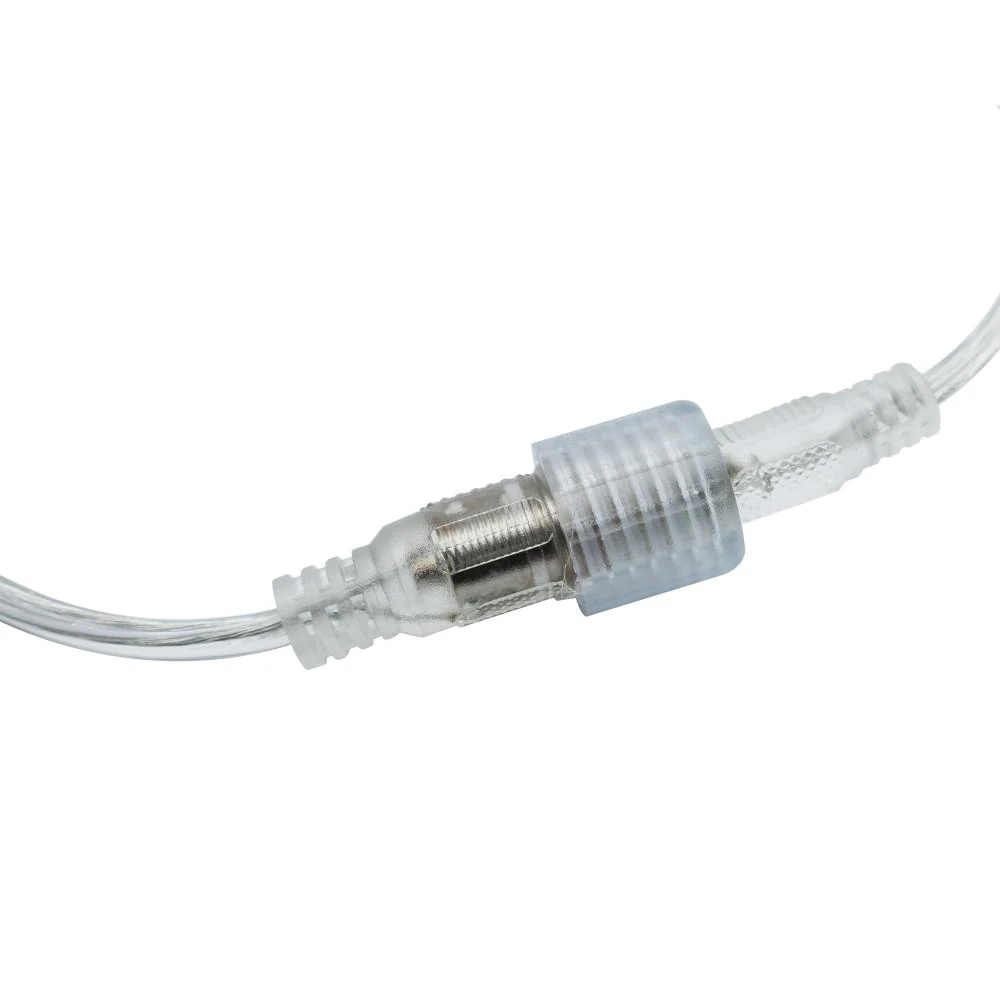

1. The LED light bar in Waterproof IP65 rated, the strip both ends are prewired with waterproof DC5521 female and male plug.
Wiring Tips
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
