AL-PRO Series Heavy Duty Panel Red Therapy Light – 1000W / 1250W | Dual Chip Red Light & Infrared | Touch Control with Timer & Pulse Dimming | Hanging/Mobile Stand/Electrical Mobile Stand Options| for Pain Relief & Skin Beauty
AL-PRO Series Heavy Duty Panel Red Therapy Light – 1000W / 1250W | Dual Chip Red Light & Infrared | Touch Control with Timer & Pulse Dimming | Hanging/Mobile Stand/Electrical Mobile Stand Options| for Pain Relief & Skin Beauty
AL-PRO Series Heavy Duty Panel Infrared Therapy Lamp – 1000W / 1250W | Dual Chip Red Light & Infrared | Touch Control with Timer & Pulse Dimming | 30° Lens | AC85–265V | Included Protective Goggles | for Skin Beauty | US / EU / UK / AU Plug
Description
1000 / 1250 pcs 5W LED (660nm Red + 850nm Near-Infrared)
-
Dual-Wavelength Red & Near-Infrared Output (660nm + 850nm, 1:1 Ratio)
High-performance 5W single-core LEDs deliver a balanced combination of 660nm red light and 850nm near-infrared light. Available in 1000 / 1250 LED configurations for versatile therapy applications from skin-level care to deep tissue recovery. -
High Power Output with Optional Pulse Dimming
Total power options: 1000W / 1250W (±5%). Adjustable brightness and pulsed light modes allow customization of intensity and therapy rhythm. -

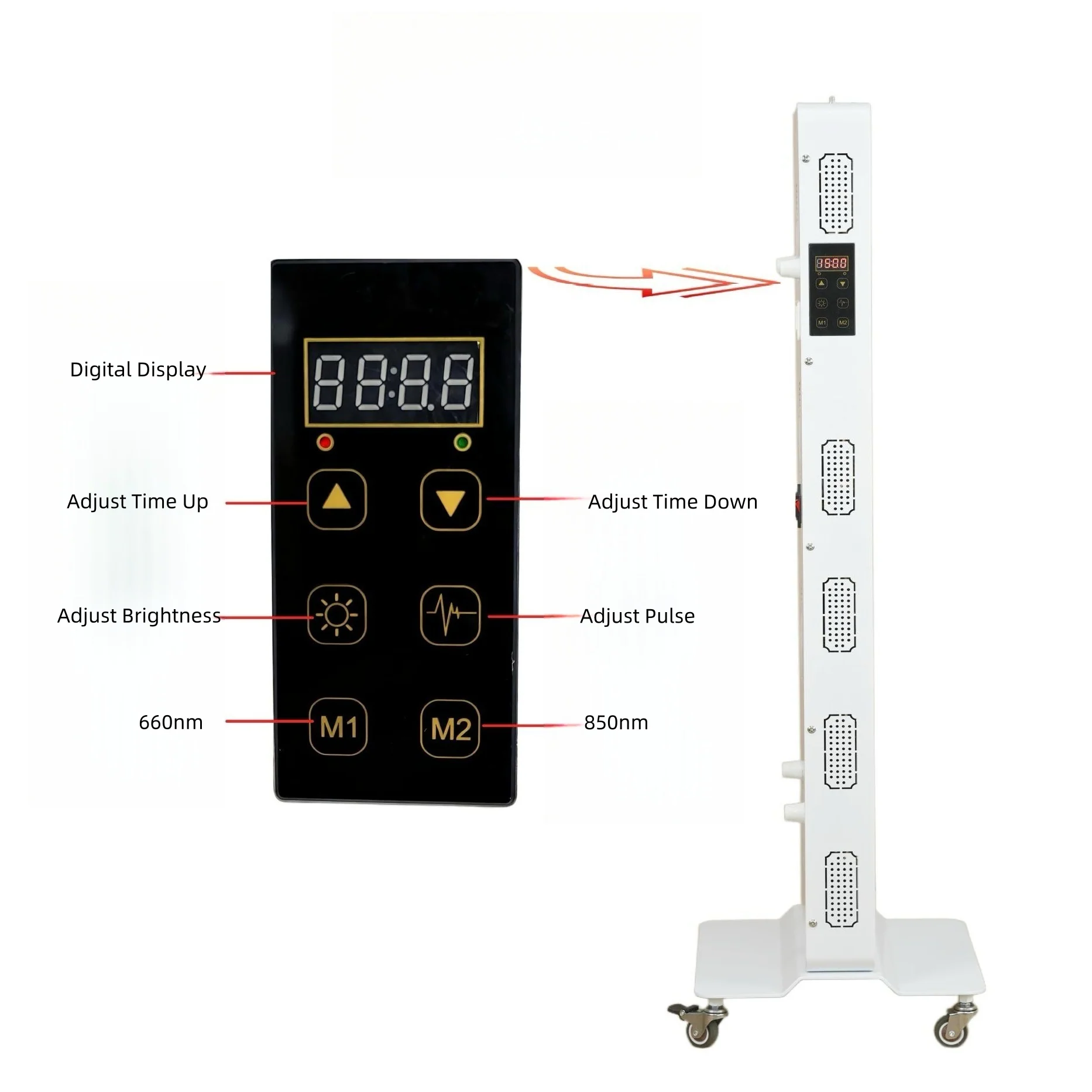

Multiple Lighting Modes & Built-in Touch Timer
Supports three selectable light modes:
– 660nm red light only
– 850nm near-infrared light only
– Red & near-infrared combined mode
Irradiance reaches over 170–200 mW/cm² at 6 inches (model dependent).
Integrated touchscreen timer allows preset session durations for safe and convenient daily use. -

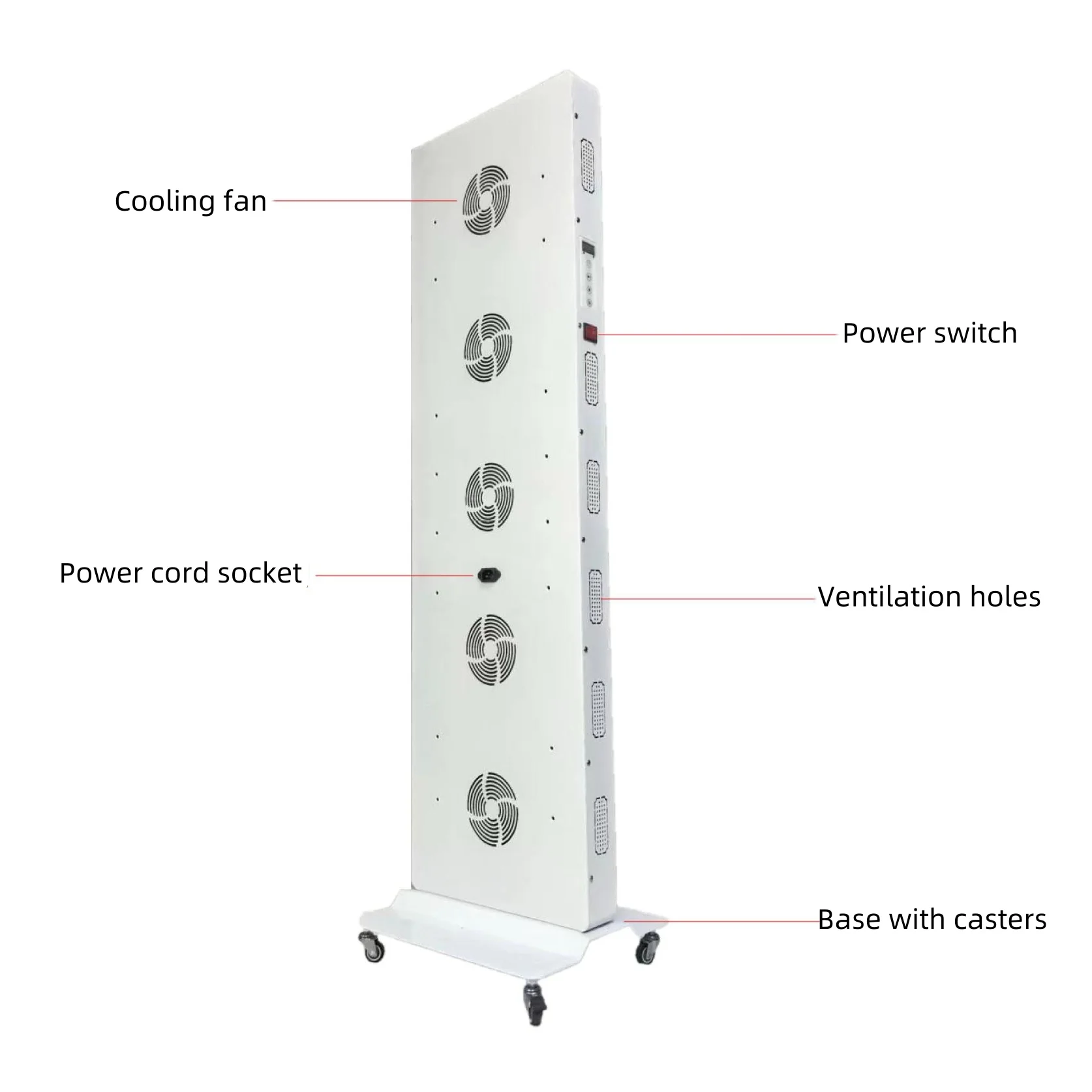

Flexible Installation: Hanging or Mobile Stand
Supports hanging installation or optional floor-standing mobile base with wheels, suitable for home, gym, studio, clinic, or wellness environments. -

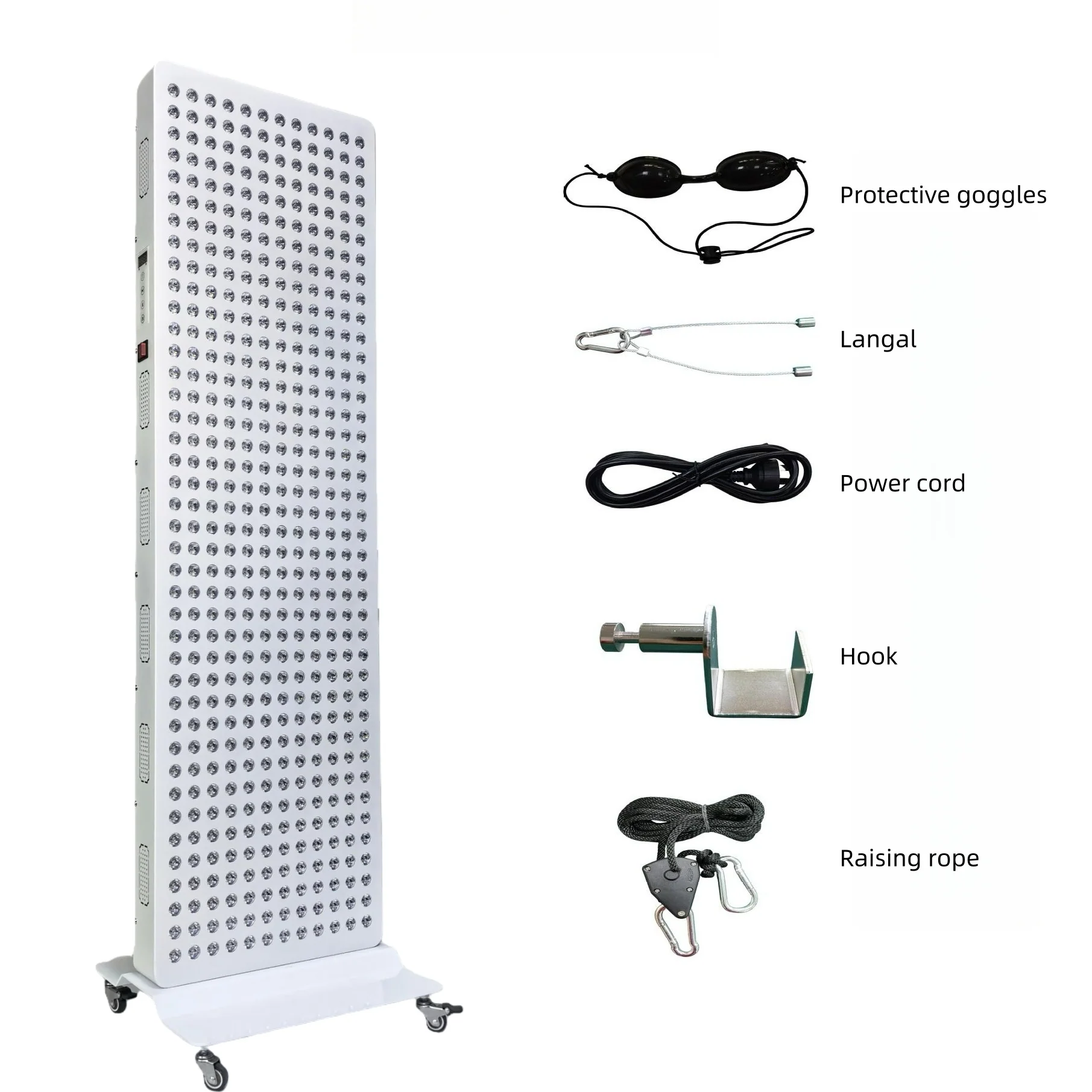

Complete Accessory Kit
Supplied with protective goggles, power cable, hanging rope, hooks, and lifting ropes — ready for immediate use.
Package Included:
| Power | Plug Type | Base Option | Package Included |
| 1000W | US/EU/UK/AU Plug | Without Base | Panel + Hanging Kit + Goggles |
| 1000W | US/EU/UK/AU Plug | With Mobile Base | Panel + Mobile Base + Hanging Kit + Goggles |
| 1000W | US/EU/UK/AU Plug | With Electrical Mobile Stand | Panel + Electrical Mobile Stand + Hanging Kit + Goggles |
| 1250W | US/EU/UK/AU Plug | Without Base | Panel + Hanging Kit + Goggles |
| 1250W | US/EU/UK/AU Plug | With Mobile Base | Panel + Mobile Base + Hanging Kit + Goggles |
| 1250W | US/EU/UK/AU Plug | With Electrical Mobile Stand | Panel + Electrical Mobile Stand + Hanging Kit + Goggles |
Specification:
| Item | Specification | |
| Model | AL-PRO4000 | AL-PRO5000 |
| Light Source | 5W Single-Core LED (Simulated Lumen) | |
| Wavelength | 660nm Red + 850nm Near-Infrared | |
| LED Quantity | 800 pcs | 1008 pcs |
| Switch System | Dual-Mode | |
| Timer Function | Yes (Touchscreen Control) | |
| Actual Power | 1000W ±5% | 1250W ±5% |
| Input Voltage | AC 85–265V, 50–60Hz | |
| Driver Power Supply | Isolated Constant Current | |
| Lens Angle | 30° | 30° |
| Housing Material | Alloy, Sandblasted White Finish | |
| Panel Dimensions | 1625 × 480 × 70 mm | 1830 × 530 × 70 mm |
| Standard Accessories | Power Cord, Suspension Rope, Hooks, Protective Goggles | |
| Unit Packaging Dimensions | 177 × 58 × 19 cm | 190 × 60 × 20 cm |
| Net Weight | 32 KGS | 38 KGS |
| Gross Weight | 35 KGS (Including Base) | 42 KGS (Including Base) |
Treatment
Distance: 6–18 inches
Treatment Time: 2–20 minutes depending on distance and goals
Frequency: Daily
DOWNLOAD
Product Reference Images (without Base)
1000W Infrared Therapy Lamp
1000 pcs 5W LEDs – high-output full-body infrared therapy
1250W Infrared Therapy Lamp
1250 pcs 5W LEDs – maximum power for deep tissue & professional use
Product Reference Images (with Mobile Base)
 |
 |
Product Reference Images (Electrical Mobile Stand)
| The electrical mobile stand support with remote control for height adjustment and manual adjustment for 360-degree rotation of the panel. Adjustable height range: 90-140cm. G.W. 20KGS，Packing Size: 1030*320*230mm |
|
Original: $2,490.00
-70%$2,490.00
$747.00
