30×20mm Quick Install Neon Light Housing - S3020-B With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Double-Chamber Top-Emitting Neon Diffuser | for Linear Architectural Lighting & Facade Lighting | 164FT/50M

Package Included

Version	Package Included
Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1)	50m with-edge silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10)	10 × 5m with-edge silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1)	50m edge-free silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10)	10 × 5m edge-free silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)

About this item

• Designed for ≤25mm LED Strip – S3020-B silicone housing supports LED strips up to 25mm wide, suitable for wider linear lighting installations.
• Two Structure Options – Available in With-Edge and Edge-Free versions to suit different mounting and appearance requirements.
• Double-Chamber Structure – Dual internal chamber design supports stable strip placement and defined top-emitting light output.
• Top-Emitting Design – Direct top light output helps create smooth and uniform illumination for linear architectural lighting and facade lighting.
• Wide Diffuser Surface – Broad emitting area helps form a continuous neon-style lighting effect for decorative and commercial projects.
• Flexible Silicone Material – Soft, bendable, and cuttable construction adapts to both straight and curved installation paths.
• Wide Lighting Applications – Suitable for linear architectural lighting, facade lighting, decorative linear lighting, and commercial ambient lighting.

Order & Logistics

• Lead Time: Ships directly from headquarters. Handling time 3–5 business days
• Packing: Cardboard box
• Shipping:

  This series enjoys our Free Shipping Policy for orders over $399.

Key Specifications

• Series: S3020-B
• Available Options: With-Edge / Edge-Free

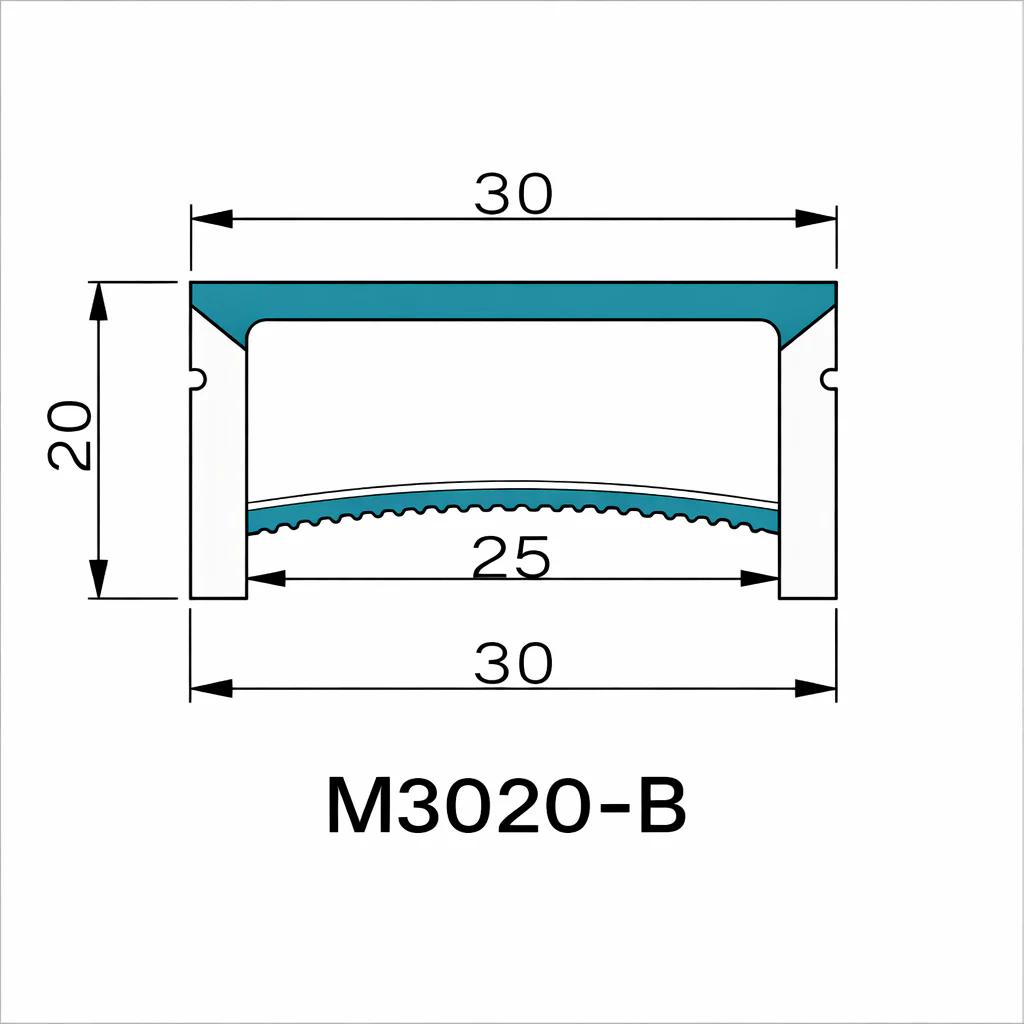

• Outer Dimensions: 30 × 20 mm (W × H)

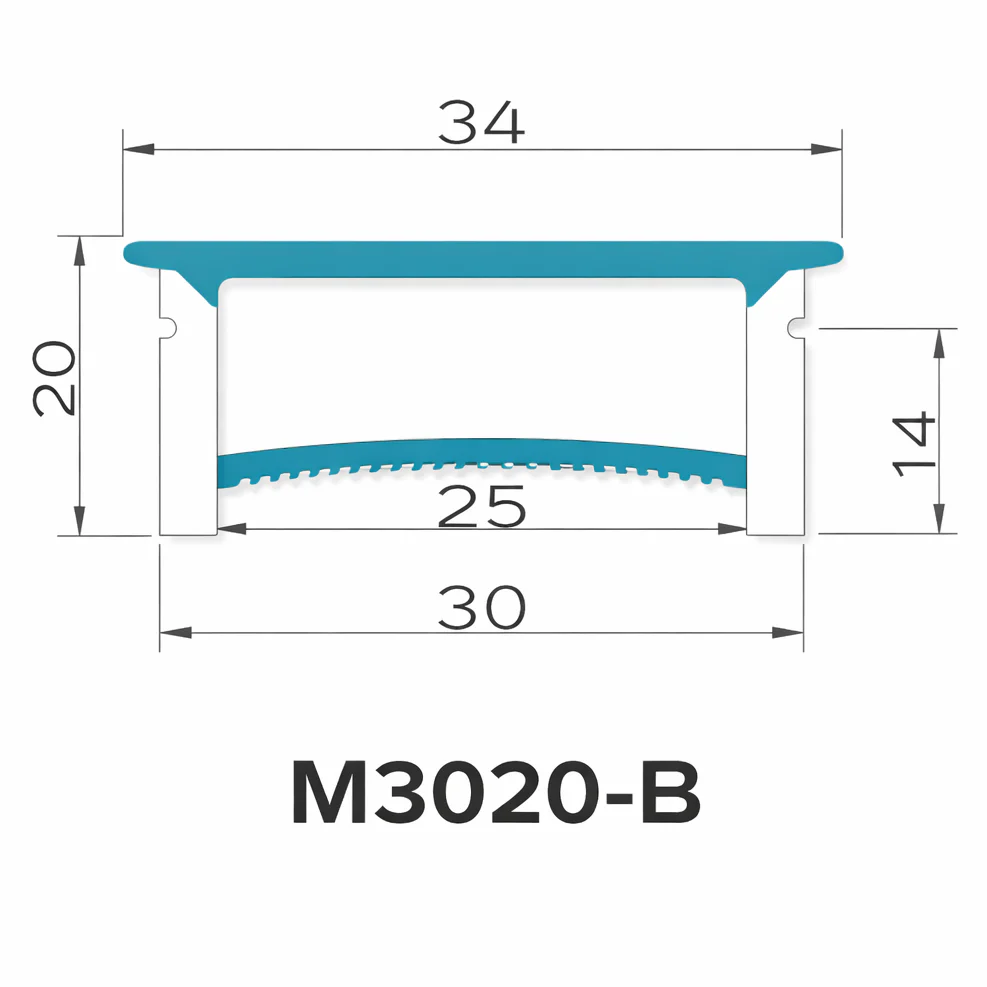

• Top Width: 34 mm (With-Edge) / 30 mm (Edge-Free)
• Bottom Width: 30 mm
• Inner Width: 25 mm
• Inner Height: 14 mm (With-Edge)
• Compatible LED Strip Width: ≤ 25 mm
• Lighting Direction: Top Emitting
• Structure: Double-Chamber Silicone Design
• Material: Silicone

Usage Notes / Installation Tips

• Confirm LED strip width does not exceed 25mm before installation.
• Select With-Edge or Edge-Free version based on mounting requirements.
• Use the pull cord to guide the LED strip through the housing smoothly.
• For long installations, two-person operation is recommended for better efficiency.
• Seal both ends with end caps if needed to improve durability.
• LED strip and power supply are not included.

Technical Specifications

Applications

• Linear architectural lighting
• Facade lighting
• Decorative linear lighting
• Commercial ambient lighting
• Interior accent lighting
