30×20mm Quick Install LED Neon Light Housing - S3020 Long-Side Silicone Cover LED Channel System | Max Strip Width ≤25 mm | Top-Emitting Neon Diffuser | for Retail Display Lighting, Showcase Lighting & Display Backlighting | 164FT/50M

Package Included

Version	Package Included
Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1)	50m long-side silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10)	10 × 5m long-side silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)

About this item

• Designed for ≤25mm LED Strip – S3020 Long-Side silicone housing is compatible with LED strips up to 25mm wide, suitable for wider linear lighting applications.
• Top-Emitting Structure – Direct top light output helps create smooth and uniform illumination for retail display lighting and showcase lighting layouts.
• Long-Side Silicone Cover – Extended top-side structure provides a wider light-emitting surface for more defined lighting edges and display backlighting effects.
• Quick Install Design – Built-in pull cord supports faster LED strip installation, improving efficiency during long-run projects.
• Flexible Silicone Material – Soft, bendable, and cuttable structure adapts to straight or curved layouts with ease.
• Wide Profile Design – 30mm base width supports stable installation while maintaining clean top-emitting light output.
• Wide Lighting Applications – Suitable for retail display lighting, showcase lighting, display backlighting, decorative linear lighting, and interior ambient lighting.

Order & Logistics

• Lead Time: Ships directly from headquarters. Handling time 3–5 business days
• Packing: Cardboard box
• Shipping:

  This series enjoys our Free Shipping Policy for orders over $399.

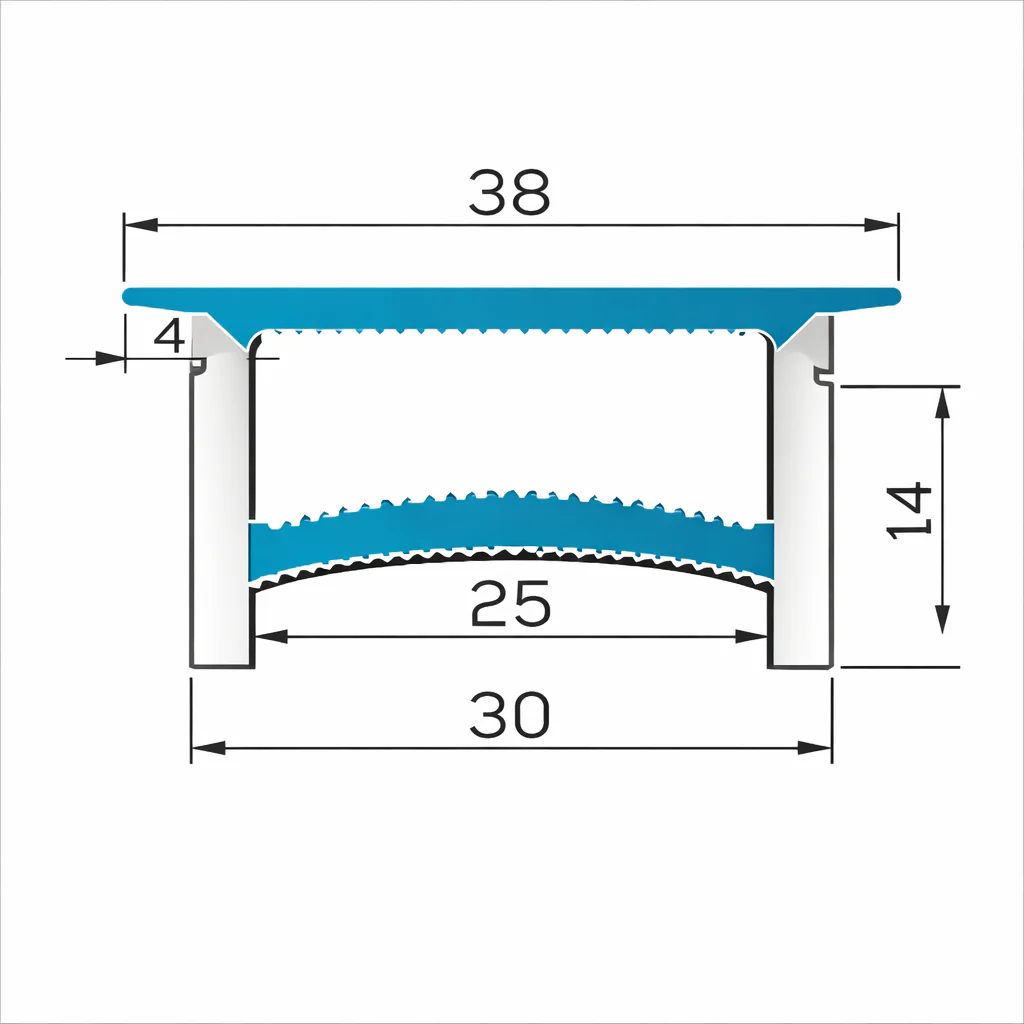

Key Specifications

• Model: S3020 Long-Side Silicone Cover
• Bottom Width: 30 mm
• Top Width: 38 mm
• Inner Width: 25 mm
• Inner Height: 14 mm
• Side Extension (Single Side): 4 mm
• Compatible LED Strip Width: ≤ 25 mm
• Lighting Direction: Top Emitting
• Material: Silicone

Usage Notes / Installation Tips

• Confirm LED strip width does not exceed 25mm before installation.
• Use the pull cord to guide the LED strip through the housing smoothly.
• For long installations, two-person operation is recommended for better efficiency.
• Check long-side orientation before final mounting.
• Seal both ends with end caps if needed to improve durability.
• LED strip and power supply are not included.

Applications

• Retail display lighting
• Showcase lighting
• Display backlighting
• Decorative linear lighting
• Interior ambient lighting
