20×20mm Quick Install Neon Light Housing - S2020-H Black Silicone Cover LED Channel System | Max Strip Width ≤16 mm | Double-Chamber Top-Emitting Neon Diffuser | for Architectural Cove Lighting & Commercial Display Lighting | 164FT/50M

Package Included

Version	Package Included
Compatible LED: ≤16mm Strip / Pack Size: 164FT (50M × 1)	50m black silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Compatible LED: ≤16mm Strip / Pack Size: 16.4FT (5M × 10)	10 × 5m black silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)

About this item

• Designed for ≤16mm LED Strip – S2020-H silicone housing is compatible with LED strips up to 16mm wide, suitable for stable installation in wider linear lighting applications.
• Double-Chamber Structure – Dual internal chamber design provides a defined profile structure for top-emitting lighting layouts and silicone channel stability.
• Top-Emitting Design – Direct top light output helps create smooth and uniform illumination for architectural cove lighting and commercial display lighting projects.
• Black Silicone Cover – Black silicone exterior supports a stronger visual profile for modern decorative lighting and commercial linear lighting applications.
• Quick Install Design – Built-in pull cord supports faster LED strip installation, improving efficiency during long-run projects.
• Flexible Silicone Material – Soft, bendable, and cuttable structure adapts to straight or curved layouts with ease.
• Wide Lighting Applications – Suitable for architectural cove lighting, commercial display lighting, decorative linear lighting, and interior ambient lighting projects.

Order & Logistics

• Lead Time: Ships directly from headquarters. Handling time 3–5 business days
• Packing: Cardboard box
• Shipping:

  This series enjoys our Free Shipping Policy for orders over $399.

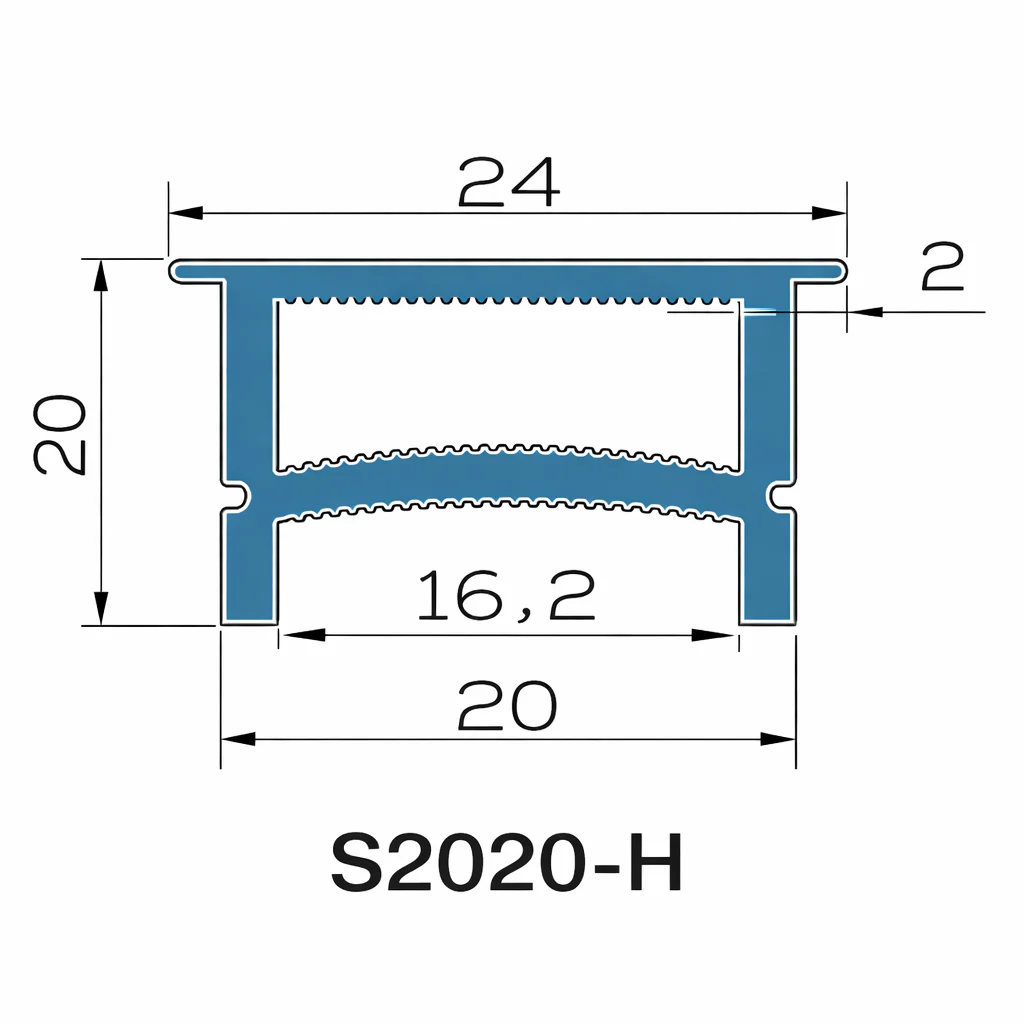

Key Specifications

• Model: S2020-H Black Silicone Cover
• Outer Dimensions: 20 × 20 mm (W × H)
• Top Width: 24 mm
• Bottom Width: 20 mm
• Inner Width: 16.2 mm
• Top Edge Thickness: 2 mm
• Compatible LED Strip Width: ≤ 16 mm
• Lighting Direction: Top Emitting
• Structure: Double-Chamber Silicone Design
• Material: 100% Silicone
• Color: Black Silicone Housing

Usage Notes / Installation Tips

• Confirm LED strip width does not exceed 16mm before installation.
• Use the pull cord to guide the LED strip through the housing smoothly.
• For long installations, two-person operation is recommended for better efficiency.
• Seal both ends with end caps if needed to improve durability.
• LED strip and power supply are not included.

Applications

• Architectural cove lighting
• Commercial display lighting
• Decorative linear lighting
• Interior ambient lighting
• Retail accent lighting
