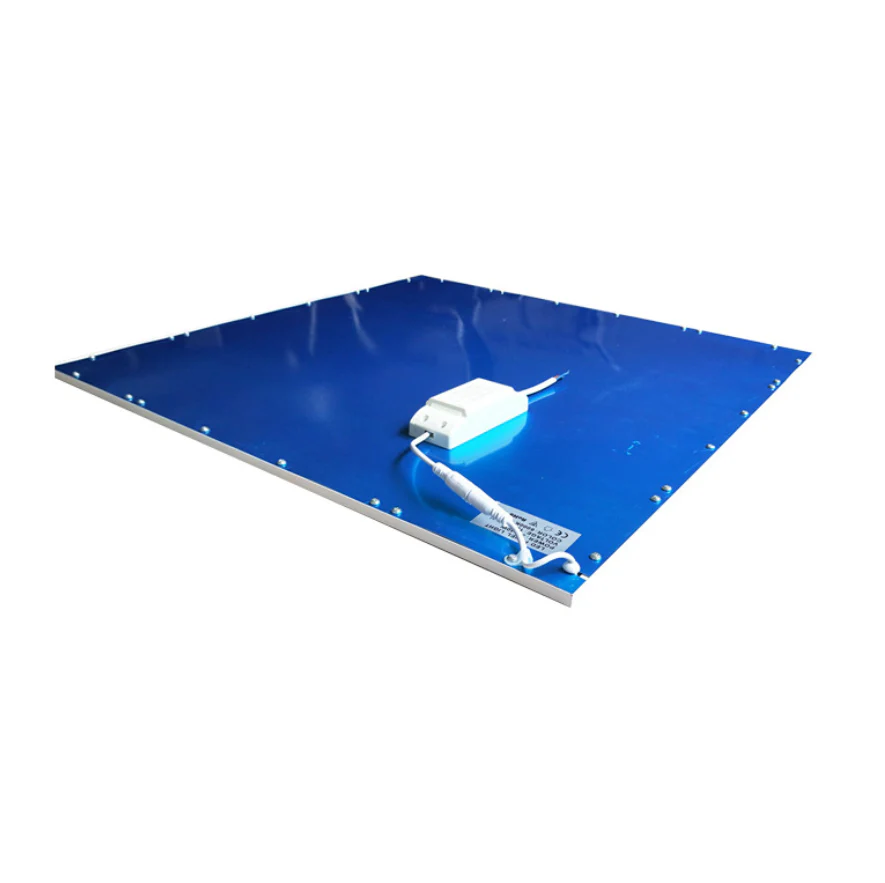

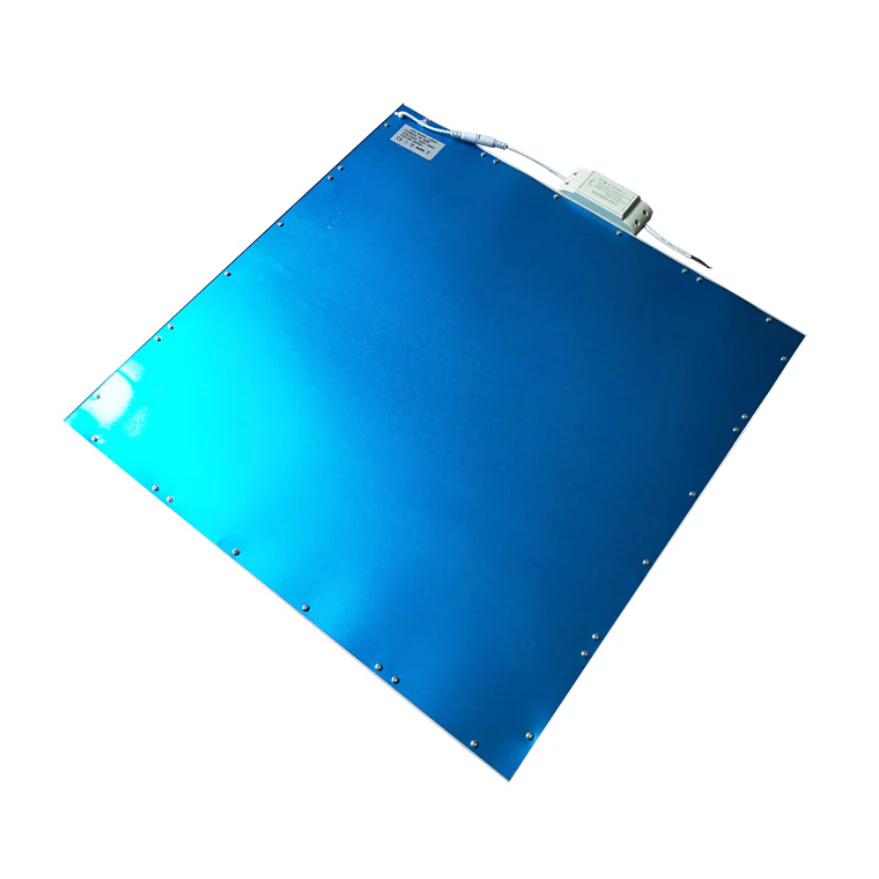

1'x1' (295x295mm) 12W LED Panel Light in 0.39'' (10mm) Thick White Trim Flat Sheet Panel Lighting Board Super Bright Ultra Thin Glare-Free
1'x1' (295x295mm) 12W LED Panel Light in 0.39'' (10mm) Thick White Trim Flat Sheet Panel Lighting Board Super Bright Ultra Thin Glare-Free
1'x1' (295x295mm) 12W LED Panel Light White Color in 0.39'' (10mm) Thick Low Profile White Trim Flat Sheet Panel Lighting Board Super Bright Ultra Thin Glare-Free
Basic Parameter
Item NO.:HK-PLG-1x1-X
Dimension:295mm x 295mm x 10mm
LED type: 2835SMD
Material: Aluminium + PMMA
Input Voltage: 100-240VAC
Output voltage: 28-36V~1.1A
Working temperature:-10°C~40°C
Installation method:Embedded/Hanging/Ceiling Surface Fixed
IP rate:IP41
N.W.(±0.1Kg):2.3Kg
Installation Method:
1. Pendant
2. Embedded
3. Ceiling surface fixed
Technical Parameter
LED Power:40 Watt
Beam Way: Beam at two sides
Photoelectricity Parameter
CCT .: 3000K-6500K
Flux.(±10%): 1100lm
Input Power: 12W
Light Efficiency(±10%): >90LM/Watt
CRI: Ra>80
Lighting Angle: 150°
PF: >0.9
Installation Method : Recessed into Ceiling
When purchasing panel lights, please confirm the installation method.
If it's a recessed installation, please specify the type of ceiling.
See the images below:
a. Recessed in a drywall ceiling
b. Recessed in an aluminum composite panel ceiling
c. The ceiling is a single suspended ceiling panel; additional holes need to be drilled to install panel lights.
If no specific request, usually we will send the LED panel light for "a" condition.
More Installation Method:
1. Pendant
2. Embedded
3. Ceiling surface fixed （need mounting bracket, not included, need purchase separately）
Description
1'x1' (295x295mm) 12W LED Panel Light White Color in 0.39'' (10mm) Thick Low Profile White Trim Flat Sheet Panel Lighting Board Super Bright Ultra Thin Glare-Free
Basic Parameter
Item NO.:HK-PLG-1x1-X
Dimension:295mm x 295mm x 10mm
LED type: 2835SMD
Material: Aluminium + PMMA
Input Voltage: 100-240VAC
Output voltage: 28-36V~1.1A
Working temperature:-10°C~40°C
Installation method:Embedded/Hanging/Ceiling Surface Fixed
IP rate:IP41
N.W.(±0.1Kg):2.3Kg
Installation Method:
1. Pendant
2. Embedded
3. Ceiling surface fixed
Technical Parameter
LED Power:40 Watt
Beam Way: Beam at two sides
Photoelectricity Parameter
CCT .: 3000K-6500K
Flux.(±10%): 1100lm
Input Power: 12W
Light Efficiency(±10%): >90LM/Watt
CRI: Ra>80
Lighting Angle: 150°
PF: >0.9
Installation Method : Recessed into Ceiling
When purchasing panel lights, please confirm the installation method.
If it's a recessed installation, please specify the type of ceiling.
See the images below:
a. Recessed in a drywall ceiling
b. Recessed in an aluminum composite panel ceiling
c. The ceiling is a single suspended ceiling panel; additional holes need to be drilled to install panel lights.
If no specific request, usually we will send the LED panel light for "a" condition.
More Installation Method:
1. Pendant
2. Embedded
3. Ceiling surface fixed （need mounting bracket, not included, need purchase separately）
