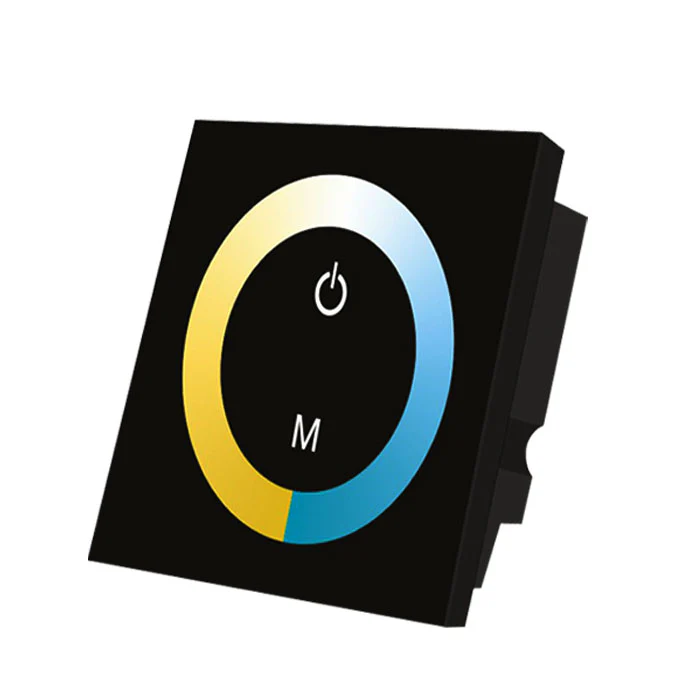

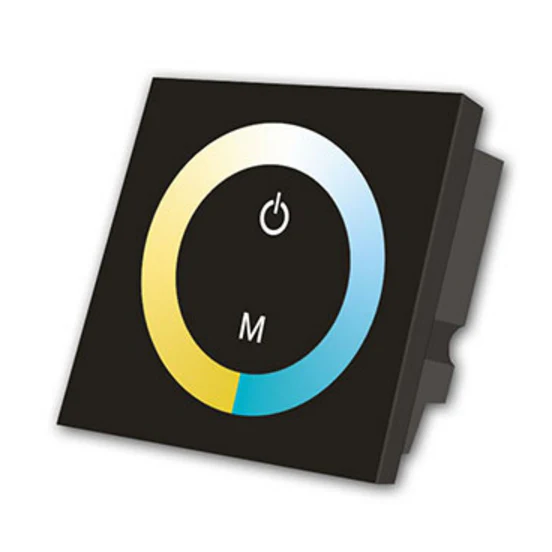

12V-24V DC Wall Panel Touchable Color Ring LED Controller | Dual White Color Temperature Adjustable | For LED Strips
12V-24V DC Wall Panel Touchable Color Ring LED Controller | Dual White Color Temperature Adjustable | For LED Strips
12V-24V DC Wall Panel Touchable Color Ring LED Controller | Dual White Color Temperature Adjustable | For LED Strips
Package Included
| Version | Package Included |
| 1-Pack | 1 × Wall Panel LED Controller (Black), 1 × User Manual |
| 1-Pack | 1 × Wall Panel LED Controller (White), 1 × User Manual |
About this item
- Wall-mounted LED controller with touchable color ring for dual white LED strips
- Supports DC12–24V input voltage with 2-channel output design

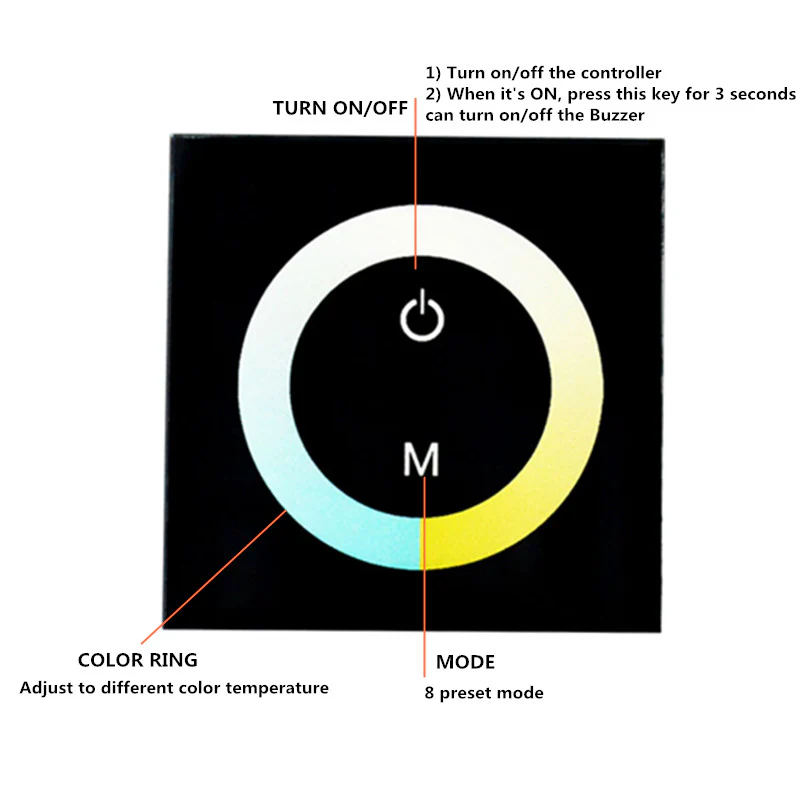

- Provides 8 pre-set brightness and color temperature modes
- Common anode connection mode for stable and efficient performance

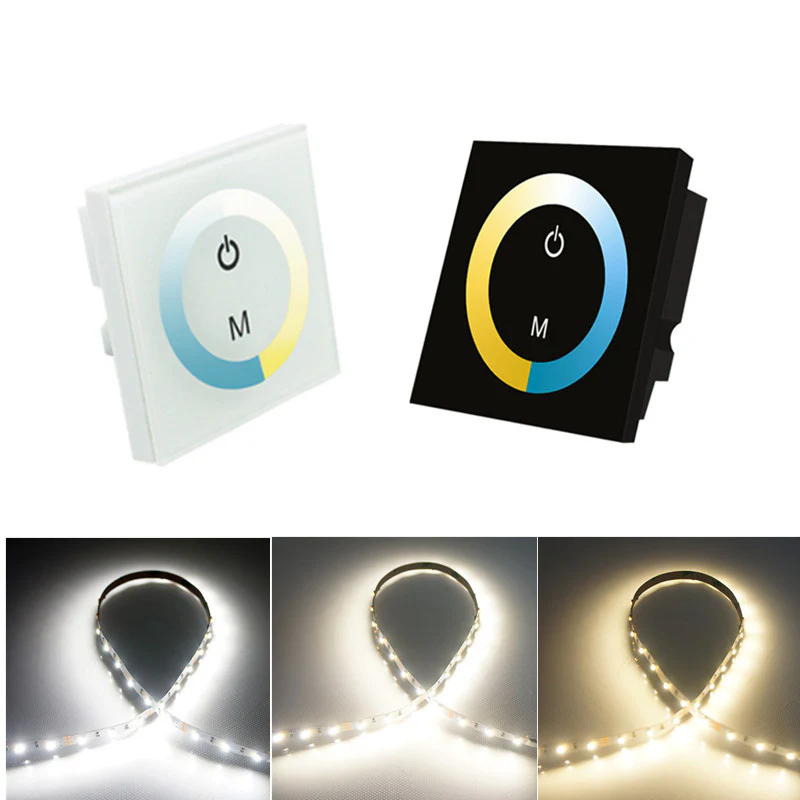

- Elegant wall panel design available in black or white, suitable for home and commercial use
- Compact structure with simple recessed installation and secure screw fixing
Order & Logistics
Lead Time
- Ships directly from headquarters. Handling time 3–5 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
- Packing: Cardboard box
Key Specifications
- Color Options: Black / White
- Pack Size: 1-Pack
- Input Voltage: DC 12–24V
- Output Channels: 2 Channels
- Connection Mode: Common Anode
- Pre-set Modes: 8 brightness/color temperature levels
- Control Type: Wall Panel with Color Ring
Usage Notes / Installation Tips
- Ensure power supply is DC12–24V before connecting
- Disconnect power before wiring to avoid short circuits
- Follow installation guide: connect wires, recess base into wall, secure with screws, reattach front panel
- Use only with compatible dual white LED strip lights
- Keep controller in a dry, ventilated environment to maintain performance
Technical Specifications
- Working Temperature: -20°C ~ 60°C
- Supply Voltage: DC 12–24V
- Output: 2 Channels
- Connection Mode: Common Anode
- Output Current: ≤4A per channel
- Output Power: ≤96W @12V / ≤192W @24V
- Static Power Consumption: <1W
- Dimensions: 86 × 86 × 36 mm
- Packing Size: 115 × 110 × 56 mm
- Net Weight: 130 g
- Gross Weight: 187 g
Applications
- Dual white LED strip lighting control
- Residential ambient lighting with adjustable brightness and color temperature
- Commercial spaces requiring wall-mounted touch control panels
- Ideal for bedrooms, living rooms, offices, and retail installations
Select Color Options
Select Pack Size
From $3.58
Original: $11.95
-70%12V-24V DC Wall Panel Touchable Color Ring LED Controller | Dual White Color Temperature Adjustable | For LED Strips—
$11.95
$3.58
