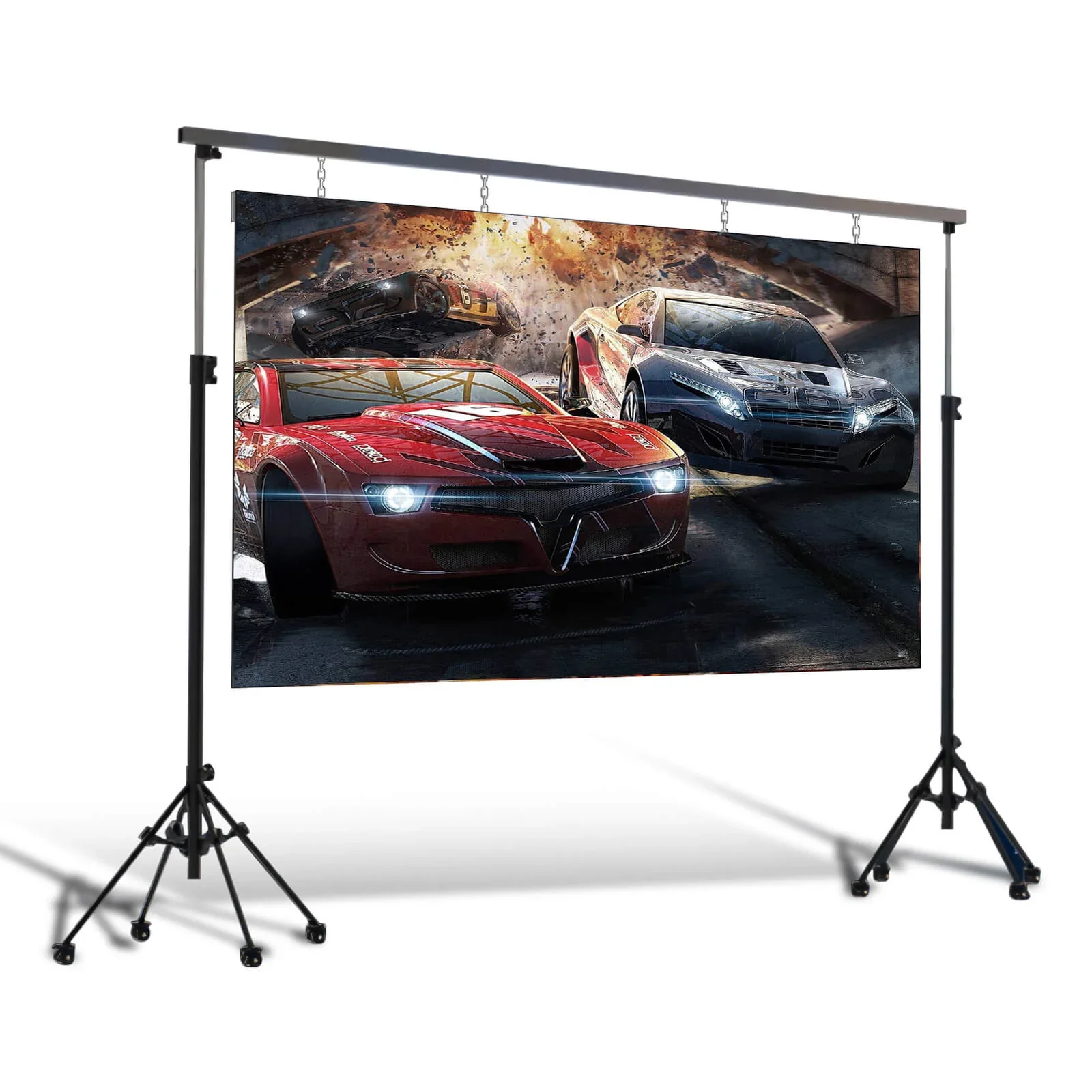

88 Inch Rolling TV P1.562 2x1 Meters 2SQM Portable LED Display Screen Kit

ORDERS & LOGISTICS

Lead Time: Standard 20 business days;
Packing: Air-flight Case
Free Shipping: SEA + TRUCK delivery to door; typical transportation time 30–35 days after flight
DDP TERM: All fees included; if unavailable in destination country, we will contact the buyer

PACKAGE INCLUDED

2x1Meters Rolling LED Display Screen 1 unit
Novastar Controller Box TB40 1 unit
Floor Stands 1 unit
Support Hooks 2pcs
Hanging Beam 1unit
Main Power Cable L=2000 mm, 1 pc
Main RJ45 Data Cable L=2000 mm,1 pc
Standard External Power Supply 1 unit
L type wrench Tool 1pc
LED Module Spare Part 2pcs
LED Module 5V cable and Flat Cable 1 set
Air-flight Case 1 unit

BUYING TIPS

LEDLightsworld TV rolling display with standard screen size for each unit is W2m x H1m, the current stands can't load the weight more than this size. If you want to make bigger rolling size, please contact us for customized Dynamic Digital Rolling Display with multiple pixel pitches.

PARAMETERS
P/N	RS-TV-2SQM-P1.562
Configuration	SMD1010
Surface Treatment	GOB
Pixel Pitch	1.5625mm
Module Size (mm)	W500 x H62.5 x D14mm
Module Resolution (pixels)	320 x 40 pixels
One Unit Screen Size (W x H)	2m x 1m
One Unit Display Resolution	1280 x 640 dots
Refresh Rate（Hz）	3840 Hz
Scan Mode	1/40
Brightness(cd/m2)	>600cd/m2
Viewing Distance (meter)	≥ 1.5m
Screen Weight (kg/㎡)	32kg per unit
Viewing Angle（°）	140°/140°
Input Voltage（V）	DC 24V/36V
Max Power Consumption	512w/sqm
Ave Power Consumption	170w/sqm
Does it support screen splicing?	Yes
Maintenance Way	Rear
Control System	Novastar Multi Media Player 1 set

FEATURES

Fine pixel pitch: P1.562: Small pitch pixel ensures the HD display, higher contrast and more realistic colors
GOB Technology (IK10 &IP65) : Surface safety with IK10 anti-collision grade and IP65 Waterproof grade, also with Non-slip mat and anti-reflection.And high visual performance (with high contrast LED for uniform visual performance in black)are considered.
Built-in receiving card: save space.
6063 Aluminum module case : Aluminum case adopts stretching process, which makes sure the accurate size and have the best heat dissipation from the LED.
Low voltage input : :Low voltage 24V/DC input for every unit screen ensures safer use.
Free installation and easy maintenance : lts simple structure allows for easy installation and quick maintenance.
LOOK FOR ROLLING TV

HOW TO INSTALL THE ROLLING TV

MORE ABOUT ROLLING LED DISPLAY SCREEN

Rolling LED Display Screen

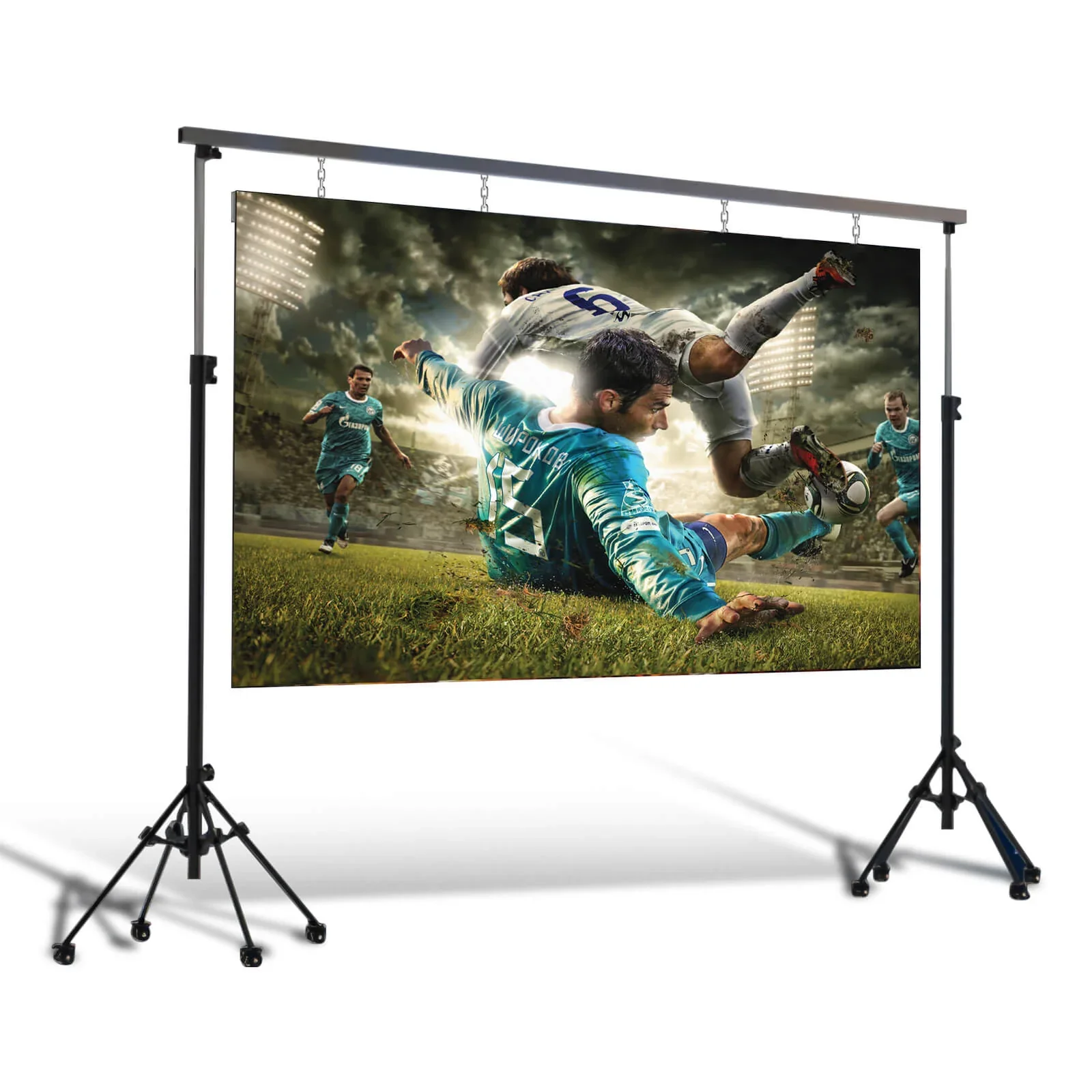

88 Inch Rolling TV P1.25 2x1 Meters 2SQM Portable LED Display Screen Kit
