Product Overview

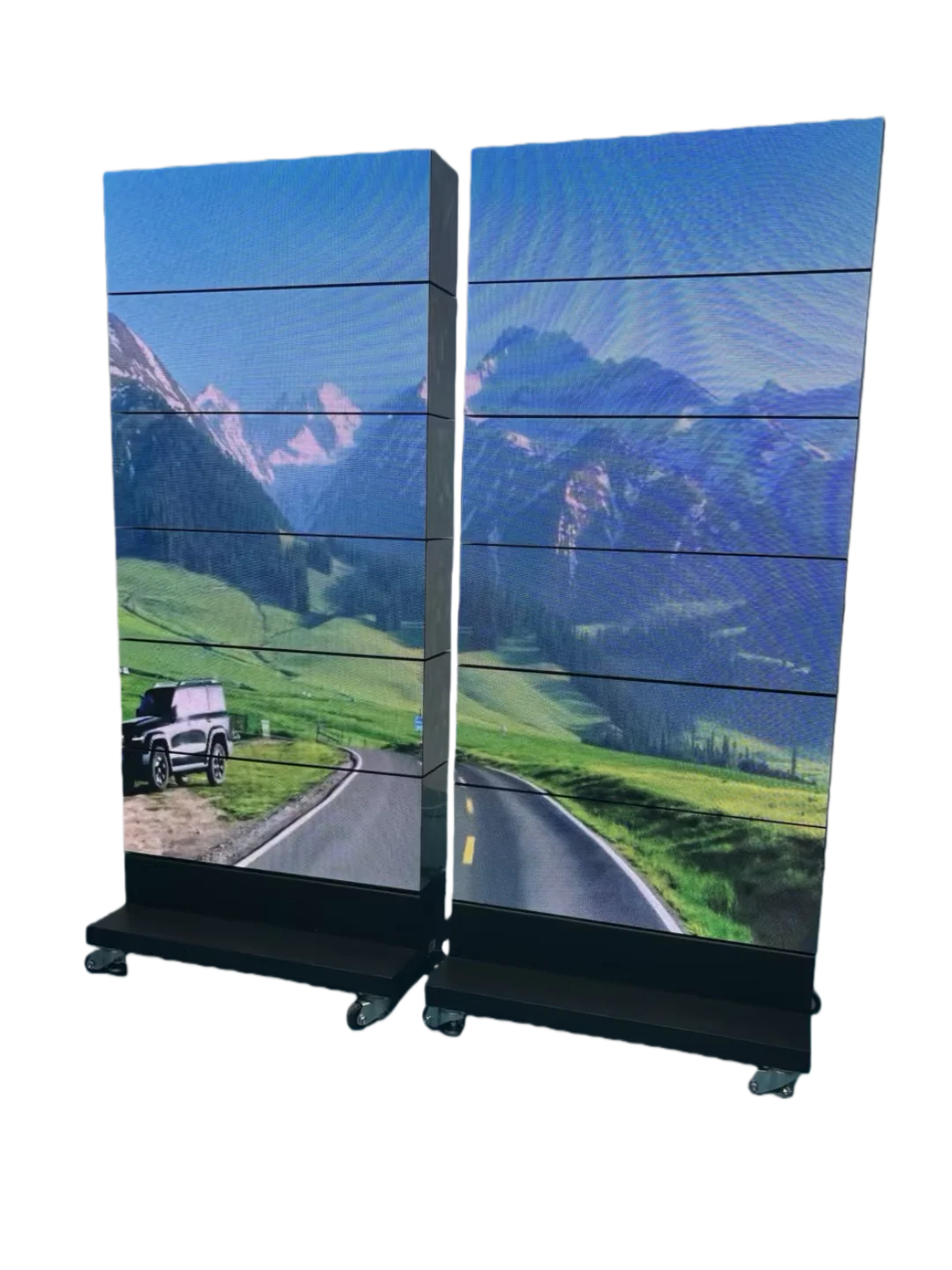

The MR-2FR Series is a standardized 360° mechanical rotating LED display with a double-sided rectangular screen design, engineered for stable commercial deployment and scalable installations.

Each screen layer rotates smoothly via an intelligent mechanical system, creating eye-catching motion while maintaining clear, high-resolution visual output. With flexible layer configuration and reliable structure, MR-2FR is ideal for projects that require cost control, fast delivery, and repeatable deployment.

Key Features

360° Mechanical Rotation
Programmable rotation patterns including synchronized or independent layer movement.
Double-Sided Rectangular Display
Maximizes visibility from multiple directions, ideal for open public spaces.
Scalable Layer Design
- Standard: 6 layers
- Customizable up to 12 layers
Professional Control System
- LED display controlled by NovaStar system
- Mechanical rotation controlled via remote controller
Front Maintenance Design
GOB LED modules fixed by magnets for fast front-access servicing.

Technical Highlights

Layer Size:	2 Faces * W750 x H250 mm
Max Layer QTY.:	Up to 12, can make to request
Base Size:	725x725x220 mm
Pixel Pitch:	P2.5 \| P1.9 \| P1.5
Brightness:	>600 Nits
Refresh Rate	3840HZ
Input Voltage	100-240V AC
Maximum Rotating Angle	360 Degree
Control System	Novastar for Screen, Remote for Mechanical Rotation

Recommended Applications

Shopping malls
Transportation terminals
Commercial atriums
Retail brand displays

Delivery Model

✔ Standardized configuration available
✔ Custom layer quantity & structure supported

Mechanical Rotating LED Display

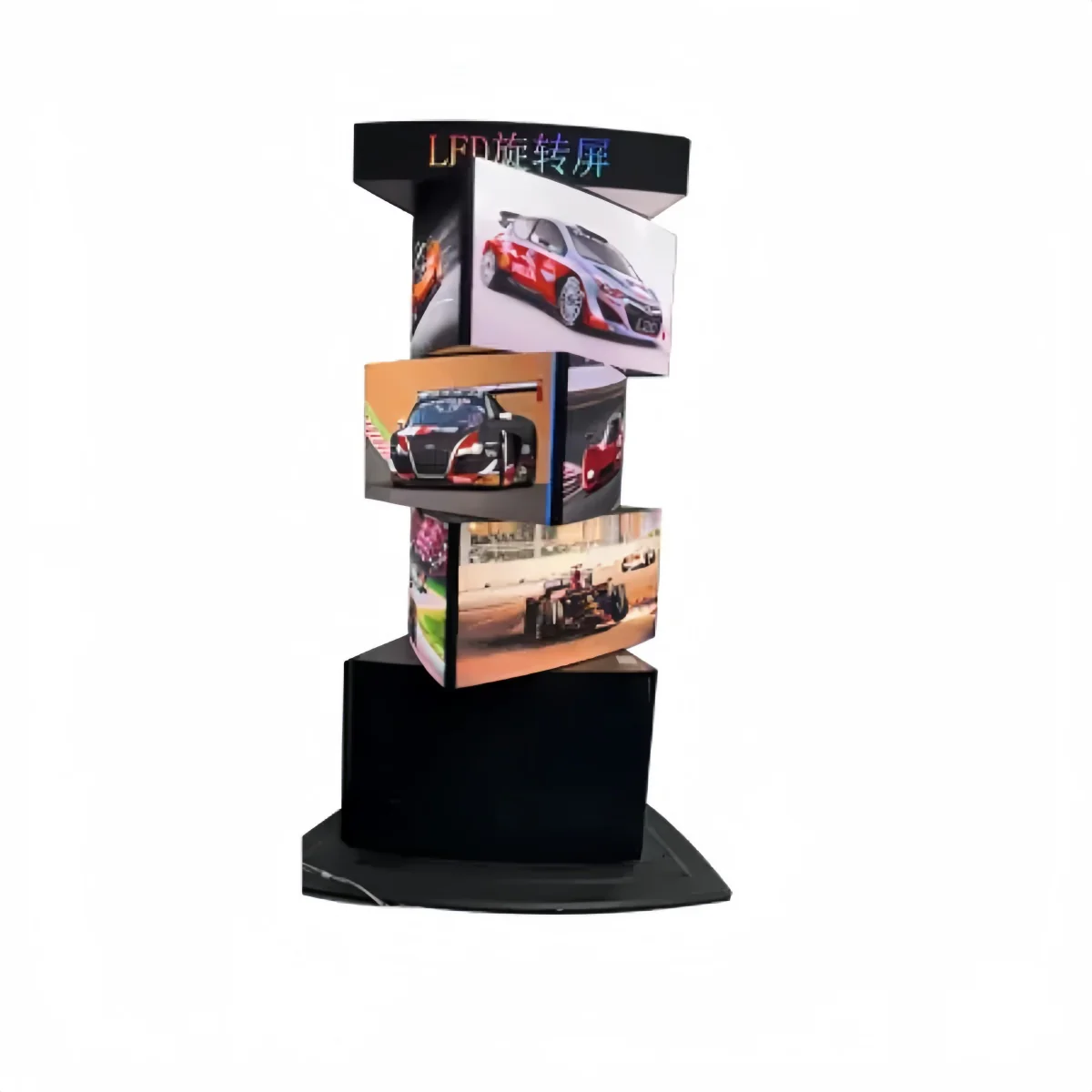

MR-3FL Series Multi-Face Mechanical Rotating LED Display 4 Layers LED Poster (Three-Sided + Top )
