19.68FT by 9.84FT (6x3 Meters) Portable Rolling LED Display Screen P2.604 LED Video Wall Turnkey

NOTE: The price in this page, the shipping include is by SEA +delivery, 35-40days in transportation. If need fast shipping by AIR, please help to contact for cost.

SPECIFICATION
Mode	GOB-R2.604-18SQM
Pixel Pitch	2.604mm
Screen Size	19.68FT by 9.84FT - (H) 3m X(W) 6m
Screen Area	18m²
LED Configuration	SMD1515
Pixel Density	147456 dots/m²
Module Size	500x62.5 (mm)
Module Resolution	192x24
Screen Resolution	2304x1152
Scan Mode	24S
Brichtness	700~1000nits
Viewing Angle	140°
Color Depth	12-16bit
Colors	4096 -65,536
Refresh Frequency	3840HZ
Thickness	30mm
Weight:	15KG/SQM
Controller	Sending Box NOVASTAR VX600
IP rating	IP65(front)/IP21(rear)
Application	Indoor or dry location
Input Voltage	100-240V AC
Max. Power Consumption	510 Watt/m²
Avg. Power Consumption	170 Watt/m²
Life Span	100,000 Hours
Maintenance Way	Front /rear

PACKAGE INCLUDED
#	Item	QTY.	Unit
1	P2.604 Rolling Floor LED Screen body (W6*H3m)	18.0	m2
2	Power Supply -QianYuan-2000W-24V with suitcase	6	pcs
3	Sending Box NOVASTAR VX600	1	pcs
4	Hanging Bar (aluminum 1meters/pc)	6	pcs
5	Left and right splice strips	5	set
6	Flight Case	3	pcs
SPARE PARTS
#	Item	QTY.	Unit
1	Module	18	pcs
2	Receiving Card	6	pcs
2	24V Cable	2	pcs
3	Flat Cable	40	set
4	Signal Cable	4	set
5	Left and right splice strips	2	set
6	Configuration File	1	set

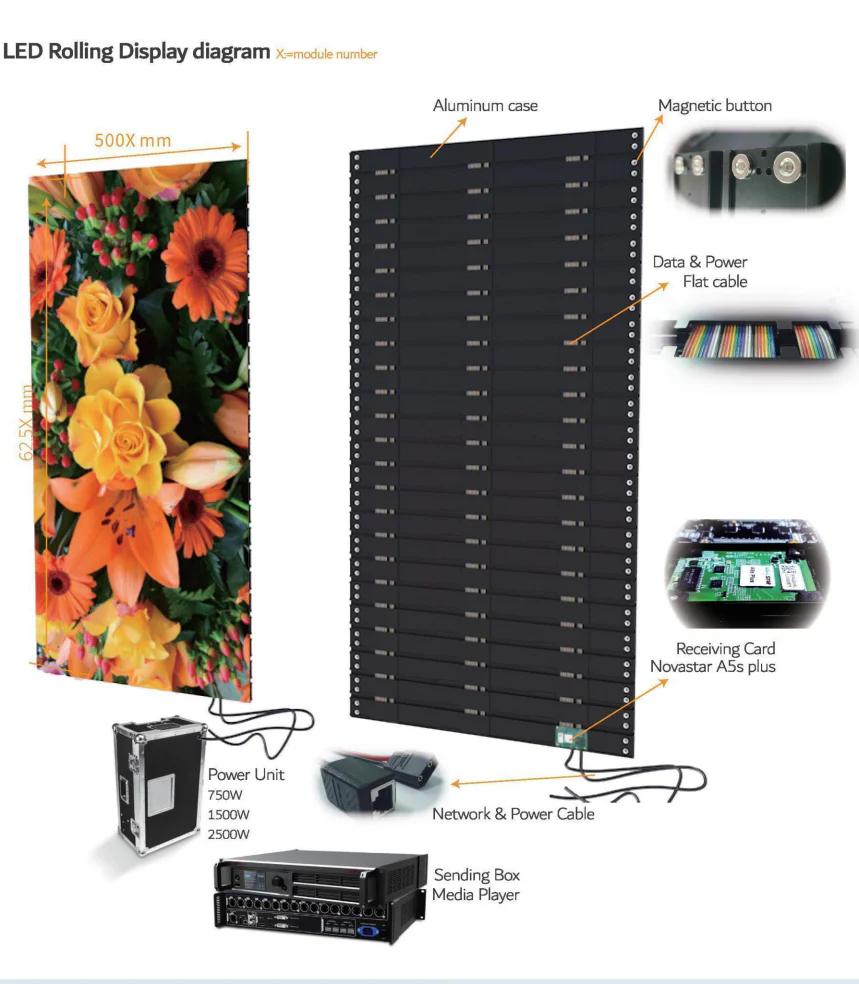

Rolling LED Display Screen Catalog

FEATURES

Fine pixel pitch: P2.604: Small pitch pixel ensures the HD display,higher contrast and more realistic colors
GOB Technology (IK10 &IP65) : Surface safty with IK10 anti-collision grade and IP65 Waterproof grade,also with Non-slip mat and anti-reflection.And high visual performance (with high contrast LED for uniform visual performance in black)are considered.
Built-in receiving card: save space.
6063 Aluminum module case : Aluminum case adopts stretching process,which makes sure the accurate size and have the best heat dissipation from the LED.
Low voltage input : :Low voltage 24V/DC input for every unit screen ensures safer use.
Free installation and easy maintenance : lts simple structure allows for easy installation and quick maintenance. Hanging, ideal for overhead truss system, a
ceiling grid, a crane, or other support structure from above.; Wall Mountable, stickable compatible surface.
Low voltage input ：Low voltage 24V/DC input for every unit screen ensures safer use.
